Basic performance:
1. Specification of equipment ：
Maximum cutting size：1100*1400mm
Workbench height：900±30mm.
Equipment weight：1.5T.
Cutting thickness∶0.2~8mm
2.Cutting Parameters∶
Parallel straight line error：≤±0.08mm/m
Diagonal accuracy：≤±0.15mm/m
The speed of cutting bridge∶0~80m/min.(Adjustable)
The accelerated speed of cutting bridge≥3.0m/s²
The speed of chuck block≥80m/min
The accelerated speed of chuck block≥6.0m/s²
Cutter head positioning accuracy ≤±0.001 mm
Power：
Install power：380V/50HZ
Actual power：4KW。
Compressed air：0.6MPA.
Equipment characteristic
Equipment frame: The equipment is treated with aging to ensure that the table is free of deformation, and that the parallelism is accurate

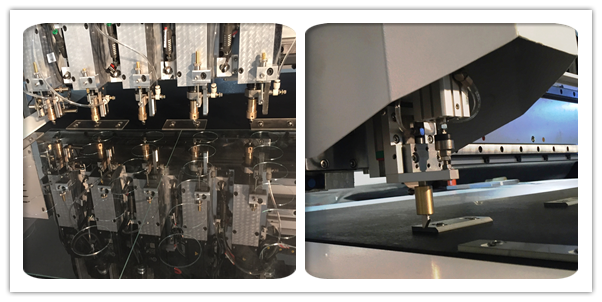

Cutter holder: the cutter head can be rotated 360 degrees. The upper and lower cutting can cut any straight line and all kinds of special-shaped glass
Table：0 grade Marble
Oil supply：Automatic pneumatic oiling, same time with down cutter, Dual oil control, kerosene and cutting oil can be used simultaneously. Conveyor: air flotation
Mechanical part
Guild rail：Taiwan, grinding grade. Taiwan Silver
Cutter wheel / wheel clamp: Japan, NIKKEN;
service life 3 - 50 thousand meters / handle (straight line)
Bearings: Japan NSK
Supply 3 cutters, the cutter details according to cutomers’glass thickness. Cutting thickness and cutter wheel matching suggestion:
Electrical part
Direct control using brand computers, Microsoft windows interface Voltage: 380V/50HZ. equipment, with variable pressure device
Motor: Japan Yaskawa servo motor.400、850 watts
Proximity switch: Import
Control card: American imports, Galil, the card has serial number, you can search online to identify its authenticity
Card function description, will be randomly distributed a tutorial material. The content is very large!
The main electric elements: AC contactor relay and Japan; Schneider of France.
Pneumatic proportional valve: Japan SMC
Software
Combination with the motion control software
Optimization software and production management software can be used in conjunction with the Internet
It has the function of down knife protection。
With automatically calculate capacity function
With more than two thousand kinds of cutting Gallery (can facilitate drawing and operation)
AUTOCAD Drawing software is compatible.
The optimized software is directly compatible with the cutting software It has automatic correction function to ensure cutting accuracy
Cutting path selection function to ensure optimum cutting speed
Automatic debugging cutting knife pressure, fast accurate and stable.
Cutting pressure automatically, can effectively guarantee the cutting effect quickly
The origin correction function. Can set origin second time.
Operation input: the keyboard and mouse. Chinese/English dialogue interface
With functions of cutting knife pressure automatic mediation, to ensure optimal cutting effect.
Special-shaped template scanning: with a variety of (including special-shaped) template for point by point scanning into CAD graphics function
