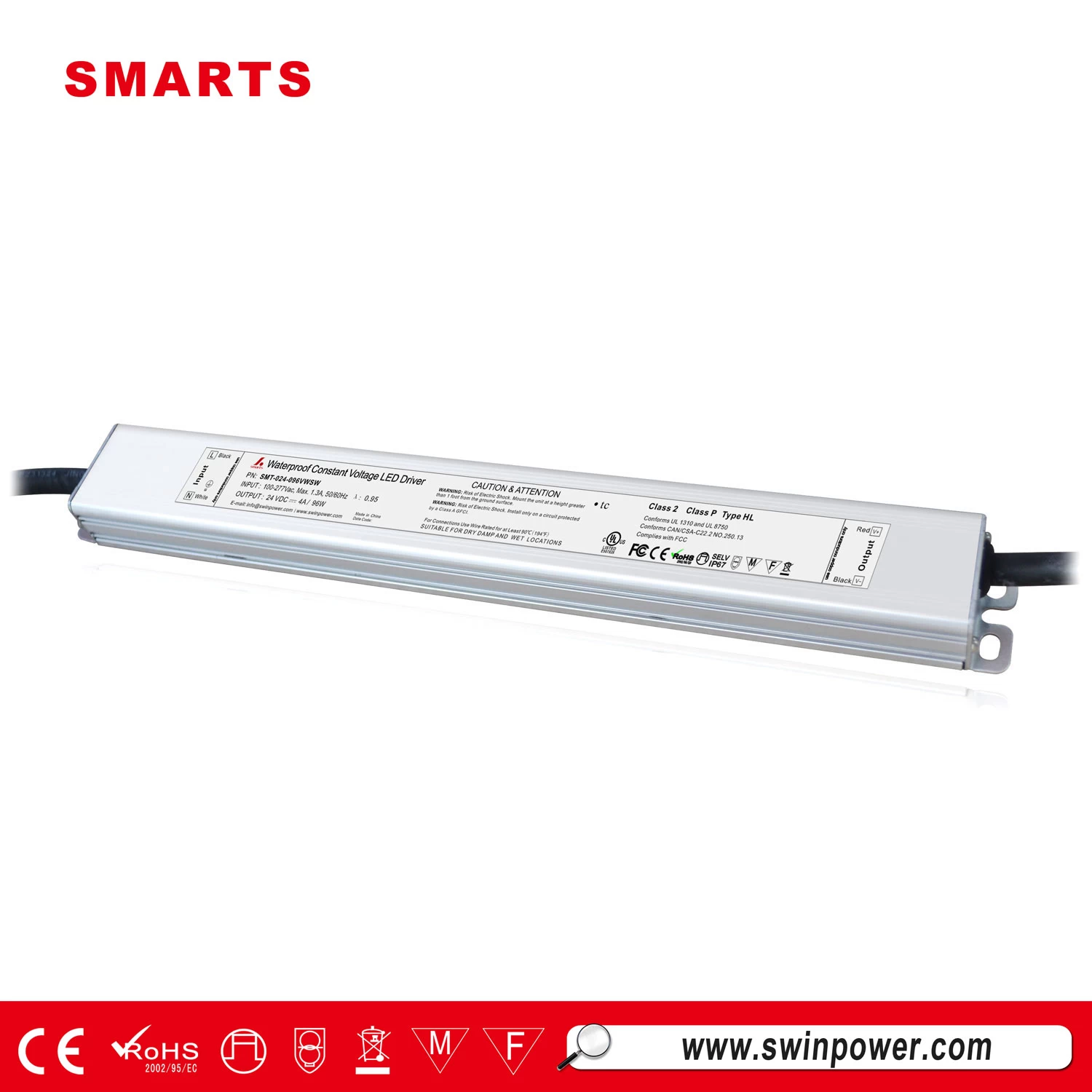

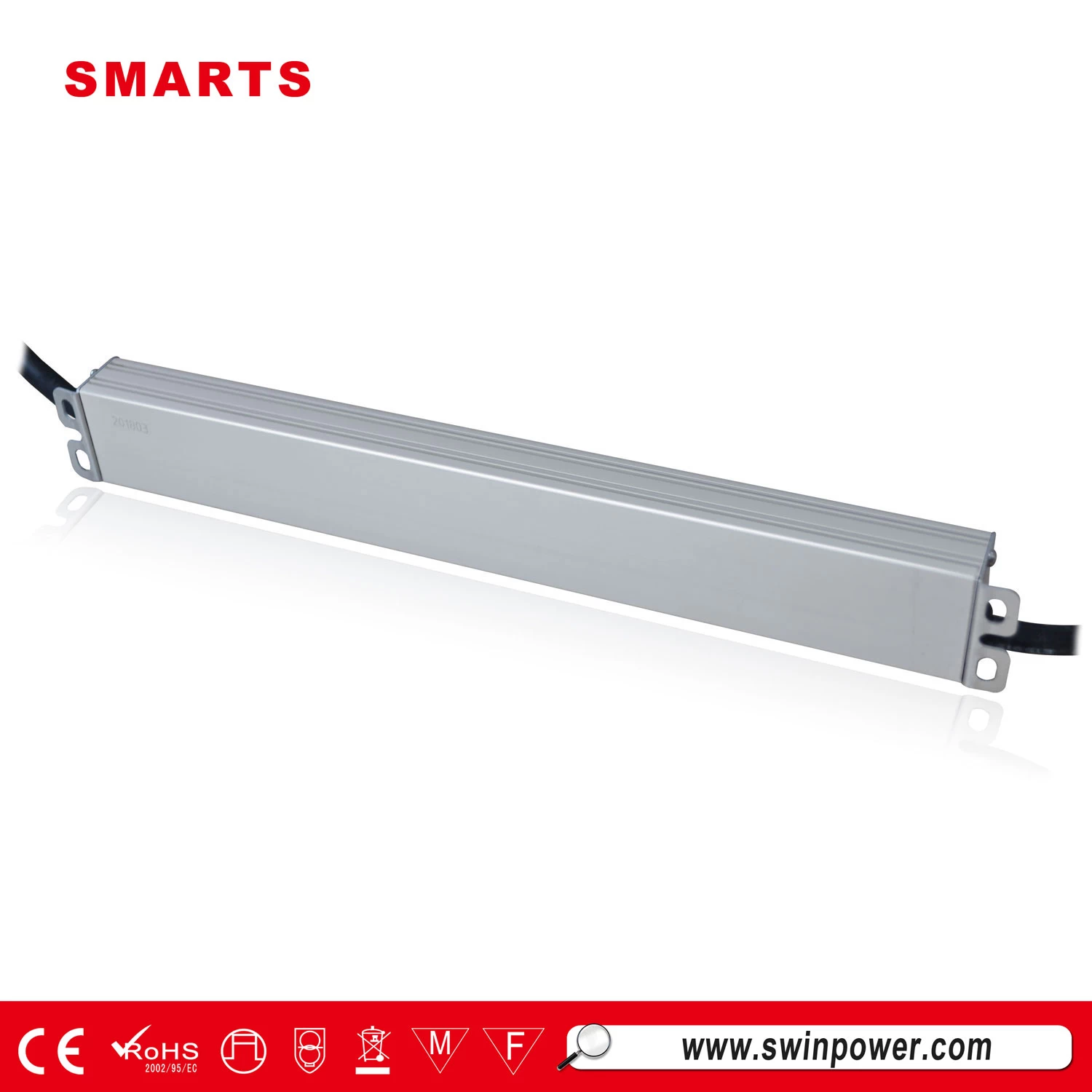

ultra thin led driver outdoor ip66 12v 24v 36v 100w slim for led ceiling light
Ultra slim type 100W , 100-277VAC constant voltage non dimmable LED driver, with 12v, 24v, 36, 48v output voltage, 7 years warranty, 1pc/white box +5pcs /Standard Outer Carton. high quality and excellent packing,
Specification
|
model
|
SMT-012-100VWSW
|
SMT-024-096VWSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
|
Rated power
|
100W
|
96W (class 2)
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
|
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
83%@120VAC; 85%@230VAC; 85%@ 277VAC
|
|
|
AC Current（Typ.）
|
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
|
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
|
Leakage current
|
<0.50mA
|
Features
·UL, cUL listed, Class 2, Class P, CE, ROHS approval
·Built-in PFC function / Efficiency > 84% / PF> 0.99
·Protections:short circuit/over voltage/over heat
·IP67 design
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output
·Full protection aluminum housing, for dry, damp, wet location

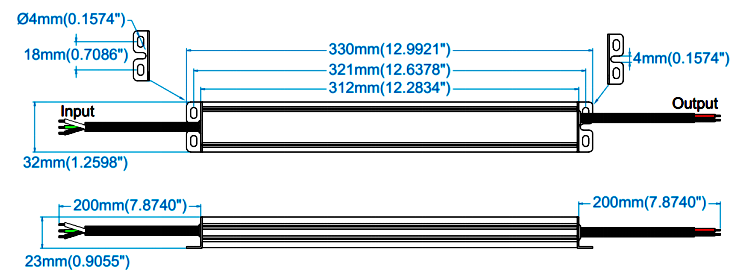

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（Possitive +）,Black is（Negative -）
What is the definition of Type HL driver power supply?
LED drive power for hazardous (grading) locations (power supply must be fully gummed)
LED drivers with "Type HL" markings can be used directly for installation of l terminal lamps in hazardous (graded)
locations without further evaluation
The Type HL of the actuator is defined in the UL8750, which, in a nutshell, can be installed in a Class I Division 2
Class of Hazardous Location lamps
