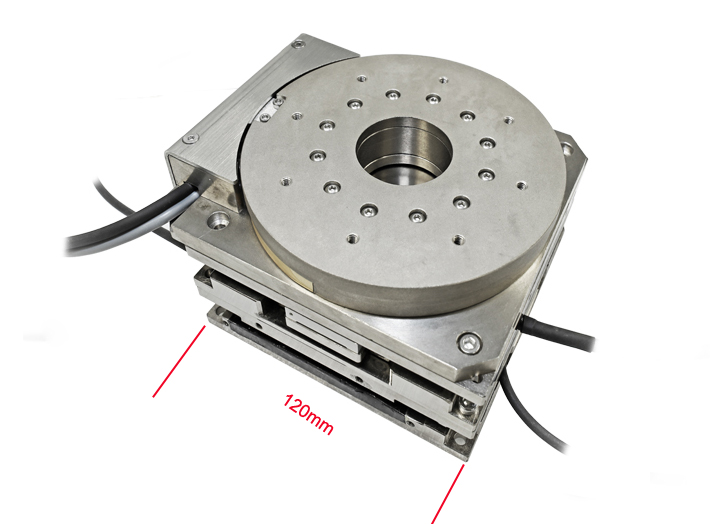

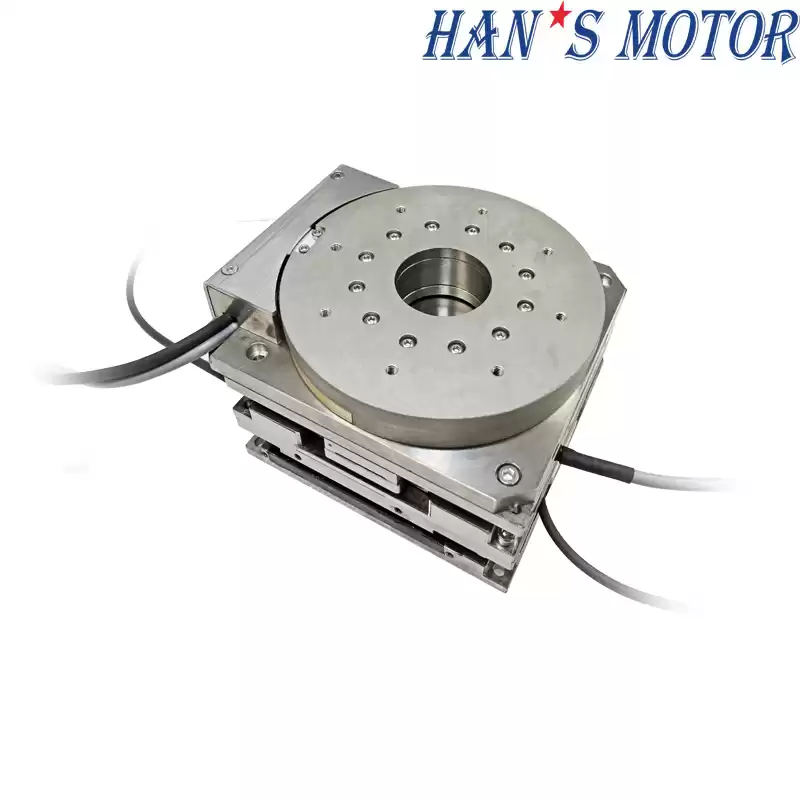

Product name:Ultra-thin micro XYθ 3 axis linear motor positioning platform
Characteristic:
1. Ultra-thin micro-linear motor positioning stage
2. 13mm traveling distance
3. Built-in high precision grating, repeated positioning accuracy up to ±0.1um
4. Typical application areas: suitable for sub-micron positioning, optical counterpoint
Model Naming:
LMA120-25-25-T-XXX-A
XXX = G01: Grating feedback, resolution: 0.1μm
G05: Grating feedback, resolution: 0.5μm
Stage Specifications
X aixs (lower aixs)specifications |
||
|
Units | Value |
Continuous Force (Tmax) |
N | 17 |
Peak Force |
N | 85 |
Continuous Current (Tmax) |
Arms | 0.5 |
Peak Current (1S) |
Arms |
2.5 |
Max. Load |
kg |
4 |
Effective Stroke |
mm | 25 |
Resolution |
μm |
0.1 |
Max.Speed(1) |
mm/s |
700 |
Repeat accuracy |
μm |
±0.5 |
Y aixs (upper aixs)specifications |
||
Continuous Force (Tmax) |
N | 17 |
Peak Force |
N |
85 |
Continuous Current (Tmax) |
Arms |
0.5 |
Peak Current (1S) |
Arms | 2.5 |
Max. Load |
kg |
4 |
Effective Stroke |
mm | 25 |
Resolution |
μm |
0.1 |
Max.Speed(1) |
mm/s |
700 |
Repeat accuracy |
μm |
±0.5 |
T aixs (rotation aixs)specifications |
||
Continuous Force (25℃,±5%) |
Nm |
0.4 |
Peak Force |
Nm | 1.2 |
Continuous Current (Tmax) |
Arms | 1.3 |
Peak Current (1S) |
Arms |
3.9 |
Max. Load |
kg | / |
Max.Speed |
Rpm | 120 |
Repeat accuracy |
arc sec |
±2 |
Stage weight | kg | 5.5 |
Working environment temperature
and humidity
|
0-40℃、20-80%RH |

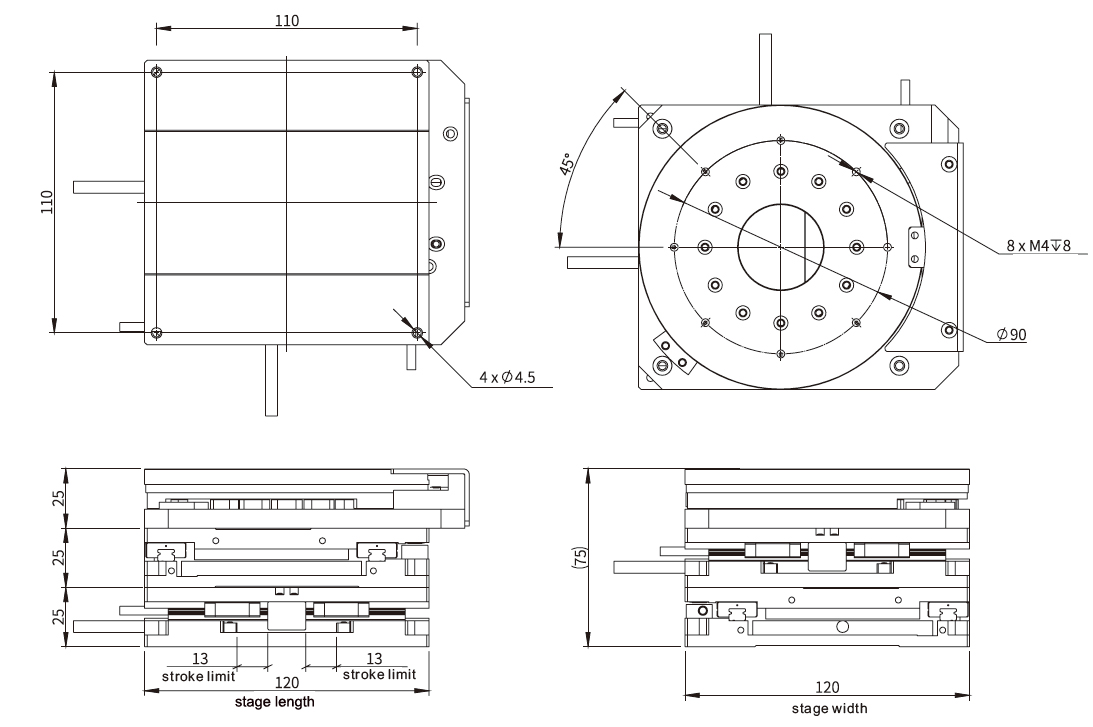

Installation dimensions
