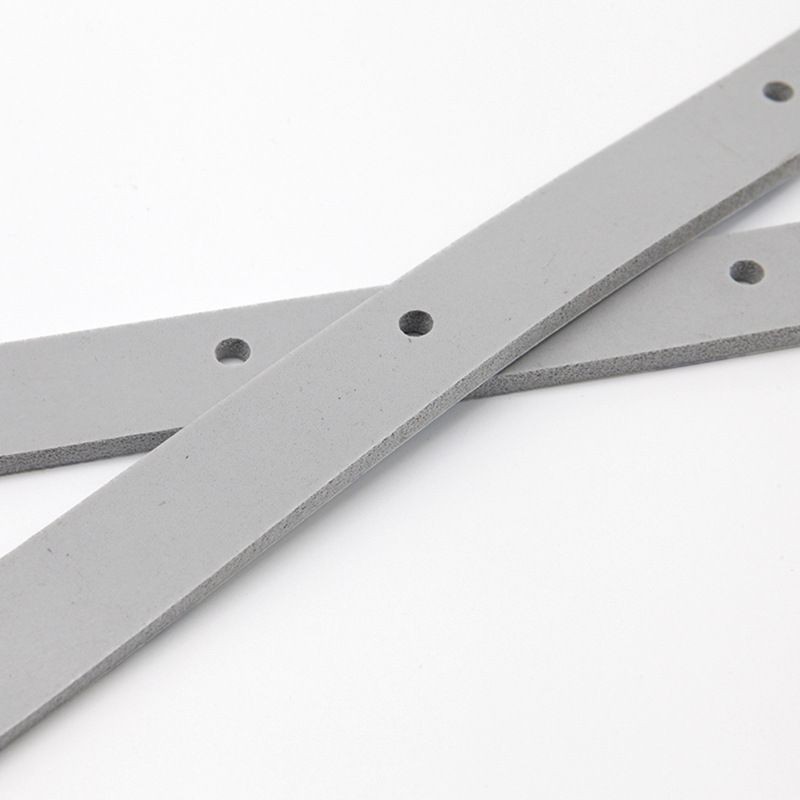

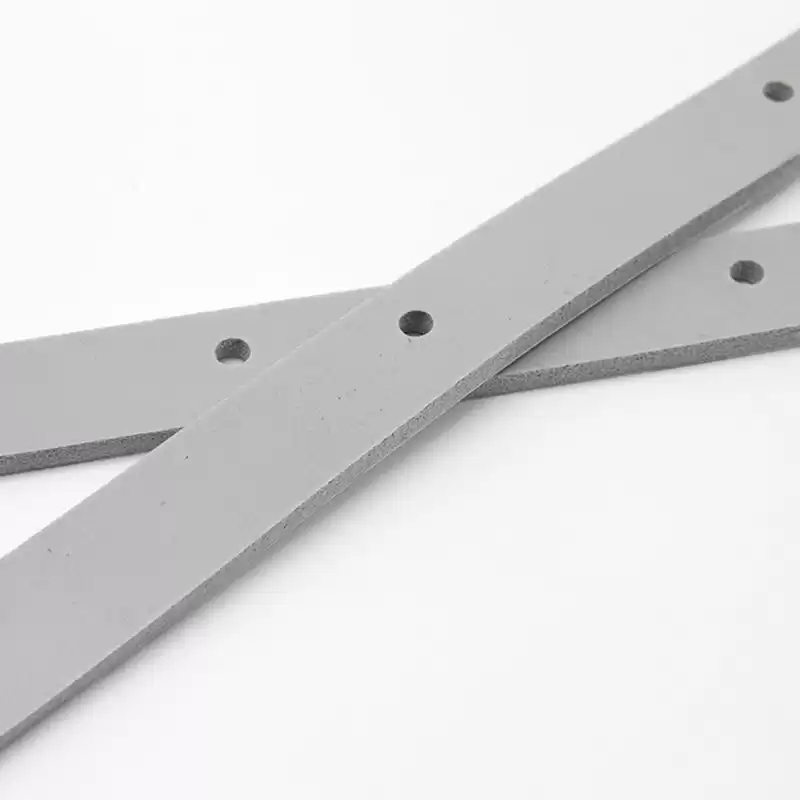

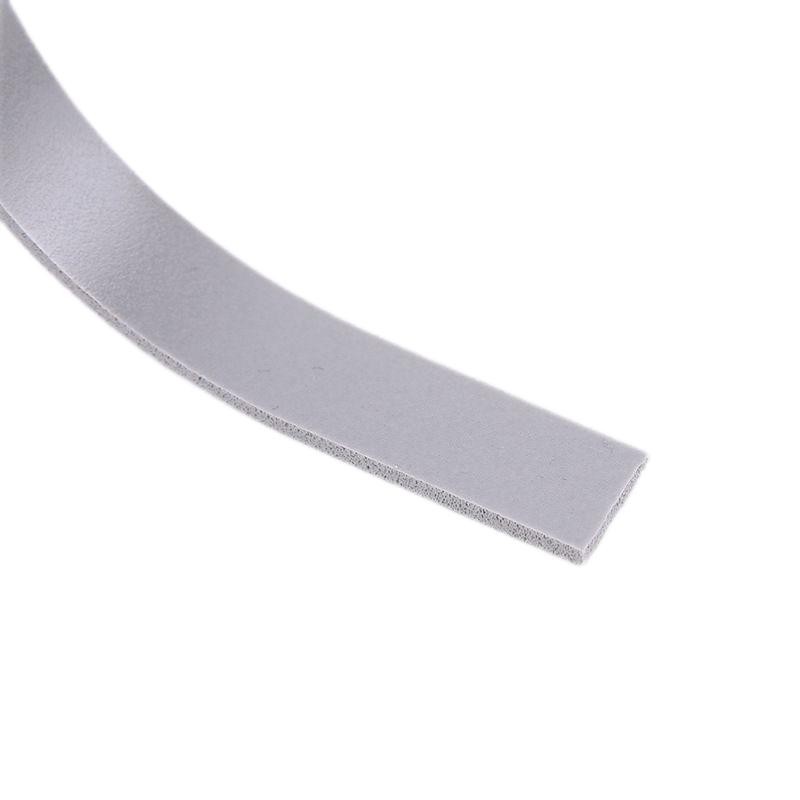

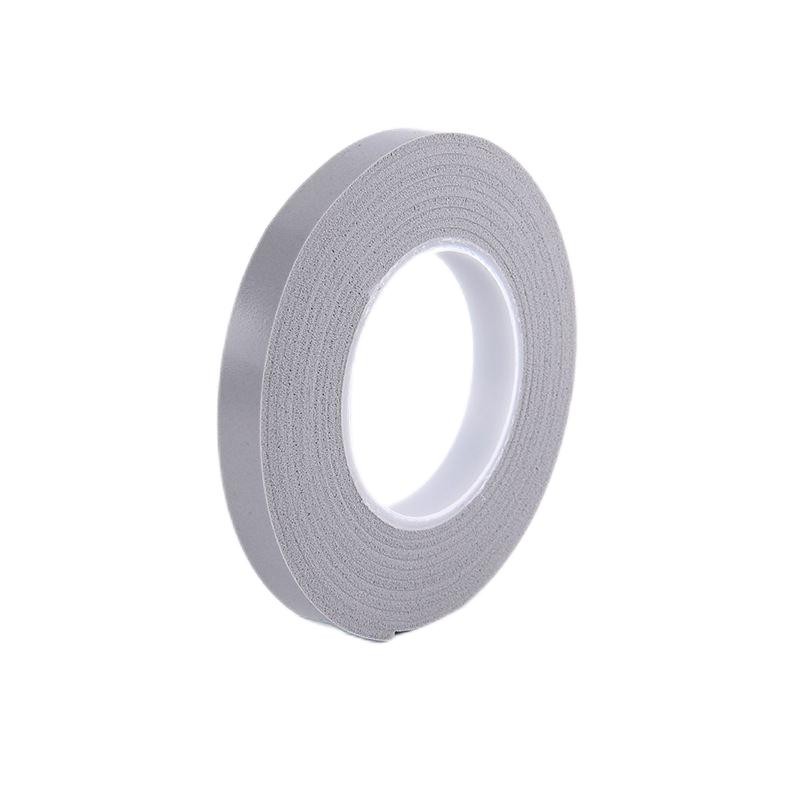

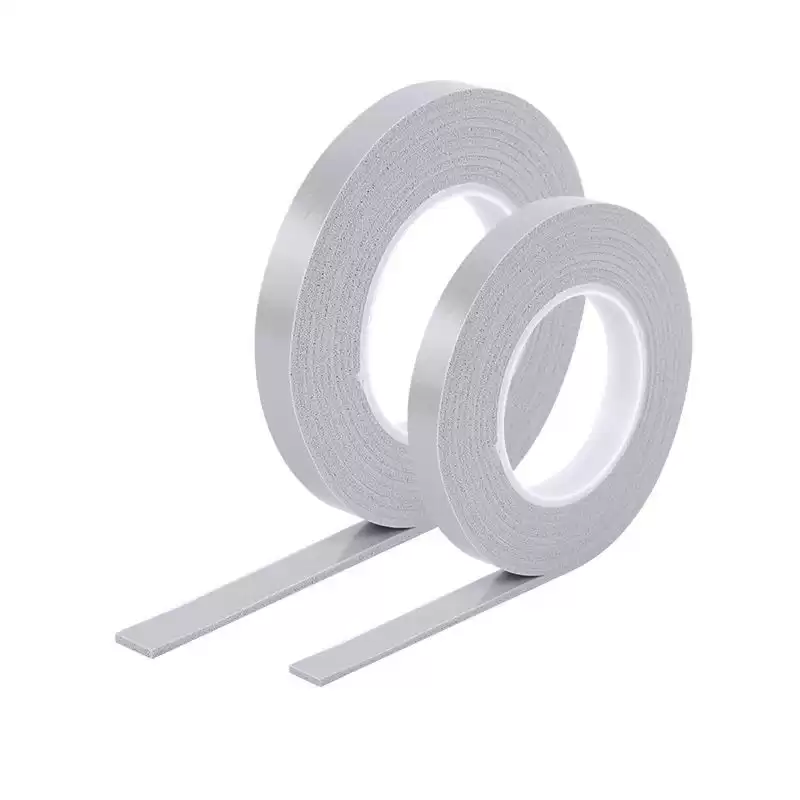

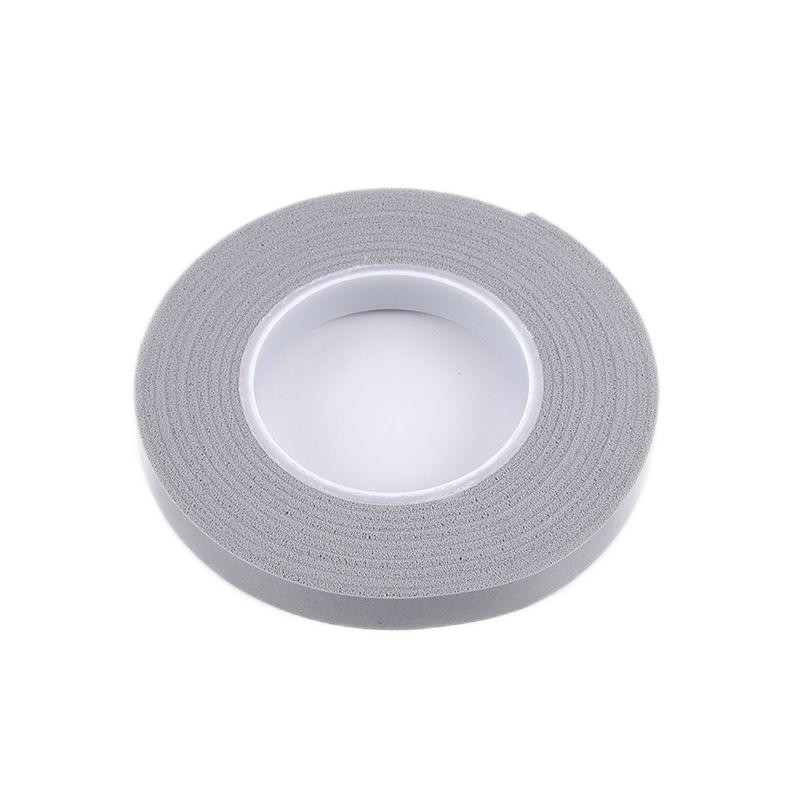

Ultra-Thin Silicone Rubber with Pressure Sensitive Adhesive Backing
Product Description
- UV resistance, ozone resistance, temperature resistance and flame retardancy make the material stable in a variety of environments.Tight cell structure and formula provide stronger sealing ability, which can effectively block tiny particles and rain.
Product Use
- 1. Pressure resistance, high temperature resistance, wear resistance, fall resistance
- 2. Used for the isolation of electronic equipment and vehicles
- 3. Can Be used to produce a variety of sealing gasket and gasket with strict requirements
- 4. the silicon dioxide produced by short circuit combustion is still an insulator that keeps the electrical equipment working, so it is suitable for making wires, cables, and leads.
Physical Properties
| NO. |
Test Item |
Test Method |
Result |
Conclusion |
| 1 |
Compression Deflection |
ASTM D1056-14Section 17~23 |
12.7psi |
/ |
| 2 |
Compression Set |
With reference to ASTMD1056-14 Section50~56 and client's requirement |
4% |
/ |
| 3 |
Density |
With reference to ASTM D792-13 Method Band client's requirement |
0.385g/cm3 |
/ |
| 4 |
Dielectric Strength |
GB/T 1695-2005 |
5.51kV/mm |
/ |
| 5 |
Low TemperatureResistance Test |
Provided by client |
No damage |
/ |
| 6 |
Tensile Test |
With reference to ASTM D412-16 Method A and client's requirement |
| Tensile Test |
0.651MPa |
| Elongation at Break |
230% |
|
/ |
| 7 |
Volume Resistivity |
GB/T1692-2008 |
4.23x1016Ω·cm |
/ |
| 8 |
Water Absorption |
ASTMD570-98(2018) |
0.68% |
/ |
