Ultra thin slim 277vac 12v 30w 0-10v Dimmable Constant Voltage Led Drivers

HIDEA slim type 0-10v dimmable constant voltage 12V 30W led drivers have two difference case whcih one is IP67 Aluminum case for outdoor use, the another is IP20 plastic for indoor use. It match good well with YUTOP led Strip Lights.


  • Shape & SizeSlim Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)30W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming Mode0-10V Dimming
  • Size263*32*20MM
  • Weight200g
  • CertificationUL/CUL
  • Warranty7 Years

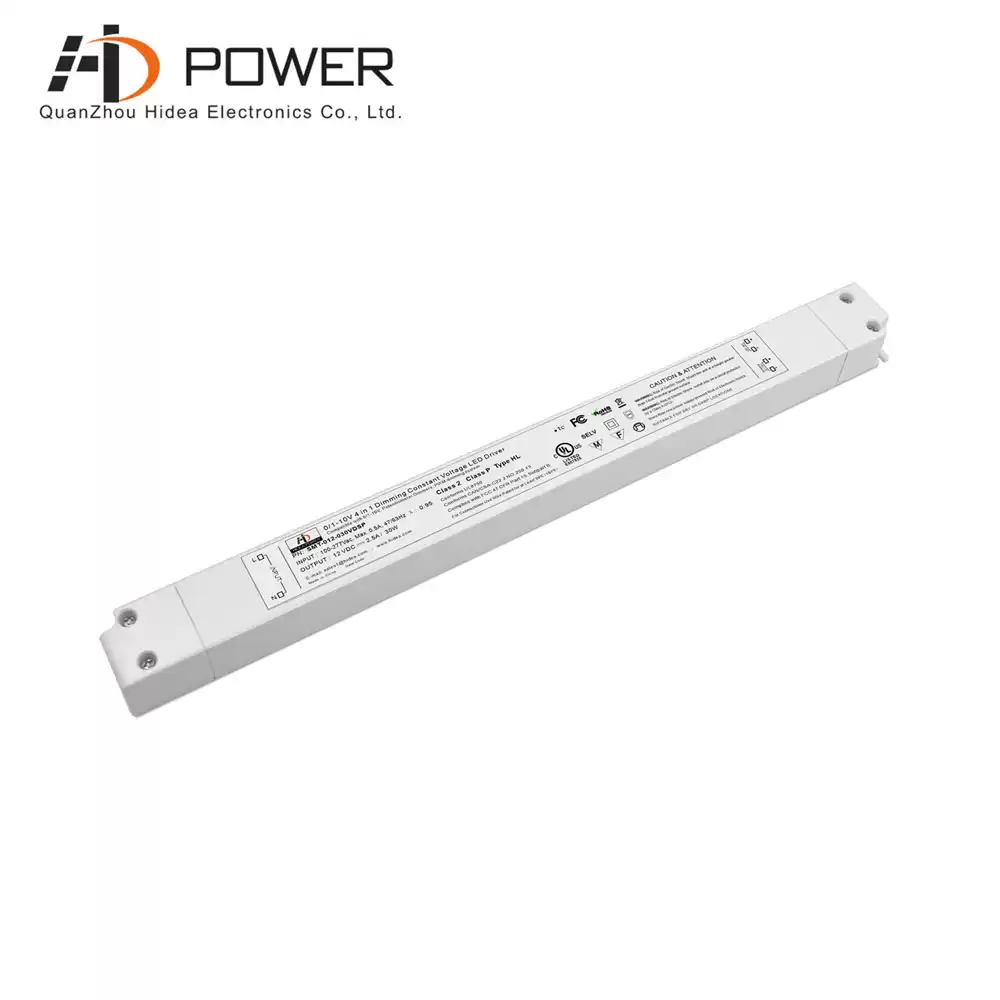

HIDEA SMT-012-030VDSP is 12vdc 2.5amp 30watt 0-10v dimmable constant voltage led drivers which has a slim size 260*30*18.5m,The length of the strip can be perfectly installed in CREE LED NEW CONSTRUCTION DOWNLIGHTS, with strong privacy for indoor use.

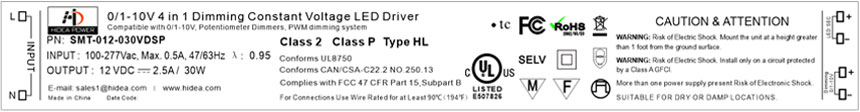

  Label

  Specification

model SMT-012-030VDSP SMT-024-030VDSP
Output DC Voltage 12VDC 24VDC
Voltage Accuracy ±5% ±5%
Rated current 2.5Amp 1.25Amp
Rated power 30W 30W
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 100-277 VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.99/110V ;  PF≧0.98/277V
Full Load Efficiency(Typ.) >79% >81%
THD(Typ. ) @ full load <10%@120VAC  <15%@277VAC
AC Current(Typ.) 0.5A
Inrush Current(Typ.) 5A, 50%, 960us @120VAC;   13A, 50% , 1ms @277VAC
Leakage current ﹤0.5mA
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Loading ≤120% shut down o/p voltage, re-power on to recover
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
Withstand voltage I/P-O/P:1.88KVac
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC 47 CFR Part 15 ,Subpart B
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,,11, ,Alight industry level
Others Weight 0.20Kg
Size 260*32*20mm (L*W*H)
packing 290*270*160mm , 50PCS/CTN
Notes 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

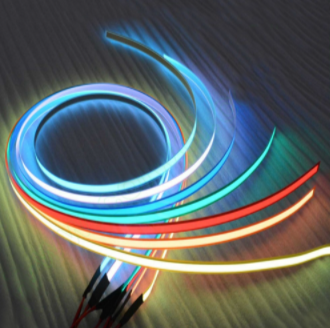

  Compatible Light Type

0-10V/1-10V/Potentiometer/10V PWM 4 in 1 Dimmable slimline led driver 12v 30w,  a 1.18inch width and 0.79 inch height makes drivers able to work with strict size limited, like PLANAR led strips. it also is compatiable with 0-10v pwm dimmer dimming system.

 led driver 12v 30w
