Ultrasonic Aluminum Wire Welding Equipment for Square Shell Battery
Products Description

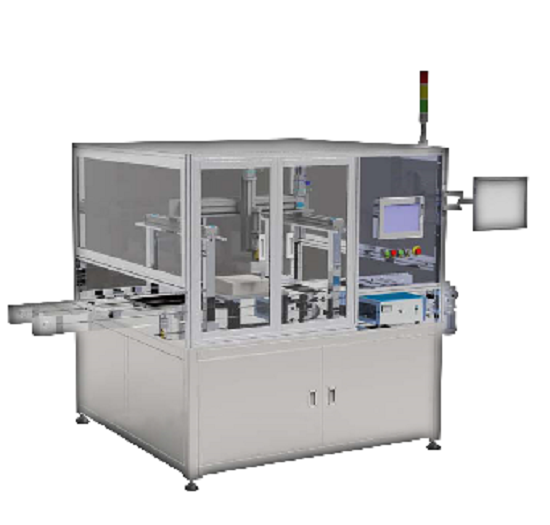

This equipment is mainly used for 18650,21700,22650 cylinder battery module positive and negative ultrasonic welding aluminum wire. The device is online, the battery module enters the welding area of the device through the conveying line and is visually positioned by CDD. The welding is fully automatic and the module flows out through the other end of the conveying line after completion. Can be used as a stand-alone machine, can also be used with the supporting automation line.
Performance Characteristics
1. Fully automatic aluminum wire feeding, aluminum wire diameter compatible 150-500UM;
2. Imported servo module, repetitive positioning accuracy less than ±0.02mm;
3. CCD automatic recognition positioning, motion control card to achieve the trajectory, more compatibility;
4. Can be used as a single machine, but also with the production line docking use, the realization of automatic flow module.
Technical Parameter
|
Model Number
|
TMAX-BJXC-PPT01
|
Beat
|
70PPM
|
|
Voltage Source
|
380V 50HZ
|
Batteries
|
18650/21700/22650 ect.
|
|
Power
|
1.5KW
|
Pressure
|
0.5-0.7MPA
|
|
Pressure
|
0.1-1.0KG
|
Precision
|
0.02mm(Repeat)
|
|
Aluminium Wire
|
150-500UM
|
Dimensions
|
2500*1700*1800(mm)
|
