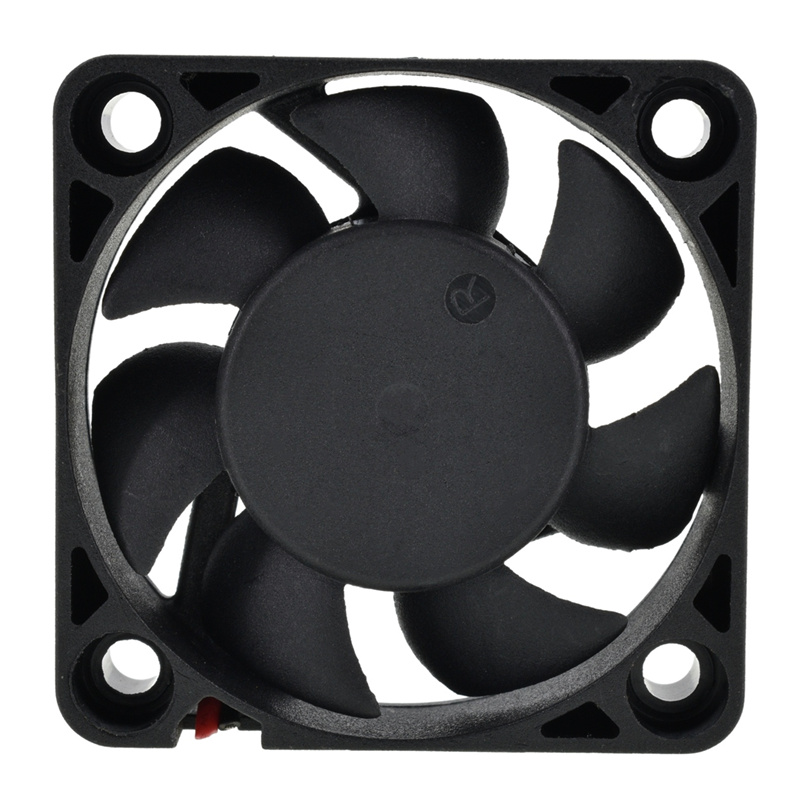

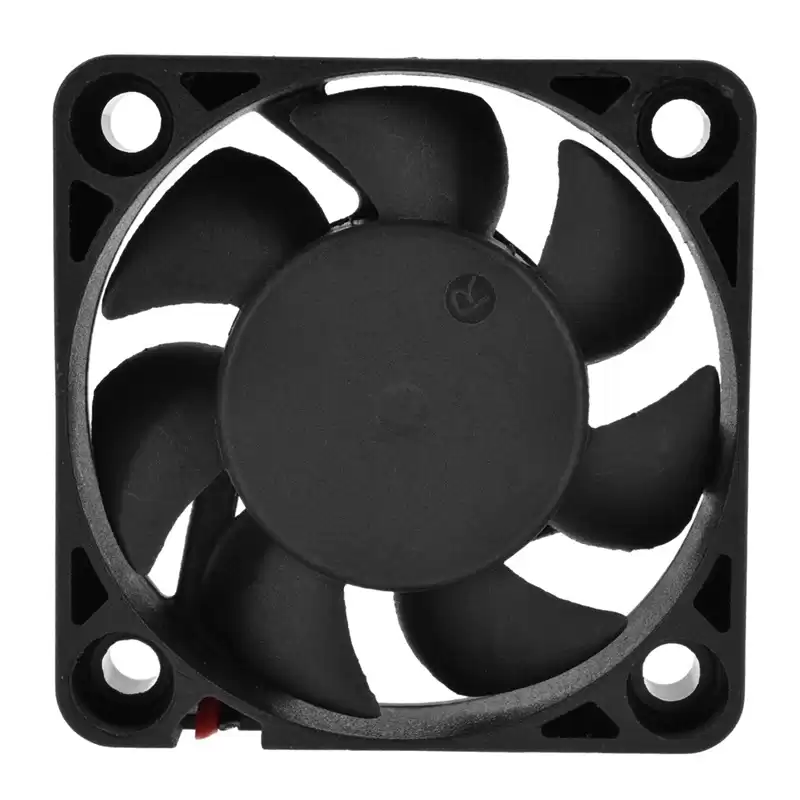

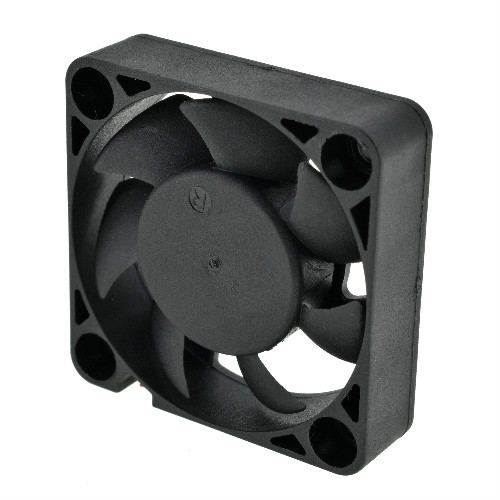

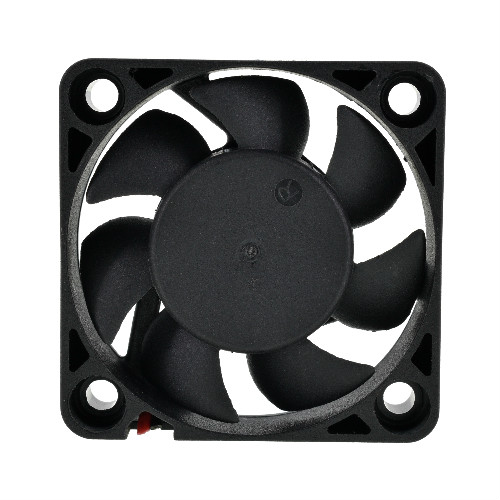

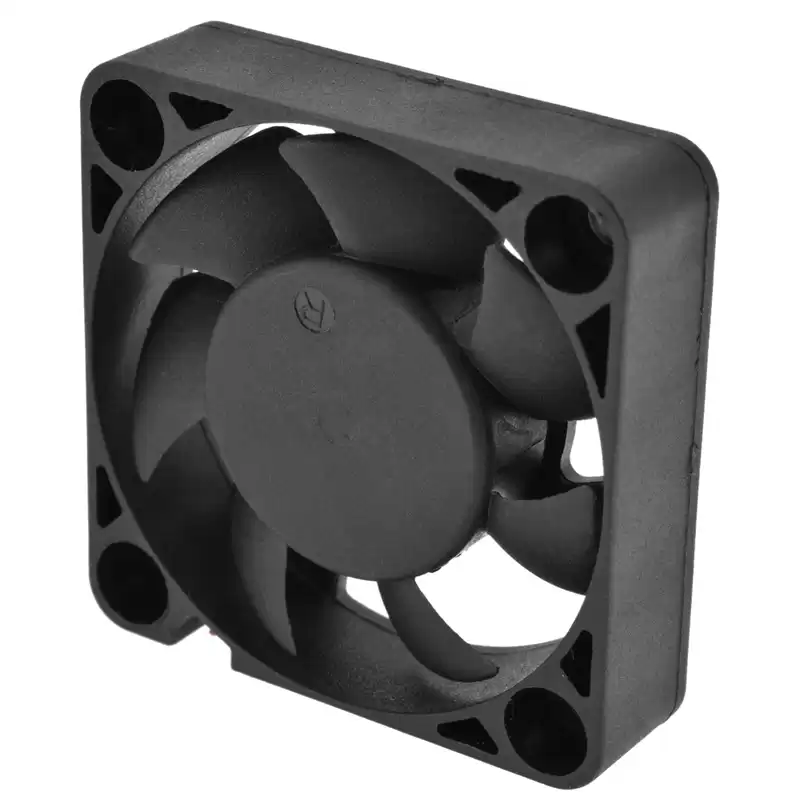

High Speed 8000RPM, DC Brushless 40x40x10MM Energy-Efficient Cooling System Fan has passed CE Certificate. The fan blade is made of environmental protection and fireproof PBT material.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

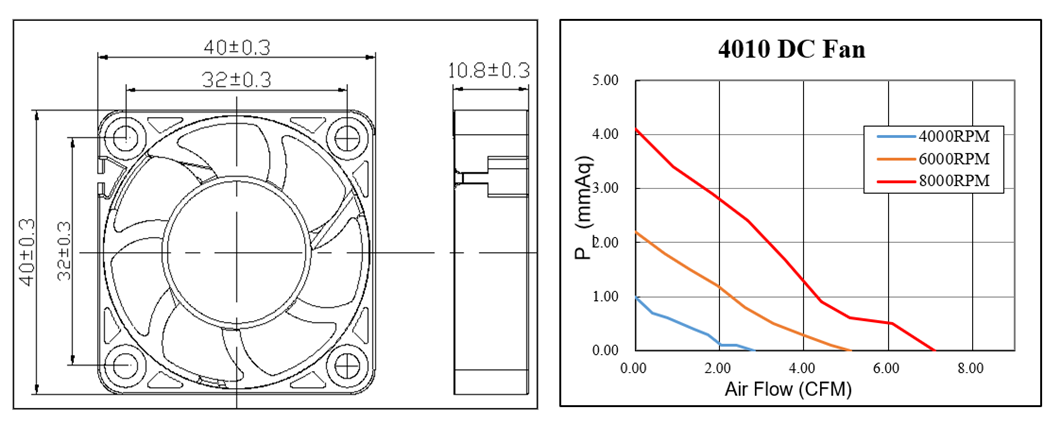

Dimension of outer the frame is 40 mm(L) x 40 mm(W) x 10 mm(H) / The size of fan in inch is 1.57 in(L) x 1.57 in(W) x 0.39 in(H); The center to center distance beween the mountiong holes is 32.0 ± 0.3 mm / 1.25 in.
-

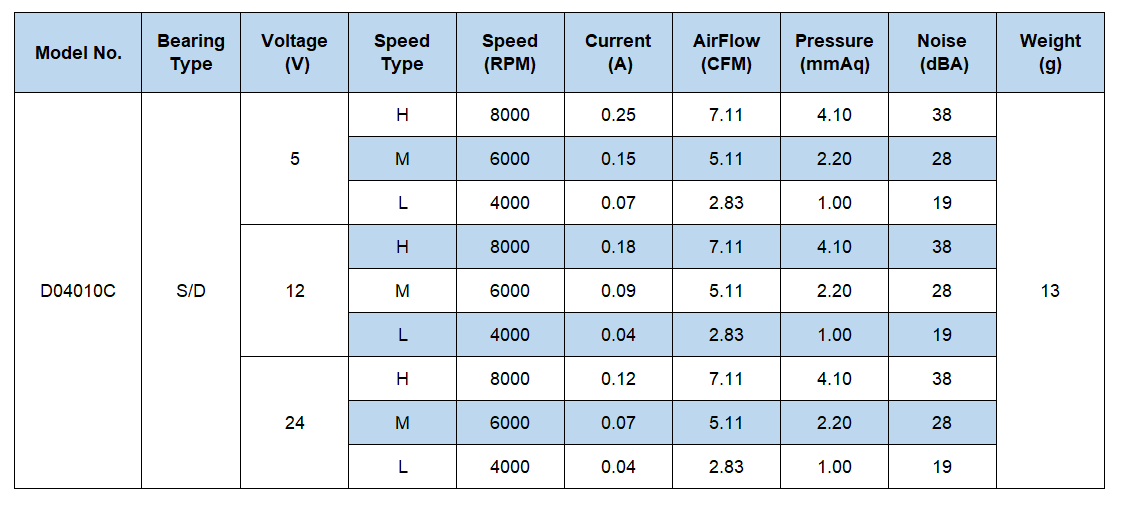

Operating Voltage Range: DC 5V/12V/24V | Current: 0.04 ~ 0.25 Amp | Speed: 4000 ~ 8000 RPM | Airflow: 2.83 ~ 7.11 CFM | Noise: 19 ~ 38 dBA | Pressure: 1.00 ~ 4.10 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
DC AXIAL FAN 40x40x10mm(1.57"x1.57"x0.39")
General Specification:
Frame:PBT(Black)UL94V-0
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Provide systematic products and customized service;
-
Size of the fan is 40mm x 40mm x 10mm, can be mounted in any direction;
-
The square design of the fan frame providing highly efficient ventilation for Cabinet;
-
Engineered for optimum performance, they have a long service life and excellent energy efficiency;
-
DC brushless fan with ball bearing that can reach 8000 RPM and provides an enormous amount of airflow;
-
Wide speed regulation range, controllability, reliability, light weight, environmental protection and energy saving.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
|
Type
|
Model
|
Size
|
Type
|
Model
|
Size
|
|
DC Axial Fan
|
D02507
|
25x25x7mm(0.98"x0.98"x0.27")
|
DC Axial Fan
|
D06025
|
60x60x25mm(2.36"x2.36"x0.98")
|
|
D02510
|
25x25x10mm(0.98"x0.98"x0.39")
|
D07015
|
70x70x15mm(2.75"x2.75"x0.59")
|
|
D03007
|
30x30x7mm(1.18"x1.18"x0.27")
|
D07025
|
70x70x25mm(2.75"x2.75"x0.98")
|
|
D03010
|
30x30x10mm(1.18"x1.18"x0.39")
|
D08010A
|
80x80x10mm(3.15"x3.15"x0.39")
|
|
D03015
|
30x30x15mm(1.18"x1.18"x0.59")
|
D08010B
|
|
D03510
|
35x35x10mm(1.37"x1.37"x0.39")
|
D08015
|
80x80x15mm(3.15"x3.15"x0.59")
|
|
D04007
|
40x40x7mm(1.57"x1.57"x0.27")
|
D08020
|
80x80x20mm(3.15"x3.15"x0.78")
|
|
D04010A
|
40x40x10mm(1.57"x1.57"x0.39")
|
D08025A
|
80x80x25mm(3.15"x3.15"x0.98")
|
|
D04010B
|
D08025B
|
|
D04010C
|
D08025C
|
|
D04015
|
40x40x15mm(1.57"x1.57"x0.59")
|
D08038
|
80x80x38mm(3.15"x3.15"x1.5")
|
|
D04020
|
40x40x20mm(1.57"x1.57"x0.78")
|
D09025A
|
92x92x25mm(3.62"x3.62"x0.98")
|
|
D04028
|
40x40x28mm(1.57"x1.57"x1.10")
|
D09025B
|
|
D05010A
|
50x50x10mm(1.96"x1.96"x0.39")
|
D09025C
|
|
D05010B
|
50x50x15mm(1.96"x1.96"x0.59")
|
D09232
|
92x92x32mm(3.62"x3.62"x1.26")
|
|
D05015
|
50x50x15mm(1.96"x1.96"x0.59")
|
D09238
|
92x92x38mm(3.62"x3.62"x1.5")
|
|
D05020
|
50x50x20mm(1.96"x1.96"x0.78")
|
D11335
|
113x113x35mm(4.46"x4.46"x1.38")
|
|
D05025
|
50x50x25mm(1.96"x1.96"x0.98")
|
D12025A
|
120x120x25mm(4.72"x4.72"x0.98")
|
|
D06010
|
60x60x10mm(2.36"x2.36"x0.39")
|
D12025C
|
|
D06015
|
60x60x15mm(2.36"x2.36"x0.59")
|
D12038
|
120x120x38mm(4.72"x4.72"x1.5")
|
|
D06020
|
60x60x20mm(2.36"x2.36"x0.78")
|
D12539
|
125x125x39mm(4.93"x4.93"x1.54")
|
|
D06025
|
60x60x25mm(2.36"x2.36"x0.98")
|
D13538
|
135x135x38mm(5.31"x5.31"x1.49")
|
Application
Axial fans are used in more general applications, and can be widely used in frequency converter, UPS power supply, stage lighting equipment, audio equipment, welding equipment, personal computers for central processing units and power cooling, etc.
-
Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
-
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
