Application:

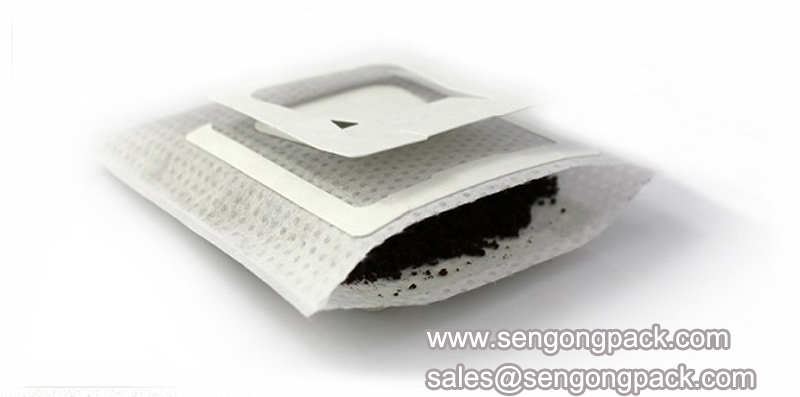

It is suitable for;5 to 15gram;drip coffee inner and outer bag;packaging.
Features:
1.;Outer bag sealing is controlled by the;stepper motor, ensuring accurate and stable;bag length positioning.
2.;Adopts;PID temperature controller;for more accurate temperature;adjustment.
3.;Adopts;PLC control;system and;touch screen color monitor device, machine is very easy to operate.
4. The;main;machine;parts;is made of;SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders;are imported, ensuring;the accuracy and stability of the machines’ performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts;automatic conveyor system.
8. Options: Date;code printer.
9. There is a reserved connector to link with nitrogen making machine so as to flush nitrogen into the bag to extend its shelf life.
10. Adopts high specifications components.
Standard Technical Data;
|
Type
|
Drip Coffee Packaging Machine Series
|
|
Model
|
C19D
|
|
Product name
|
Ultrasonic Drip Costa Rica Coffee Bag Packing Machine with Outer Envelop
|
|
Bag type
|
Ultrasonic;sealing
|
|
Packing material
|
Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper
|
|
Feeding system
|
Volumetric cup filler
|
|
Package range
|
5-15g
|
|
Inner bag size
|
L:50-75mm , W:50-90mm
|
|
Outer bag size
|
L:85-120mm , W:75-100mm
|
|
Inner bag film width (180mm)
|
Bag size: L90mm*W75mm
|
|
Outer bag film width(200mm)
|
Bag size: L120mm*W100mm
|
|
Power supply
|
Single phase, 220V, 50HZ, 3.7KW
|
|
Packing speed
|
30-60bags/min
|
|
Weight
|
400KG
|
|
Dimension (L*W*H)
|
1200*900*1900mm
|
1:whether sengong have their own machine and warehouses?
Yes,we are aprofessional factory special in tea,coffee,food packing machine over 16 years,
We have own engineers and warehouses:
2:How about sengong products quality?
we provide our clients with high quality pyramid tea bag packing machine ,and believe the quality is our products heart,Have alreadypassed SGS testing, ISO9001:2008 quality system certification,BV certificationand CE certificates of EU.
3: Whether the packing machine can keep the tea taste when packing into bag?
Please don't worry ,will not influence your tea taste, the machine use the ultrasonic seal method,will maintain the pure the taste of tea,or flower tea, herbal tea etc.
4:What can ido while some trouble with the purchase packing machine ?
We have aperfect aftersales service guarantee system,staffed with experience technicians,engineers,and managerial persoal,our after-sales service department has always been providing"quality,rapid and efficient service for all customers.
