Ultrasonic Metal Welding Machine For Battery Al Tab weld With battery Cap
SPECIFICATIONS
1 TOB-VS-50AUltrasonic Spot Welding Machineis an ultrasonic metal welder use forcylinder cell Aluminum tab and Cap welding.
2 TOB-VS-50A Ultrasonic welding machine is with Automatic frequency tracking function, you don’t need to setting frequency always, simple operation.
3 Advantages with laser welding :
3.1 Laser welding need to weld after electrolyte filling, need to wipe the tab. TOB-VS-50A welding cap before electrolyte filled, more simple.
3.2 Laser welding is about 2-3% NG because of burning through tab, Our VS-50A close to 0%.
3.3 Ultrasonic welding can weld 2-3layers Tab to Cap
3.4 High efficiency, Low cost, Small volume, simple operation.
|
Model
|
TOB-VS-50A
|
|
Source voltage
|
AC220V, 50HZ, can be customized
|
|
Power
|
1500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Ultrasonic spot welding machine
|
|
Frequency
|
24KHZ
|
|
Welding time
|
0.05-9.99s
|
|
Air supply
|
0.2-0.8MPa
|
|

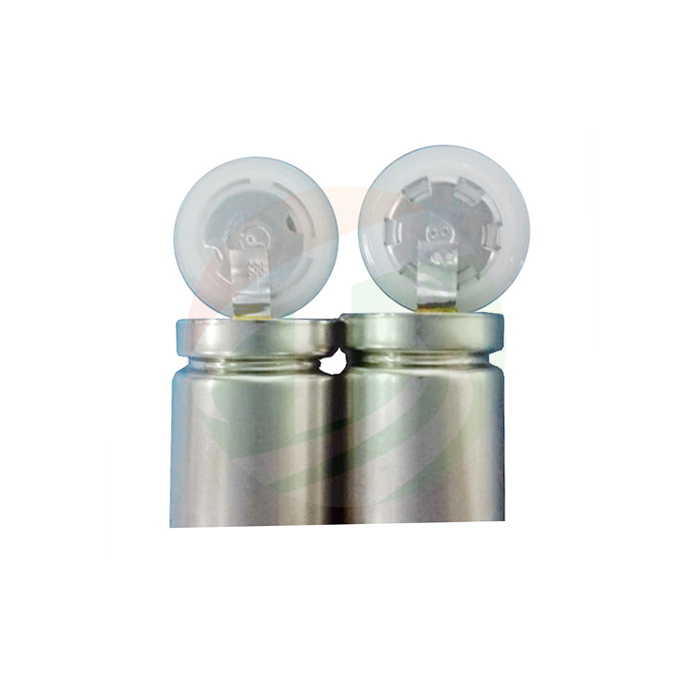

Welding effect
|
Single layer or multi-layer Aluminum tab andAl Cap welding ,
belt melt, welding firmly
|
|
Welding ability
|

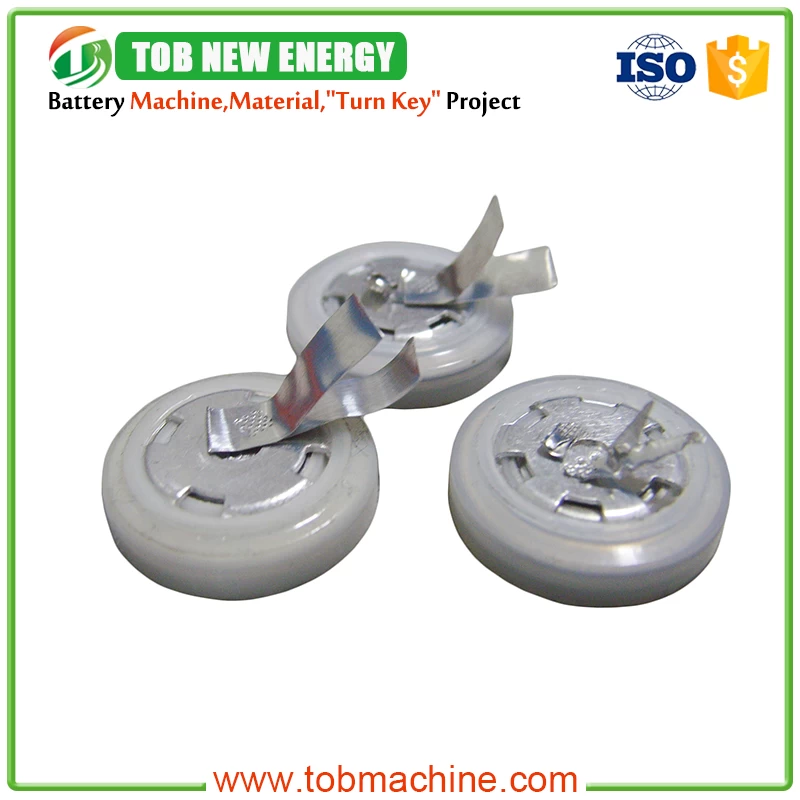

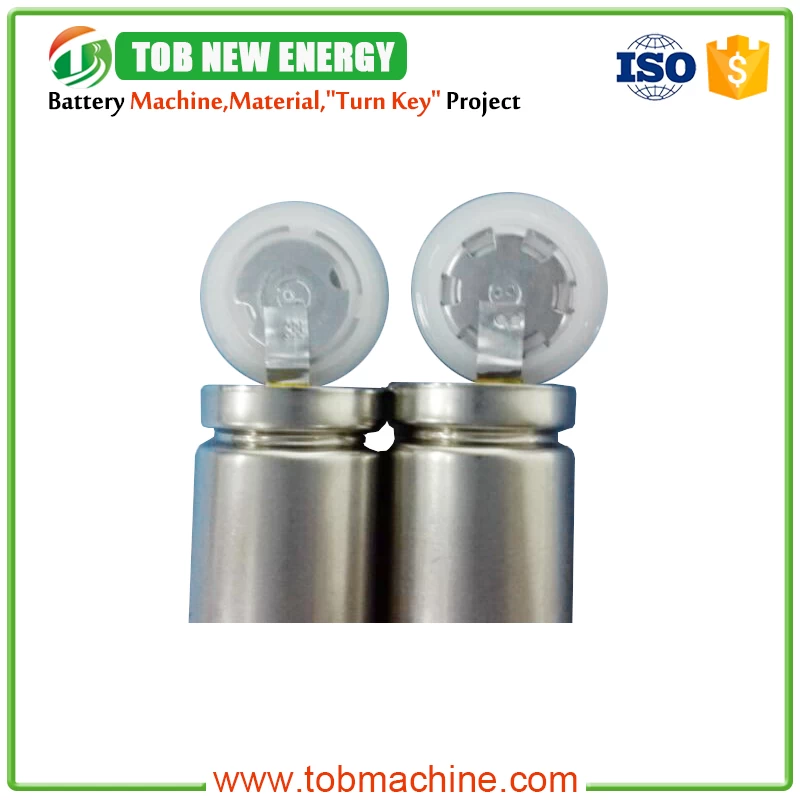

1 Materials : Al Tab and cylinder cell cap (18650, 26650 and so on)
2 Al tab thickness : 0.08-0.15mm
3 Welding mode : according to your requirements
4 Welding area : can be customized
|
|
Dimension (L*W*H)
|
Power box : 400*170*300mm
Welding machine : 300*200*270mm
|

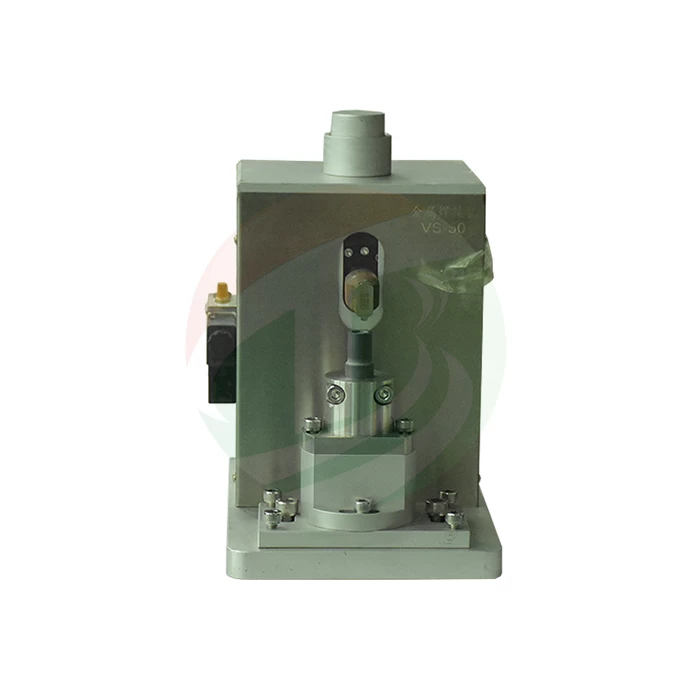

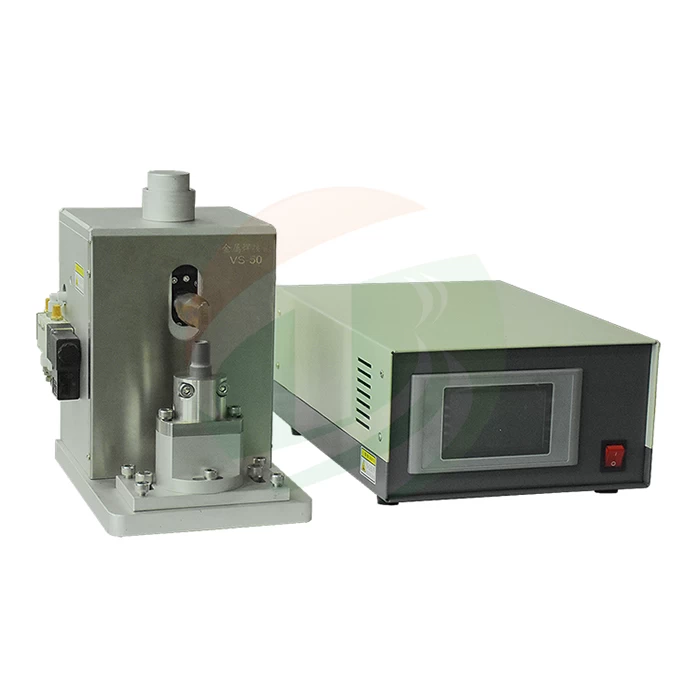

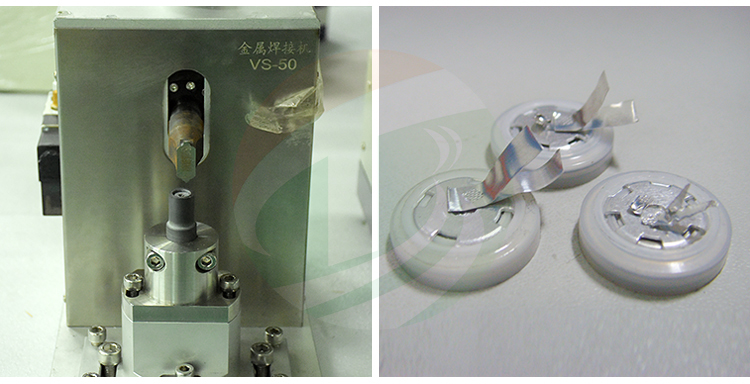

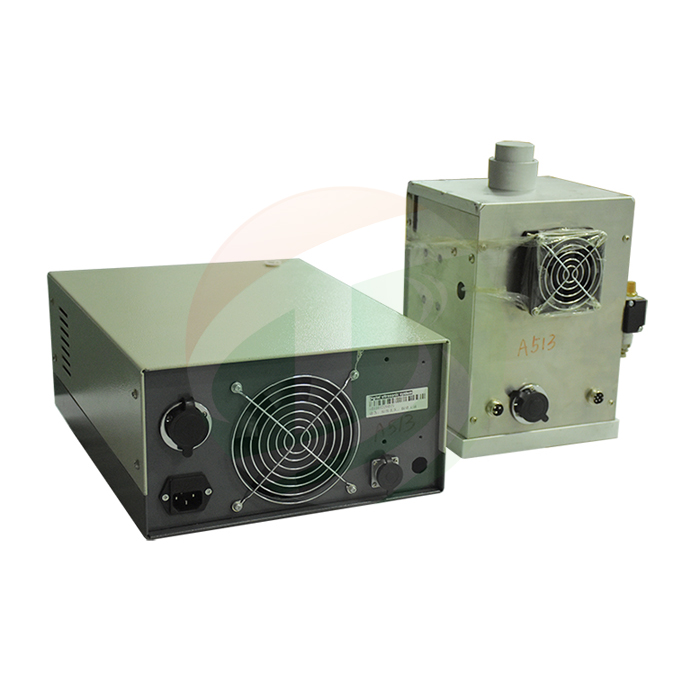

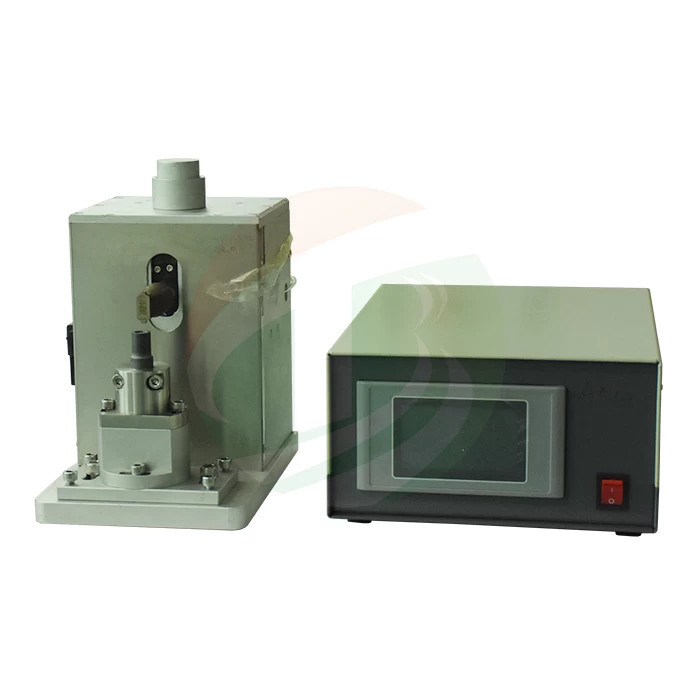

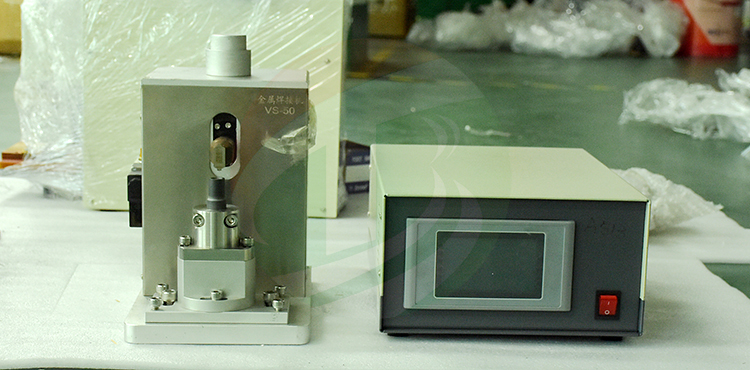

Product Display
