Ultrasonic Metal Welding Machine For Cylindrical Battery 18650 and Pouch Cell Anode Ni Tab And Single Copper Foil Welding
SPECIFICATIONS
1 TOB-VS-40AUltrasonic Spot Welding Machineis an ultrasonic metal welder designed for welding Li ion battery anode electrode sheets copper foil and Ni tab onto current collectors to prepare Li-Ion pouch cells and cylinder cell in R&D laboratories and production line.
2 TOB-VS-40A Ultrasonic welding machine is with Automatic frequency tracking function, you don’t need to setting frequency always, simple operation.
|
Model
|
TOB-VS-40A
|
|
Source voltage
|
AC220V, 50HZ, can be customized
|
|
Power
|
1200W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Type
|
Ultrasonic spot welding machine
|
|
Frequency
|
40KHZ
|
|
Welding time
|
0.05-9.99s
|
|
Air supply
|
0.2-0.8MPa
|
|
Welding effect
|
Single layer ofcopper foil andNickel strip or Nickel-Cu strip welding ,
belt melt, welding firmly
|
|
Welding ability
|
1 Materials : Battery anode electrode. (single layer copper foil and single piece Nickel/Ni-Cu strip)
2 Copper foil thickness : 8-15um
3 Nickel/Ni-Cu strip thickness : 0.06-0.12mm
4 Welding mode : according to your requirements
5 Welding area : can be customized
|
|
Dimension (L*W*H)
|
Power box : 400*170*300mm
Welding machine : 300*200*270mm
|

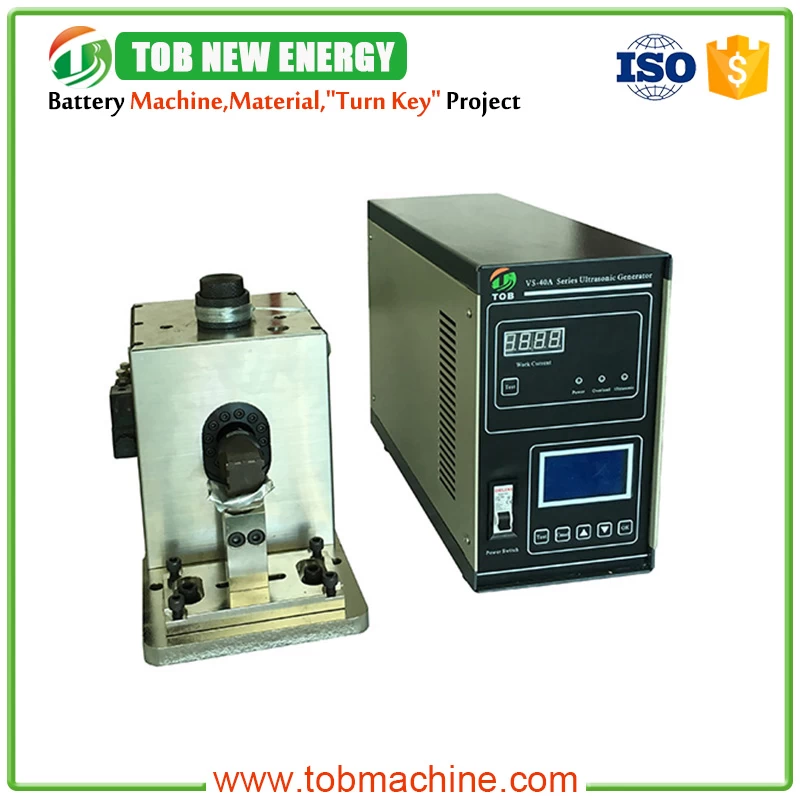

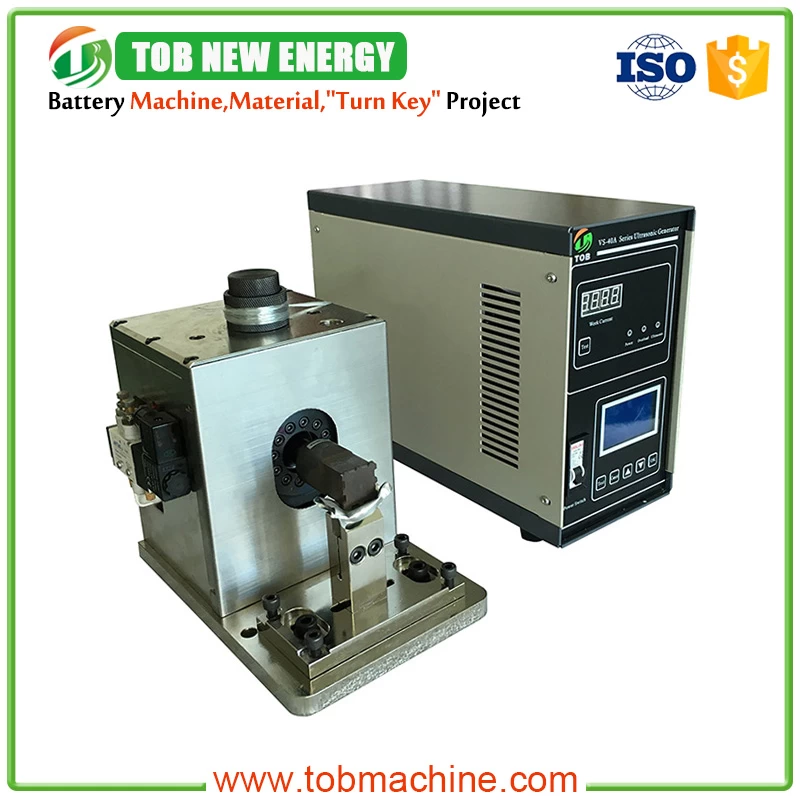

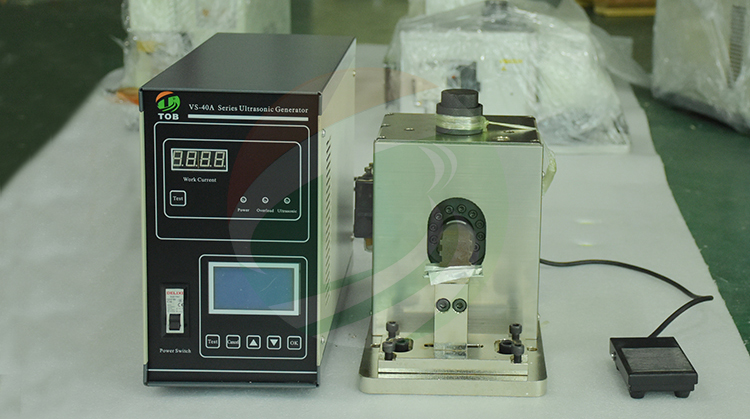

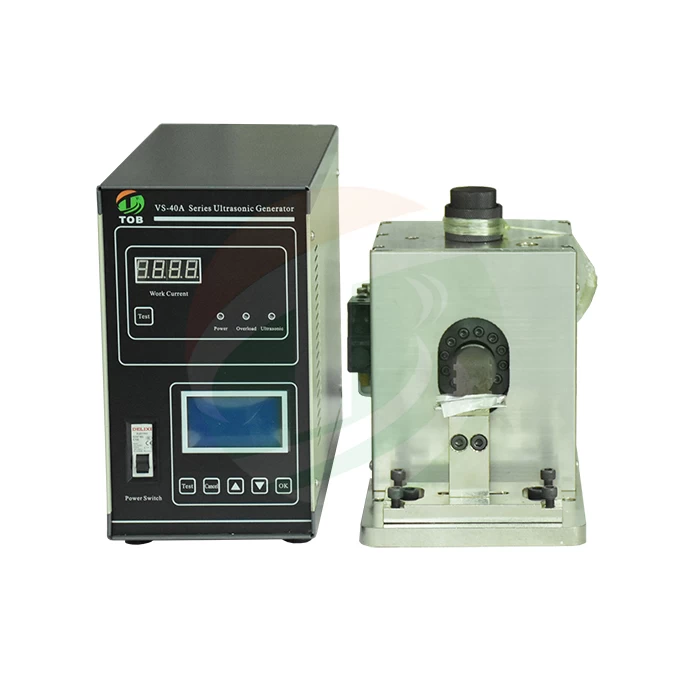

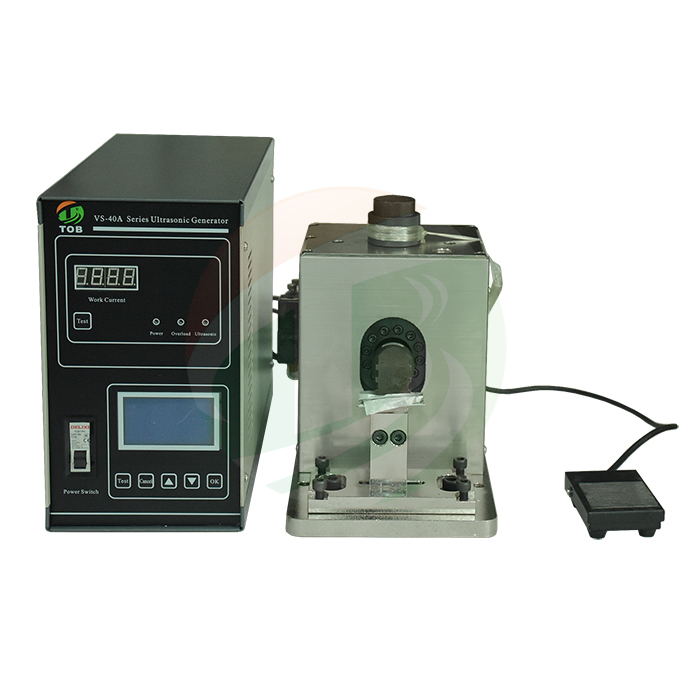

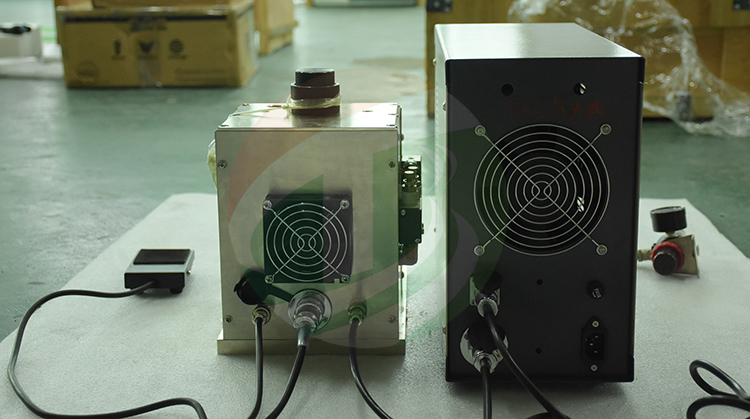

PRODUCT DISPLAY

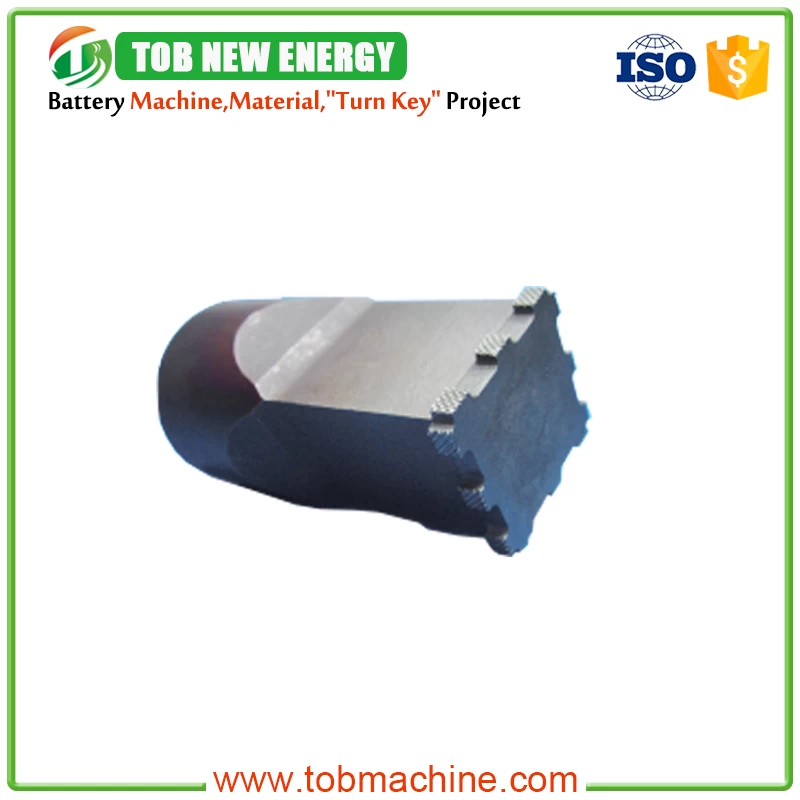

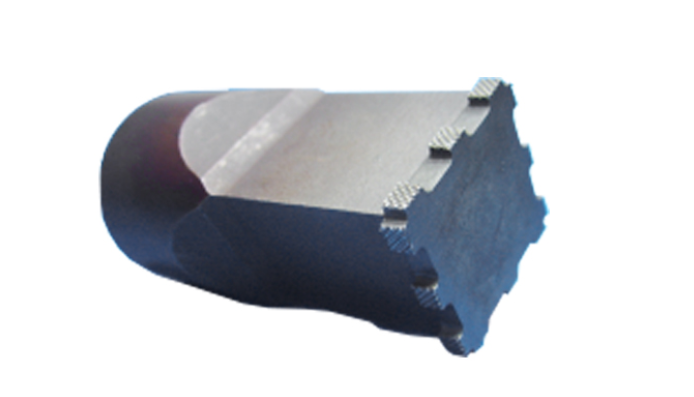

18650 battery welding head
