Laboratory Ultrasonic Vibrating Screen Used For Lithium Battery Slurry Sieving
SPECIFICATIONS
TOB-SF-150Ultrasonic Vibrating Screenis alaboratory vibrating sieveused for Different size material screening. It is with Ultrasonic power, large amplitude of ultrasonic transducer and Vibrating ring.
This vibrating screen used for lithium battery lab research mainly used forbattery material slurry screeningafter mixing before coating, in order to remove big Larger particles impurities, so that we can get the best slurry for electrode coating.
|
Model
|
Ultrasonic Vibrating Screen TOB-SF-150
|
|
Power generator
|
Power : 100W
|
|
Frequency : 24-36KHZ
|
|
Net weight : 3kg
|
|
Pulser : 0.1-10s
|
|
Energy converter
|
Diameter : 30mm
|
|
Length : 135mm
|
|
Cable length : 1500mm
|
|
Stainless steel mesh
|
Diameter : 200mm
|
|
Standard mesh : 20-300um
|
|
Source voltage
|
AC220V, 50HZ
|
|
Warranty
|
One year limited warranty with lifetime support
|

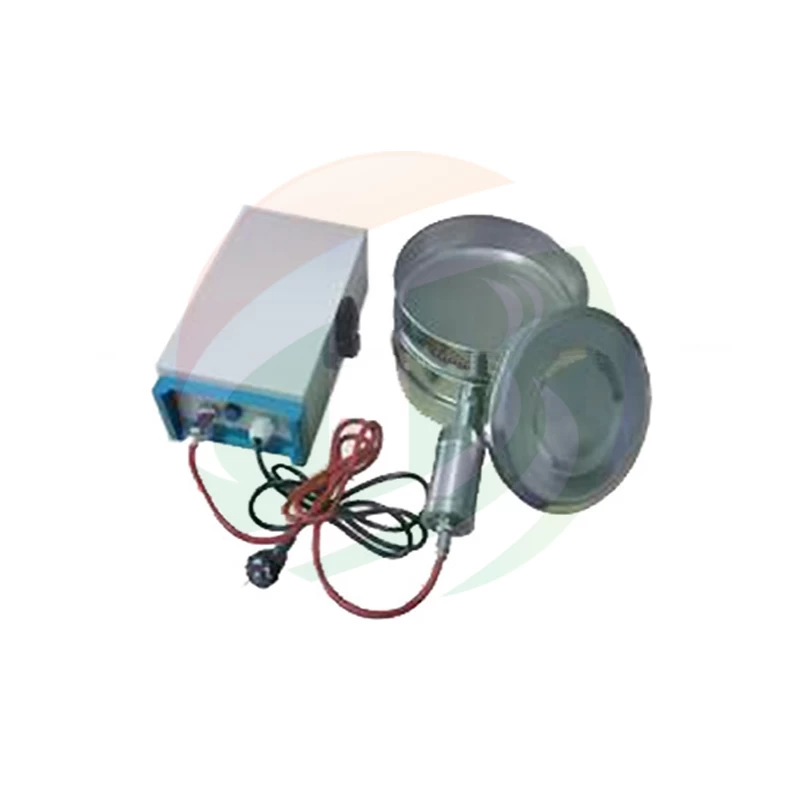

PRODUCT DISPLAY
