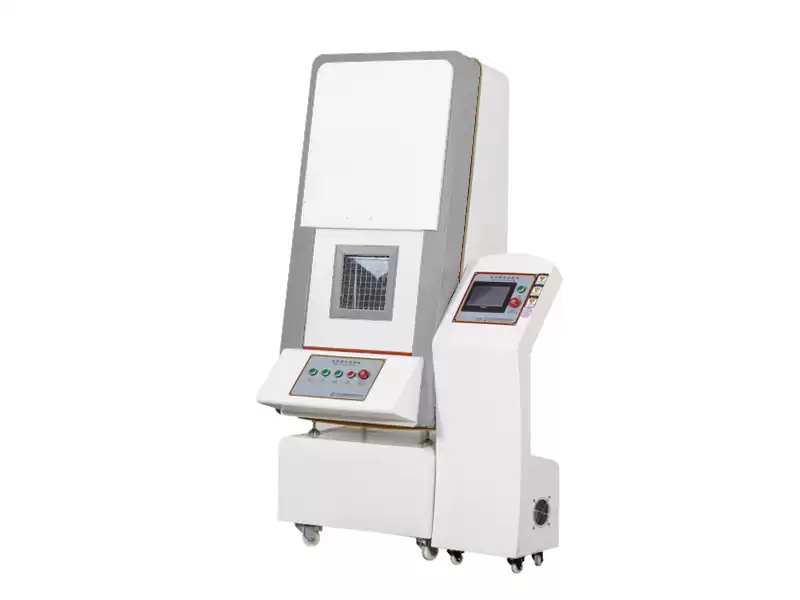

UN38.3 Lithium Battery Cell Crush Test Equipment
Lithium battery cell crush test equipment is used to determine the safety performance of lithium battery or cell subjected to crushing under the specified conditions.
The test chamber is made up of indoor case, center spacer layer as well as the exterior case. Inside case is made from accuracy stainless steel with smooth welding, 1/3 locations covered with Teflon tapes which have properties of heat resistance as well as inflaming retarding. It is easy to be cleansed and replaced after test each time. Medium layer facilitates buffering as well as insulation, which can effectively ease the influence of pressure to exterior case and interrupt temperature transfer in case of burning of test sample. Outside case is composed of cold-roll steel sheets and coated with baking varnish.
Test Standards
IEC62133-2-2017, UN38.3, GB 31241-2014, UL 1642

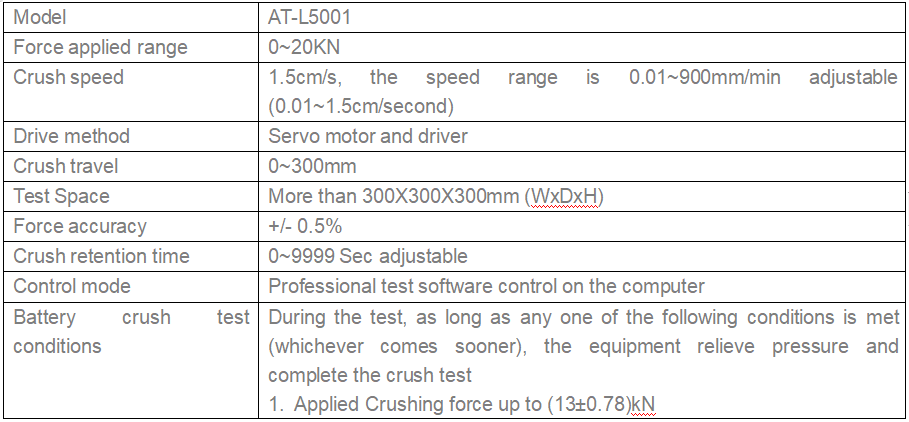

Key Technical Parameters
Features of Battery Crush Test Chamber
- Servo electric motor and drive system improve the control precision.
- Unique stress release port in the rear of chamber In case the battery explodes and creates damages to the operator.
- Auto-induction door lock sustains auto off throughout test and manual on after test.
- Viewing window is built of 2-layer explosion proof material to withstand impact.
- Special test software program makes the test operation easier.
- Test can be performed by choosing only one variable from Loading Force, deformation and voltage drop as test condition. Choosing arbitrarily combined 2 or 3 variables as test conditions are also available, pressure is released once any one condition is reached during the test.
- As many as 7 numerous curves can be presented consisting of voltage, temperature, load force, deformation.
- Test results can be saved, shared, exported to Microsoft word for additional editing and enhancing.
- Universal castors as well as support feet at the end of the devices to convenient for being relocated.
