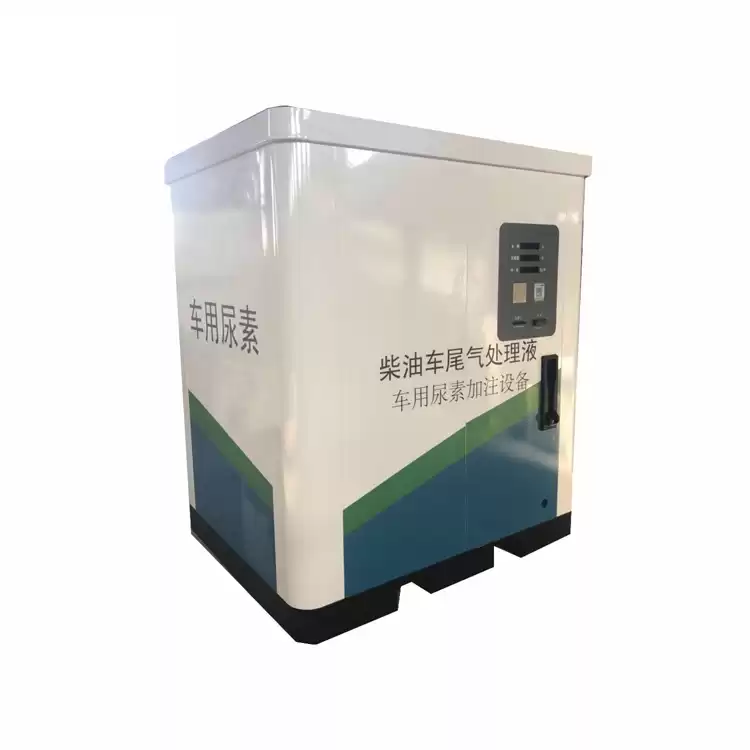

Unattended Self-service AUS32 Diesel Exhaust Fluid Dispenser With Shell

EB-Shell-2000L Unattended Self-service AUS32 Dispenser with shell, supports WeChat, Alipay, IC card payment, small ticket printing, comes with 2 ton heat retaining storage tank.




EB-Shell-2000L Unattended Self-service AUS32/DEF Dispenser with shell

Basic Parameters

Basic Configuration

Name

DEF Dispenser

Model

EB-Shell-2000L

L*W*H(mm)

1450*1700*2000

Motherboard

1 pc

Voltage

220v

IC Card Payment System

1 set

Power

370w

Wechat, Alipay Payment System

1 set

Flow Range

5-30L/min

High Precision Gear Flowmeter

1 pc

Ambient Temperature

-10°C-55°C

Self-priming Pump

1 pc

Relative Humidity

20%-95%

Steel Wire Explosion-proof Filling Tube

10 m

Noise

≤70DB(A)

Self-sealing Nozzle (stainless steel)

1 pc

Measurement Accuracy

0.5%

Precision Filter Unit (with filter element)

1 set

Repeatability Error

0.5%

Small Ticket Printing

1 set


WeChat / Alipay filling steps



1. Scan the device payment code and pay.

2. When the payment amount show in the amount column, use nozzle and fill AdBlue®.

3. Filling completed, hang the nozzle. (Remaining amount will return to your payment account automatically)

4. If need small ticket, press the “Print” button.


IC card filling steps

1. Open the cover and insert IC card

a: Use nozzle to fill AdBlue® freely

b: Press the “Mode” button to choose filling method, input payment amount or amount of AdBlue® then press “Confirm” button. Use the filling nozzle.


2. Hang the nozzle, IC card will pop up automatically.



3. If need small ticket, press "Print" button after pulling the card.

Please insert the card into the end after opening the cover.


Advantages:

  1. National first, technology leading, achieve real sense of unattended, self service filling.
  2. Relying on the powerful technology research and development capabilities, innovative development of matching filling machine cloud platform, you can log in to the cloud platform management to view the operation status and geographical location of each device, and achieve machine remote lock unlock functions.
  3. Support IC card recharge equipment to realize the same card in different places of the same company, provide the most convenient service for drivers.
  4. Full support for online payment, WeChat, Alipay payment, step into the cashless society in advance.
  5. Online payment, automatic refund function, payment without worry.
  6. Small ticket printing, solve the reimbursement troubles.


Appearance text patterns can be customized according to customer needs!
