Technical Features:
![](/storage/uploads/images/202303/30/26dc56dd4d36997eb29588b4ad595372.jpg)
|
|
![](/storage/uploads/images/202303/30/a19e3a88aca139374986d66a3c2117b7.jpg)
|
|
![](/storage/uploads/images/202303/30/3da2a43055c25c40ab2d11d3c1e9f787.jpg)
|
Superior cycle performance
|
|
Unique performance
|
|
Excellent deep cycle life
|
Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation
|
|
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, high energy density & low float current
|
|
Designed for more than 4000 charge / discharge cycles @ 30%DOD. Thick plate design for extra long deep cycle life
|
|
|
|
|
|
![](/storage/uploads/images/202303/30/730e39527d6227ad17c371da8aa4dbbe.jpg)
|
|
![](/storage/uploads/images/202303/30/5be12319f387cdce9542b76dc41833ad.jpg)
|
|
![](/storage/uploads/images/202303/30/2b9c9528d293183ac805a6a907dc12f7.jpg)
|
Low self-disharge rate
|
|
Easy installation & high safety
|
|
Long service life
|
Less than 3%/month to ensure maximum storage time
|
|
Heavy duty Silver-plated threaded copper alloy terminals for ease of assembly, reduced maintenace and increased safety.Flame arresting, low pressure safety release venting system for individual cells, recognized per U.L.924
|
|
20+ years design life in float service @ 25℃
|
|
|
|
|
|
![](/storage/uploads/images/202303/30/6d735a93287a61b6a8c8705d1d5748bb.jpg)
|
|
![](/storage/uploads/images/202303/30/1033801542d775e92907cc62603a9e06.jpg)
|
|
![](/storage/uploads/images/202303/30/3bb37ef189ec825dc487cfa3a87c3b44.jpg)
|
Flexible capacity expansion
|
|
Space saving
|
|
Assured quality
|

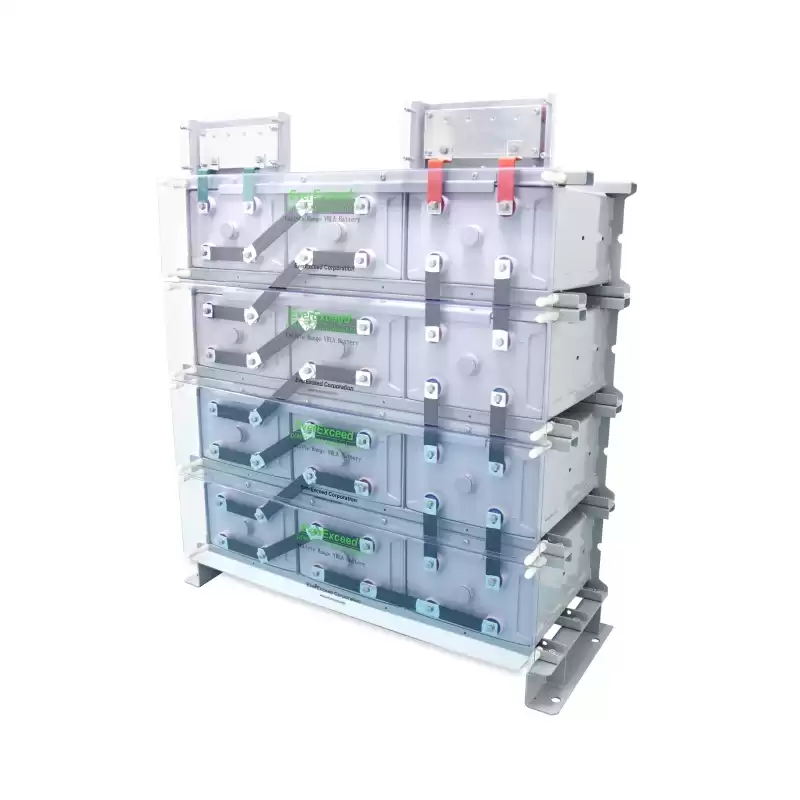

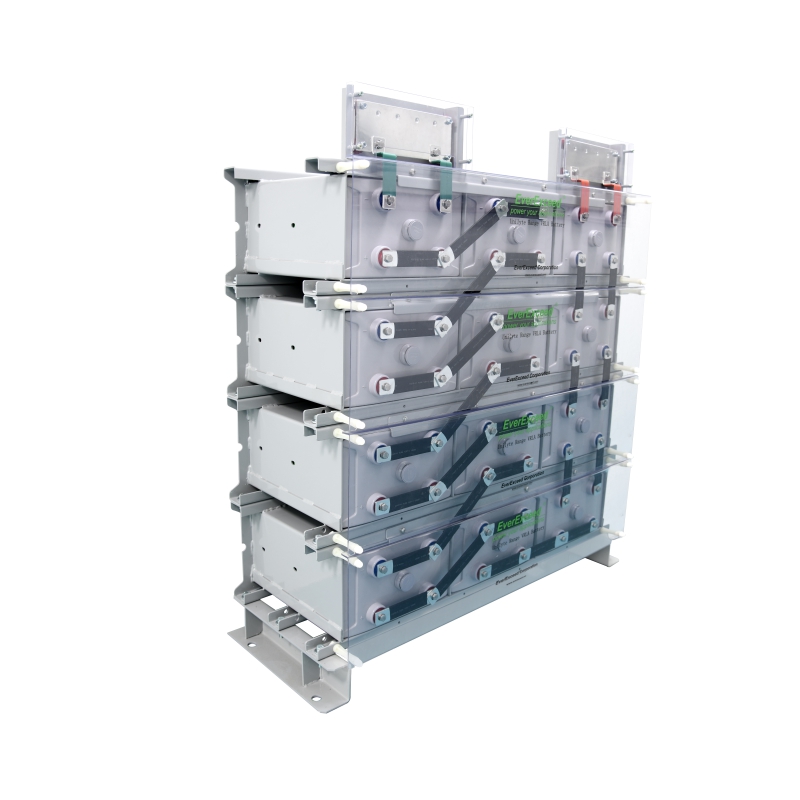

Customs designed racks & modules can be stacked up to eight high
|
|
Modular space saving design for ease of installation & assembling flexibilty
|
|

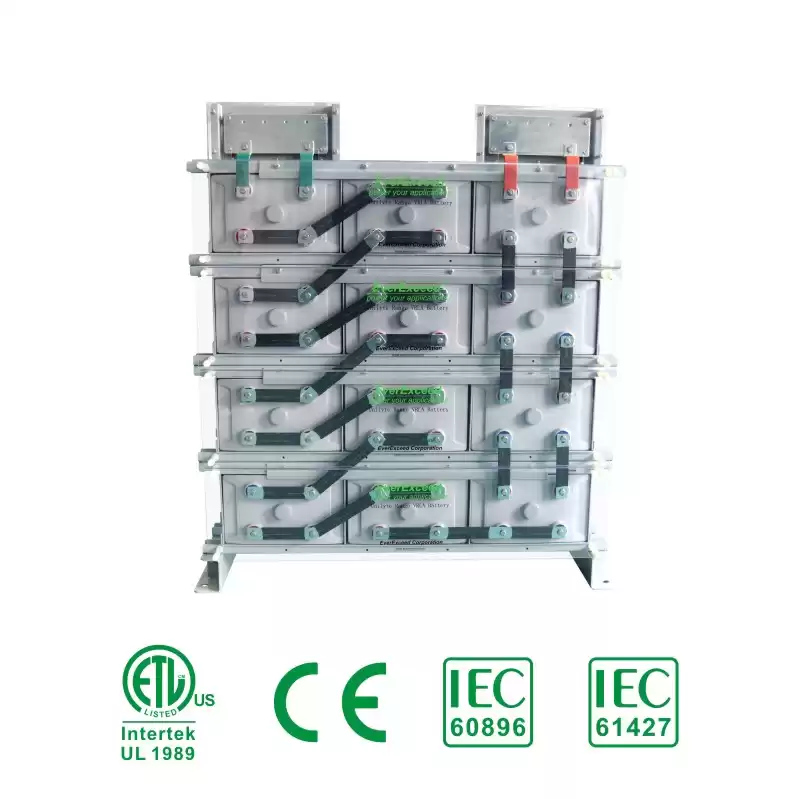

These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896 & IEC61427
|
|
|
|
|
|
![](/storage/uploads/images/202303/30/73e1eaa4331a49182f8b124f7c268844.jpg)
|
|
![](/storage/uploads/images/202303/30/5c06384f3529225ed6146957becdbaa9.jpg)
|
|
![](/storage/uploads/images/202303/30/cb4abc8ee4c45b5fdd3abb48c31b01e4.jpg)
|
Worry free operation
|
|
Wide operating temperature range
|
|
Pure Lead composition
|
Maintenance free operation in vertical & horizontal position.
|
|
-40°C to +70°C
|
|
99.994% pure lead excels performance & lifetime
|

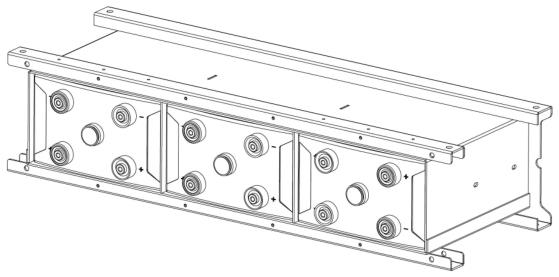

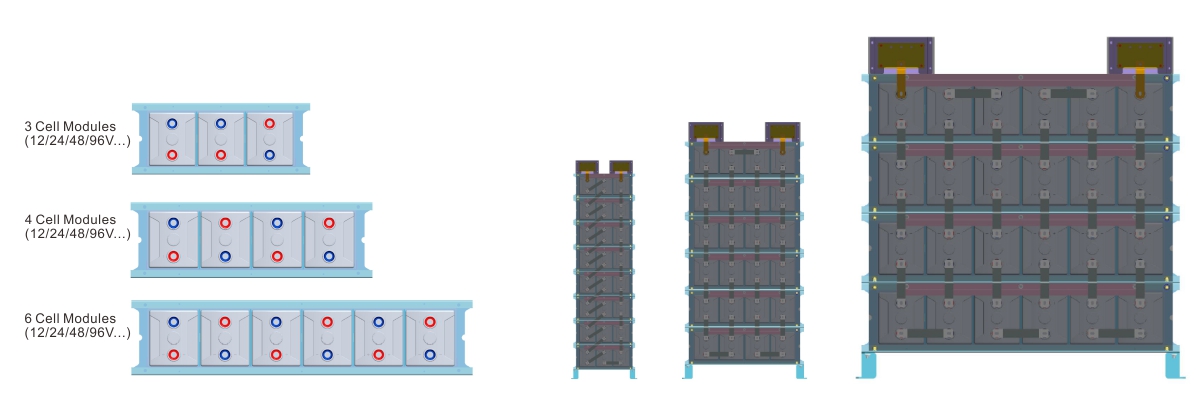

Cells Configuration

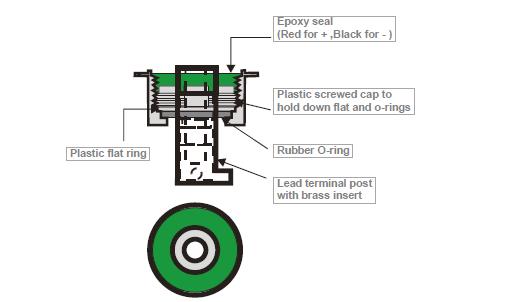

Typical Triple Barrier Post Seal Detail:
•Network Operations Centers; •Internet Hosting Sites; •Banks & Financial Markets; •Uninterruptible power systems;
•Power Plant and Substation; • Railroad signal and communication; • Telecommunications; •Photovoltaic; •Alternative energy systems; •Switchgear and control

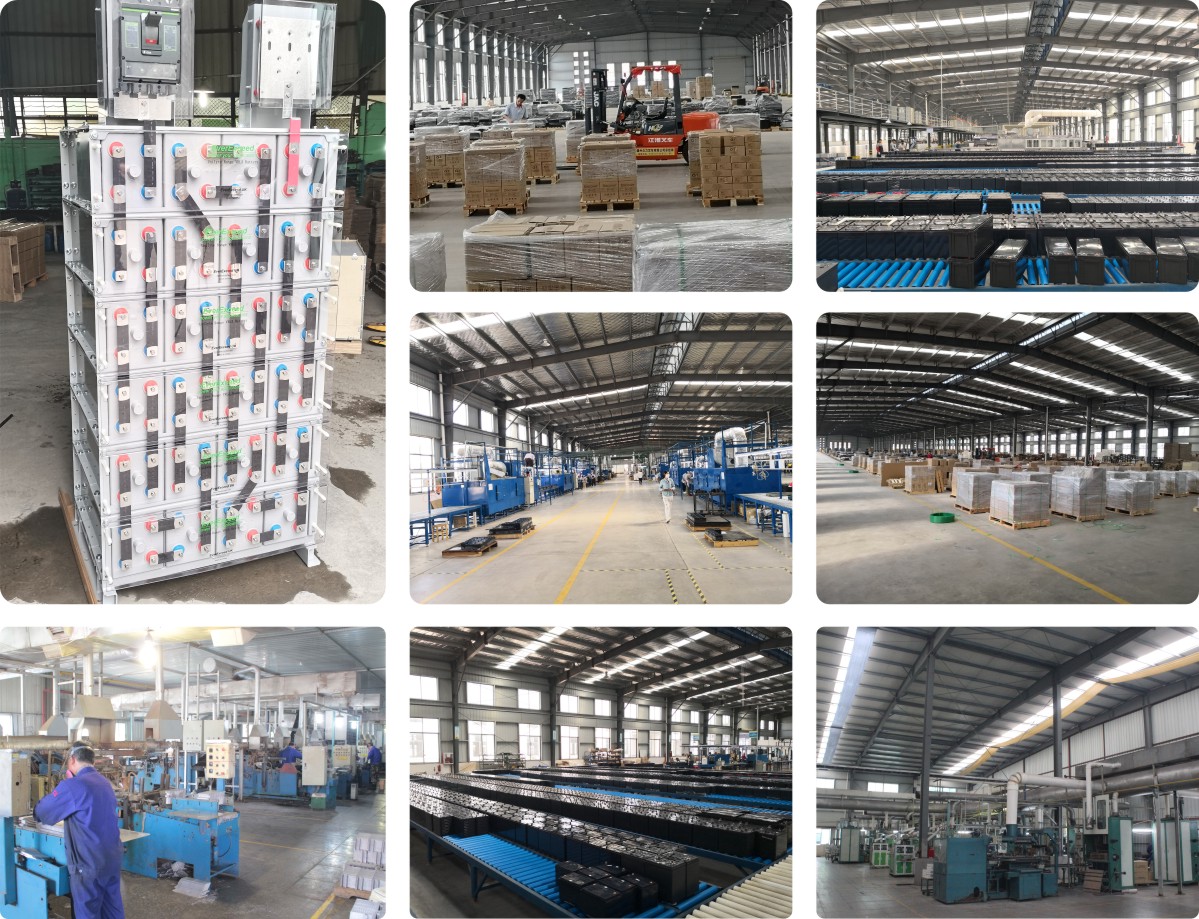

Factory:
