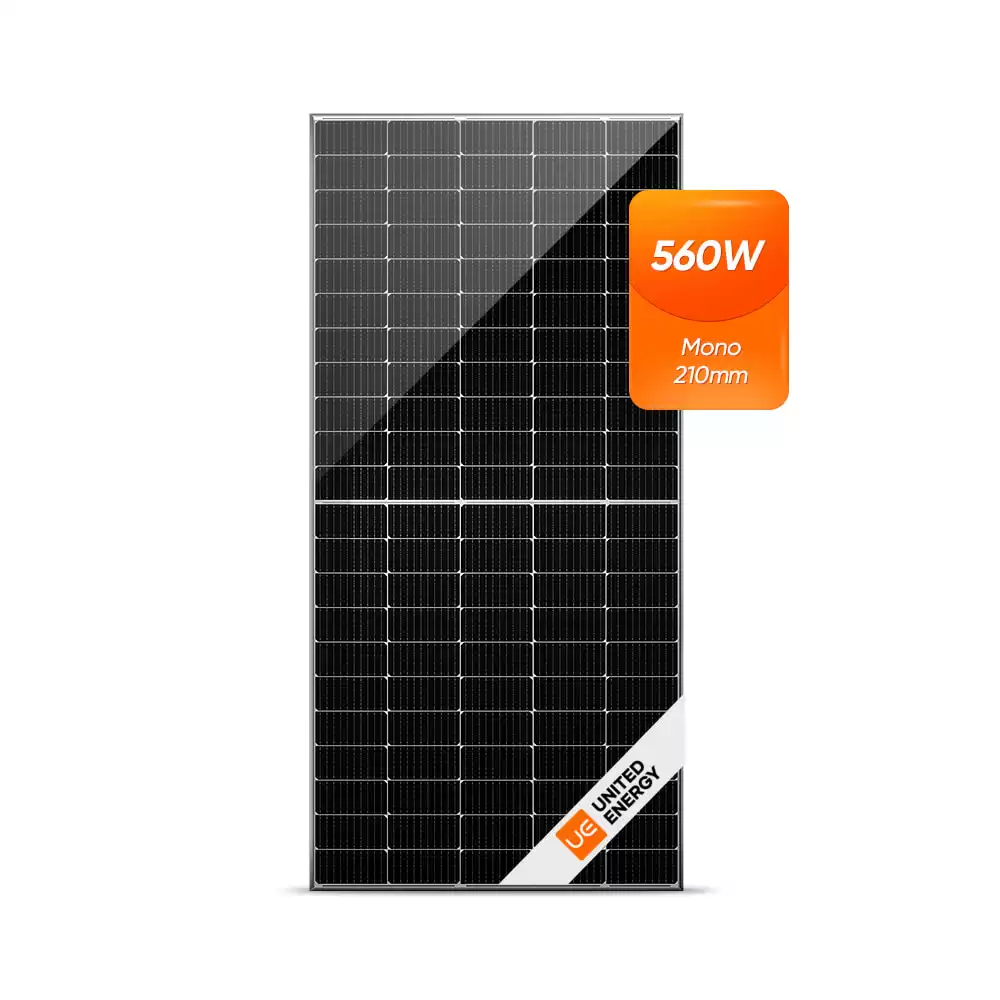

United Energy 560W 560 watt solar panel price Europe warehouse

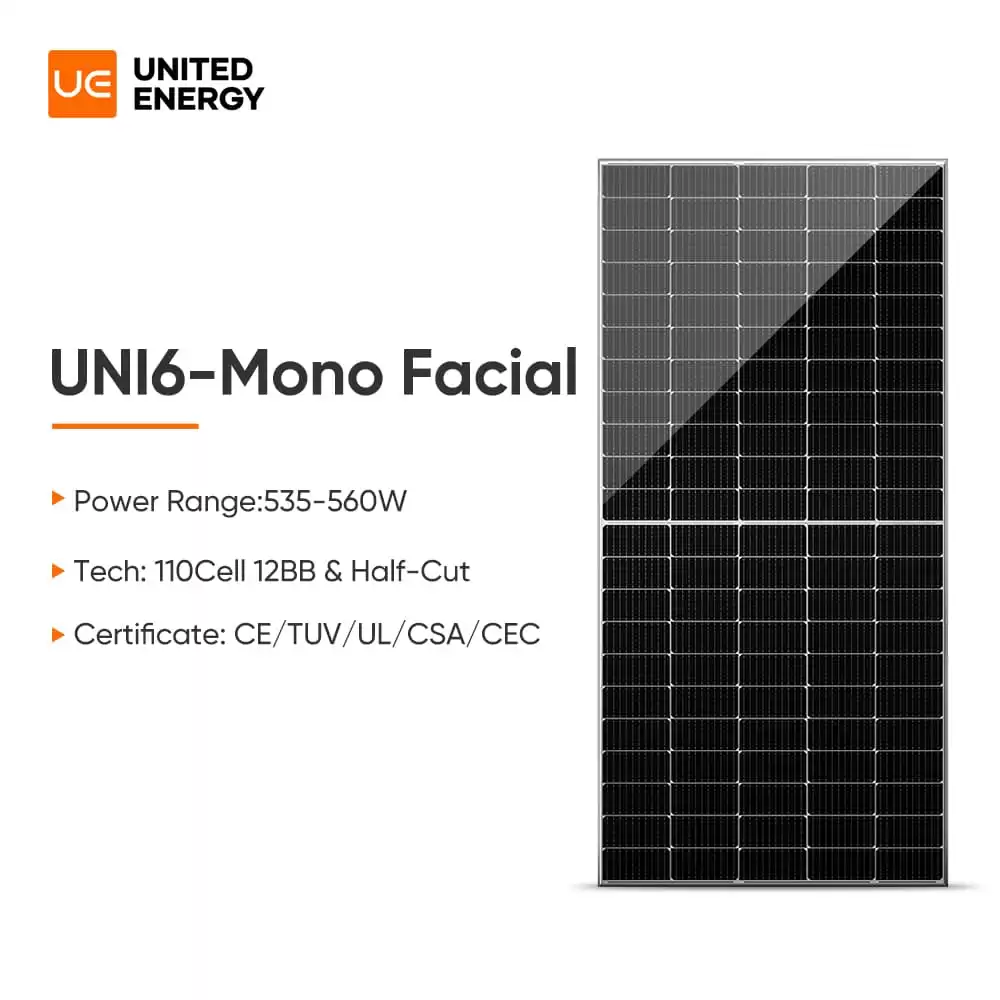

UNI 6 Series 110 Half-Cells Mono Solar Module 540watt 550W 555W 560Wp

Bloomberg Tier 1 PERC Technology MBB Photovoltaic Solar Panel Module Based on 210mm Solar Cell

  1. PERC technology, higher Effi. up to 21.4%
  2. Max. power up to 560W, high power, less cost
  3. 12 years warranty for materials and processing, 25 years warranty for liner output power



United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

1. The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module assembly by about 25 ° C, which can effectively reduce the hot spot effect of the solar panel.

2.  Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%

3. Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

4. Reduce the first year and the average photoinduced attenuation

5. 100% PID Free.



Electrical Specification

Model Number UE550M-55H UE555M-55H UE560M-55H
Testing Condition STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax/W) 550 417 555 421 560 425
Open Circuit Voltage (Voc/V) 37.9 35.7 38.1 35.9 38.3 36.1
Short Circuit Current (Isc/A) 18.51 14.92 18.56 14.96 18.61 15
Voltage at Max Power (Vmp/V) 31.6 29.4 31.8 29.6 32 29.8
Current at Max Power (Imp/A) 17.41 14.79 17.46 14.23 17.5 14.27
Module Efficiency(%) 21.05 21.25 21.44
Temp Coefficient of Isc ‘+0.04%/°C
Temp Coefficient of Voc ’-0.25%/°C
Temp Coefficient of Pmax ‘-0.34%/°C


Key Features of United Energy Solar Panel

1.50W increase compared with PERC of the same version

2.Passed the standard test of 3 times IEC for greater reliability

3.HJT new production technology

4. Superior Warranty-12 years products warranty  25 years linear power output warranty

5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.



FAQ:

What watts of this panel?

 Mono 540w 545w 550w 555w 560w solar panel.



What dimension of this panel?

 2384 x 1096 x 35mm



How much is the loading quantity and shipping method?

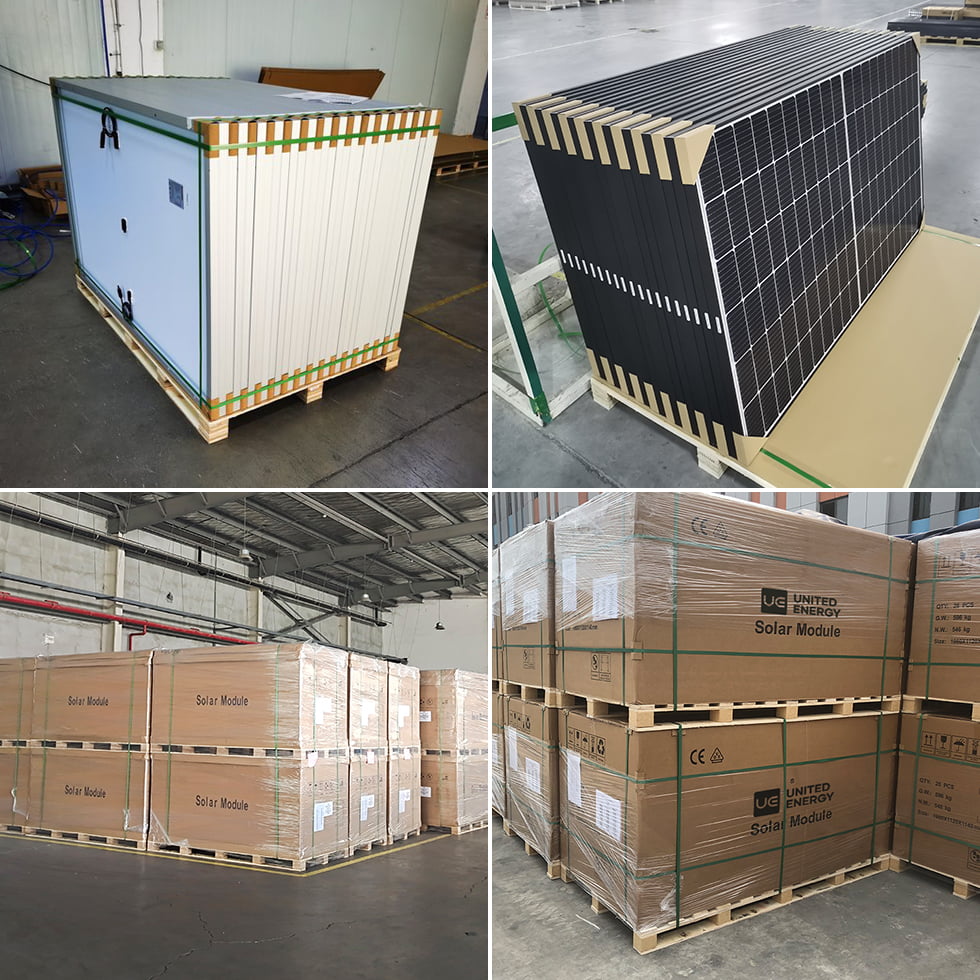

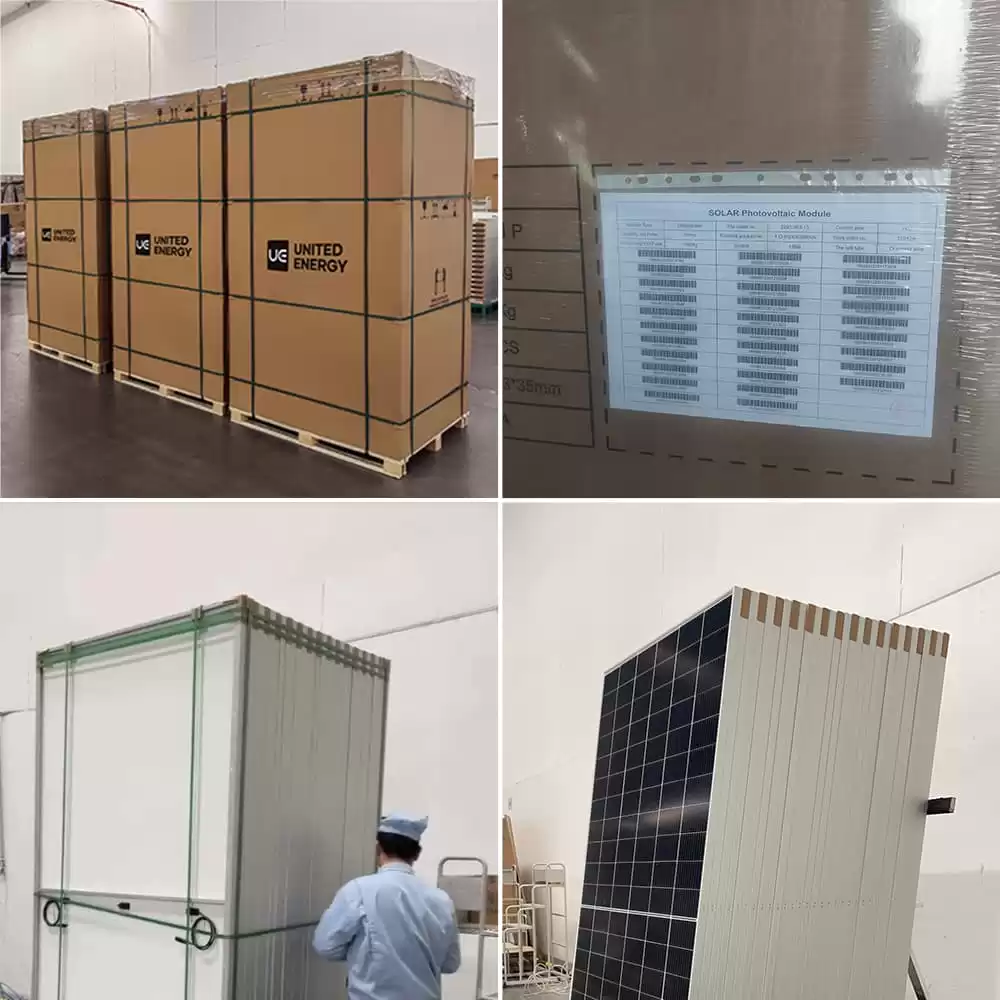

31pcs/pallet   620pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
