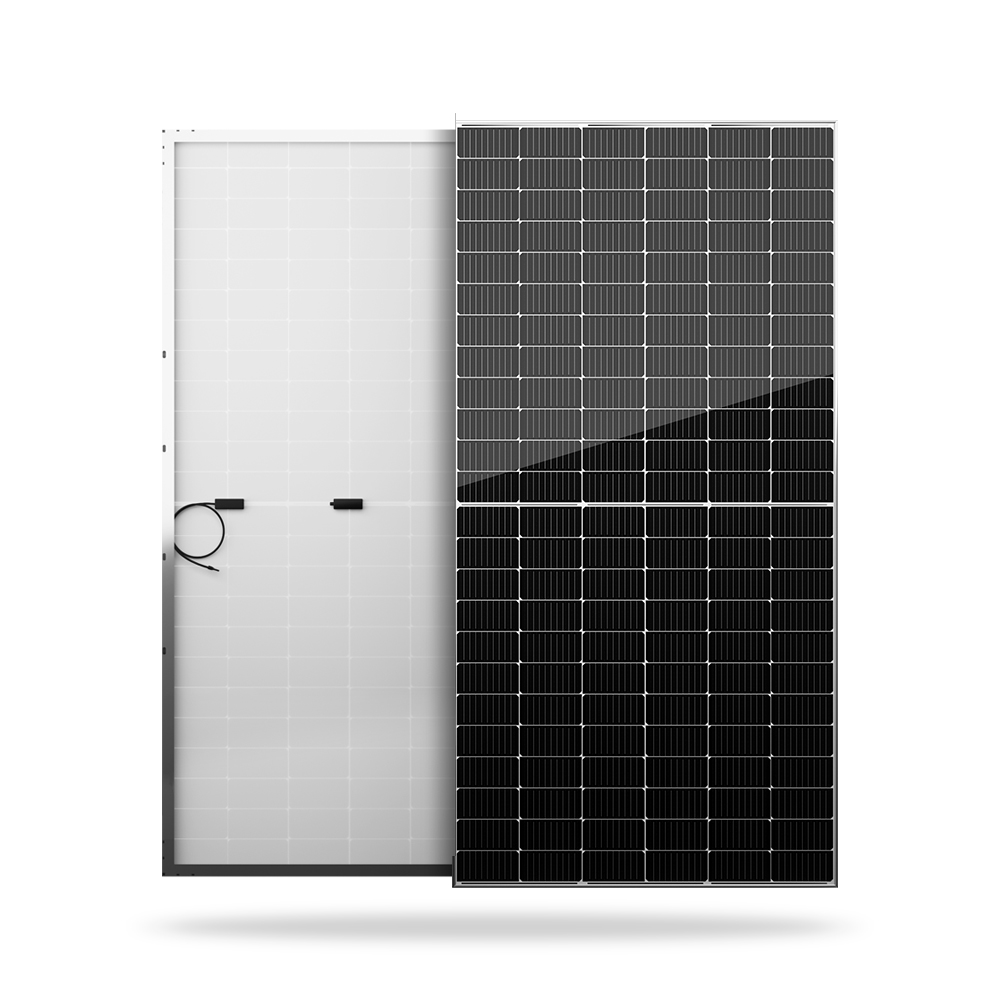

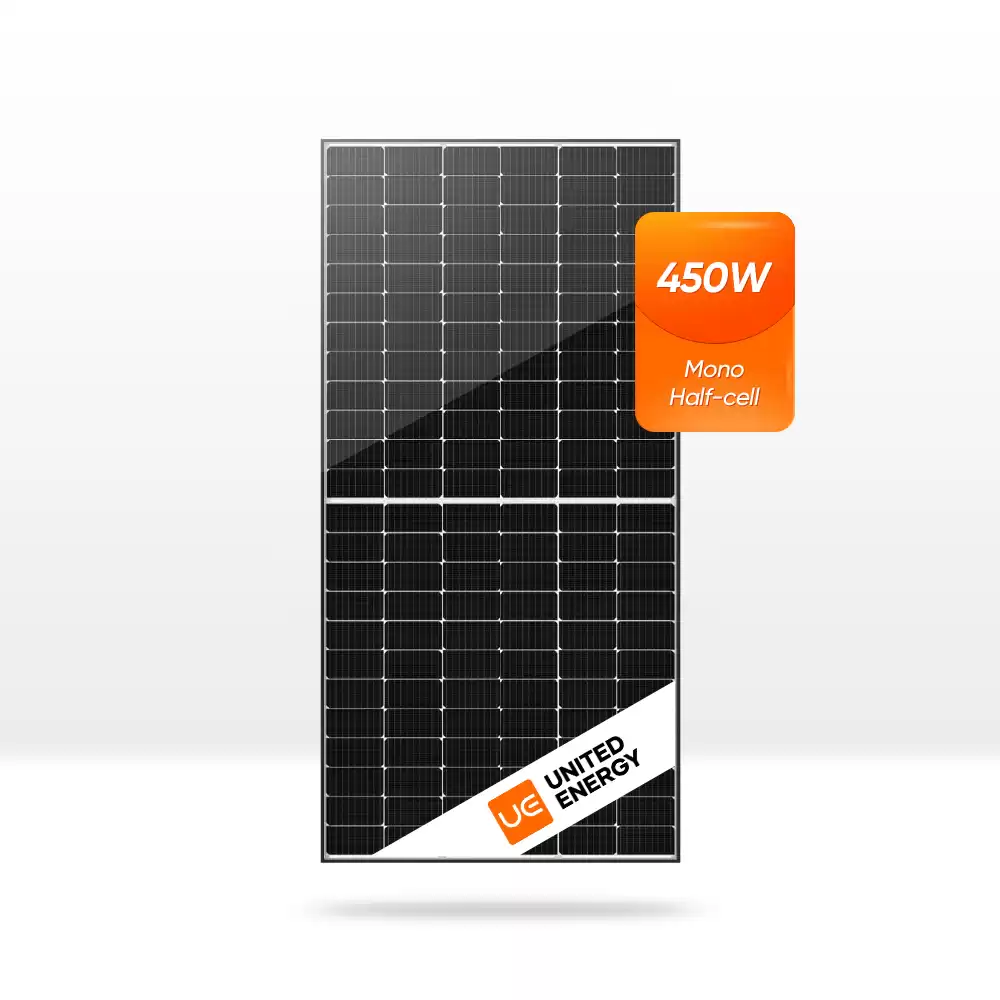

United Energy Monocrystalline PV Module 450W 460W 470W Solar Panel

UNI 4 Series 144 Half Cells PV Panel 450W 455W 460W 465Wp 470Watt

  1. MBB& half-cut technology, higher efficiency
  2. 12 years warranty for material, 25 years warranty for liner power output
  3. Max model Eff. 21.63%
  4. Higher energy yield in low irradiation with lower operating temperature



United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!

1. By using half-cells, the electrical current ( i ) flowing in each busbar is halved. Therefore, the amount of internal losses in a half-cut module is 1/4 of a full sized cell module

2. Positive power tolerance (0 +5W) guaranteed

3. High module conversion efficiency (up to 21.9%)

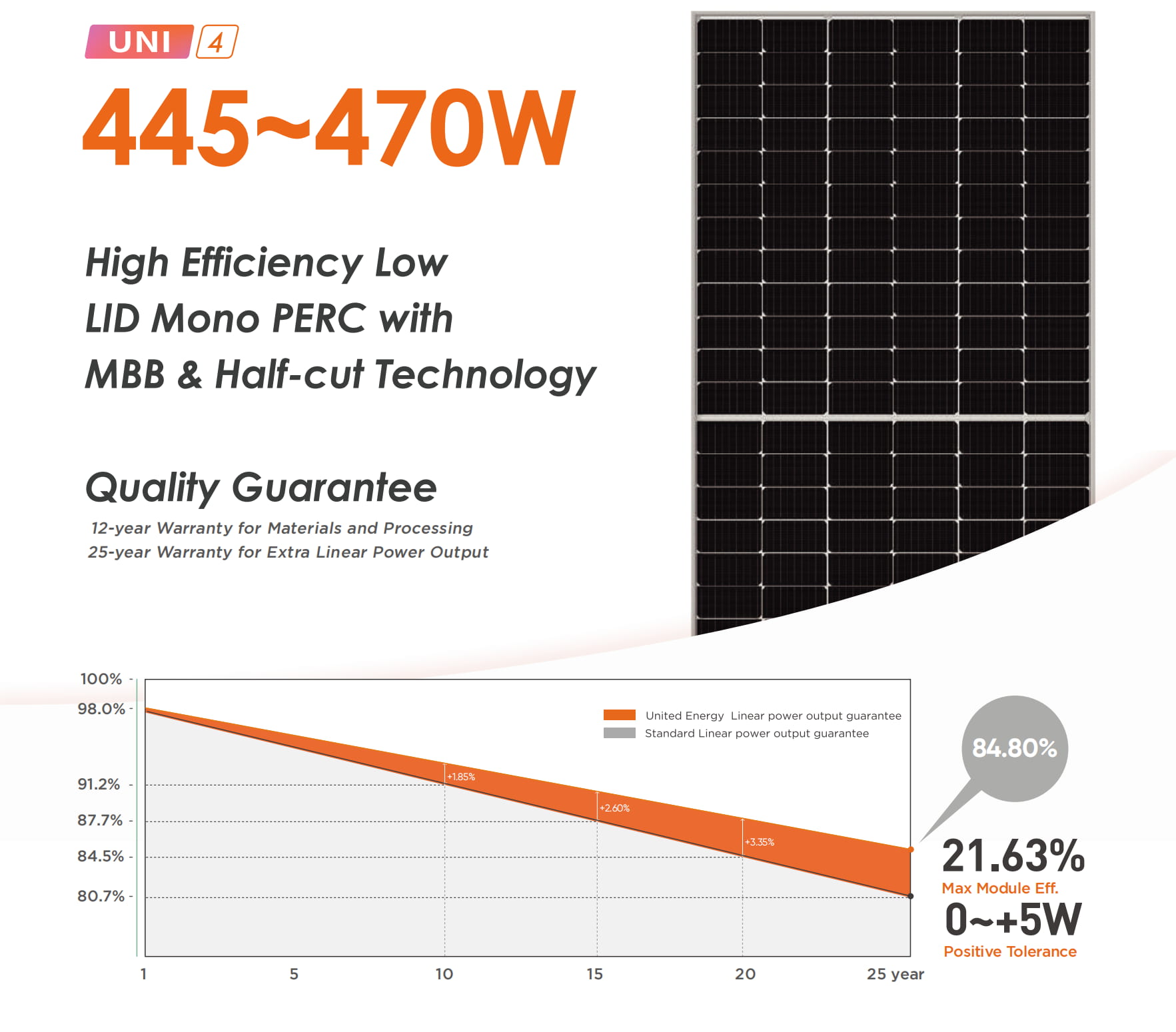

4. Slower power degradation enabled by Low LID Mono PERC technology: first year <2%,0.55% year 2-25

5. Solid PID resistance ensured by solar cell process optimization and careful module BOM selection

6. Higher energy yield with lower operating temperature

7. Reduced hot spot risk with optimized electrical design and lower operating current



Electrical Specification

Model Number UE445M-72H UE450M-72H UE455M-72H UE460M-72H UE465M-72H UE470M-72H
Maximum Power (Pmax/W) 445 450 455 460 465 470
Open Circuit Voltage (Voc/V) 49.4 49.6 49.8 50 50.2 50.4
Short Circuit Current (Isc/A) 11.46 11.53 11.6 11.67 11.74 11.81
Voltage at Maximum Power (Vmp/V) 40.8 41 41.2 41.4 41.6 41.8
Current at Maximum Power (Imp/A) 10.91 10.98 11.05 11.12 11.18 11.25
Efficiency(%) 20.48 20.71 20.94 21.17 21.4 21.63



Key Features of United Energy Solar Panel:

1.Three times EL test to ensure best quality

2.Superior Warranty-12 years products warranty  25 years linear power output warranty

3.Ideal choice for utility and commercial scale projects by reduced BoS and improved ROI

4.Excellent wind load 2400Pa & snow load 5400Pa under certain installation method

5. Full set of safety certification and regulation, meet certificate requirements in most of the countries.



FAQ:

What watts of this panel?

Mono 450w 460w 470w high efficiency solar panel.



What dimension of this panel?

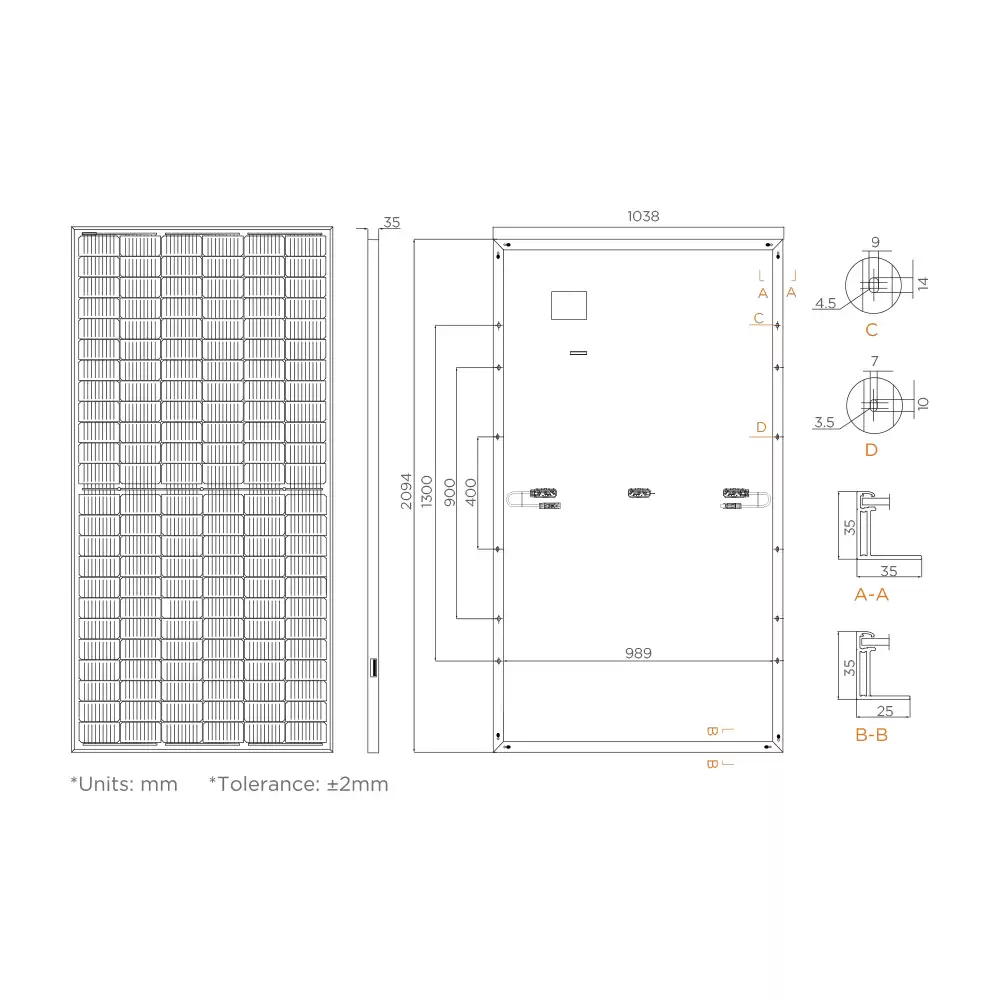

2094*1038*30mm



How much is the loading quantity and shipping method?

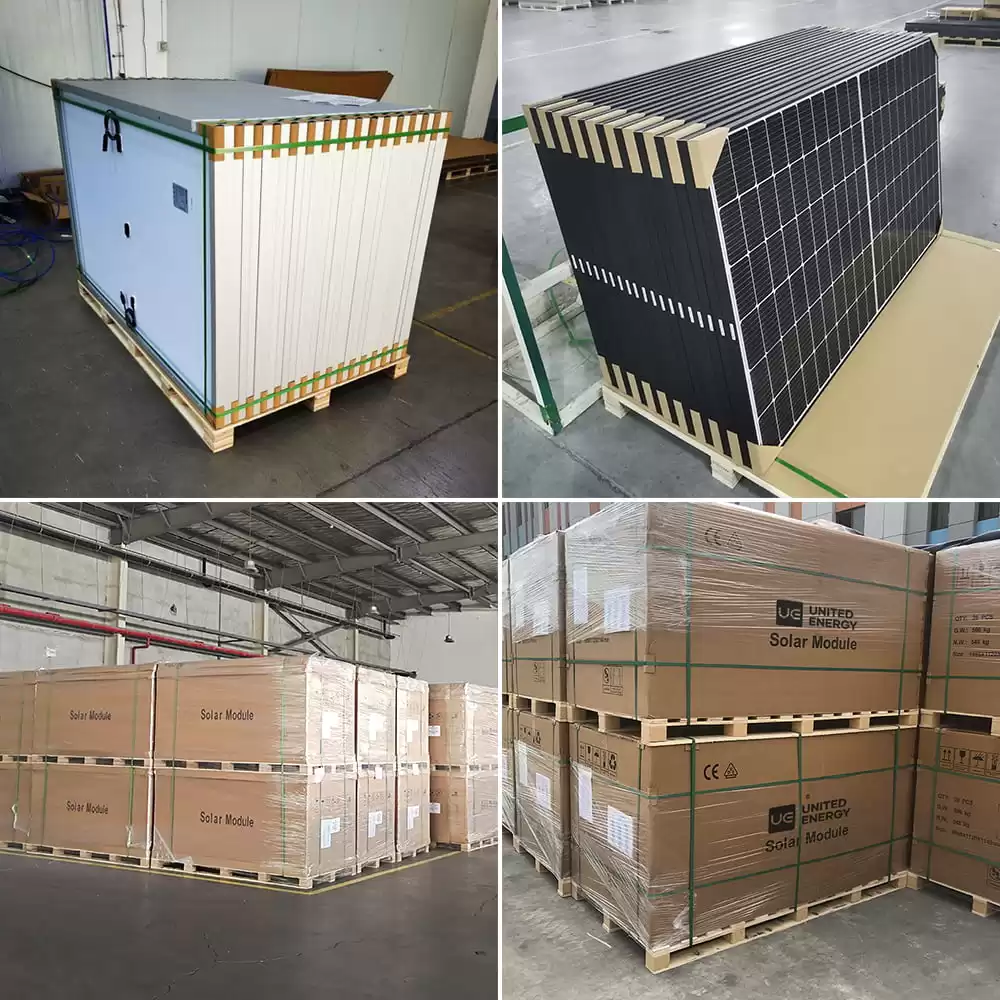

36pcs/pallet. 155pcs/20ft. 792pcs/40HQ ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
