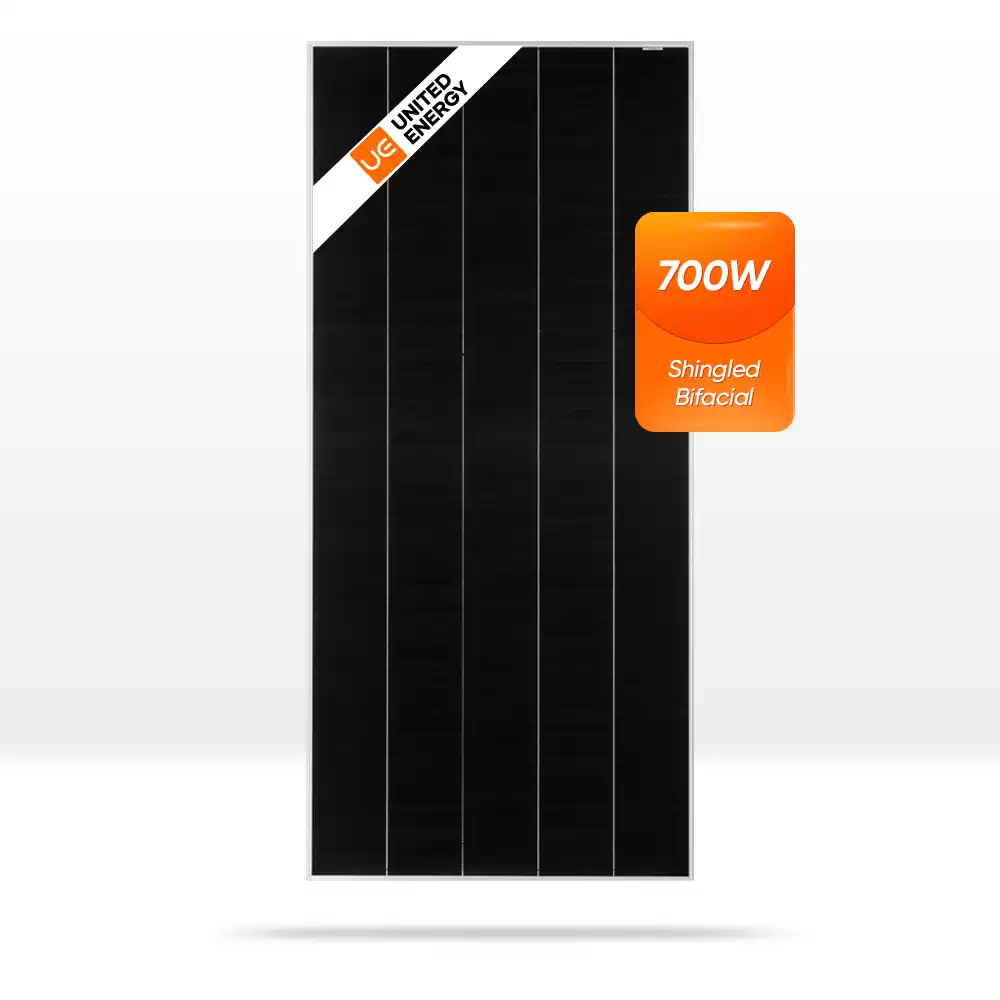

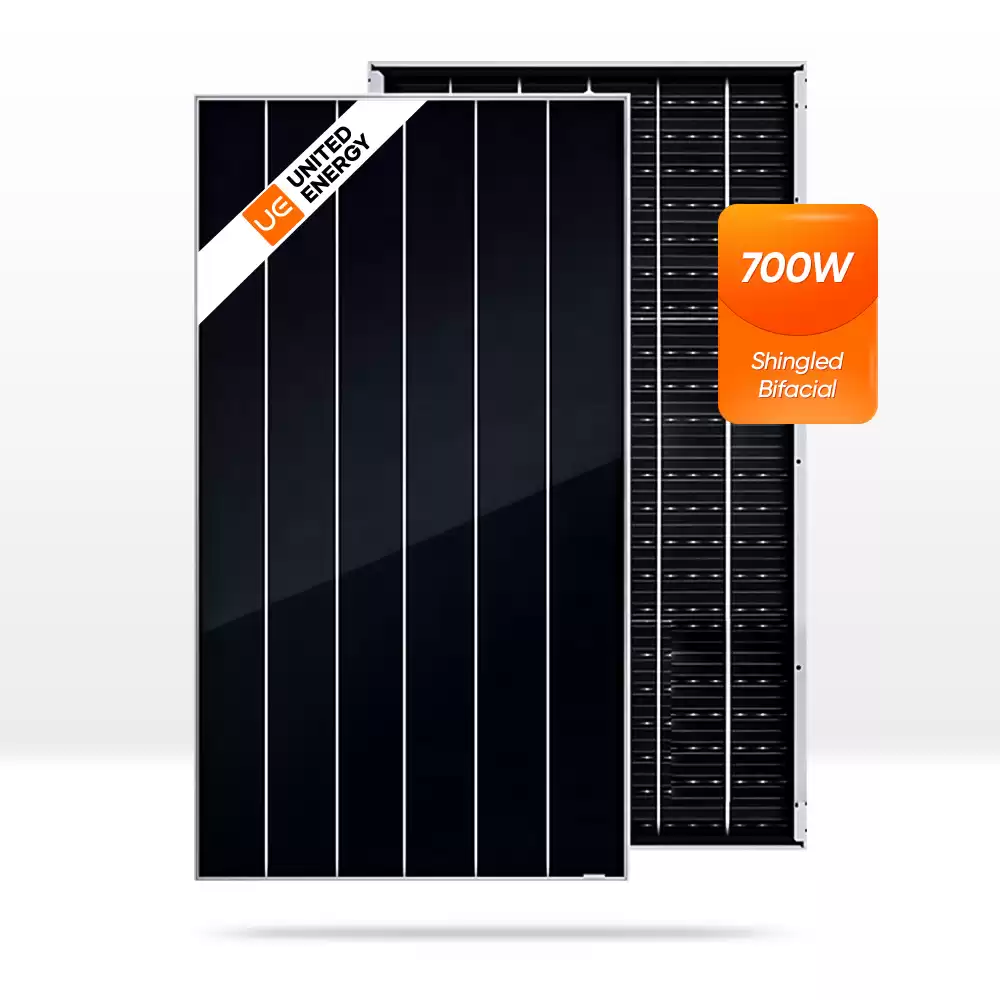

United Energy Shingled Solar Panel Monocrystalline 210mm Bifacial 670w 680w 690w 700w

Shingled modules cut solar cells into strips and overlap them inside the framed module.

Intercell gaps are removed, and more silicon cells can be crammed into one module, increasing power output and module efficiency.



United Energy founded in 2009, National high-tech enterprise,focus on solar panel R&D obtained more than 100 patents.

Quality is the Company Culture of UNITED ENERGY!





1. The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module

assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.

2. Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;

3. Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

4. Reduce the first year and the average photoinduced attenuation;

5. 100% PID Free.

6.Bifacial Energy Yield-Additional power generation from the backside of bifacial modules increases the overall energy yield, which has been verified by customers and third-party testing organizations.



Electrical Specification



Model Number UE675PMB6 UE680PMB6 UE685PMB6 UE690PMB6 UE695PMB6 UE700PMB6
Maximum Power (Pmax/W) 675 680 685 690 695 700
Open Circuit Voltage (Voc/V) 46.3 46.5 46.7 46.9 47.1 47.3
Short Circuit Current (Isc/A) 18.68 18.73 18.78 18.83 18.88 18.93
Voltage at Maximum Power (Vmp/V) 38.4 38.6 38.8 39 39.2 39.4
Current at Maximum Power (Imp/A) 17.58 17.62 17.66 17.7 17.73 17.77
Efficiency (%) 21.73 21.9 22.06 22.22 22.38 22.54

Advantage of United Energy Solar Panel

1. Higher Bifacial Efficiency
The HJT data show that the Bifacial efficiency rate is as high as 93-95%, while the Double side PERC rate is only 75%+. Taking into account the 10%-20% backside irradiation and the difference in the double-side rate of the cells, the output of HJT cells per watt is about 3%-6% higher than that of double-side PERC cells.
2. 50W increase compared with Perc of the same version
3. Full set of safety certification and regulation, meet certificate requirements in most of the countries.



FAQ:

What watts of this panel?

 Mono 660w 670w 680w 690w 700w solar panel.



What dimension of this panel?

 2384 x 1303 x 35mm



How Many pcs quantity of one container?  How much is the loading quantity and shipping method?

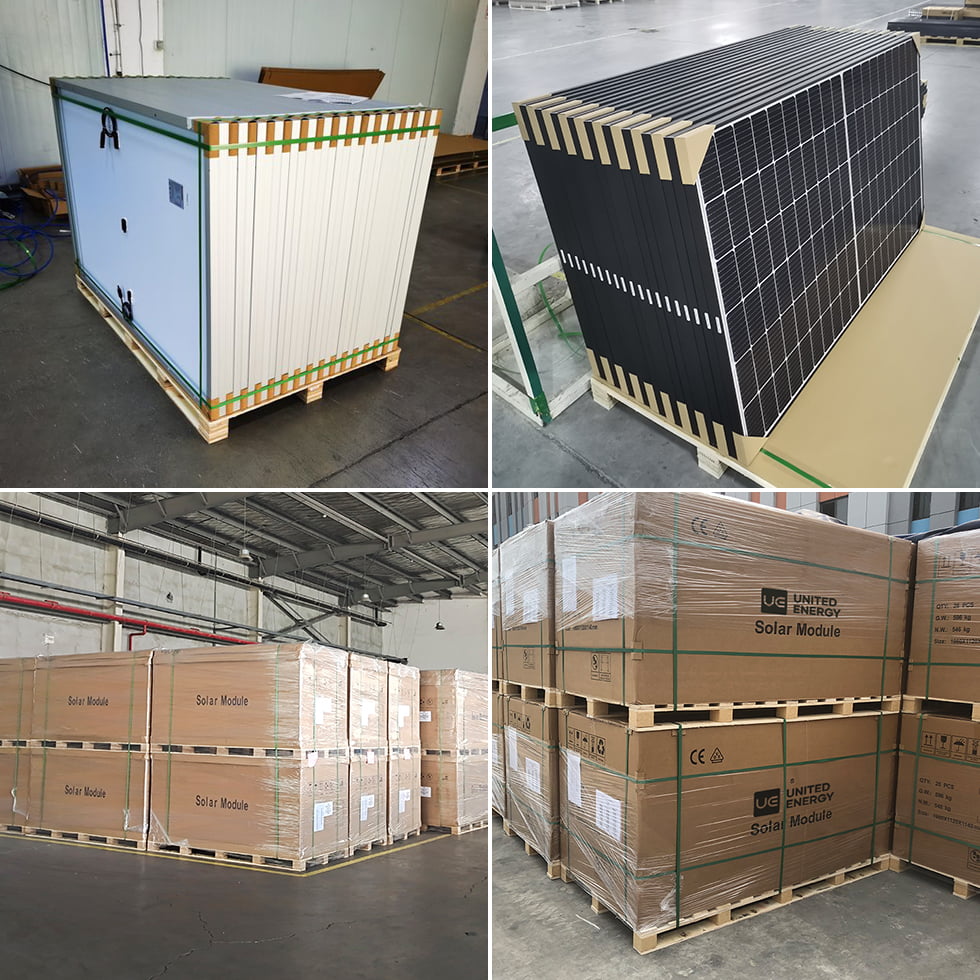

31pcs/pallet  558pcs/40HQ; Shipping normally by sea because of the heavy weight, but we can provide DDP(door-to-door) service if needed.

How long is the Delivery time?

Normally production will takes around 10 workings days, depends on the order quantity.
