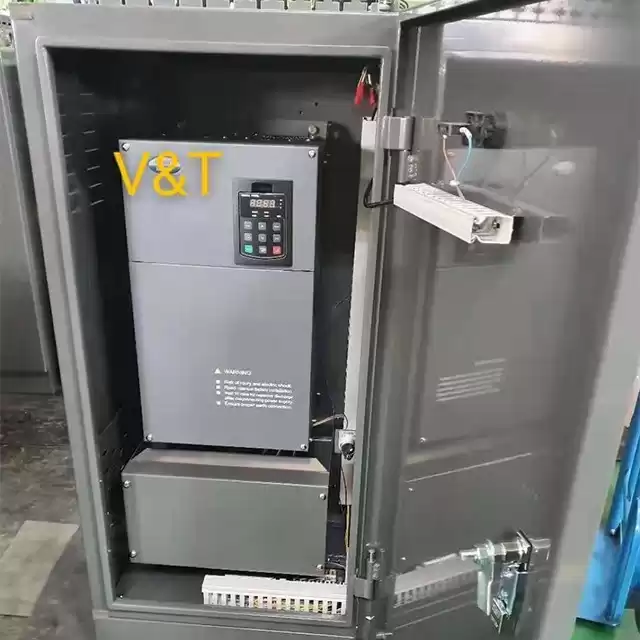

Product Overview
|
Item
|
Description
|
|
Product Name
|
Frequency Inverter/ AC Drive
|
|
Model Number
|
V5-H-4TxxG-GS, V5-H-6TxxG-GS
|
|
Power Range
|
75kW-3000kW
|
|
Rated Input Voltage
|
3 phase 380V/480V, 690V/790V
|
|
Rated Output Voltage
|
3 phase 0 to rated input voltage
|
|
Adaptable Motor
|
Asynchronous Motor
|
|
Input Frequency
|
50Hz/60Hz
|
|
Control Mode
|
V/F Control, Vector Control, Sensorless Vector Control, Vector Torque Control
|
|
Communication
|
Modbus 485 RTU
|
|
IP Class
|
Standard IP54
|
|
Overload Capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
Feature
■ Inverter with a touch screen to meet need and faster operation and intuitive comprehensive display
■ Excellent control performance for open-loop vector control, accurate speed identification and rotor flux orientation, and torque can respond quickly and operate stably at 0.25hz load change
■ Excellent current and voltage control technology, inverter stably operates with repeated and alternate accelerating and decelerating at 0.1s instruction
■ Independent air duct design: the whole series supports installation outside the radiator cabinet, which is suitable for situation with too much cotton wool or dust in the spinning machine, drawing machine
■ Wide voltage range design: the DC working voltage range is 360-720V, and it also has record function about voltage fluctuation on power system.
Technical Parameter
|
Control mode
|
open-loop vector control；
|
|
Power range
|
315kW～1200 kW
|
|
Input voltage/ frequency
|
3AC 380V～480V；50Hz/60Hz
|
|
Output voltage
|
3AC 0～rated input voltage
|
|
Output frequency
|
0.0～300.0Hz
|
|
Digital input and output port
|
standard multi-function input port, expandable
standard open collector output port, expandable
|
|
Analog input and output
|
input：AI1 0～20 ;MA，input impedance ;500Ω，max ;input current ;30MA；
0～10V， ;input impedance ;20kΩ，max input voltage ;15V，resolution ;is 12 ;bits（0.025%）
switch to choose 0～20 ;MA ;or 0～10V ;Analog input
AI2 same as above explanation
AI3 −10V～10，input impedance ;20kΩ ;, max input voltage ;±15V，resolution is 12bits（0.025%）
output：AO1 0～20 ;MA, ;impedance ;with permissible ;output ;is 200～500Ω
0～10V，impedance ;with permissible ;output≥10kΩ，resolution ;is 10 bits（0.1%）
short circuit protection，switch to choose 0～20 ;MA ;or 0～10V ;analog ;output
AO2 same as above explanation
|
|
Pulse input and output
|
pulse input：0.1Hz～50kHz；voltage range：24V±20%
pulse output：0～50kHz；voltage range：24V±20%
|
|
Communication protocol
|
dual 485 communication port supports Modbus protocol（RTU）, ;standard operation panel meet remote control ;approximate 500 meter
|
|
External interface
|
DC24V power supply，max output current 100 MA
|
|
Reactor
|
standard built-in input reactor, optional output reactor
|
|
Installation
|
Vertical installation
|
|
IP
|
IP20
|
V5−H−4T□□□G−GS ;3 Phase 400V ;Constant Torque/Heavy-duty Applications
|
Power（kW）
|
315
|
355
|
400
|
450
|
500
|
560
|
630
|
710
|
800
|
900
|
1000
|
1250
|
|
Motor（kW）
|
315
|
355
|
400
|
450
|
500
|
560
|
630
|
710
|
800
|
900
|
1000
|
1250
|
|
Output
|
Voltage（V）
|
3 phase 0～rated input voltage
|
|
Rated Current（A）
|
600
|
650
|
690
|
775
|
860
|
950
|
1100
|
1300
|
1380
|
1550
|
1720
|
2200
|
|
Overload capacity
|
150% ;1 ;min，180% ;10 ;second， 200% ;0.5 ;second，interval: 10 minutes (inverse time lag ;feature)
|
|
Input
|
Voltage/ frequency
|
3 phase 380V～480V；50Hz/60Hz
|
|
Allowable voltage range
|
323V～528V；Voltage imbalance ：≤3% ；allowable frequency fluctuation：±5%
|
|
Rated Current（A）
|
552
|
624
|
670
|
755
|
840
|
920
|
1050
|
1248
|
1340
|
1510
|
1680
|
2100
|
|
Braking unit
|
External braking ;unit ; ;needed
|
|
IP
|
IP54
|
|
Cooling mode
|
Forced air cooling
|
Note: V5−H−4T315G−GS and above power class are standard build-in input ;Optional output reactor
V5−H−6T□□□G−GS ; 3 Phase 690V Constant Torque/Heavy-duty Applications
|
Power（kW）
|
400
|
450
|
500
|
560
|
630
|
710
|
800
|
900
|
1000
|
1250
|
|
Motor（kW）
|
400
|
450
|
500
|
560
|
630
|
710
|
800
|
900
|
1000
|
1250
|
|
Output
|
Voltage（V）
|
3 ;phase 0～Rated Voltage
|
|
Rated Current（A）
|
435
|
490
|
545
|
600
|
680
|
770
|
860
|
980
|
1090
|
1540
|
|
Overload capacity
|
150% ;1 min，180% ;10 second， 200% ;0.5 second，interval: 10 minutes (inverse time lag ;feature)
|
|
Input
|
Voltage/ frequency
|
3 ;phase 690V～790V；50Hz/60Hz
|
|
Allowable voltage range
|
587V～793V；Voltage imbalance：≤3% ；allowable frequency fluctuation：±5%
|
|
Rated Current（A）
|
415
|
466
|
520
|
580
|
655
|
750
|
840
|
932
|
1040
|
1500
|
|
Rated Current（A）
|
Built-in as optional
|
|
IP
|
IP54
|
|
Cooling mode
|
Forced air cooling
|
Note: V5−H−6T400G−GS and above power class is standard build-in input ; Optional output reactor

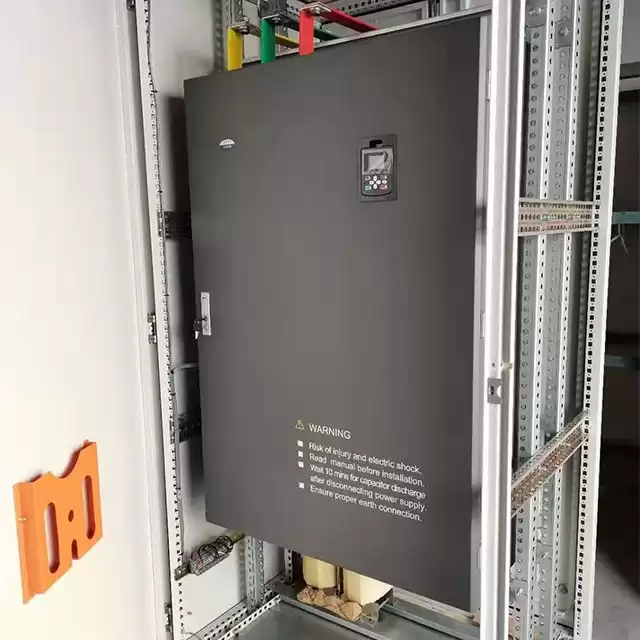

Installation Dimension
V5−H−4T315G−GS ;and above power class, V5−H−6T400G−GS ;and above power class
Product Appearance, Installation Dimensions, Approximate Weight
|
Voltage（V）
|
Model No.
|
Appearance, ;Installation Dimensions（mm）
|
;Weight（kg）
|
Note
|
|
W
|
H
|
D
|
|
400V
|
V5−H−4T315G−GS
|
800
|
2315
|
600
|
430
|
standalone
|
|
V5−H−4T355G−GS
|
440
|
standalone
|
|
V5−H−4T400G−GS
|
450
|
standalone
|
|
V5−H−4T450G−GS
|
1000
|
2352
|
600
|
480
|
standalone
|
|
V5−H−4T500G−GS
|
480
|
standalone
|
|
V5−H−4T560G−GS
|
500
|
standalone
|
|
V5−H−4T630G−GS
|
520
|
standalone
|
|
V5−H−4T710G−GS
|
1250
|
2352
|
600
|
650
|
standalone
|
|
V5−H−4T800G−GS
|
2000
|
2352
|
600
|
920
|
parallel ;operation
V5−H−4T450G−GS*2
|
|
V5−H−4T900G−GS
|
980
|
parallel ;operation
V5−H−4T500G−GS*2
|
|
V5−H−4T1000G−GS
|
1000
|
parallel ;operation
V5−H−4T560G−GS*2
|
|
V5−H−4T1250G−GS
|
1060
|
parallel ;operation
V5−H−4T630G−GS*2
|
Selected Accessories/Expansion Cards
|
Type
|
Name
|
Model
|
Function Explanation
|
Reference
|
|
operation panel
|
Text Display
|
EX−MT01
|
optional matching man-machine operation interface - text display
|
P2−**
|
|
Touch Screen
|
EX−MT02
|
Standard operating interface - touch screen
|
P2−**
|
|
expansion cards
|
Power monitor card
|
EX−PA01
|
input power ;with three phase ;is out of phase/transient power loss monitoring
|
P2−**
|
|
Phase-sequence detection card
|
EX−PA02
|
Phase sequence detection of input power supply ;with three-phase
|
P2−**
|
|
Speed tracking card
|
EX−PA03
|
speed tracking
|
P2−**
|
|
External power rectification card
|
EX−RF01
|
control power supply is provided by the external power supply
|
P2−**
|
|
Programmable ;CAN ;bus extension card
|
EX−CA05
|
|
P2−**
|
|
Profibus DP ;communication card
|
EX−CA06
|
|
P2−**
|
Applications
Representative Industry

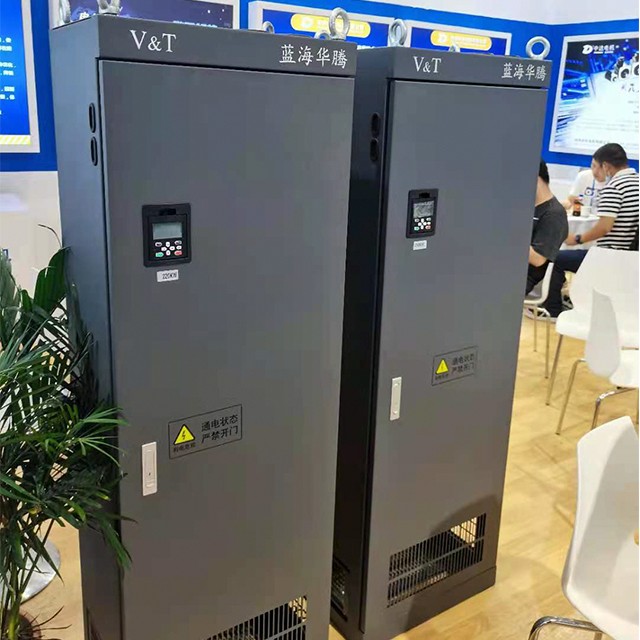

Shenzhen V&T Technologies Co.,Ltd. universal cabinet inverter is suitable for Fan and Water pump, Stone Machinery, Extruder, Great Circle Machine, Fine Wire Drawing Machine, Air Compressor, Plastic Blow Molding Machine, Mining Winch, Belt Conveyor, Oil Pump, Ceramic Machine, as well as the application of open-loop vector control.
