universal input 100-240Vac DC12V 100A power supply

The dc power supply 1200W with the compact size,now the 12V 100A power source is very popular among the market,because the efficiency is up to 94%.



12V 100A power supply

Description:

12V 100A power supplies is suitable for use in LED stage lighting, networking, test and measurement, IT applications, general electronics, automation, motor, based machinery and etc.


Features:

1, High efficiency 12V 1200W switching power supply;
2, Built-in EMI filter and PFC function, low noise, high reliability;
3, 100A power supply with wide range of AC input voltage ;
4, 1200W power supply with overload,short circuit,over-voltage and over temperature protection;


Parameter
Item NO
K57-UP1200S12F K57-UP1200S24F K57-UP1200S30F K57-UP1200S36F K57-UP1200S48F
Output Output Voltage +12VDC +24VDC +30VDC +36VDC +48VDC
Rated Current 100A 50A 40A 33.4A 25A
Rated Power 1200W 1200W 1200W 1202.4W 1200W
Ripple & Noise 200mVp-p 250mVp-p 300mVp-p 350mVp-p 400mVp-p
Output ADJ.Range 11.4-12.6V 22.8-25.2V 28.5-31.5V 34.2-37.8V 45.6-50.4V
Output Accuracy ±1%
Line Regulation ±0.5%
Load Regulation ±1%
Set up,Rise,Keep up time 600ms,30ms,12ms
Input Input Voltage Range 100-240V AC
Input Current 9.5A/230Vac,21A/115Vac
Input Frequency 50-60Hz
Efficiency @230Vac 94% 95% 95% 95.5% 96%
Power Factor PF>0.98/115V or PF>0.95/230V
Inrush Current Cold start 60A/230Vac
Leakage Current <0.5mA@240V
Protection Over Load 105~150% Hiccup,automatic recovery
Short Circuit

Locked protection, Return to normal after restart

Output Over Voltage

120% Shut downLocked protection,  Return to normal after restart

Over Temp.,

TS1 position105℃ it will be protection, then automatic recovery

Functions Fan Supply

12V@0.3A for driving a fan, tolerance±15%, Built-in fan forced air cooling

Environment Working Temp., Humidity

-20~60℃10~90% RHNo condensation

Storage Temp., Humidity

-20~85℃10~95% RH

Temp,. Drift

±0.03%/℃ (0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Satety & EMC Safety Standards GB4943 EN60950 EN62368-1
Withstand Voltage

I/P-O/P:3KV; I/P-FG1.8KVO/P-FG:0.6KV AC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC Standards EN55032 CLASS A
Others MTBF >50K hrs
Dimension 230*127*42mm(L*W*H)
Weight 0.8KG
Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured;

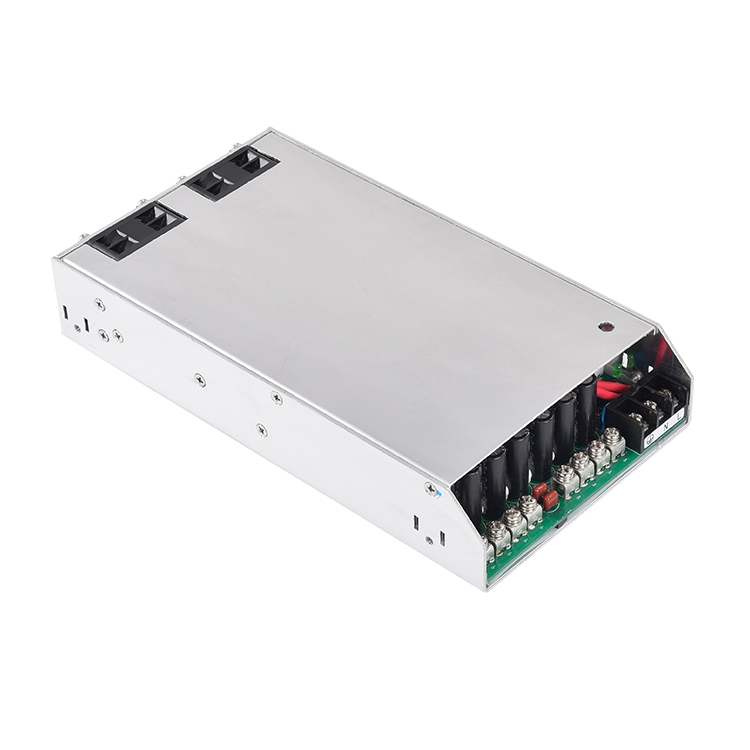

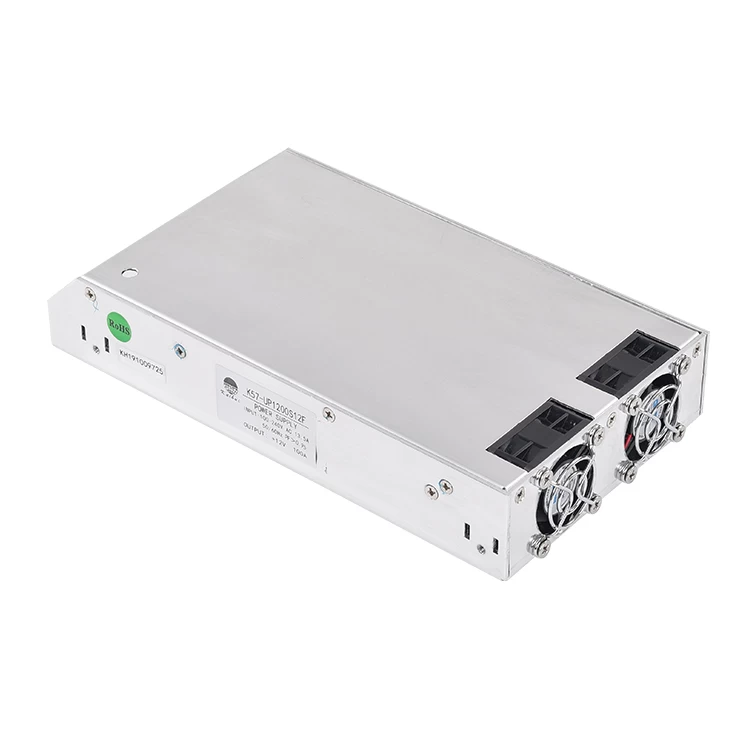

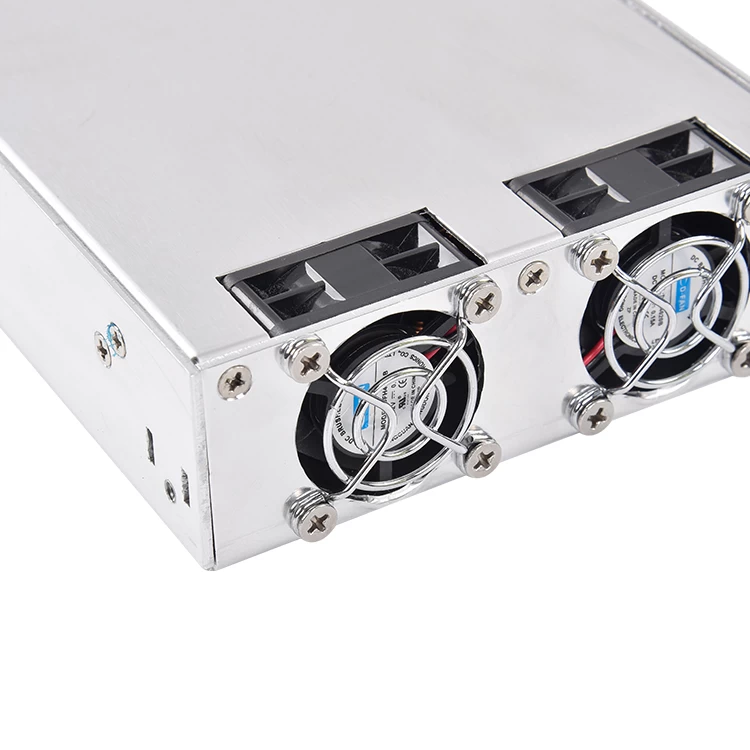

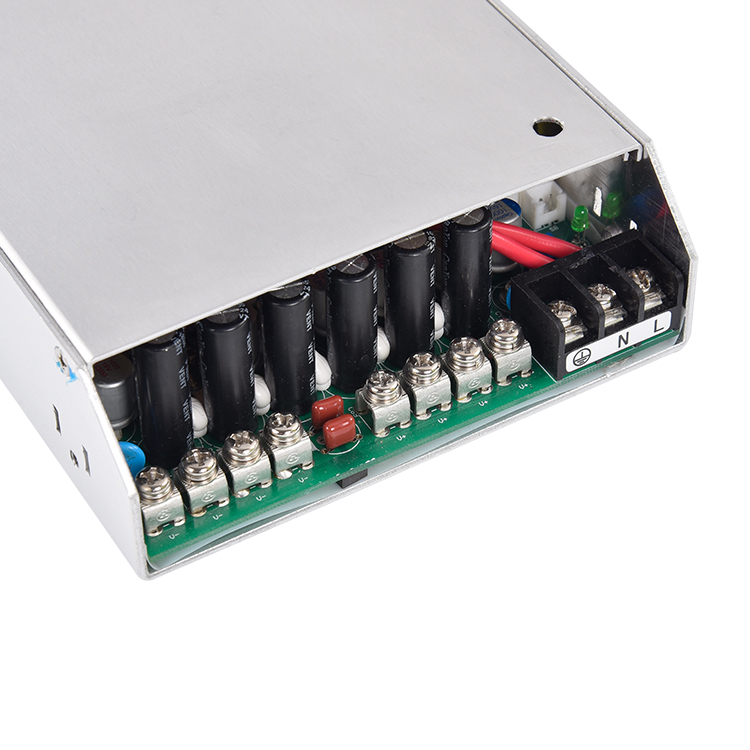

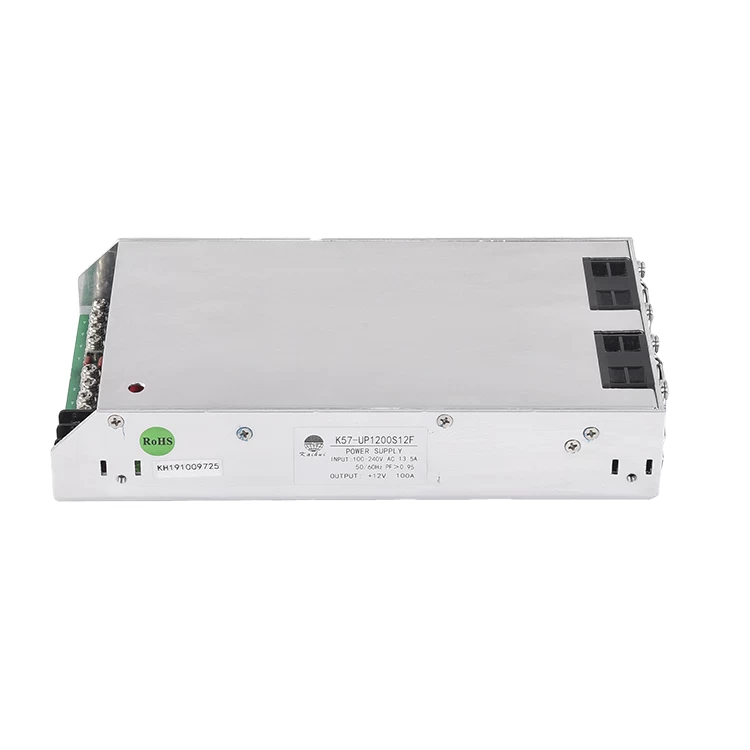

Product picture:

12V 100A power source
