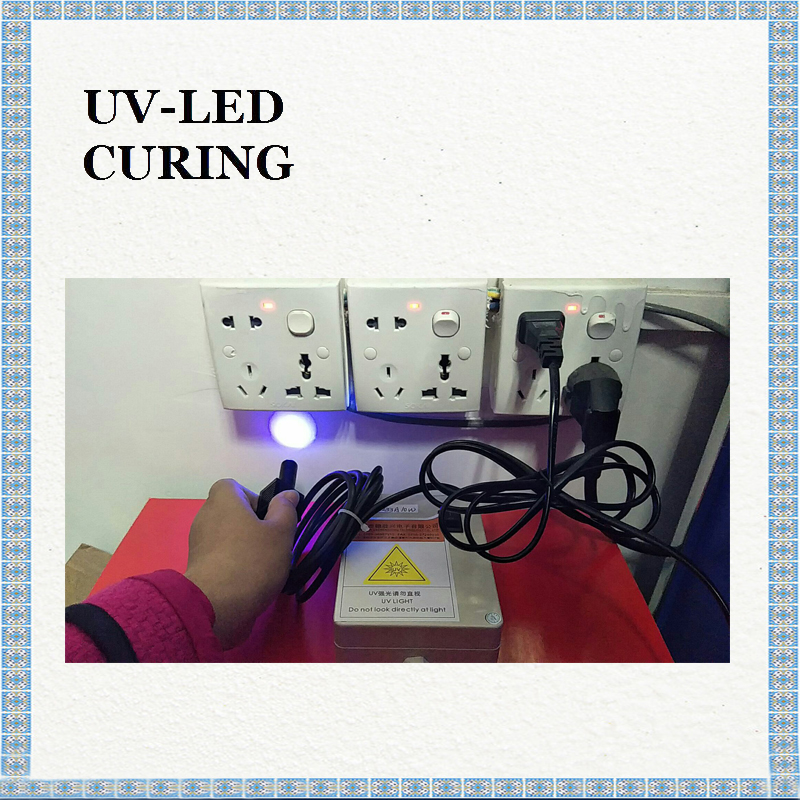

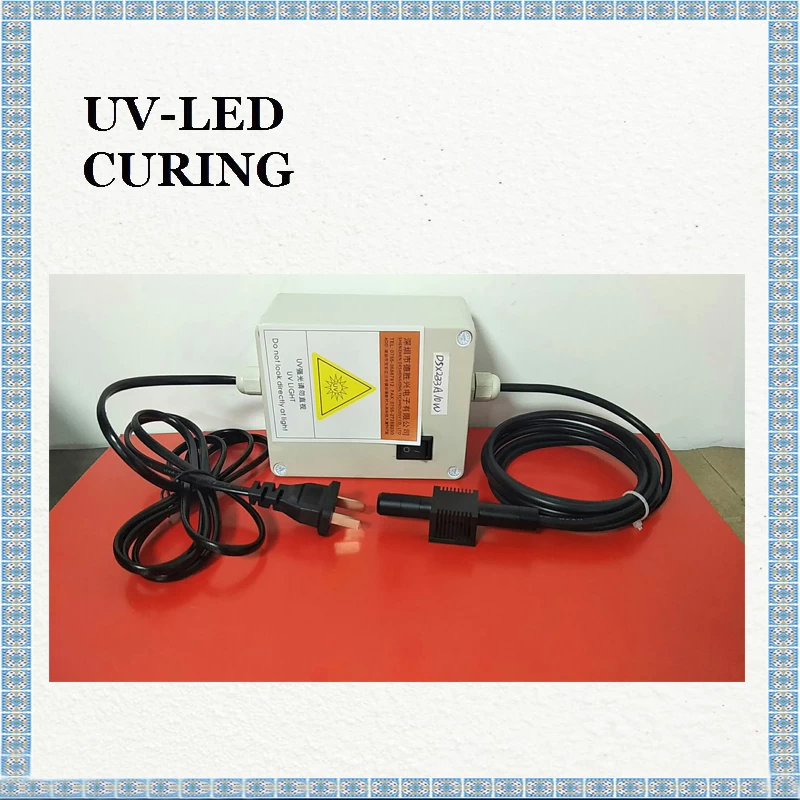

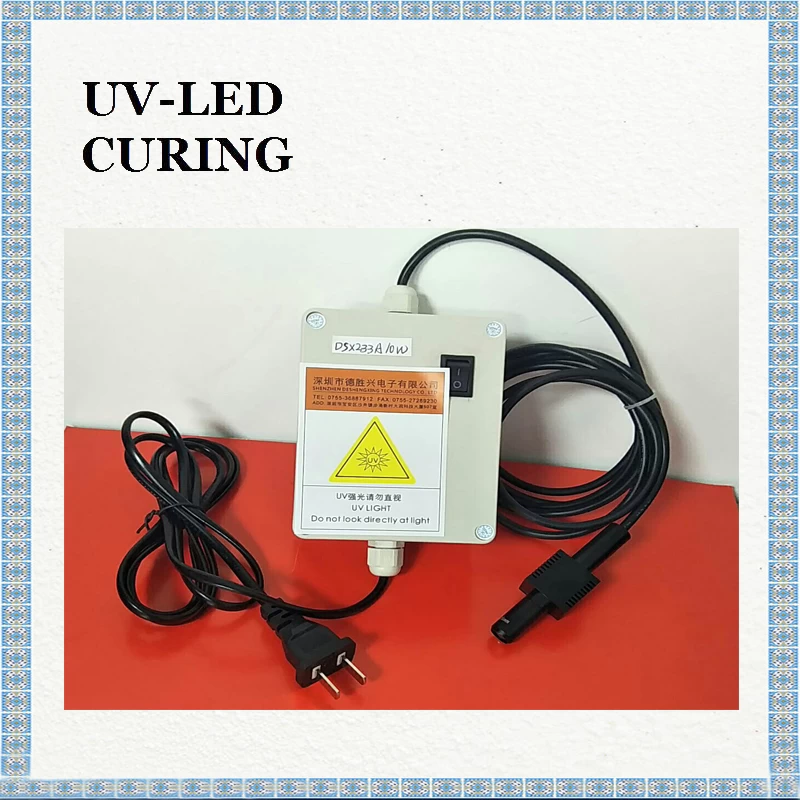

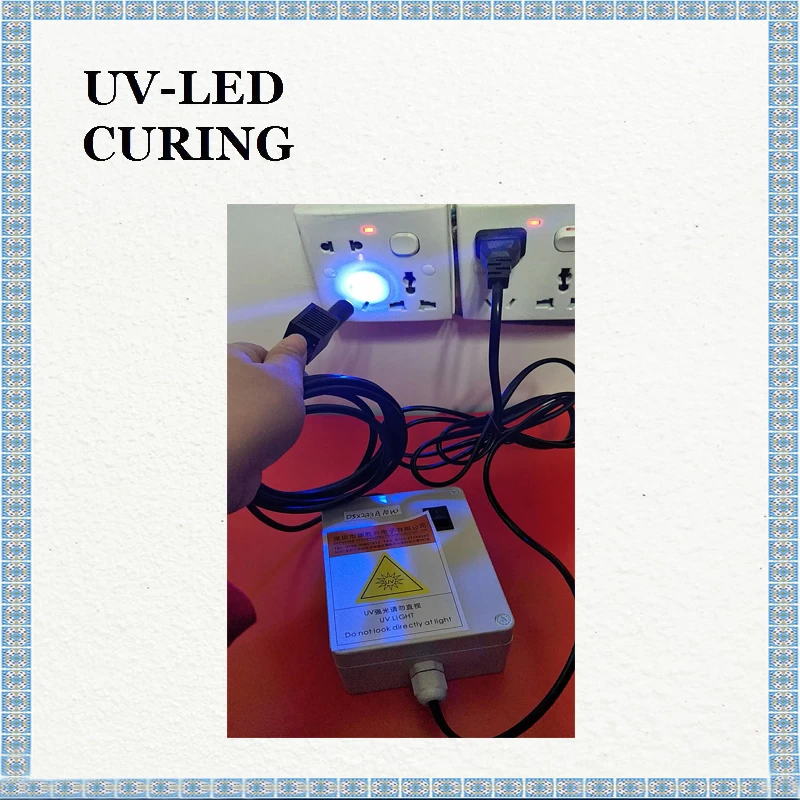

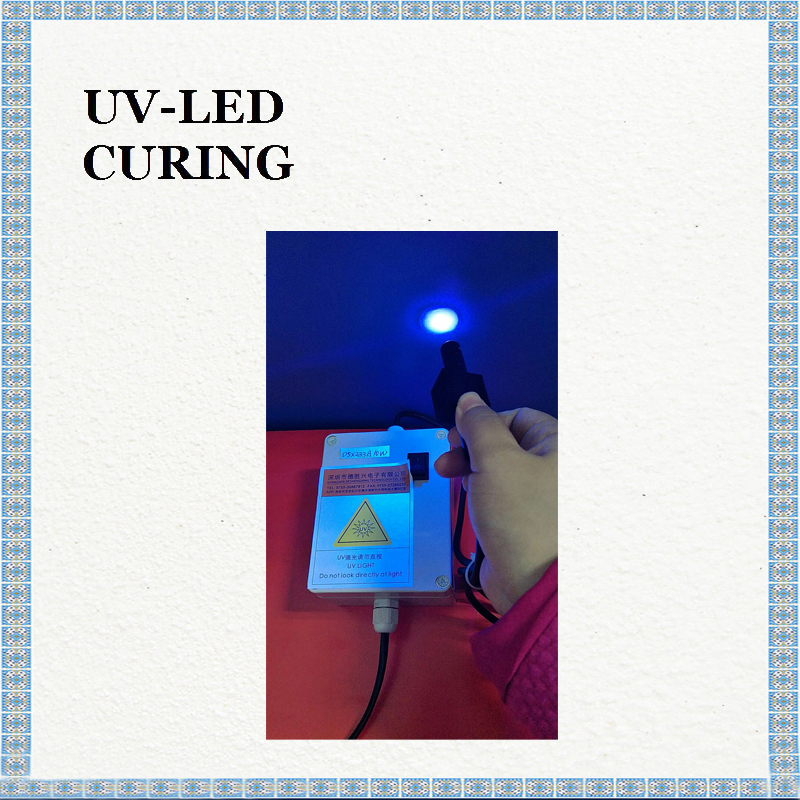

UV Spot Light Source 10W is high power UV LED curing UV glue source, small area of UV glue curing high power radiation intensity of 10 w, air cooling heat dissipation, power controller host and an air-cooled irradiation head, convenient to carry, light weight, high strength, fast curing speed.
Parameters
Brand: UV-LED CURING
Type: DSX233A10W
Wavelength: 365nm
Illuminance: 10000mW/cm2
Power Adapter: AC 0-250V
Plug Interface: Two feet straight, international standard
Size: L: 115MM*W: 90MM*H: 55MM
Weight: 0.2kg (including irradiation head, power cables)
Irradiation Parameter
Cooling Method: Air Cooling
Line Length: 1.5-2m
Light Spot Size
Size: 12mm external diameter
Thread: M11*0.75

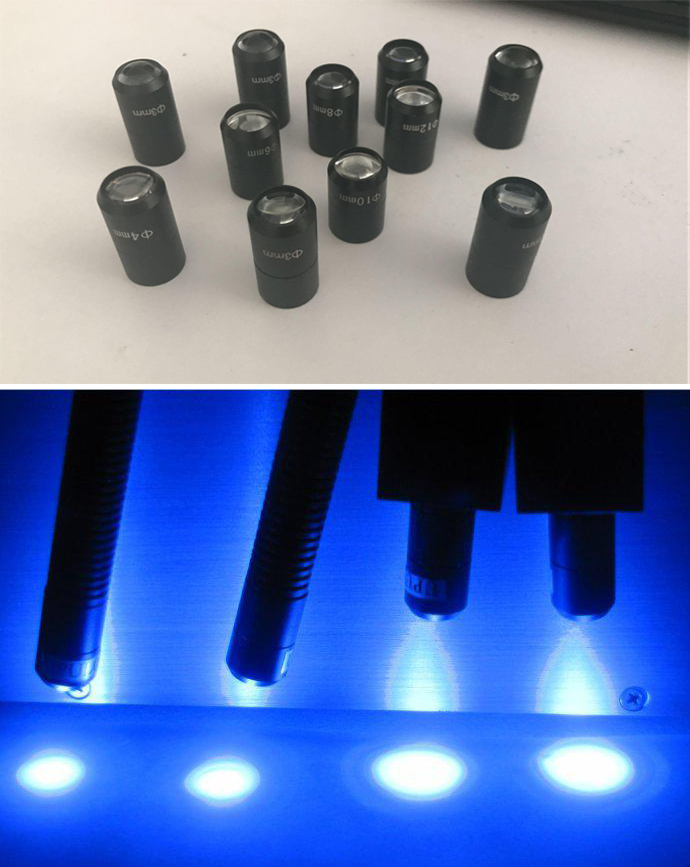

1.Round Spot: φ1.5mm,φ3mm，φ4mm，φ5mm，φ6mm，φ8mm，φ10mm，φ12mm，φ15mm,φ20mm
2.Direct Rectangular Light Spot:: 3*12mm，4*16mm,5*20mm
3.90°a lens of side light (φ3mm, φ4mm，φ6mm，φ8mm, round spot)
Multiple lenses are selected for different spots. When changing, twist the lens of the inscribed part.
Shipment standard with one, can be multiple choice, optional extra.
Light of the Rectangular Lens
The size of different spots can affect the irradiation intensity. The smaller the light spot is, the higher the irradiation intensity is.
|
Spot Diameter
|
Irradiation
|
Irradiation Distance
|
|
1.5mm
|
11000mW/cm2
|
3mm
|
|
3mm
|
10690mW/cm2
|
6mm
|
|
4mm
|
8800mW/cm2
|
8mm
|
|
5mm
|
7500mW/cm2
|
9mm
|
|
6mm
|
6700mW/cm2
|
10mm
|
|
8mm
|
3800mW/cm2
|
12mm
|
|
10mm
|
1600mW/cm2
|
13mm
|
|
12mm
|
1100mW/cm2
|
13mm
|
|
15mm
|
700mW/cm2
|
13mm
|
|
20mm
|
600mW/cm2
|
13mm
|
Instructions

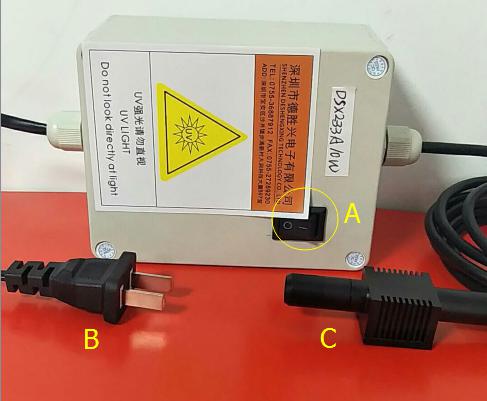

A.Power Switch B. International Standard Plug C. Cylindrical Head
Operation:
Only one switch button operation. When using, just turn on the switch, and turn off the switch manually when not in use.
