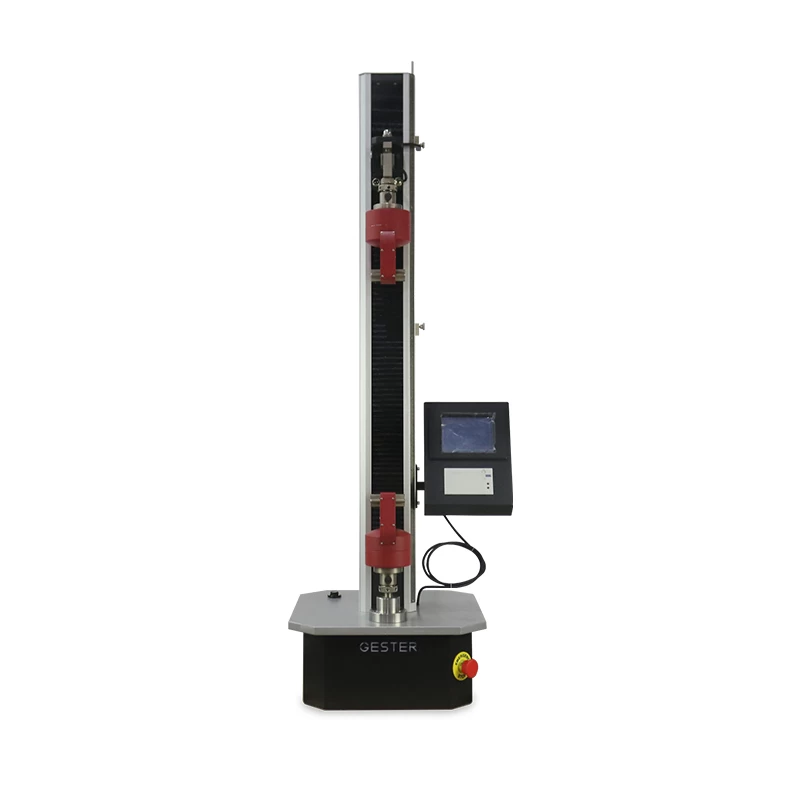

Universal Tensile Strength Tester (Single Column) GT-C02-1

This Tensile Strength Tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for a variety of materials.

Facebook Twitter Pinterest LinkedIn 分享

Universal Tensile Strength Tester (Single Column) GT-C02-1


Product Introduction

Application:

This Universal Tensile Strength Tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line,yarn,fabric,paper,aviation, package, construction, petrifaction, electrician, vehicle and other materials. It is a basic equipment of quality control, receiving inspection, physical test, mechanics research, material development.


Standards:

ISO13934-1,13934-2,13935-1,13935-2,13936-1,13936-2,13936-3, 13937-2,13937-3,13937-4,1421, 2411, 2062, 4674-1,5082, 9073.3, 9073.4, 9073.18
BS 2543, 2576, 3320, 3424, 4303,
M&S P11, P12, P13, P14
JIS L1096
ASTM D 434, D751, D885, D1683, D2256, D2261, D2724, D2731, D3787, D4034, D4964, D5034, D5035, D5587, D5733, D5735.


Features

1. This Universal Tensile Strength Tester adopt PANASONIC AC servo drive system, Taiwan SESAME reducer, sychronous pulley, TBI precision ball screw components, instruments beam moving smoothly with low noise and high precision extension.
2. This machine adopt aluminum column shell, deal with high temperature & solidify injection on the machine surface will never fade.
3. This machine adopt many kinds of protection measures:
a.Beam’s limit cams protecting device
b.Clamp touch avoid protecting device
c.Set up protection on displacement & load software
d.Sensor overload protection
e.Sample load software protection
f.Overcurrent & overvoltage protection
4. Real time supervision to main parts, more safe & reliable while using machine.
5. This Universal Tensile Strength Tester adopt open system: user can edit test program, data analysis formula, test report according to test material’s category, character and test methods requires.
6. This Universal Tensile Strength Tester (Single Column) provide many kinds of humanity automatic mode. While using electronic clamp, trial initiation can set as clamp grip autostart or pre-tension autogrip start. It also set as clamp auto open after finished test.
7. This machine also can set clamping distance and auto location.
8. While using electronic clamp, trial initiation can set as clamp grip autostart or pre-tension autogrip start. It also set as clamp auto open after finished test.
9. This machine also can set clamping distance and auto location.



Key Specifications

Model

GT-C02-1A

GT-C02-1B

Display

Computer Display

Max. Capacity

2.5KN

5KN

Force Resolution

1/100000

Force Accuracy

≤+/-0.2%F.S

Stroke

1000mm

Test Speed

0.01-1000mm/min

Stop Mode

Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic return function

Machine Drive

Servo motor drive, Synchronous wheel and precision ball screw drive

Power

200W

Power Supply

AC 220V 50/60HZ

Dimensions ( W x D x H )

670×480×1440mm

Weight

120kgs

Accessories

Standards accessories

1set

Pneumatic Grips



1pc

English Operation Software



1pc

Cable Connect with PC



1pc

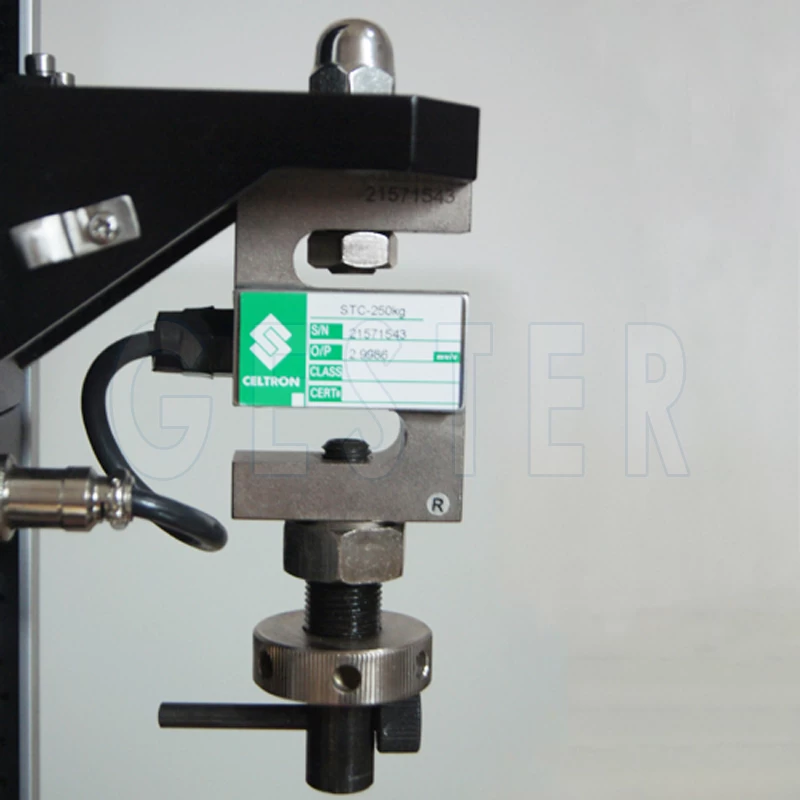

Load cell

Optional accessories

Optional

Other Grips and Load Cell



1set

Desk Top Computer


Application Industry

All kinds of materials can be tested by the Universal Tensile Strength Tester Single Column

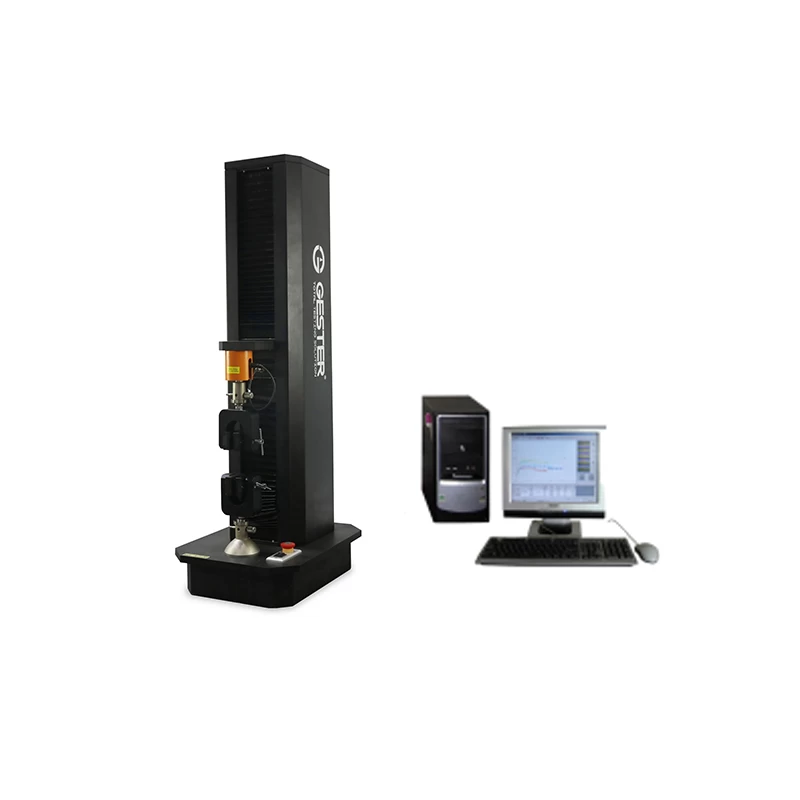

Universal Tensile Strength Tester (Single Column)
