Professional lithium battery manufacturer in China for more than 10 years,rich exporting experience,our models exported to more than 15 Countries in the world ,enjoy good reputation ! Our products inlcudes:forklift lithium battery,AGV battery, RV battery and golf carts li ion battery and so on,customized battery available
Quick details
| Cell Specifications |

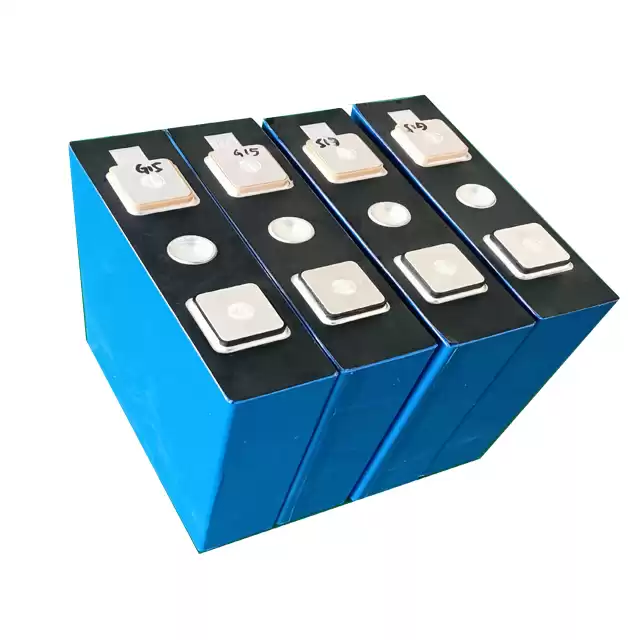

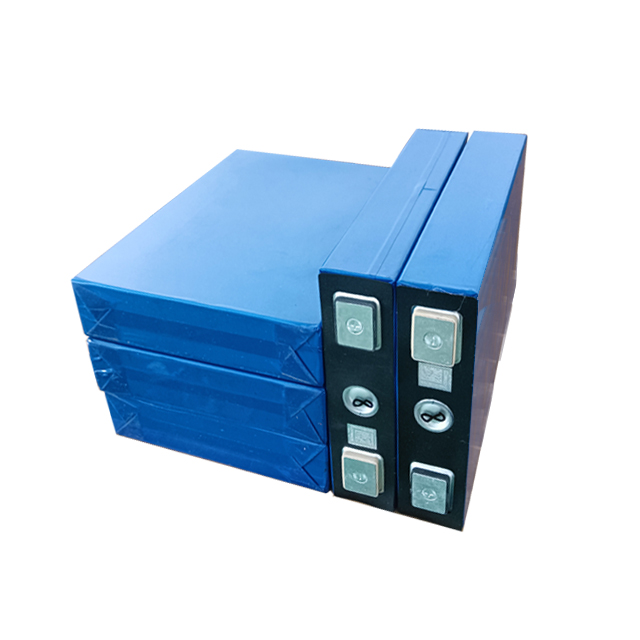

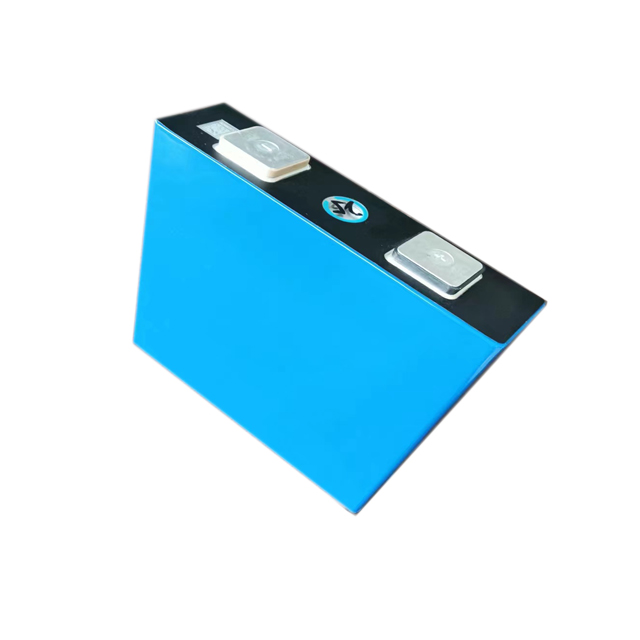

3.2V200AH |
|
|
remarks |
| |
Item |
Specification |
|
0.5C standard discharge |
| 1 |
nomial capacity |
200ah |
|
| 2 |
delivery capacity |
≥200ah |
|
mean operation volt |
| 3 |
nominal volt |
3.2V |
|
|
| 4 |
charge volt |
2.5-3.65V |
|
|
| 5 |
standard charge current |
0.5C |
|
0.5C constant current,3.65V constant
voltage charge to 3.65V,continue
charging till current decline to ≤0.05C |
| 6 |
standard discharge current |
0.5C |
|
|
| 7 |
max discharge current |
1C |
|
|
| 8 |
max pulse discharge current |
1.5C |
|
30S |
| 9 |
cell internal impedance |
≤0.3MΩ |
|
1kHz；2%SOC |
| 10 |
Minimum discharge voltage |
charge |
2.5V |
0℃≤T≤60℃ |
| discharge |
2.0V |
"-20℃≤T≤0℃" |
| 11 |
cell weight |
4kg±120g |
|
Do not storage exceed half year. Must
charge once when storage for half year. Must charge the battery which with
protect circuit when storage for three
mouths |
| 12 |
Residual capacity loss |
≤3.5% |
|
|
