Unleash the Power: Customized 320V100AH High Voltage Lithium Battery Pack for Electric Vehicles

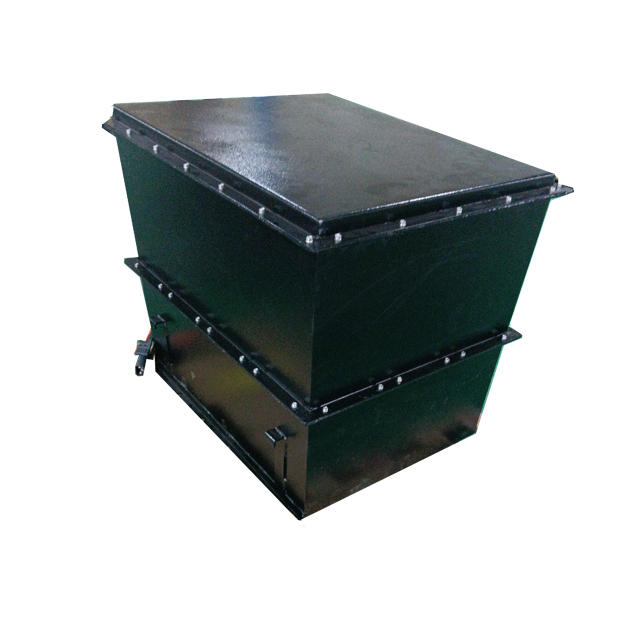

320V100AH high volt vehicle lithium battery pack



Quick details


More models available,customized orders welcomed !

1,Model: 320V100AH

2,Shell :Q235 d=3-5mm

3,Build in BMS

4,Warranty in 5Y

5,Real time monitor




model

QH320V100Ah064

Volt arrange

270V-360V

rated volt

320V

rated capacity

100Ah

discharge current

100A

discharge temperature

-20℃-60℃

charge current

40A

charge temperature

-0℃-45℃

size

910*840*445mm

weight

350kg

communication

CAN,real time monitor

service life

5Y

screen

4.3inch screen

charge/discharge hole

Separated



More models

Project
Parameter
Notes
Normal voltage
51.2V
73.6V
96V

voltage arrange
40-58.4V
57.5-83.95
75-109.5V

Capacity arrange
100-300AH
100-300AH
100-300AH
Capacity can add
Fast charge
available


   Customized
Charge current
30-100A
Continuous charge current
100-200A
Work temperature
“-20℃ - 55℃

Primary protection
Over pressure/Low pressure/Over current/Short-circuit
Over temperature/Low temperature/Relay adhesion test/Wiring falling tes

Protection level
IP67

Expanding function
Precharge/Insulative testing


Customized
Show function
Voltage screen/Liquid crystal screen
Heating function
Silicone electric heating
Communication
CAN/RS485



FAQ


Q1: what is your MOQ?

A: Only one sample available.
Q2: what is your guarantee life for the battery?
 A: 5Y warranty for lifepo4 built in bms battery .
 Q3. Can you explain in detail how you match cells for a battery pack before you assembling the pack?
 A: We will do the following things before assembling the pack:
a. Select capacity: same capacity rate cells for one pack
b. Measure the voltage: same voltage cells for one pack(difference is under 0.02 v per cell)
c. Measure the inner resistance: same IR cells for one pack (difference is under 1 mOhm)
All above steps are very strict to make sure the pack performance is perfect.
 Q4: Before order, can I have samples for testing?
 A: Yes, we can provide you samples for testing firstly.
 Q5: What kind of environment should lithium batteries store?
 A: -40°C~50°C, 65±20%RH storage for a long time(>3 months) and the storage condition shall be:<35°C , 65±20%RH
 Q6: What certificate do you have?
 A:CE,FCC,CB,KC,SGS, Rohs, IEC62133 MSDS & UN38.3..
 Q7: Can you ship the battery products to our country?
 A: Yes, for one sample ,we can quote door to door . for more quantity, we will quote FOB China
 Q8: What is your payment and delivery items & time?
 A: 1. Payment items: By T/T , 30% for deposit, and balance all before shipment. For small amount, we also accept payment via Western Union or Alibaba .
2. Delivery Items: we can ship the batteries by sea, by air, by UPS, DHL, TNT, FEDEX and some special transportation lines.
3. Delivery time: Generally, it will take 15 days after receiving your advanced payment.

Product Tags cusomized high volt lithium battery          special vehicle lifepo4 battery          320V high volt battery pack          motorhome lithium battery 320V          high power custozmized battery pack          battery module
