Unlimited Distance GSM Network Radio

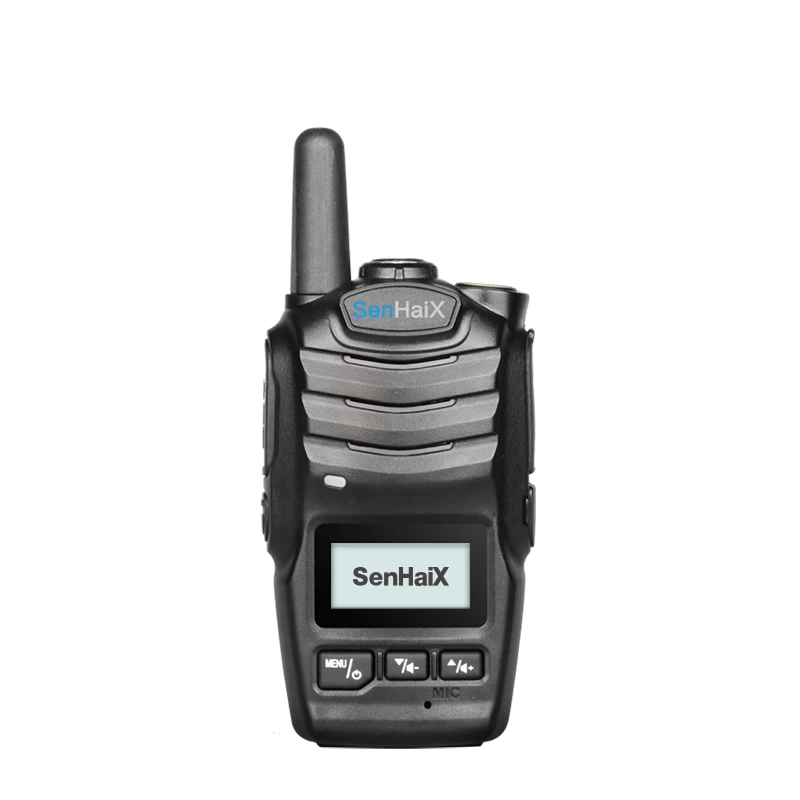

SenHaiX SPTT-MINI 1 is WCDMA/GSM Network GPS Two Way Radio Walkie Talkie with SIM Card.



Product Name: Unlimited Distance GSM Network Radio

Product Features

1. Friend List

2. Group List
3. User List
4. Backlight Setting
5. GPS Function
6. Voice Prompt
7. Radio Information
8. Version
9. LCD Display
10. Torch Flash Light
11. Support 2G/3G , WCDMA/GSM
12. Support Signal Strength Test
13. Support GPS Position Signal Test
14. Online Upgrade


Technical Specifications

General Specification
Model No. SPTT-MINI 1
Dimension 57x40x105mm
Weight 150g
Working Voltage DC 3.6-4.2V
Working Current 250mA@UMTS 2100/900
220mA@GSM 900
Peak Current 0.8A
Working Temperature -30℃ to +75℃
RF Parameter
Frequency Range GSM   850/1900MHz   900/1800MHz
WCDMA  850/1900MHz   900/2100MHz
Maximum Output Power WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm)
GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm)
GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)
Receiving Sensitivity WCDMA 2100: ≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900: ≤-109dBm
WCDMA850: ≤-109dBm
GSM850/900/1800/1900: ≤-107dBm
GPS
GPS GPS Positioning, 1.57542GHz
Sensitivity Catch -144dBm, Track -159dBm
Technical Sensitivity
Data Speed Rate GSM CS: UL 9.6kpbs/ DL 9.6kpbs
GPRS: Multi-slot Class 10
EDGE: Multi-slot Class 12
WCDMA CS: UL 64kpbs/ DL 64kpbs
WCDMA PS: UL 384kpbs/ DL 394kpbs
Protocol HSDPA/WCDMA/EDGE/GPRS/GSM

Standard Accessories
Network Radio Battery Senhaix  Network Radio Belt Clip Senhaix  Network Radio Adaptor Senhaix



Network Radio USB Charging Cable  Network Radio Hand Strap Senhaix


Optional Accessories

Network Radio Adaptor Senhaix
