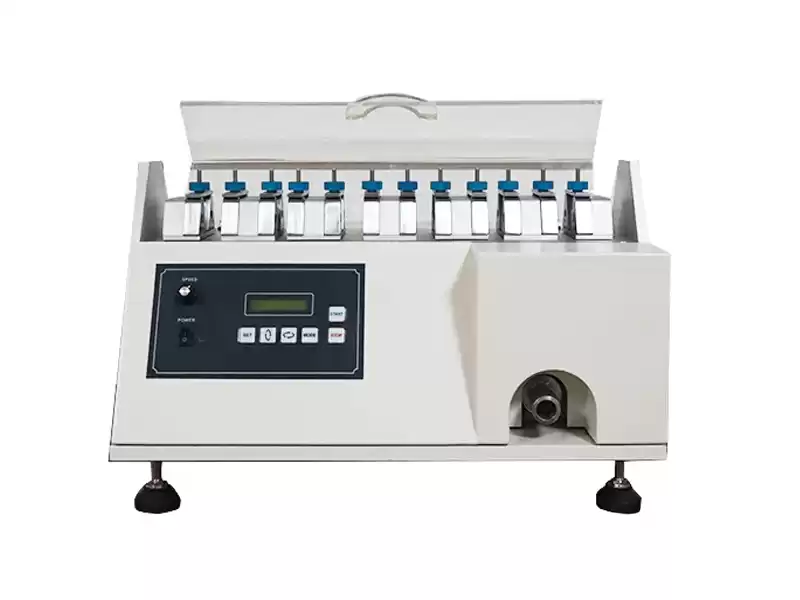

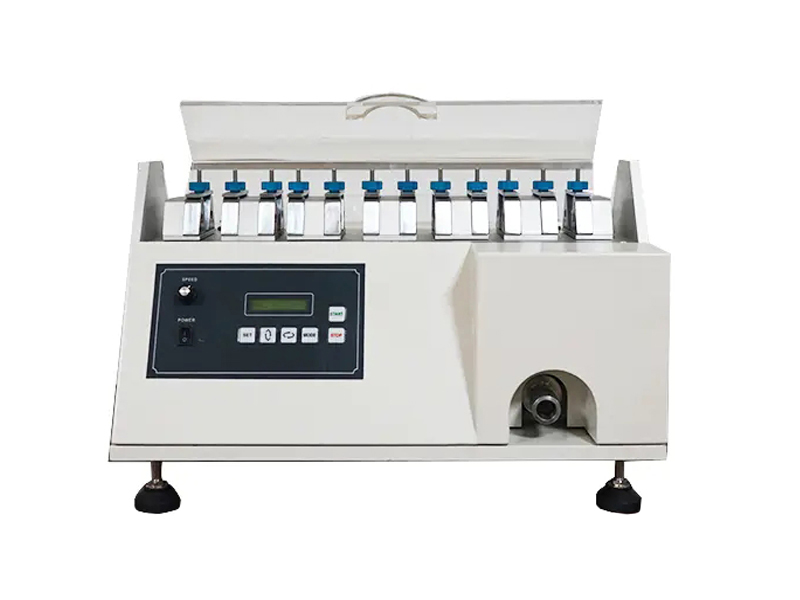

Upper Material Flex Resistance Tester
Upper Material Flex Resistance Tester is designed to simulate squeezing, stretching, creasing and bending applied to the different positions of upper of the shoe.
Test Standards
ISO 5423-5.2
ISO 20344-6.5.2
AS/NZS 2210.2-6.5.2
EN ISO 22288
SATRA TM25
Parameters
Model AT-L9005
Number of Grips 12pcs
Specimen size 64mmX64mm
V shape angle (40±1)°
The end of V-shaped clamp radius of curvature (6.4±0.5)mm
Clamps opened distance (28.5±2.5)mm
Clamps closed distance (9.5±1.0)mm
Moving clamps travel length (19±1.5)mm
Movement speed(frequency) (300±30)cpm
Counter LCD 999,999
Power 1 phase, AC 220V
If you are looking for more lab testing equipment, please feel free to contact .
