Upper Materials Chisel Scuff Resistant Tester GT-KC14
Product Introduction
| Application:
This Upper Materials Chisel Scuff Resistant Tester GT-KC14 is applicable to coated or heavily finished scuff resistant footwear upper materials, but it can be used with any durable sheet material.
Standards:
SATRA TM 140
|
Principle

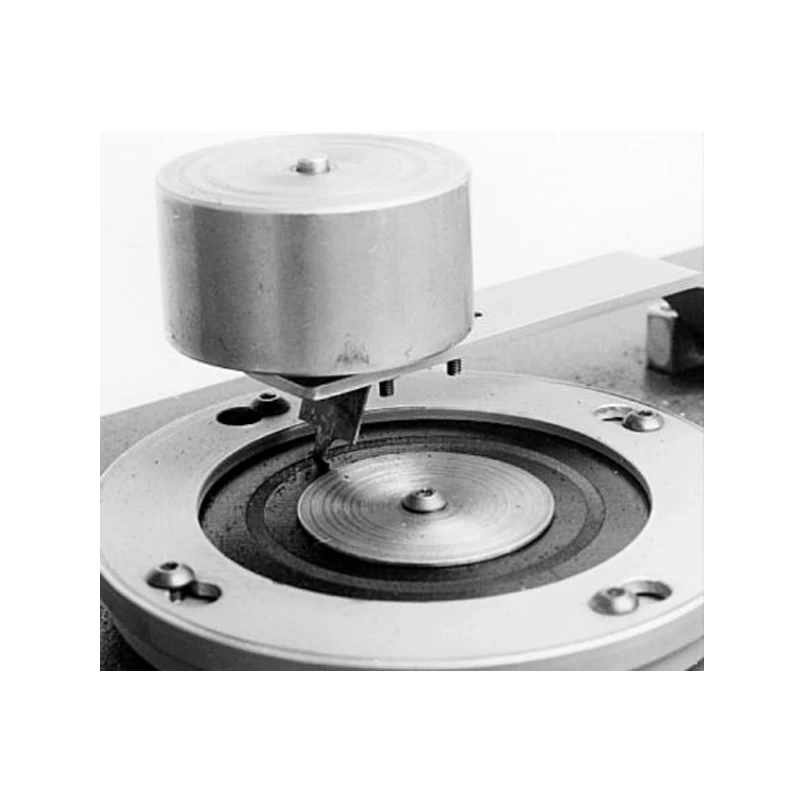

A circular specimen is rotated against a chisel of defined dimensions under a constant contact force. The specimen is regularly assessed and the test is terminated when the damage to the specimen has reached a predefined level.
Key Specifications
Model
|
GT-KC14
|
Turntable
|
Diameter
|
110mm
|
Rotating speed
|
60 rpm
|
Inner clamp ring
|
External diameter 55±5mm
|
Outer clam ring
|
Internal diameter 90±5mm
|
Test load
|
8.8±0.2N
|
Chisel blade
|
Thickness
|
0.8±0.05mm
|
Width
|
3.8±0.1mm
|
Counter
|
LCD display 0-999999Counter
|
Dimension (W×D×H)
|
44cm×37cm×27cm
|
Weight (approx.)
|
30 kg
|
Power
|
1∮, AC220V, 50/60Hz
|
Standard
|
SATRA TM 140
|
Standard Accessories
|
P180 Sandpaper
|
