Portable Switching Power Transformer Bobbin EF20

EF20 horizontal winding bobbin. Many for high frequency transformer, LED drive transformer, SPMS transformer, etc. Bobbin Size=19.8mmX19.9mmX16.3mm. Pin pitch=5.0mm. Parallel Distance=15.0mm. EF20 bobbin made of phenolic material.

EF20 Power Charge Transformer Horizontal Bobbin

EF20 bobbin with lead wire slot. EF25/EFD30 high frequency bobbin in factory price. Parallel Distance=15.2mm. Bobbin Size=20.1mmX19.7mmX16.4mm. Pin pitch=3.8mm. EF20 bobbin made of phenolic material.

EF20 Transformer Bobbin For Power Switching Adapter

Single slot coil former. Customized EF20 electronic transformer. Bobbin Size=20.8mmX13.0mmX21.5mm. Pin pitch1=3.5mm. Pin pitch2=5.0mm. Parallel Distance=15.2mm. Phenolic material transformer bobbin.

High Power Transformer EF20 Horizontal Bobbin

High reliability transformer bobbin. EF20 7+8 pins coil former. Bobbin Size=25.8mmX20.0mmX16.5mm. Parallel Distance=19.4mm. Pin pitch=2.5mm. EF20 bobbin made of PM9820 material.

EF20 Bobbin For Battery Charger Transformer

Lead wire slot bobbin supply, Horizontal EF20 winding bobbin. Bobbin Size=20.5mmX20.0mmX16.2mm. Pin pitch=3.8mm. Parallel Distance=15.2mm. DIP transformer bobbin. We can make new tooling to meet customer's design.

High Power Transformer EF20 Vertical Bobbin

EF20 ferrite core bobbin. Transformer bobbin with 3+3 pin. Bobbin Size=14.7mmX13.2mmX17.9mm. Pin pitch=5.0mm. Parallel Distance=12.0mm. DIP transformer bobbin. We can make new tooling to meet customer's design.

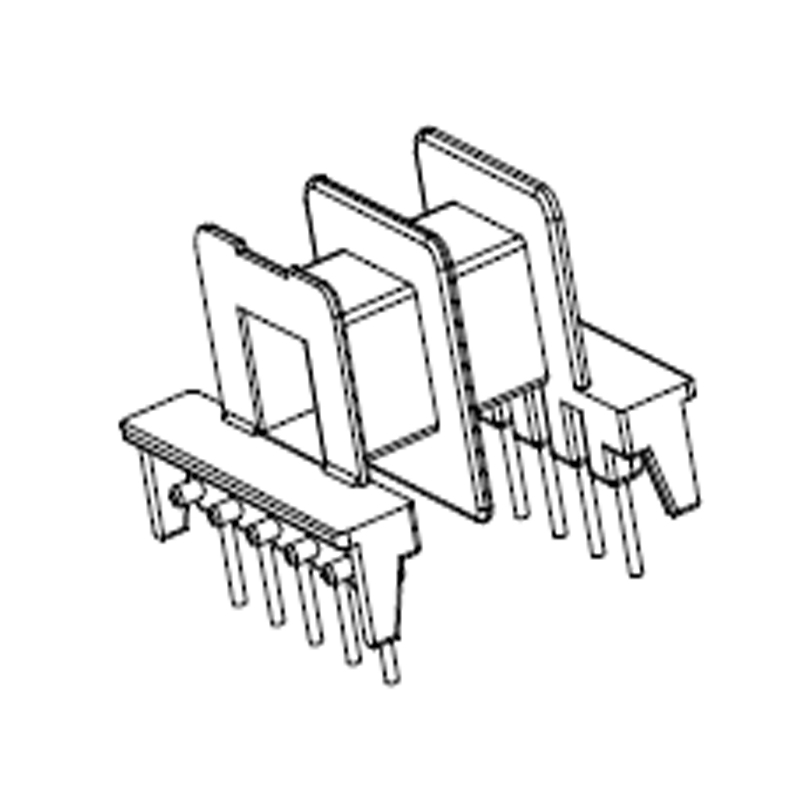

EF20 Double Grooves Transformer Horizontal Bobbin

EF20 bobbin with double slots. Customized electronic transformer. Bobbin Size=22.0mmX22.0mmX16.0mm. Pin pitch=3.8mm. Parallel Distance=15.0mm. Transformer bobbin with PA66 material.

EF20 Case For Power Charge Transformer Bobbin

Switching power transformer manufacture. EF20 coil former case. Case Size=16.0mmX14.0mmX3.0mm. EF20 bobbin and matched case are made of PM9820 material. We have bobbin tooling to meet customer's requirements.

High Current Flyback Transformer EF20 Bobbin

EF20 SMPS transformer wholesale. Horizontal type EF20 multi section transformer bobbin. Row distance=15.1mm. Pin pitch=3.8mm. Bobbin Size=22.0mmX22.0mmX13.0mm. EF20 transformer widely used in light system, industrial power supplies, and audio-visual equipment. We accept custom design and OEM service.

EF20 Switching Mode Power Supply Transformer Bobbin

EF20 power supply transformer. EF20 single slot bobbin pin 5+5. Bobbin Size=20.0mmX19.9mmX16.2mm. Horizontal/vertical EF20 bobbin factory. Parallel Distance=15.2mm. We have bobbin tooling. We manufacture final transformer for customer.
