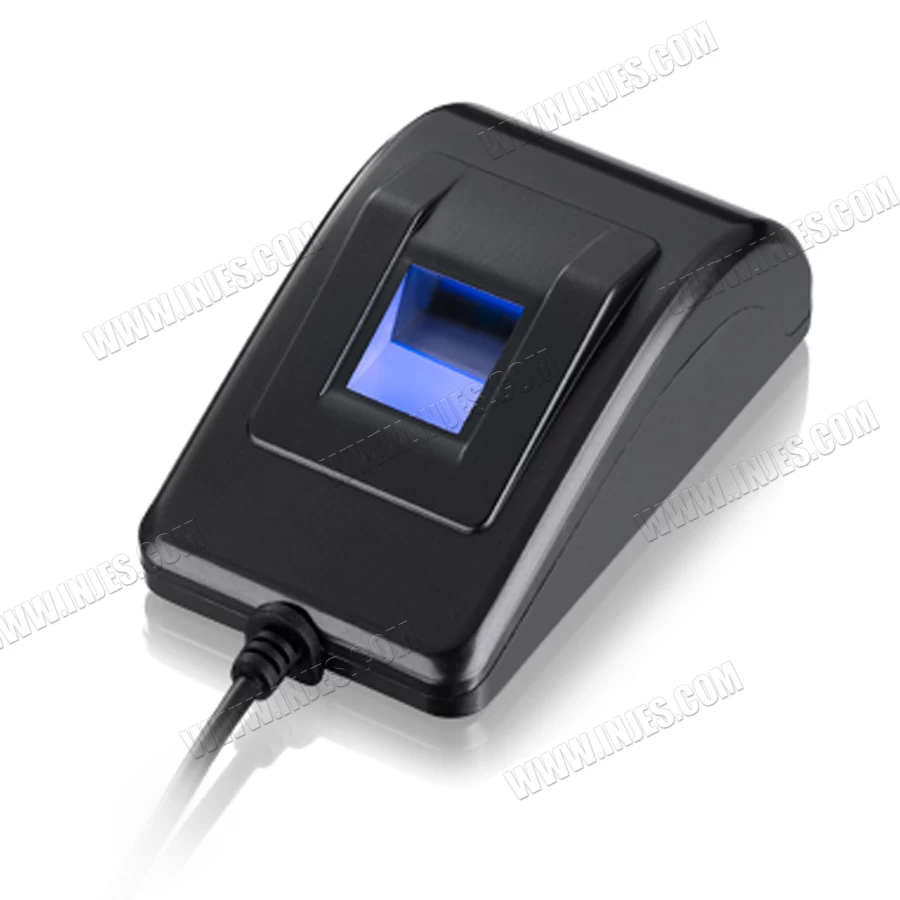

Product Name: USB Biometric Thumb Scanner for Development and Integration
Description:
With a resolution of 500 dots per inch, the MJP100 fingerprint scanner is equipped to create high-quality images of your fingerprints. Those images serve as the foundation for a template that converts a certain number of unique parts of your fingerprint into data. INJES biometric scanner MJP100 can be compatible with Windows 7, Vista, XP Professional and Windows Server 2000,2003, 2008 systems,which be widely used in software development and system integration.
Features:
．USB interface
．High quality of fingerprint image collecting
．The development kit of fingerprint reader based on PC
．Complete interface for secondary development
．Encrypted fingerprint data
．Counterfeit finger rejection
．Free SDK for Windows and Android
Specifications:
|
Pixel Resolution
|
500 dpi (average x,y over the field)
|
|
Scan capture area
|
14 mm*17 mm
|
|
Image size
|
280mm*360mm
|
|
Color
|
Black
|
|
Reader size (approximate)
|
95 mm x 52 mm x 36 mm
|
|
Supply Voltage
|
5.0V ±5% supplied by USB
|
|
USB port
|
Compatible with USB 1.0, 1.1 and 2.0 (Full Speed)
|
|
Sensor
|
Optical Sensor
|
|
Operating Temperature
|
0°C - 40° C
|
|
Operating Humidity
|
20% - 80%
|
|
Storage Temperature
|
-10° - 60° C
|
|
USB Cable Length
|
120cm ±2
|
|
Compatible OS
|
Windows7/8/Vista/XP, Window Server 2003,2008,Android
|

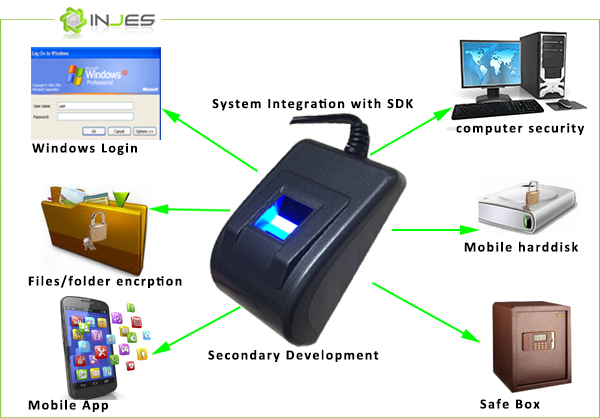

Introduction:
Configuration:

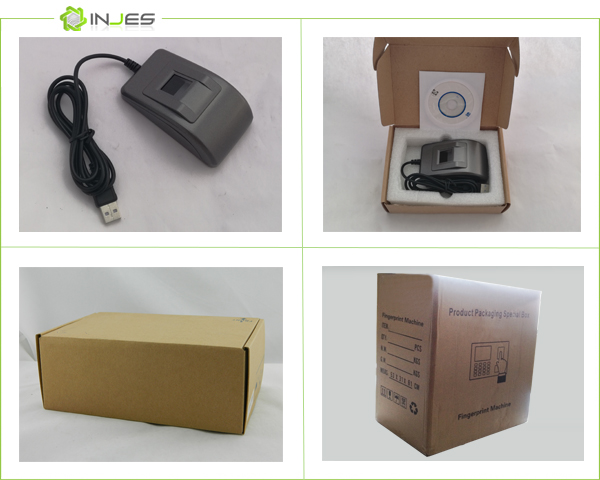

Package:
