Product description
1.This USB C Adapter equipped with USB 2.0 SD/Micro SD card reader slot,USB-C PD charging ,3.5mm audio jack,easily expand your daily Usb C devices.

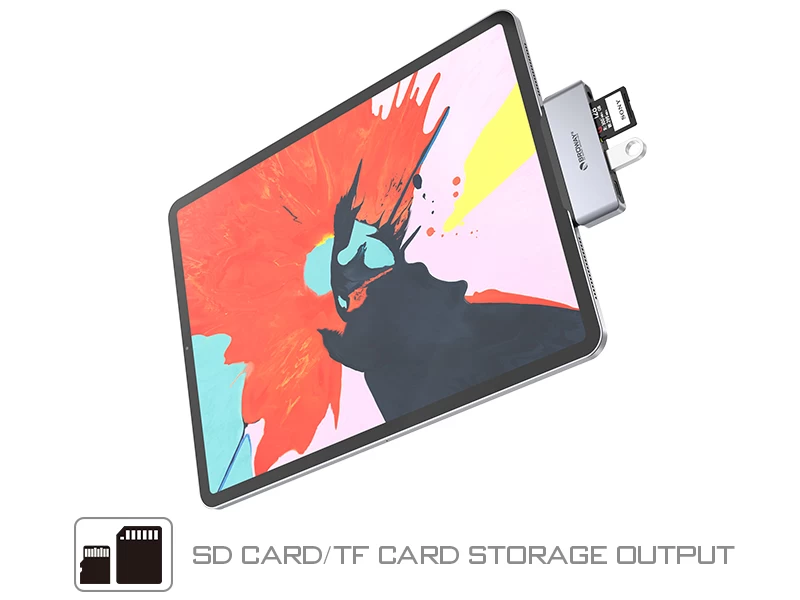

2.SD/Micro SD card slot: Support SDXC (up to 2TB), SDHC, SD, Micro SDXC, Micro SDHC and Micro SD cards read and write simultaneously.
3.Power delivery port:Power is shared between all dock-connected USB-C devices and adjusted based on needs,this usb C adapter delivers about 52W for charging a connected I pad pro or Macbook pro and 8W for powering the hub when connected to a 60W power input,delivers about 32W for charging the connected laptop and 8W for powering the hub when connected to a 40W power input.
4.3.5MM audio port:Standard 3.5mm audio port support 16 bit 48KHZ output.
5.This Usb C hub is compatible with iPad Pro 2018, 2018/2017/2016 MacBook Pro, MacBook 2017/2016/2015, Samsung Galaxy S8/ S8+/ S9/ S9+/ Note 8/ Note 9, Huawei Mate 20/Mate 10, Dell XPS 15/ XPS 13, Chromebook Pixel and more USB-C laptop/smart phone which supports DisplayPort Alt Mode. Note:Do not support 2017 & earlier iPad models.

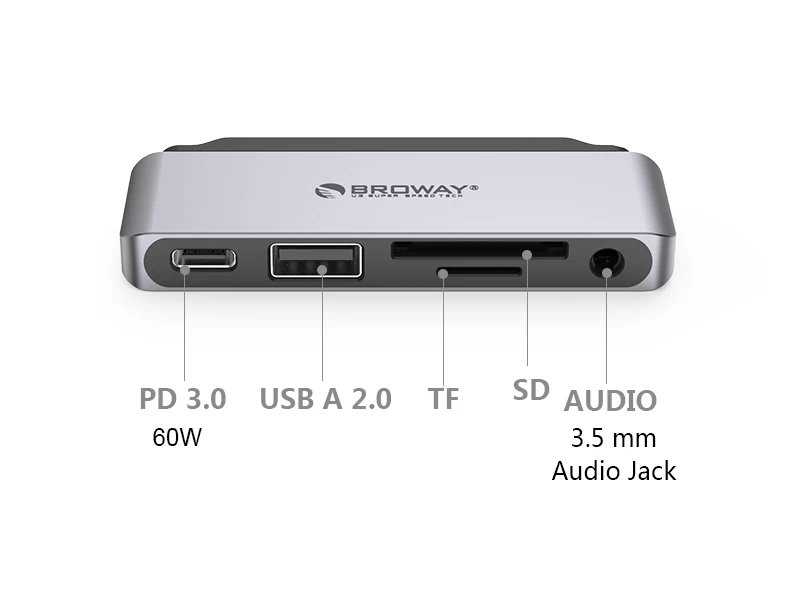

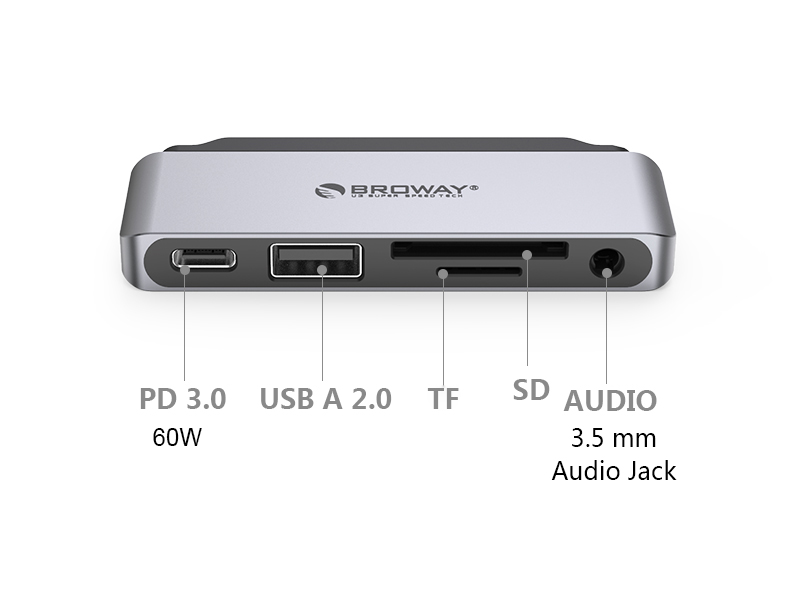

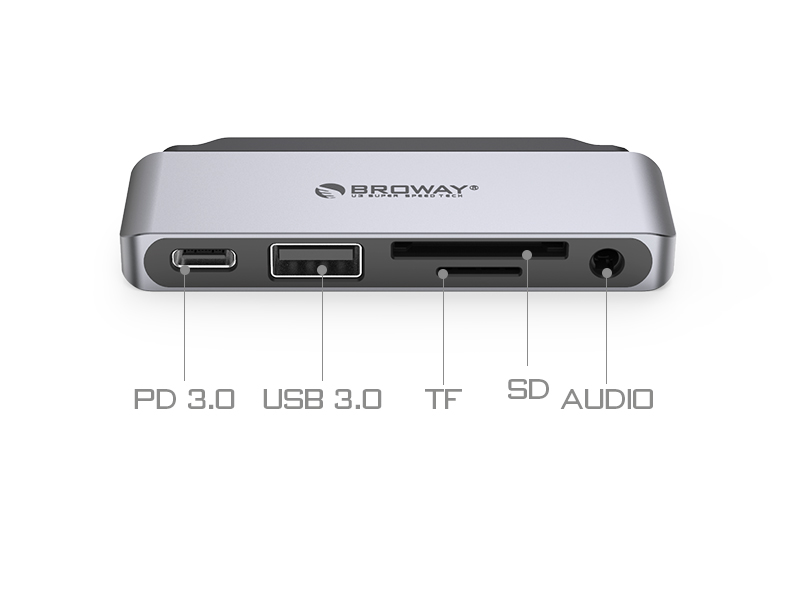

Interface
1*USB 2.0
1*Audio 48khz
1*SD USB 3.0 Card reader
1*TF USB 3.0 Card reader
1*Usb C Power delivery port
Details display
Specification
|
Brand:
|
Broway
|
Item Name:
|
BD31135B
|
|
Color:
|
Black &Grey &Silver
|
Material :
|
Aluminum
|
|

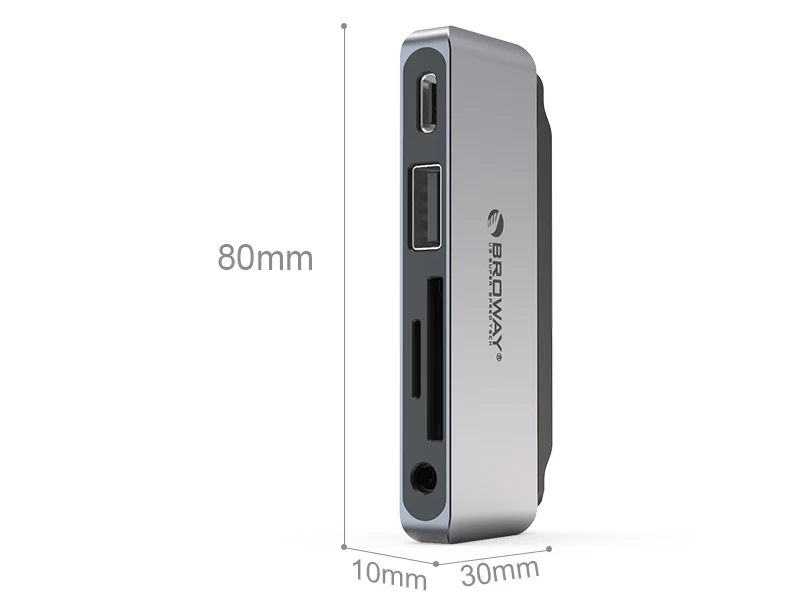

Product size:
|
80*27*10MM
|
Working Temperature:
|
0℃~40℃
|
|
Weight:
|
0.027KG
|
Storage temperature:
|
'-20℃~60℃
|
|
Supported Systems:
|
Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
|
Humidity:
|
25%RH.~93%RH.
|
|
Incompatible Devices:
|
2017 and earlier I Pad models
|
Compatible Devices :
|
iPad Pro 2018, 2018/2017/2016 MacBook Pro, MacBook 2017/2016/2015, Samsung Galaxy S8/ S8+/ S9/ S9+/ Note 8/ Note 9, Huawei Mate 20/Mate 10, Dell XPS 15/ XPS 13, Chromebook Pixel and more USB-C laptop/smart phone which supports Display Port Alt Mode.
|
Notice
1, For a stable connection, connected devices should not exceed a combined current of 900mA.
2, Not intended for use with high-power devices (external hard drives, iPads, etc.).Due to power output limitations of some laptops, it is recommended that you connect only one HDD/SSD at a time.
3, 2.4 GHz wireless devices, MIDI devices and some USB 3.0 devices may not be supported.The extended cable is 0.5 ft long.
Service
Warranty:14 month warranty
Service: OEM &OEM Support is available
Interface
1, This type-C PD Port can be used for data transfer as well ?
No,it just be used for charging 60W max
2,Will this usb c adapter work well with all ports together?
Yes,all ports work perfectly at the same time
3,Does this require driver install ?
No,just attach it to your Usb C laptop and all of the ports worked without having to add any drivers.
