Using mercedes benz technology Beiben 10 wheel 9 cubic meters concrete truck

Beiben 10 m3 concrete mixer truck ND5256GJBZ







Whole Vehicle Parameters

Chassis

BEIBEN

Curb weight (kg)

12780

Total vehicle weight (kg)

25000

Overall dimensions (L*W*H)

9400x2500x3900

Wheelbase (mm)

4100+1450

Front overhang (mm)

1410

Rear overhang (mm)

2640

Max. Traveling speed (km/h)

85



Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck

Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck

Advantages
  • One-stop shop, thousand kinds of products with military quality for you to choose
  • Most competitive and reasonable price, ready to develop together with customer
  • Reliable and effective performance, time=money
  • Great after-sales service system, back you up all the time
Product Description



Beiben 5m3 concrete mixer truck ND5256GJBZ







Whole Vehicle Parameters

Chassis

BEIBEN

Curb weight (kg)

12780

Total vehicle weight (kg)

25000

Overall dimensions (L*W*H)

9400x2500x3900

Wheelbase (mm)

4100+1450

Front overhang (mm)

1410

Rear overhang (mm)

2640

Max. Traveling speed (km/h)

85









Vehicle Configuration

Clutch

Dry single dis clutch (Φ430)

Gearbox

FAST 9T-1680

Driving type

6x4

Steering mechanism

TAS85

Service brake

Dual-circuit air brake

Parking braking

Spring-powered Air-cut-off brake

Auxiliary brake

Engine exhaust brake

Tire

12.00R20 radial tire









Engine Parameters

Model

WP10.340E32

Feature

Diesel, 4 stroke,

Direct injection,

6 cylinder in line,

Turbo-charging, Inner cooling

Emission standard

Euro 3

Max power (kw)

340hp

Max torque (N.m)

1500







Mixing Drum Parameters

Max mixing cubage (m³)

5

Feeding speed (m³)

3.5

Discharging speed (m³)

3

Leftover rate

Nearly Zero

Max Rotating Speed (R/min)

14-16

Mixing Drum Obliquity (°)

10

Max mixing drum diameter (mm)

Φ2412



Driving System

Hydraulic Pump

Italian TOP089

Hydraulic Motor

TOP 089

Speed reducer

TOP P68

Water supply mode

Water pump; pneumatic pump

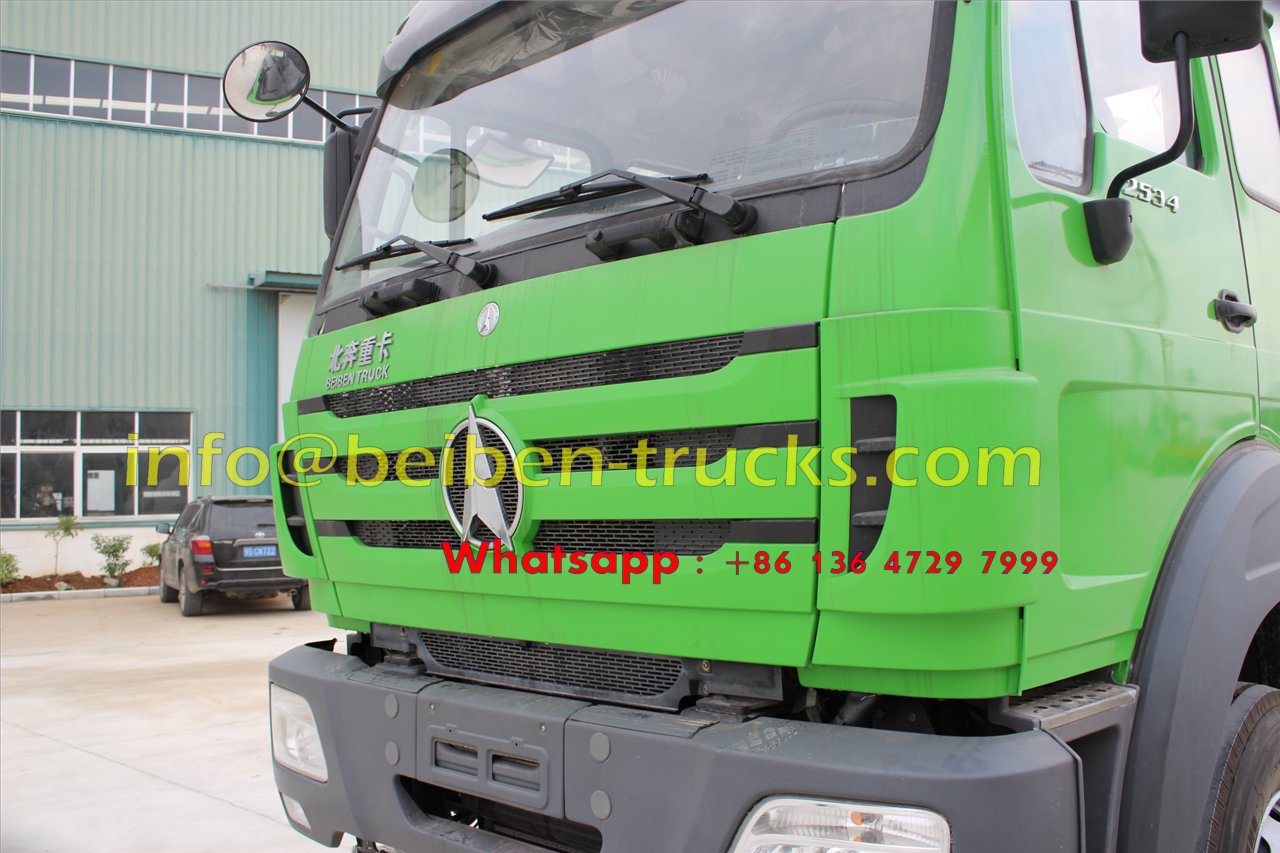

Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck

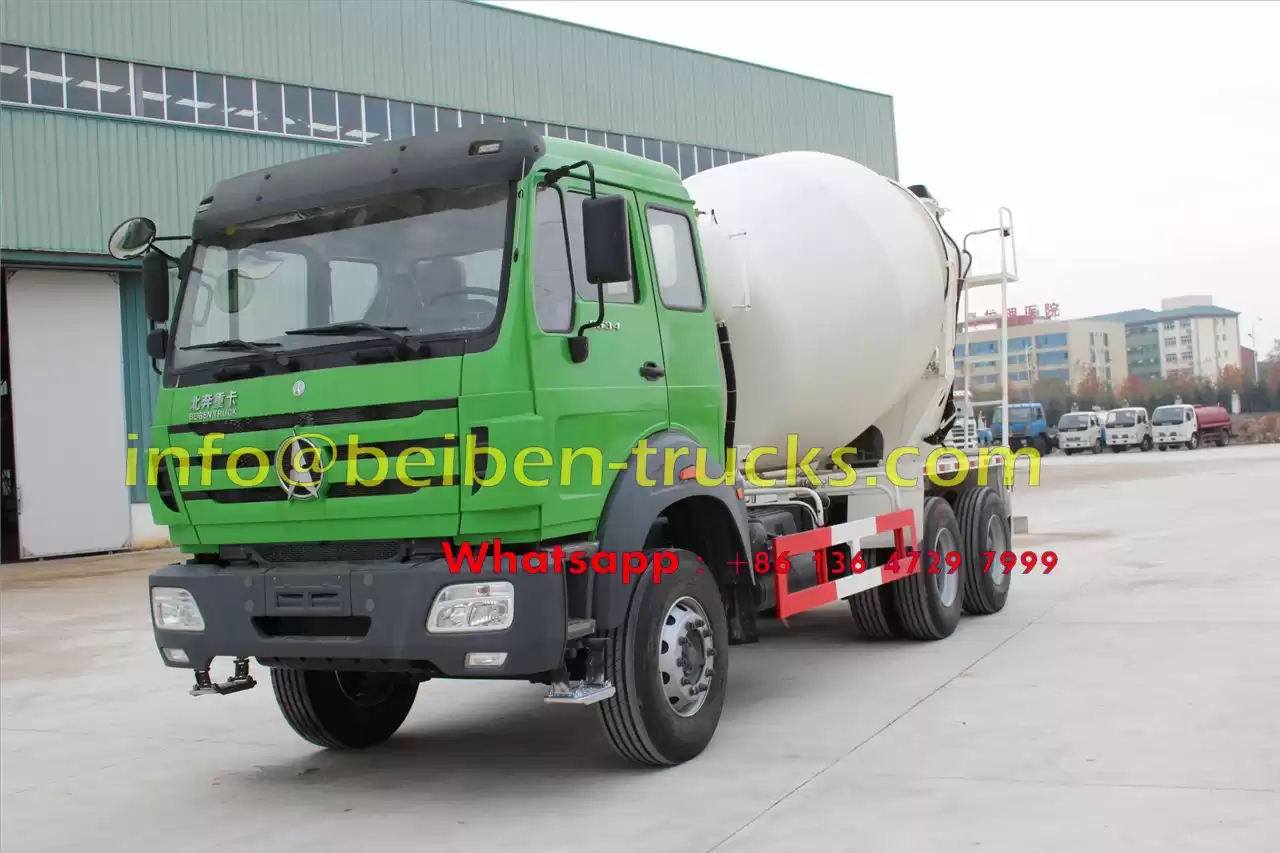

Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck

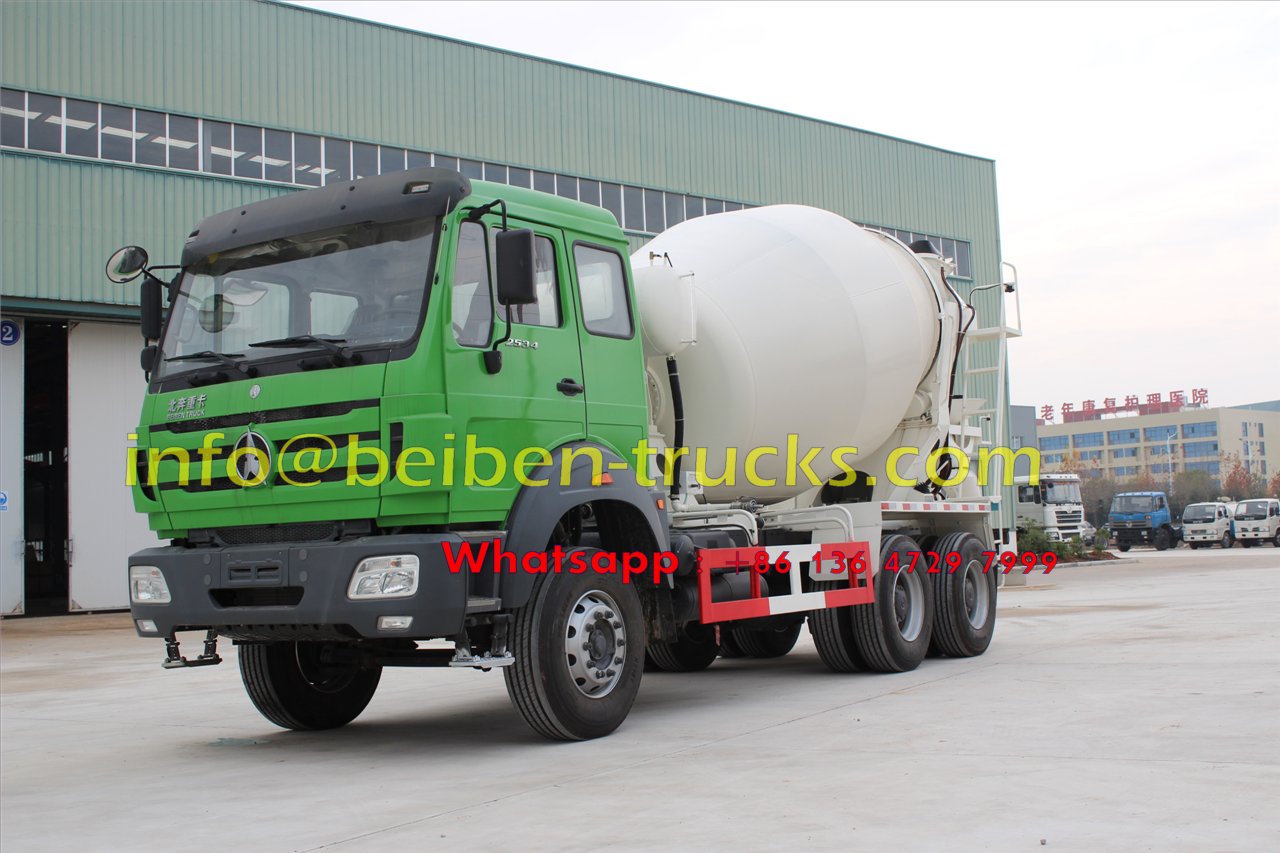

Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck

beiben 9 CBM concrete mixer truck manufacturer

beiben 9 CBM concrete mixer truck manufacturer

beiben 9 CBM concrete mixer truck manufacturer



INQUIRY

Contact us for all information about the product


click here to leave a message

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
