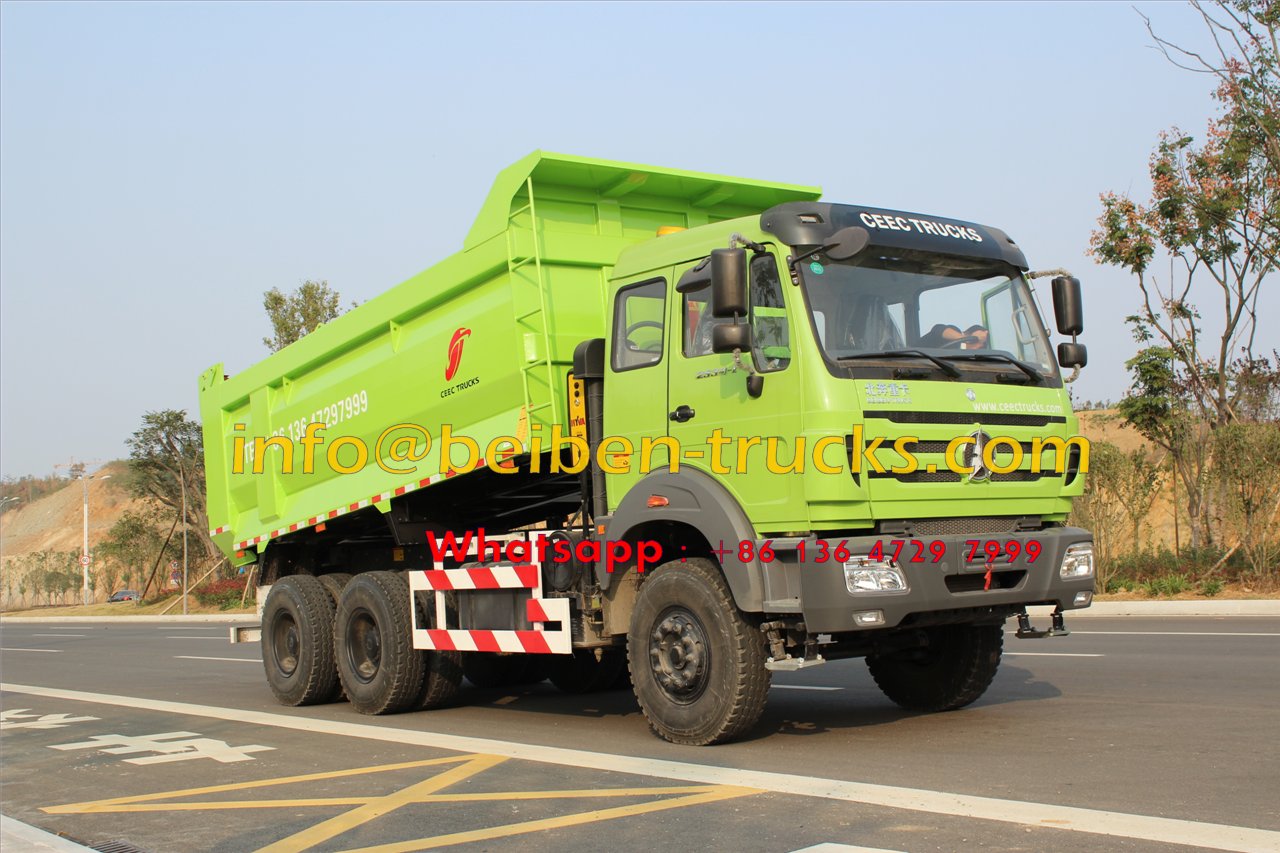

Using Mercedes-Benz Technology beiben north 10 wheeler tipper trucks for sale

Model

6x4 dump truck

Cabin

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WP10. 380E32

WEICHAI Diesel engine



MAX Horse power:

380HP/280KW



Displacement(L):

9.726liter (Euro 2 standard)



Max torque:

1500NM@1200-1600rpm



Bore/stoke:

126mm/130mm



Using Mercedes-Benz Technology beiben north 10 wheeler tipper trucks for sale

north benz 2538 dumper manufacturer

Company Information

Our Team


1.Exporting trucks and construction machinery for 10 years.
2.Having cooperated with 169 customers, exported and reached 69 countries around the world.
3.Perfection for sales, parts -supply, after -sales service team
4.One of the few qualified and authorized enterprises for exporting by our commerce department .
5.Enjoying the authorization and cooperation from many domestic dominated factories
6.The brand of CEEC is the top Chinese trucks for exporting.



Product Description



Model

6x4 dump truck

Cabin

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WP10. 380E32

WEICHAI Diesel engine



MAX Horse power:

380HP/280KW



Displacement(L):

9.726liter (Euro 2 standard)



Max torque:

1500NM@1200-1600rpm



Bore/stoke:

126mm/130mm

Gear box



Max torque:2000NM



Model:

12JS200T, mechanism,12gears,2reverse gear, manual, synchronization



Speed:

12speed,2reverse

Axle(front/rear)

Front axle

Double-shoe pneumatic brake, non-driving steering axle

Tandem

Double-shoe pneumatic brake, casting, double reduction driving axle

Clutch

Single dry frictional disc,Hydraulic boosting

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system



Parking brake: Potential springs pressing on middle and rear wheels



Engine brake: Engine exhaust brake(EVB)

Steering

TAS85, driver sit at the left hand side



Electric Equipment



Operating voltage:

24Vnegative grounded



Starter:

24V,5.4KW



Alternator

28V,758W



Battery voltage

12V/135Ah,cigar lighter

Frame

Fish belly, shape, variable width, variable sections, side beam structure.

Tyre

12+1 spare tyre with rim



12.00-R20

Suspension system: strongthen heavy duty Leaf spring type



Front/Rear

12/12/13

Dump body:

Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel

Lifting type: Front lifter “T” type hydraulic system.

Overall dimension(mm): 11730x2500x3484(Length x width x height)

Wheelbase

1950+4600+1450mm

Track:





Front/Rear

2045/1872



Approach/Departure angle

26/27



Front /Rear overhang

1410/2320



Max speed

90km/h

Kerb weight:

15500kg

Oil tank capacity

300L fuel tank
