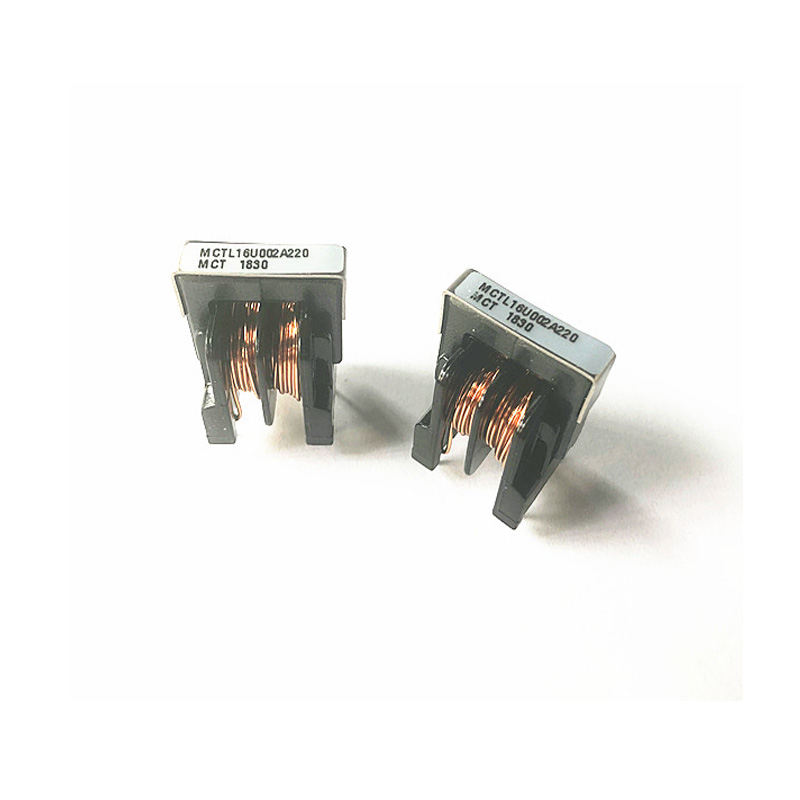

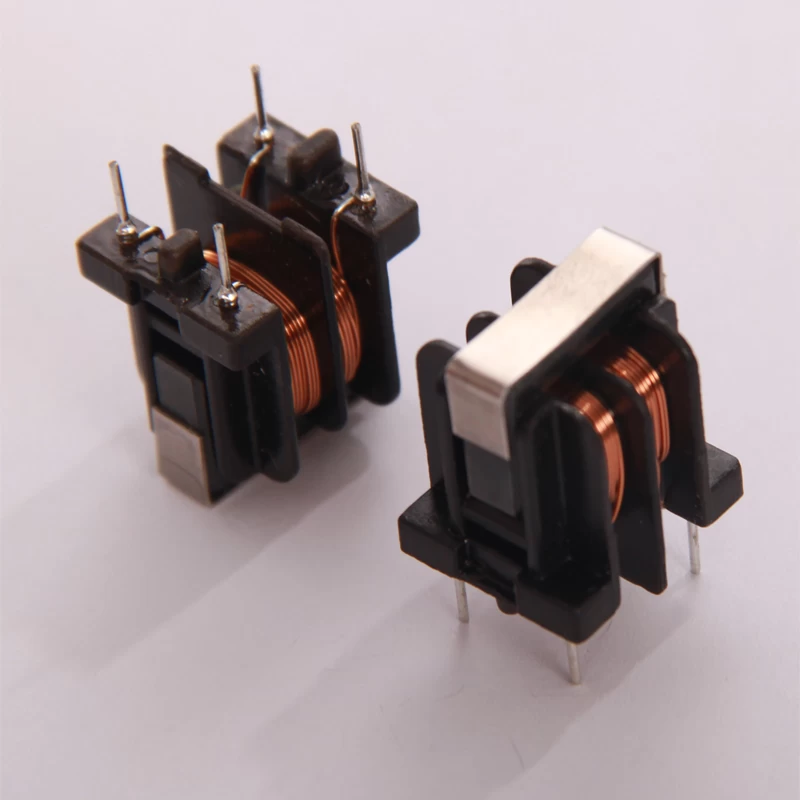

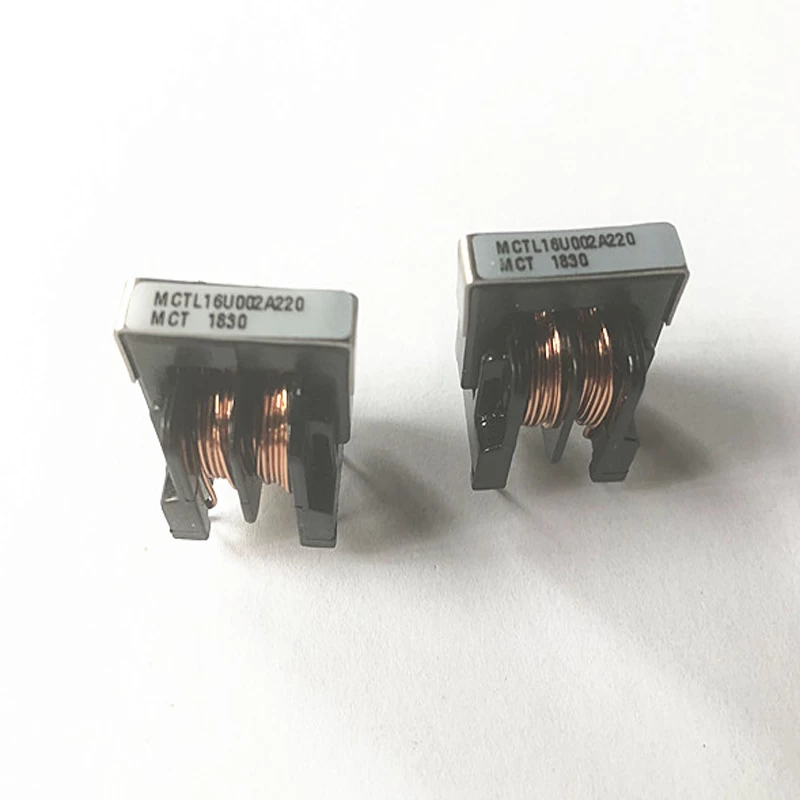

UU16 common mode choke inductor is our UU series common mode choke coil. UU type common mode choke mainly used for AC power suppliers, DC-DC converters and telecommunication equipment. It has small size, so its convenient to package. It also has high reliability and high saturation DC current. UU series different frequency require will be meet by different material and the materials we used are all lead-free products, UL compliant.
Quick Details
|
Part No: MCTL16U Series Standard Winding
|
|
Brand name: MCT
|
|
Rated voltage:85~265VAC,50/60Hz
|
|
Custom made: Available
|
|
Insulation resistance:100MΩ @500VDC
|
|
Logo: Can be customized
|
|
Turns ratio:1:1±2%
|
|
Packing: Carton,can custom
|
|
Hi-pot: 2500VAC/1mA/60Sec
|
|
Certification: ISO9001,ROHS,CE
|
|
Testing frequency:1KHz/0.25V
|
|
OEM: Available
|
|
Operating temperature:-40°C~+105°C
|
|
Shipping: Air, Ship, etc
|
|
Lead time: 25 days after payment
|
|
MOQ: Any quantity
|
Part Information
Product Name: UU16 Wave Filter Inductance Common Mode Choke Coils Inductor
Applications: Switching power supply, Lighting equipment, Data transmission, Medical application equipment, Home appliance.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

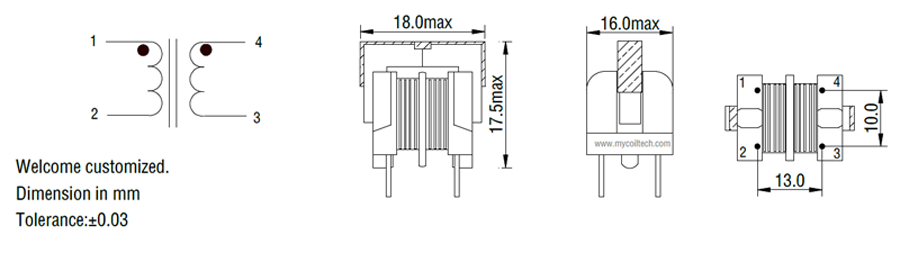

Product Specification
|
MCT Part No.
|
Inductance(mH) min
|
DC Resistance(Ω)max
|
Rated Current(A)
|
|
MCTL16U047A040
|
47.0
|
1.8
|
0.4
|
|
MCTL16U045A030
|
45.0
|
4.0
|
0.3
|
|
MCTL16U033A060
|
33.0
|
1.15
|
0.6
|
|
MCTL16U030A040
|
30.0
|
2.5
|
0.4
|
|
MCTL16U027A070
|
27.0
|
0.88
|
0.7
|
|
MCTL16U020A050
|
20.0
|
1.7
|
0.5
|
|
MCTL16U018A080
|
18.0
|
0.6
|
0.8
|
|
MCTL16U010A060
|
10.0
|
1.0
|
0.6
|
|
MCTL16U010A100
|
10.0
|
0.35
|
1.0
|
|
MCTL16U008A070
|
8.0
|
0.8
|
0.7
|
|
MCTL16U006A130
|
6.8
|
0.25
|
1.3
|
|
MCTL16U006A080
|
6.0
|
0.55
|
0.8
|
|
MCTL16U004A150
|
4.7
|
0.17
|
1.5
|
|
MCTL16U004A100
|
4.0
|
0.4
|
1.0
|
|
MCTL16U003A120
|
3.5
|
0.3
|
1.2
|
|
MCTL16U003A180
|
3.3
|
0.13
|
1.8
|
|
MCTL16U002A130
|
2.5
|
0.25
|
1.3
|
|
MCTL16U002A220
|
2.2
|
0.1
|
2.2
|
|
MCTL16U001A150
|
1.5
|
0.15
|
1.5
|
|
MCTL16U001A330
|
1.0
|
0.05
|
3.3
|
