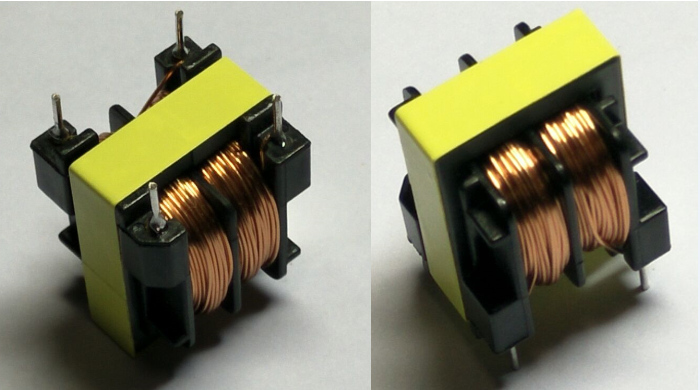

UU25 Common Mode Choke Filter For High Frequency Inverter

UU25 Common Mode Choke inductors are lead-free productswigh saturated material, wide inductance range. Different frequency require will be meet by different material.




Outline of EMI suppression Filter for AC Power Lines Common mode Choke coil MCTL25U Series standard winding. UU common mode choke mainly used for AC power suppliers, DC-DC converters and telecommunication equipment. We offer different series common mode choke, such as uu25.4 common mode choke, uu10.5 common mode choke, uu15.7 common mode filter inductor and other series common mode chokes. We also can design to meet customers requirements. Our common mode chokes products are UL and RoHS certified.


Quick Details

Part No: MCTL25U Series Standard Winding

Brand name: MCT

Rated voltage:85~265VAC,50/60Hz

Custom made: Available

Insulation resistance:100MΩ @500VDC

Logo: Can be customized

Turns ratio:1:1±2%

Packing: Carton,can custom

Hi-pot: 2500VAC/1mA/60Sec

Certification: ISO9001,ROHS,CE

Testing frequency:1KHz/0.25V

OEM: Available

Operating temperature:-40°C~+105°C

Shipping: Air, Ship, etc

Lead time: 25 days after payment

MOQ: Any quantity


Part Information

Product Name: UU25 Common Mode Choke Filter For High Frequency Inverter

Applications: Switching power supply, Lighting equipment, Data transmission, Medical application equipment, Home appliance.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.


Product Specification

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCTL25U047A075

47.0

0.72

0.75

MCTL25U033A100

33.0

0.55

1.00

MCTL25U016A150

16.0

0.25

1.50

MCTL25U010A175

10.0

0.17

1.75

MCTL25U005A225

5.60

0.08

2.25

MCTL25U003A275

3.30

0.055

2.75

MCTL25U001A350

1.50

0.032

3.50

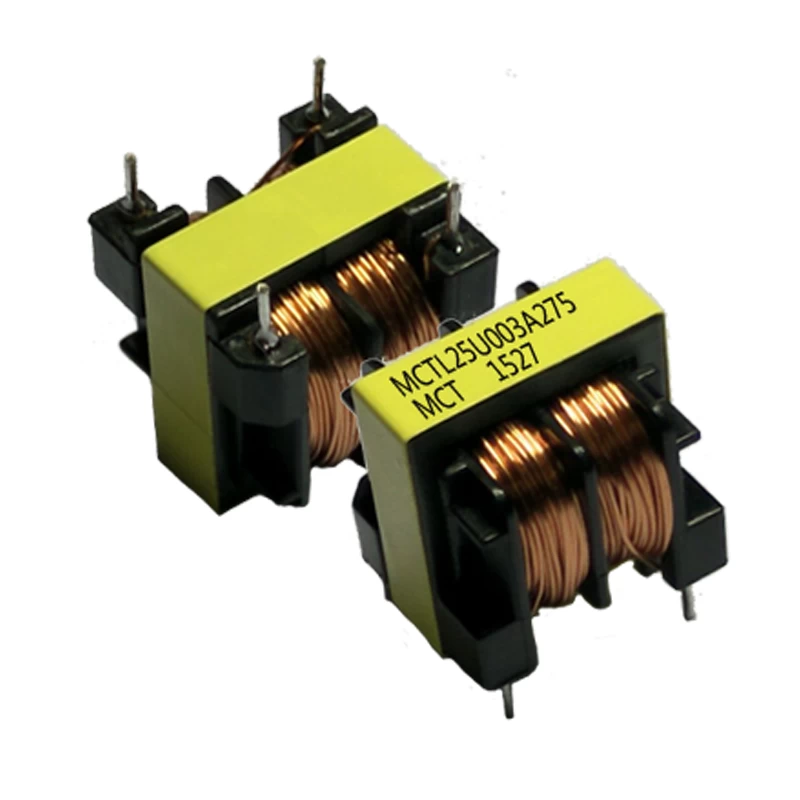

 UU25 Common Mode Choke Filter Inductor
