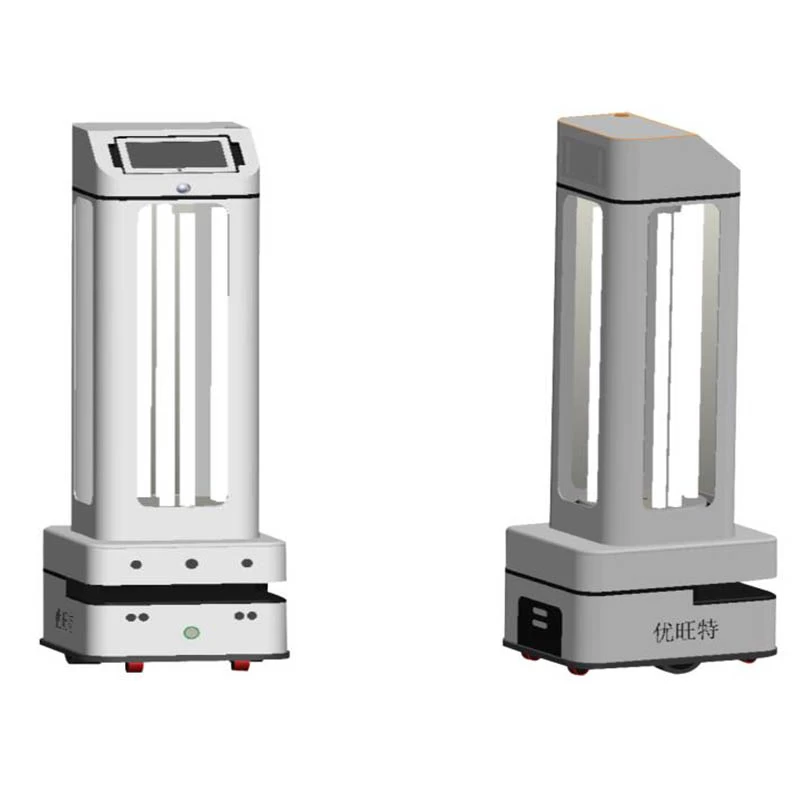

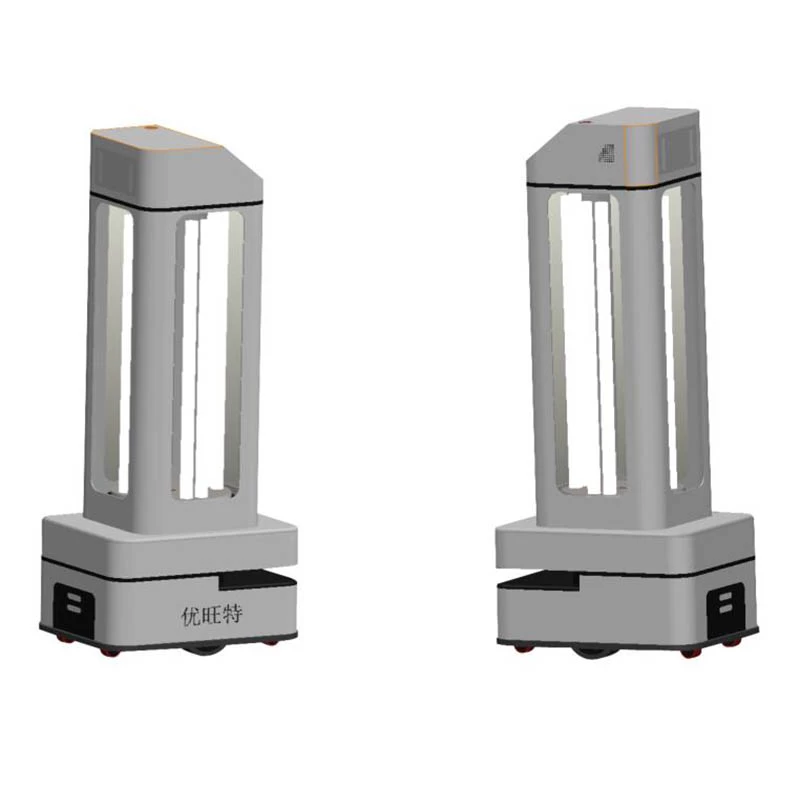

Smart Disinfection
Robot
Model：TRDIN-02
Product Description：

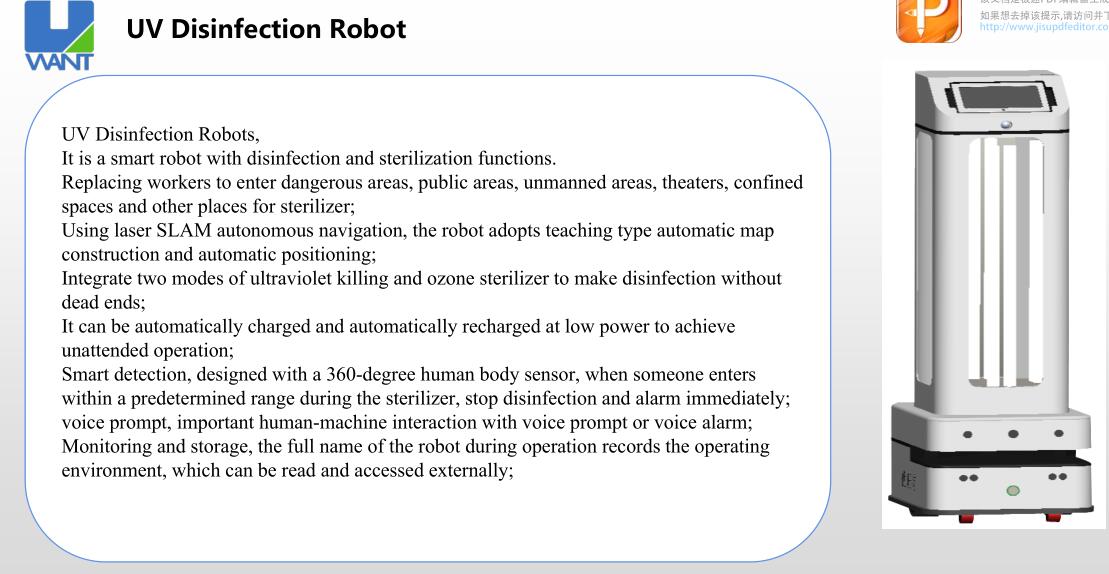

Disinfection Special AGV is an intelligent
robot with anti-epidemic function.

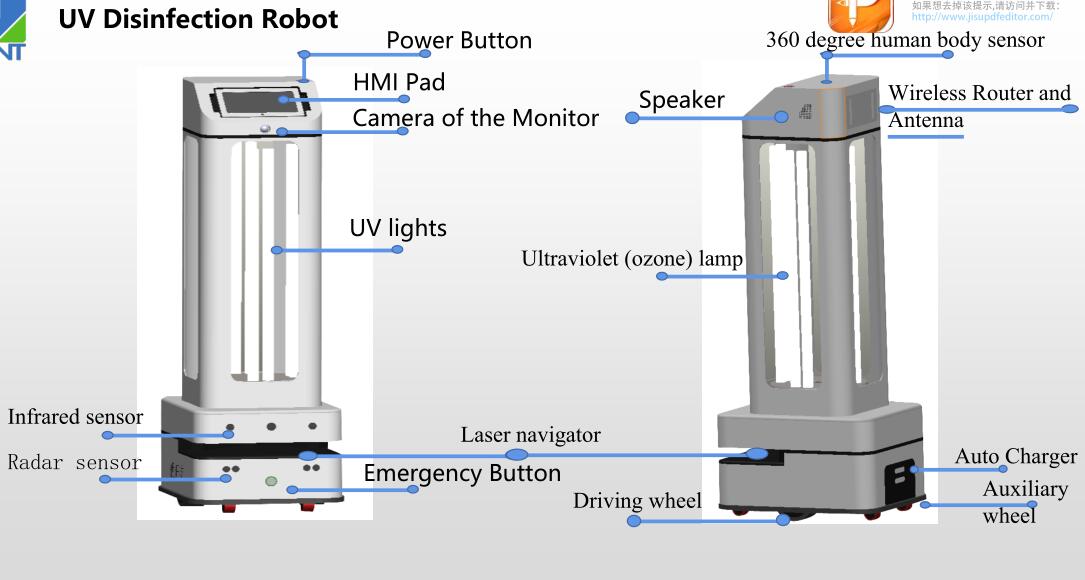

It uses laser SLAM for autonomous navigation,
QR code assisted positioning, and integrated disinfection spray system.
It can be equipped with automatic charging,
automatic refueling and other functional units.

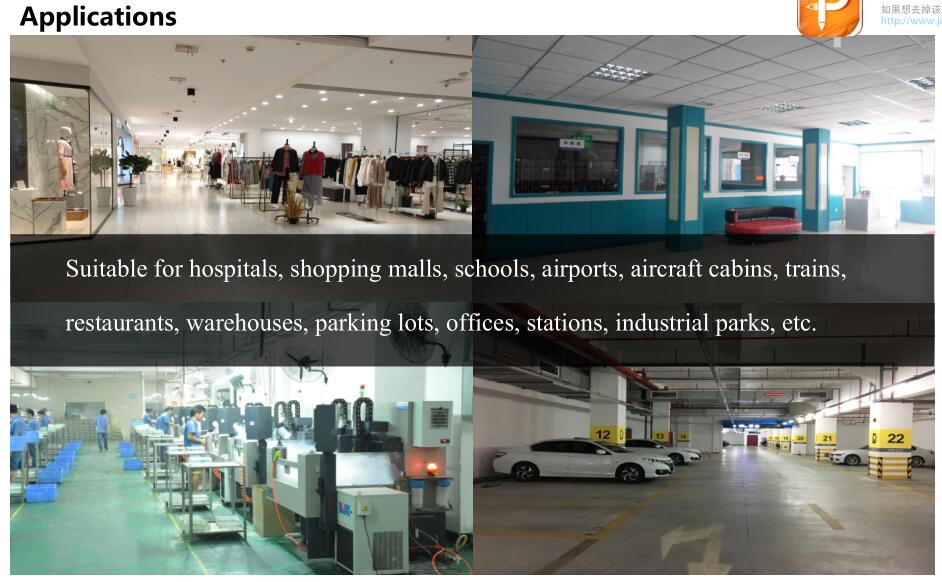

It can be widely used in hospitals, hotels,
airports, high-speed railway stations and other public places of intelligent
elimination.
|
Project
|
Index/parameter
|
Remarks/instructions
|
|
Product series
|
TRDIN-02
|
Robots uesd in public places
|
|
Navigation way
|
Laser SLAM+QR code
|
There is no need to change the site layout or lay routes
|
|
Drive motor
|
Dc servo motor
|
Precise and smooth control
|
|
Drive way
|
Double
|
The steering is flexible and can rotate on the
spot
|
|
The load way
|
Sterilizing instruments
|
Integrated disinfecting lamp(with Ozone
disinfection and Ultraviolet disinfection function)
|
|
The Highest Sterilizing height
|
Max: 1700mm(According to height of disinfecting lamp)
|
Disinfecting lamp height various from 500mm to
1200mm
|
|
Max speed
|
60 m/min
|
|
|
Rotating
|
support
|
The center of the two driving wheels is the
center of the circle
|
|
Safety protection
|
Laser obstacle avoidance
|
|
|
Around the barrier
|
support
|
Autonomous avoidance of obstacles
|
|
Communication
|
WIFI
|
|
|
The control Mode
|
PC/ tablet/phone
|
System: Windows or Android
|
|
HMI screen
|
9 "industrial touch screen
|
Contains basic display and operation, as well as basic
Settings
|
|
Operator
|
wireless
|
It is often used for manual operation and field
debugging
|
|
Battery endurance
|
8hours
|
Full and empty load alternate, with the use of
conditions and load
|
|
Average charging
|
4 hours
|
It is related to the capacity of optional battery.
Optional large current charger.
|
|
Automatic charging
|
Support, optional
|
2 hours full. It can be charged at leisure
|
|
Auto rehydration
|
Support, optional
|
A refueling device is needed
|
|

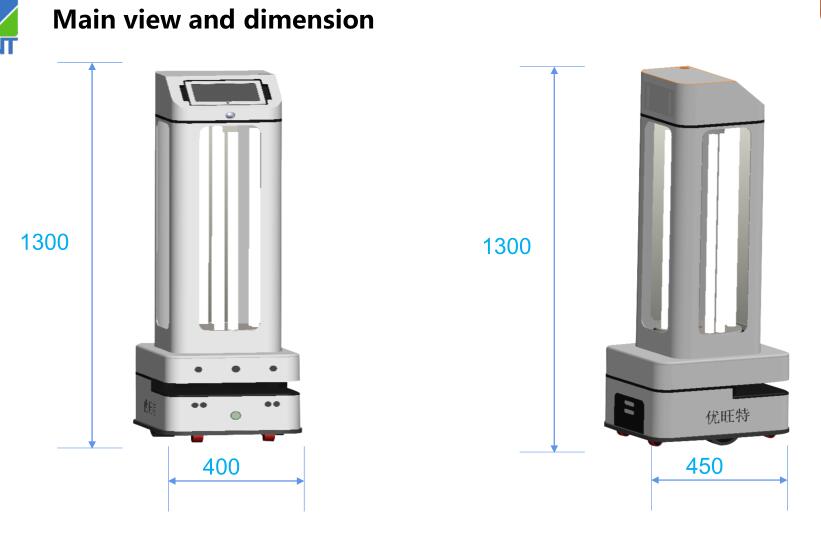

Robot size
|
700*500*1300
|
fit actual size
|
|
Moredevelopment
|
Support, TTL/RS232/TCP IP
|
Optional, open control communication protocol
(TCP/UDP, serial port) and external wiring diagram, and provide a simple test
sample (Demo)
|
