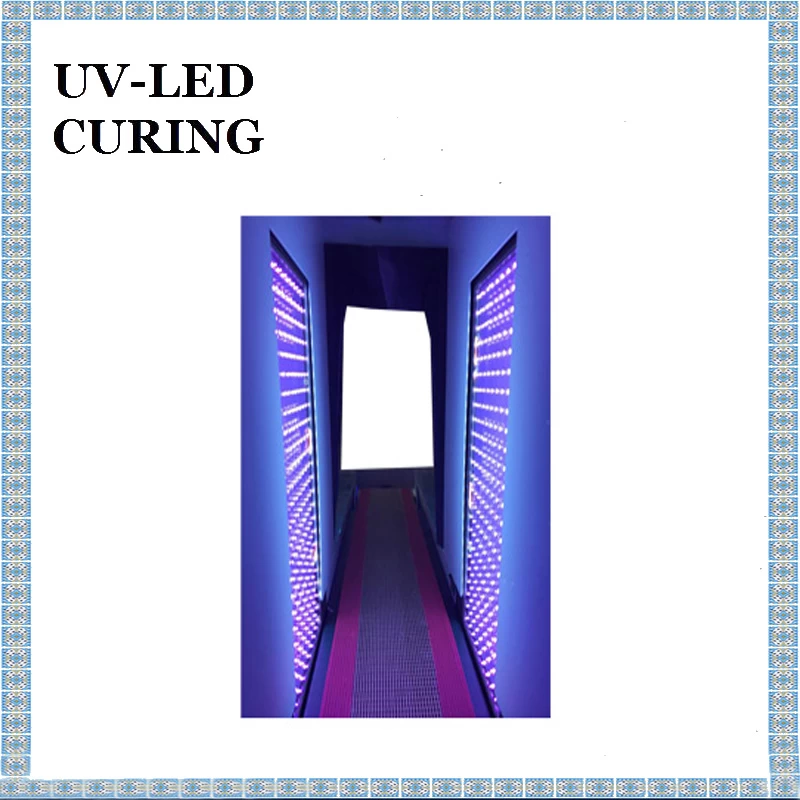

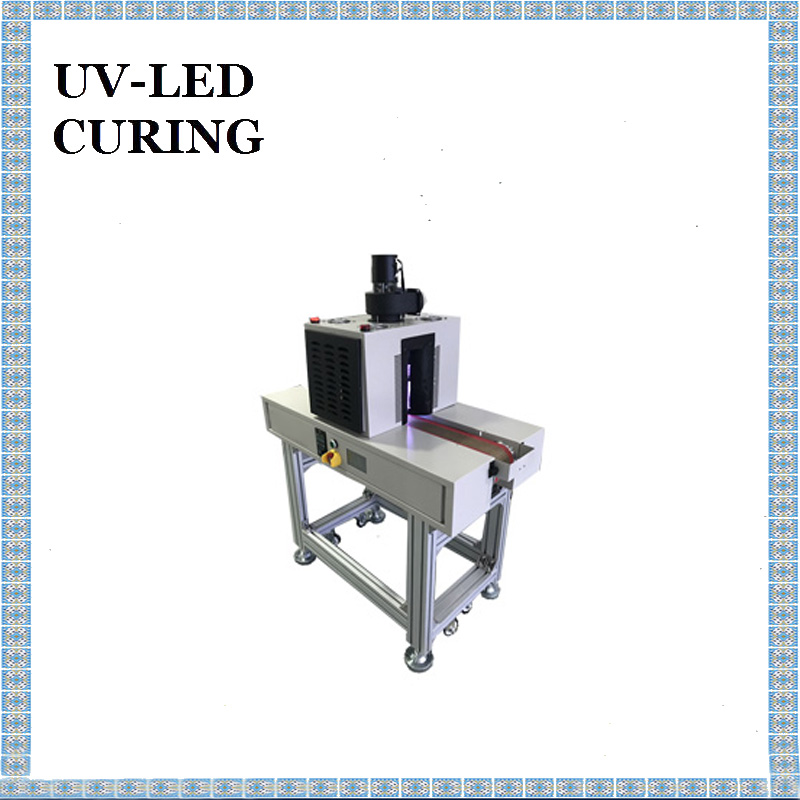

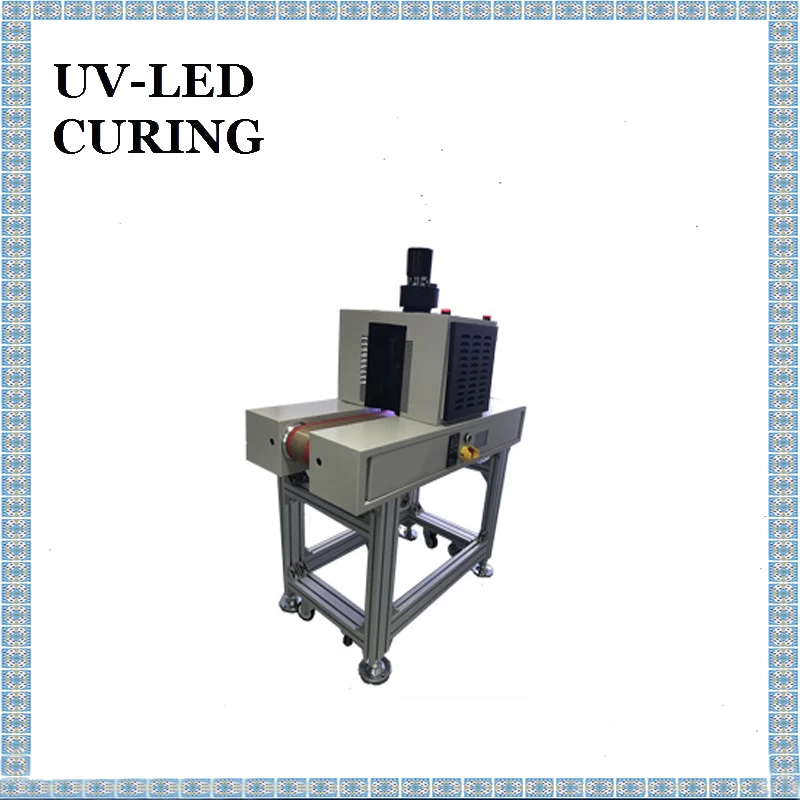

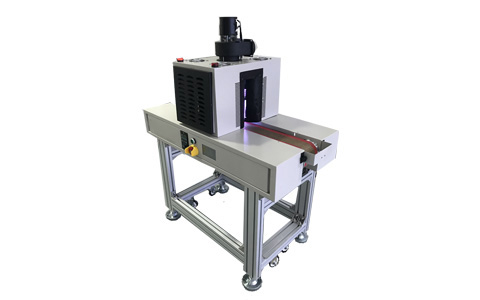

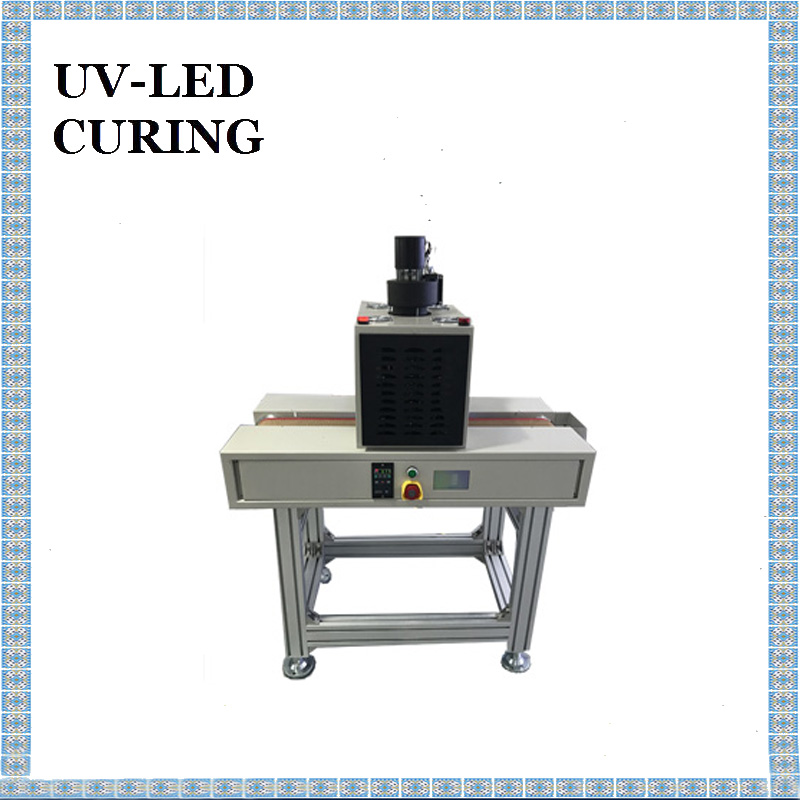

Lithium-Ion Battery Module LED UV Curing Machine for UV Adhesive Curing is a high-performance UV LED curing machine system designed for the curing of lithium battery module UV adhesive. The system mainly includes control system, UVLED irradiation head and conveyor belt, and the two sides are illuminated, and the special parts can be dispensed for the top surface. It has a good curing effect, and the whole machine and light source area can be customized.
Specification Sheet

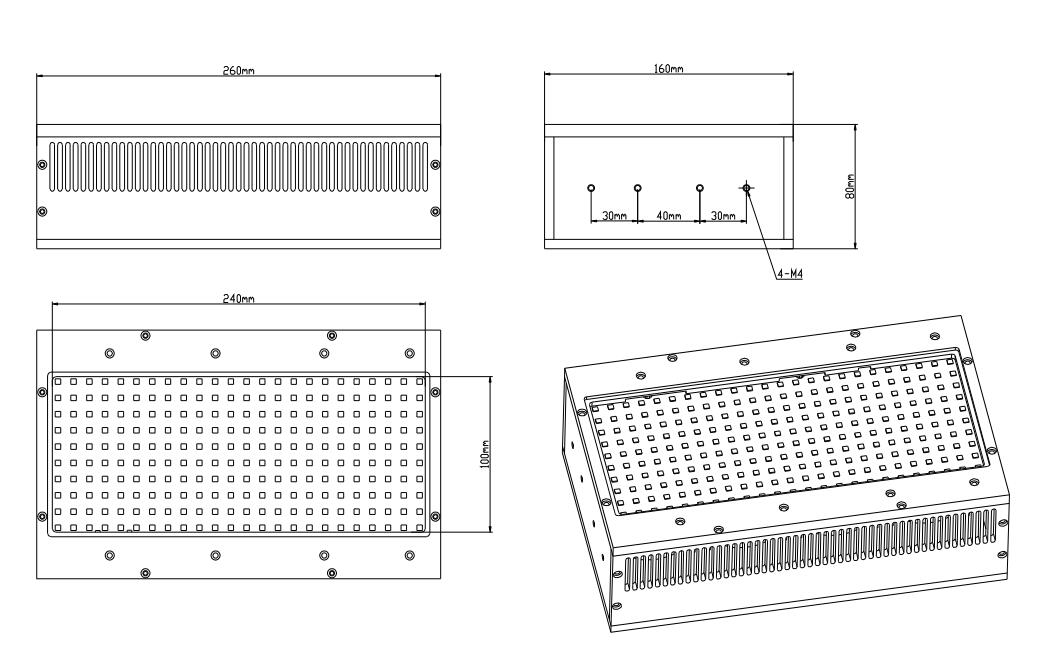

1. UV LED head
Wavelength: 365nm
Model : DSX-II
Curing area: 240X100mm
Optical power density: 1100mw/cm2
Recommended irradiation distance: 10-100mm
Dimensions: L260*W160*H80mm
2. Control System
Panel display, touch operation, real-time monitoring of the working state of the head
Power 0-100% adjustable, conveyor speed adjustable
Temperature monitoring
Infrared sensing control, working mode selection

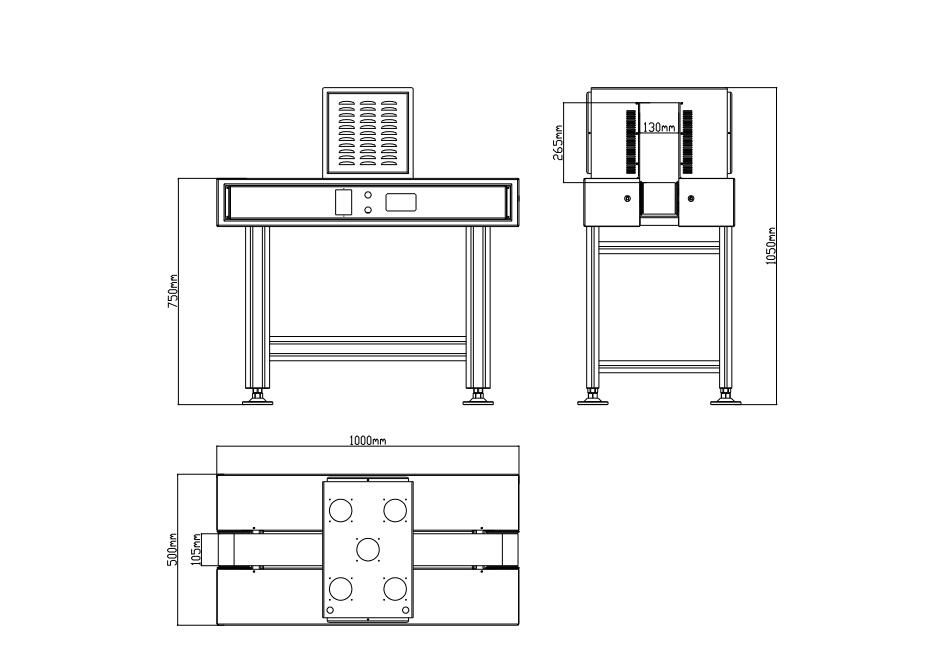

Machine size: L1000*W500*H1050mm
Product Overview
* The heat radiation is small, the irradiation machine can choose different wavelengths such as 365/395/405nm, no infrared spectrum is emitted, no high temperature heat.
* Produce high-energy, high-purity ultraviolet light, and use the latest high-energy ultraviolet LED to quickly complete the curing of UV glue, greatly improving production efficiency.
*Energy saving and environmental protection, low power consumption of LED, no need to preheat when used, instantaneously reach 100% high power, that is, power can be adjusted, that is, on or off, power saving ratio ≥1:6, high efficiency of ultraviolet photoelectric conversion, and not It contains mercury, no dark ultraviolet skin cancer, and no ozone. It is a safer and more environmentally friendly alternative to traditional light sources.
*Integrated design, equipment installation is convenient and fast, just use the light source to install, the height of the light source can also be adjusted according to specific needs.
