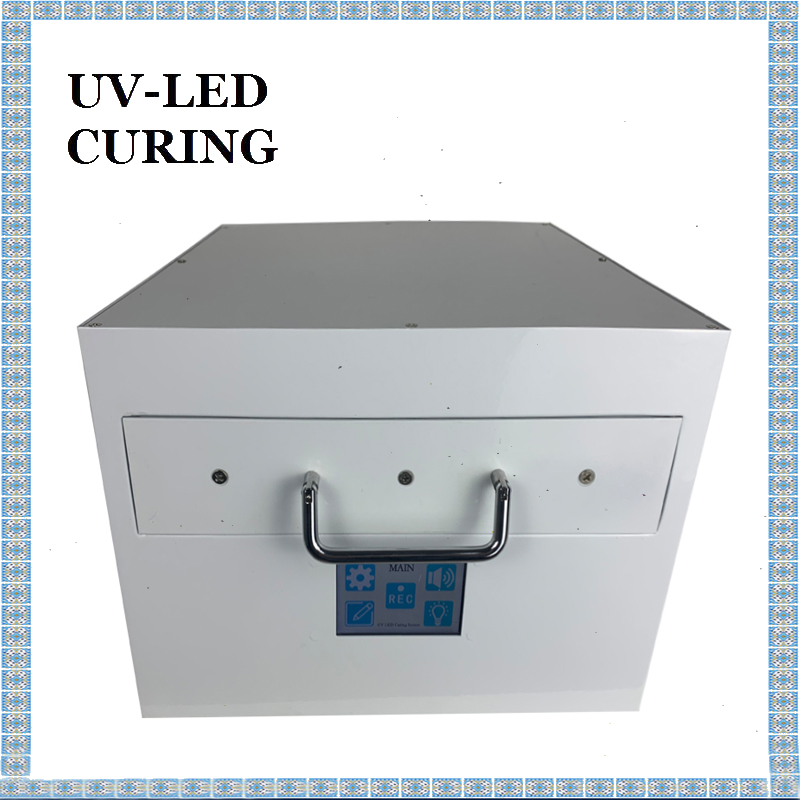

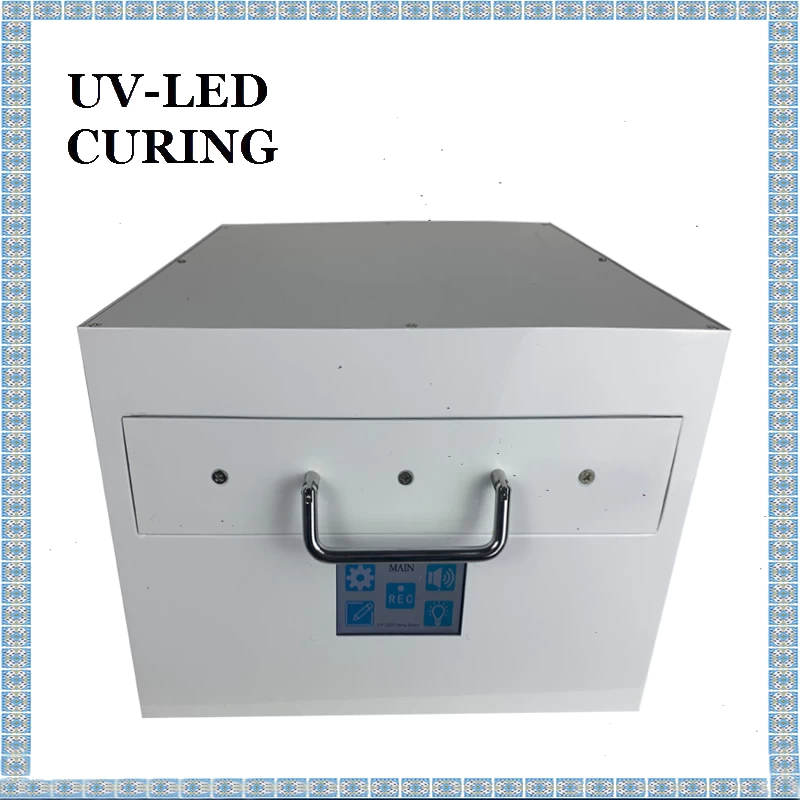

UV LED Exposure Box 150x200mm UV Curing Machine for Wafer Semiconductor LED Lights

Professional manufacturing DSX-150-200 UV Degumming Machine for  semiconductor, wafer, curing UV glue UV ink, etc.

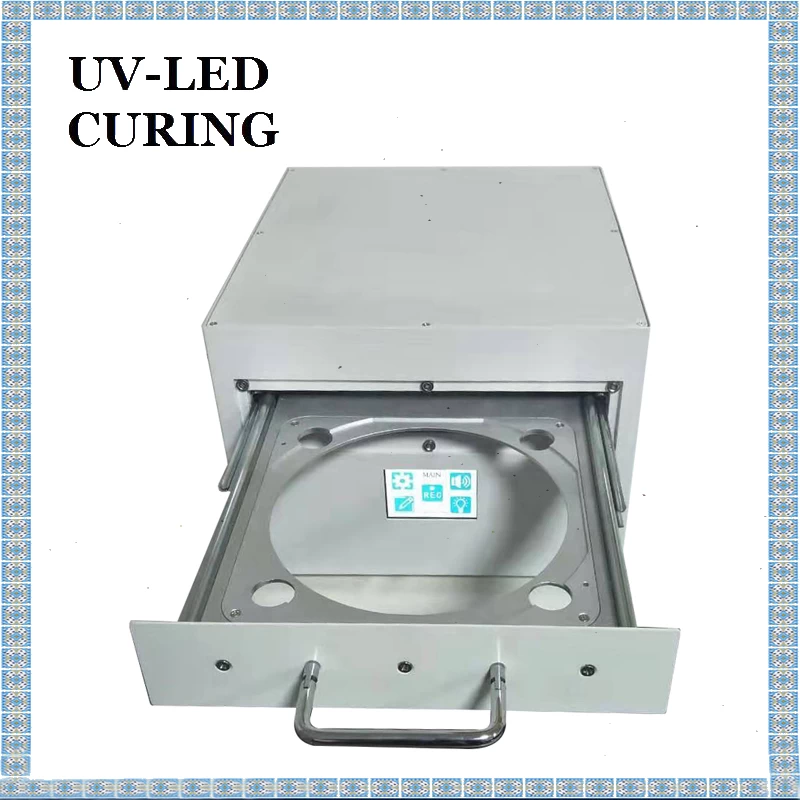

DSX-150-200 UV Curing Machine is mainly used in degumming UV tape in crystal cutting process. Deshengxing UV curing machine produced by the wavelength of the light source concentrated in UVA 365nm, not containing high heat infrared ray and human injury caused by the short wave ultraviolet, and can ensure sufficient uniformity, for UV tape ungluing performance more stable. Deshengxing DSX-100-200 Automatic LED UV Degumming Machine for Wafer UV Tape adopts the irradiation mode from bottom to top, which is more convenient for the operator to place the crystal element, and can be matched with a variety of sizes, which can fully meet the needs of customers.


LED UV Curing Systems for Semiconductor Packaging Ungumming Manufacturers


Characteristics of Fast Curing LED UV Chamber Curing Semiconductors

1. single wavelength, ultra-low temperature control

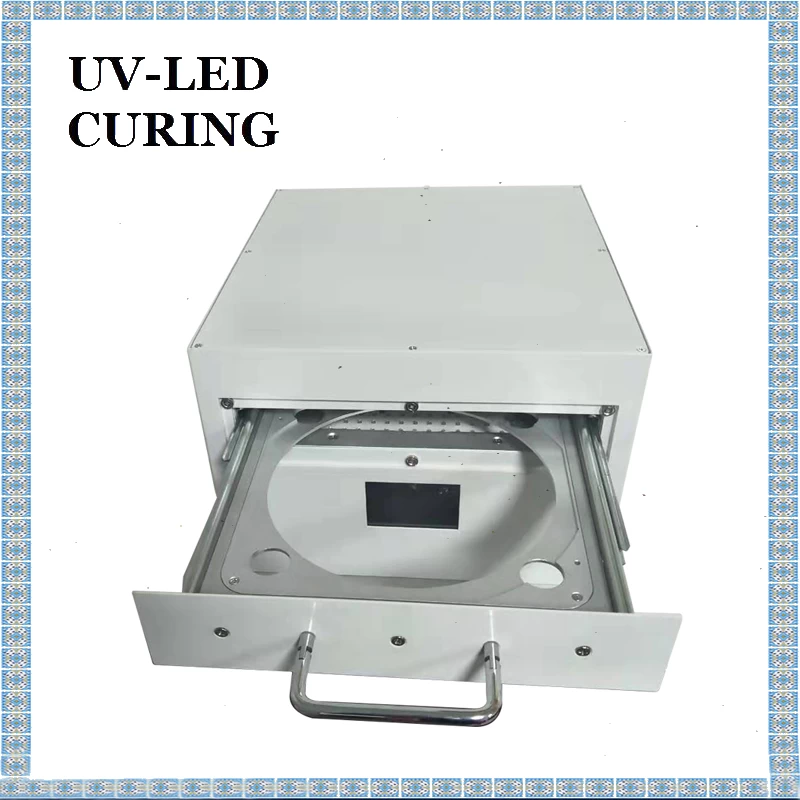

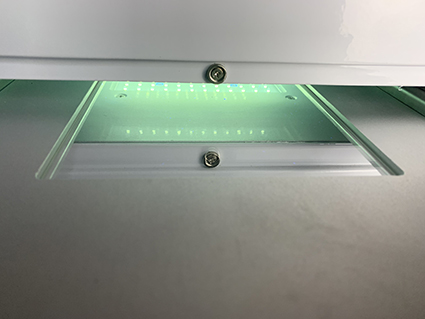

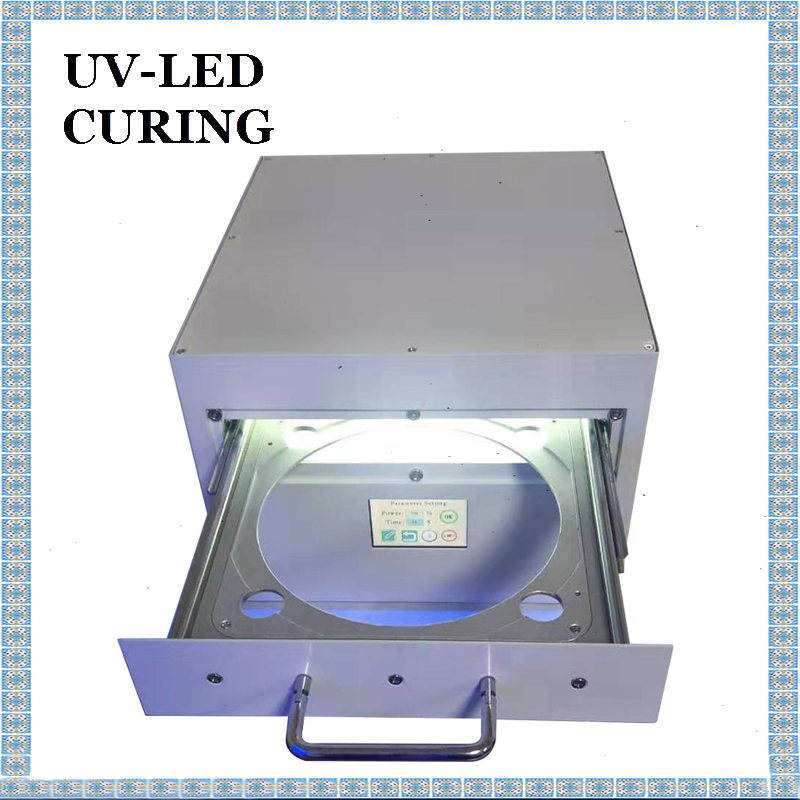

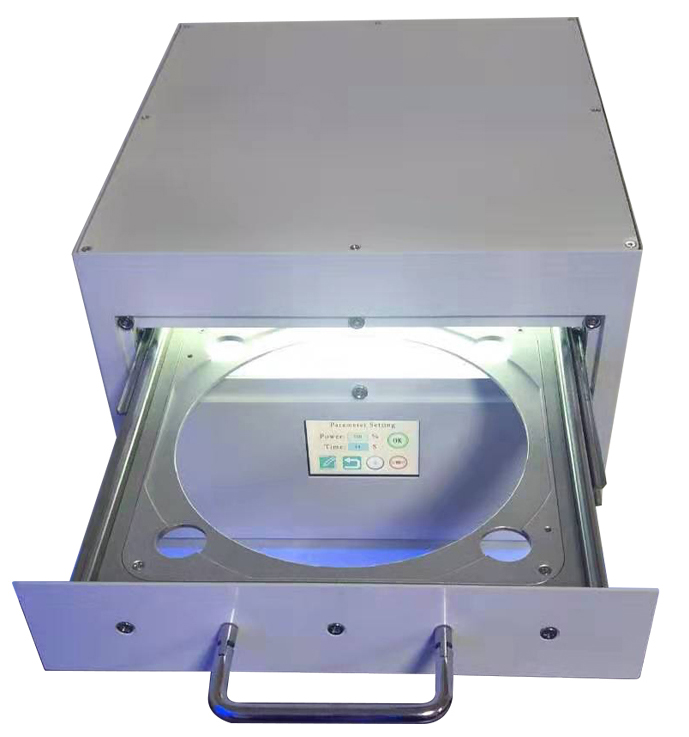

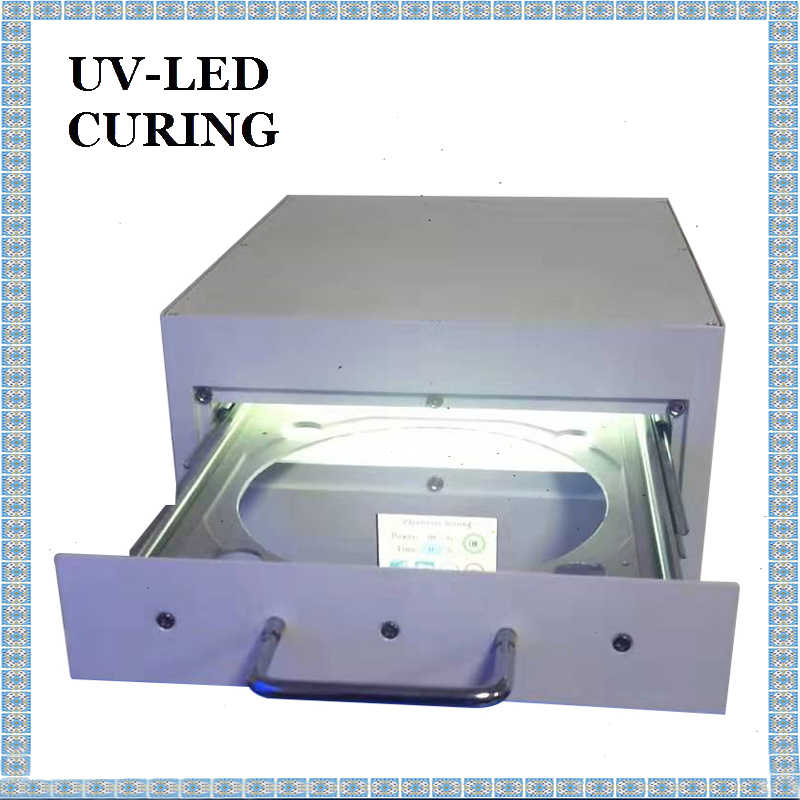

2. uniform irradiation intensity, bottom-up irradiation

3. uitable for curing different size crystal element


Best Fast Curing LED UV Chamber Ungumming UV Tape Wafer Suppliers


Parameters of Customized LED UV Curing Light Box Degumming UV Film :

Model

DSX-150X200

Manufacturer

Shenzhen Deshengxing Electronics Co., Ltd.

Dimensions

386*332*250mm

Lighting Area

150*200mm

Cooling

Fan Cooling

Power Input

100-240V AC 50-60HZ

Power

500W

Wavelength

365nm

Drawer Capacity

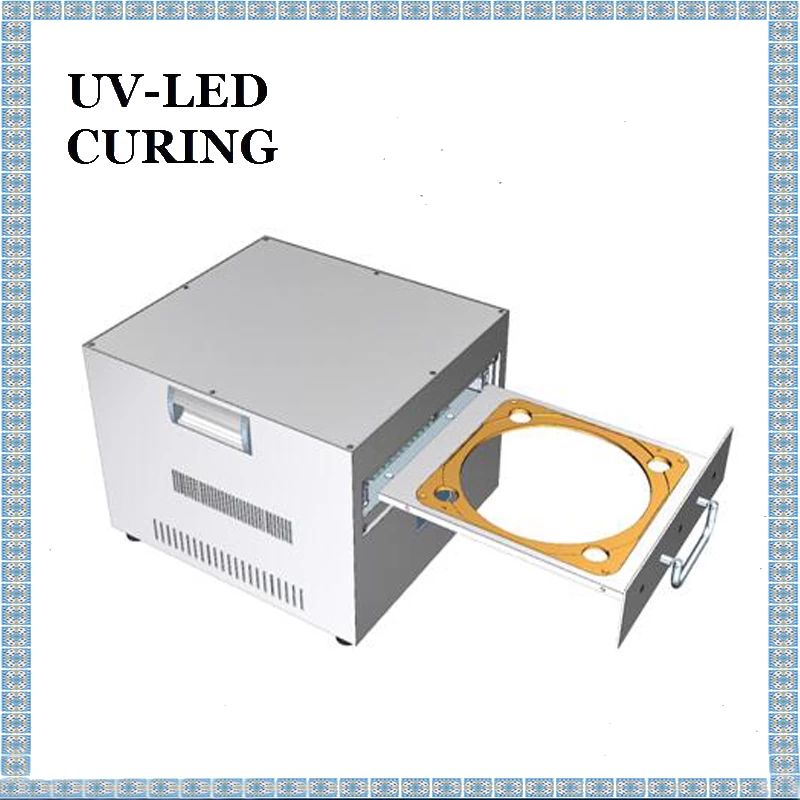

214*214*15mm

Intensity

>500mW/cm2  70mm by EIT

Function

Time, intensity, mode adjustable

LED Cumulative Time

Record accumulated using time


High Power Full Automatic LED UV Curing Oven for Wafer Semiconductor Distributor
