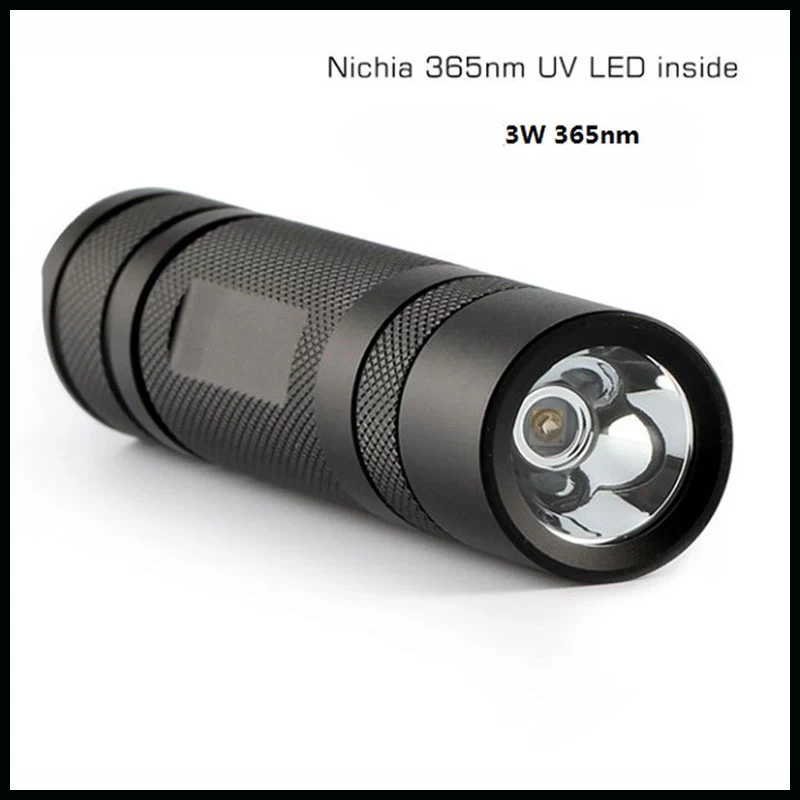

NICHIA 3W 365nm UV LED FLASHLIGHT DESCRIPTION
NICHIA UV 365nm led flashlight ,nichia 365UV in side ,OP reflector,Fluorescent agent detection.Nichia 365nm LED is the best 365nm LED in the market. It almost has no stray light.365nm can detect cash,fluorescent agent,prayer beads, traces of forensic,etc.
NICHIA 3W 365nm UV LED FLASHLIGHT SPECIFICATIONS
|
Brand
|
UV-LED CURING
|
|
Model
|
276A
|
|
Lamp
|
NICHIA UV LED
|
|
Wavelength
|
365nm
|
|
Color
|
S2+ black
|
|
Material
|
Aluminum alloy
|
|
Lens material
|
Glass
|
|
Input Voltage
|
3.6-4V
|
|
Forward Current
|
700mA
|
|
Radiant Flux
|
910mW
|
|
Power Dissipation
|
3W
|
|
Switch
|
End click switch
|
|
Driver specification
|
AMC7135*2
|
|
Battery
|
18650 1pc
|
|
Packing
|
white box paperback industry
|
|
Size
|
Diameter 24.1mm Length 118mm
|
|
Weight
|
76g (Excluding 1 battery)
|
|
Accessories
|
Flashlight + CHARGER + external packaging
|
NICHIA 3W 365nm UV LED FLASHLIGHT Application
A. Fluorescence observation of ore.
B. Cleaning detection of oil pollution.
C. Biological polymerization and fluorescence observation.
D. Air conditioning refrigerant leakage detection.
E. Detection of various traces and cracks.
F. Leakage detection of engine lubricating oil.
G. Table UV glue, adhesive curing curing intervention.
H. Collection of paper money, amber, jade, anti-counterfeiting testing.
I. Criminal investigation: fingerprint, fine spot, bloodstain observation and biochemical test.
J. Penetrant testing, fluorescent flaw detection, cosmetic brighteners and fluorescent agents detection.
K. Degreasing cleaning confirmation: degreasing cleaning confirmation for food industry, kitchen, cooking utensils and tableware.
L. Pollution inspection: electronic components, motherboard, dust inspection, LCD panel, clean room entry inspection.
M. Fluorescent flaw detection: fluorescent penetrant inspection and fluorescent magnetic particle inspection for iron and steel, non ferrous metal, automobile, aircraft, etc.N.Leak check: hydraulic machine, tank, pipe, oil leakage inspection, using fluorescent agent Water Leakage inspection, pipeline leakage, chemical UV glue.

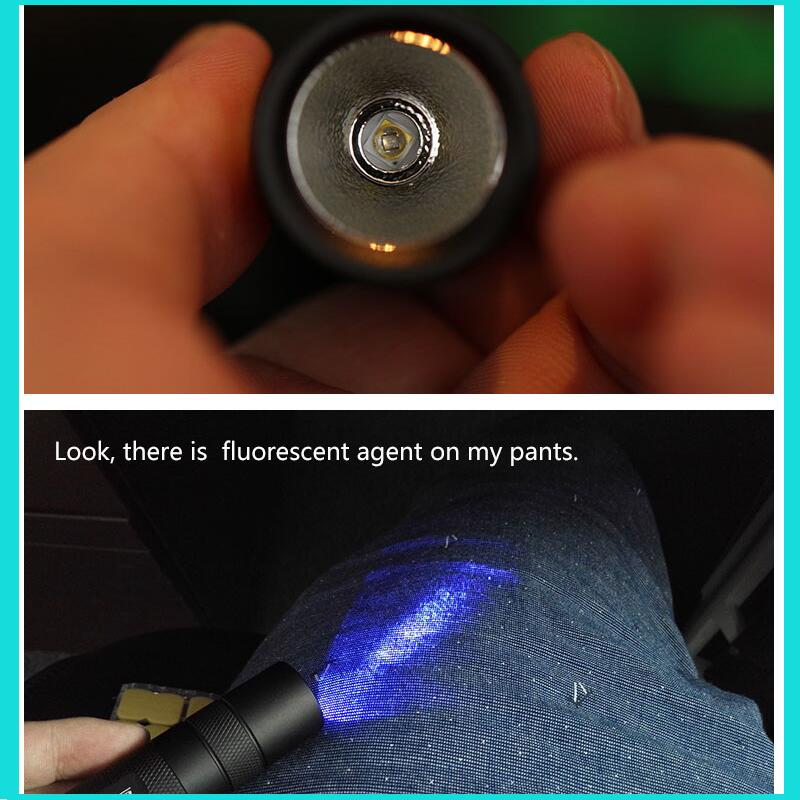

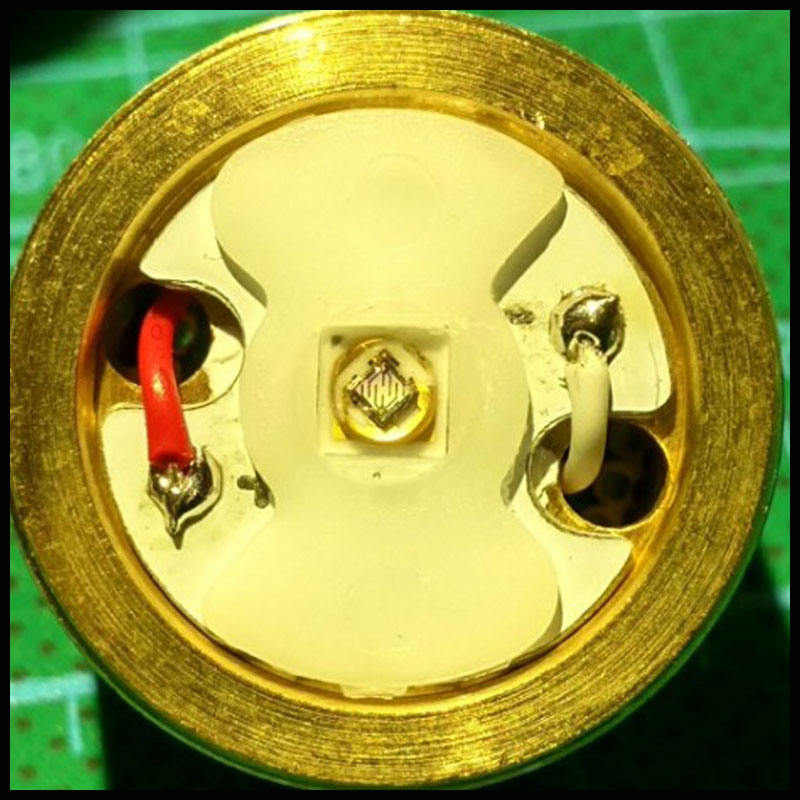

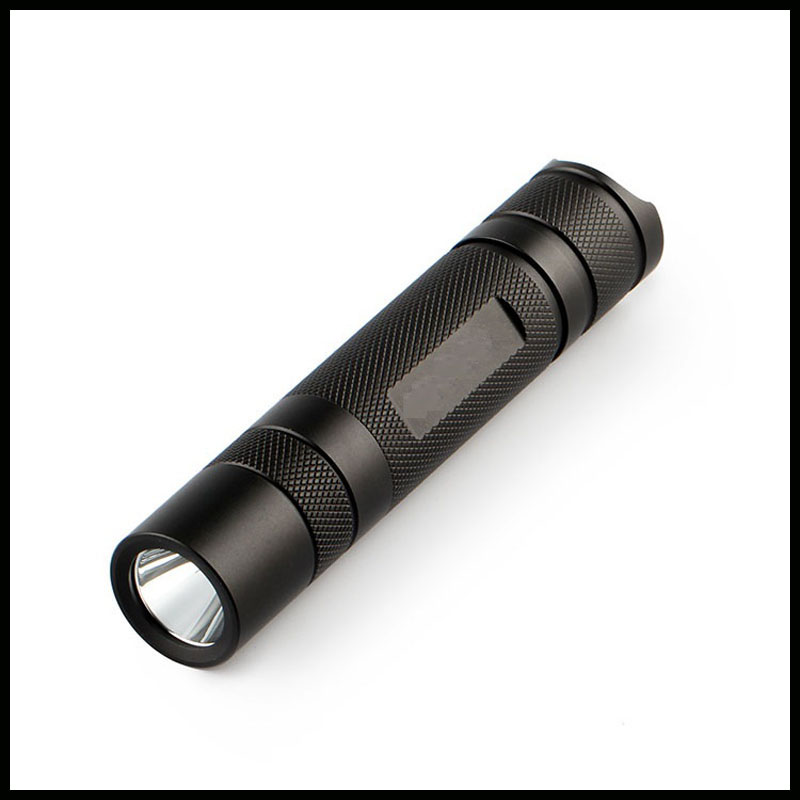

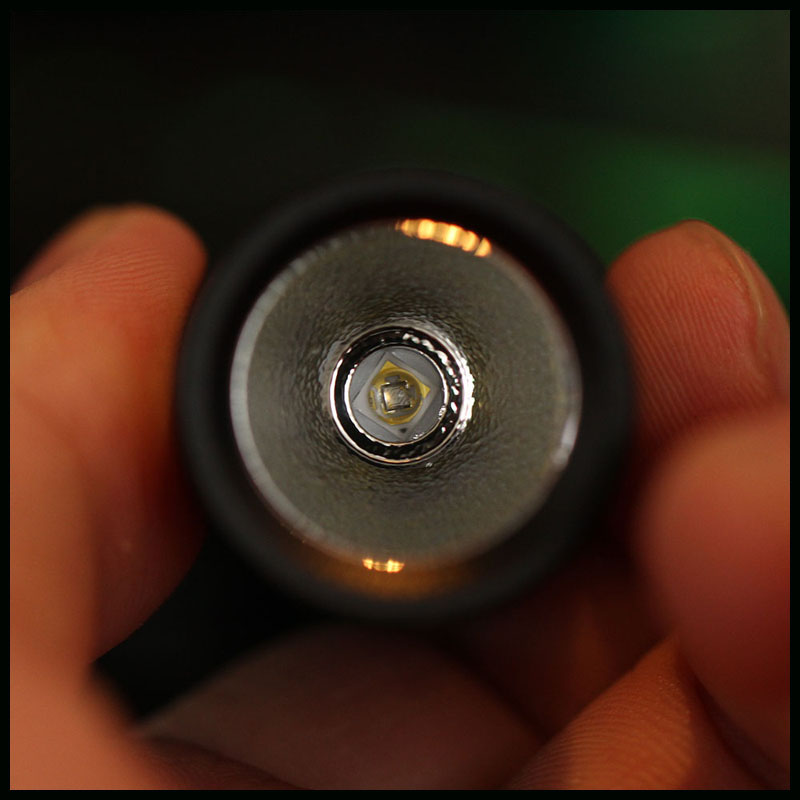

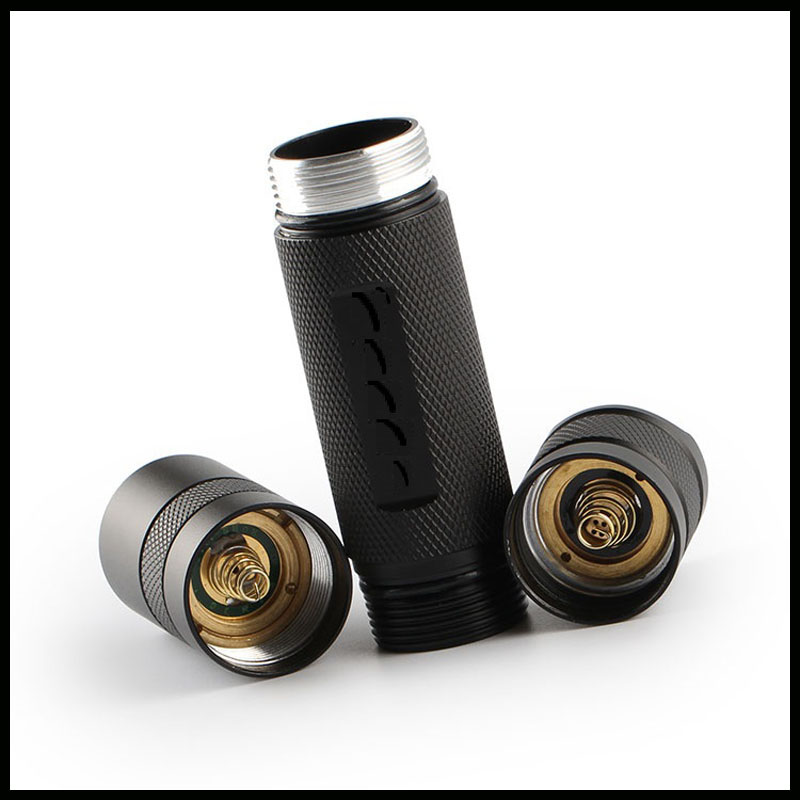

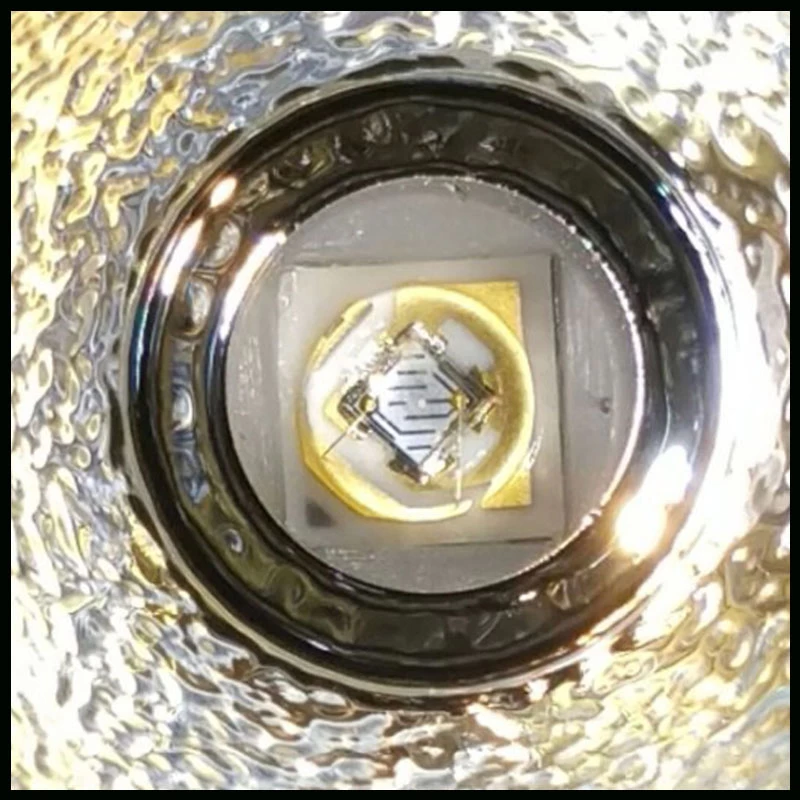

NICHIA 3W 365nm UV LED FLASHLIGHT Photos
