UV LED Spot Light UV Curing System Adhesive and UV Glue for Curing and Drying

The product of UV Spot Light Source can set the time, luminance (adjust irradiation power).

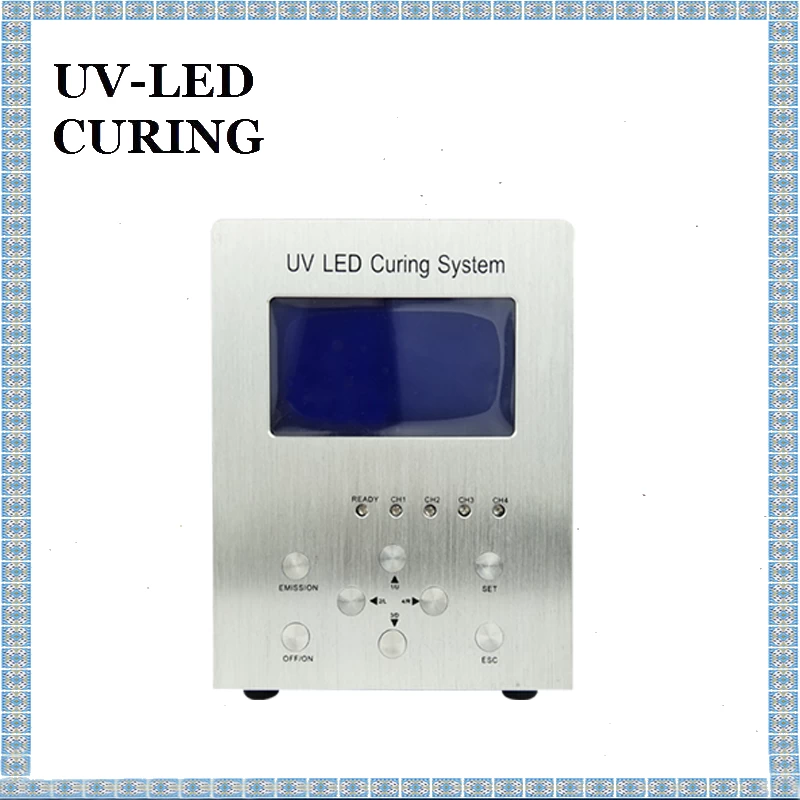

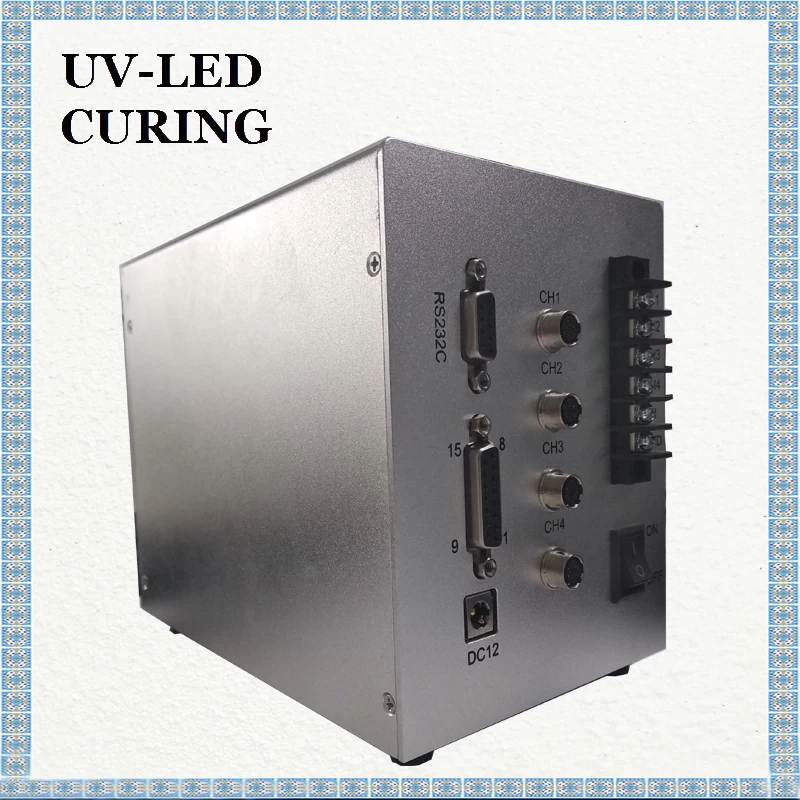

The product of UV Spot Light Source can set the time, luminance (adjust irradiation power). A body with 1-4 irradiation Head. More than a dozen of different lenses are available for heads. You can control the heads by either using the user-friendly panel on the front of the controller or via the digital interface. It additionally offers an RS232 interface, which can be used for connecting external computer or other equipment.

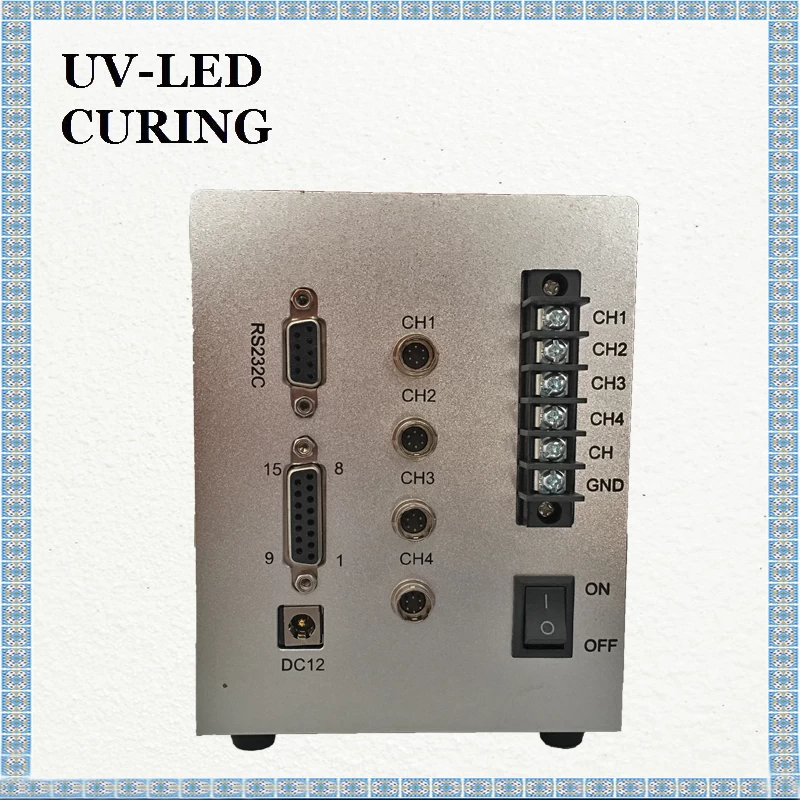

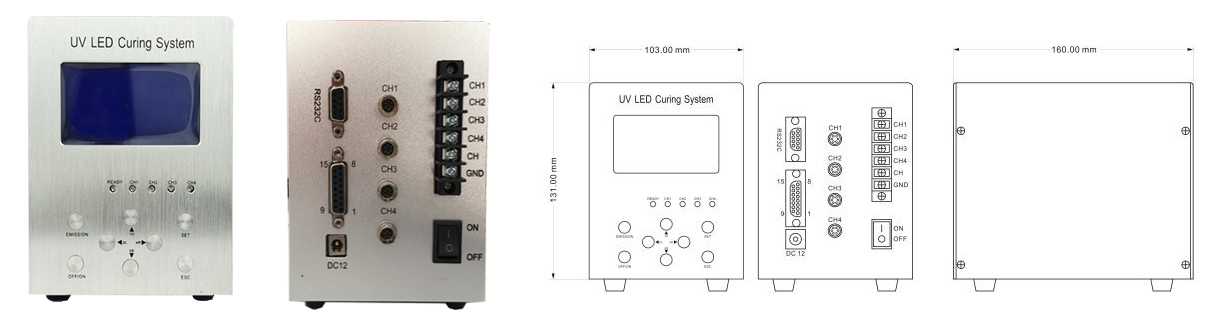

The Size of UV LED Spot Light Source Body Machine

UV LED Spot Light Machine

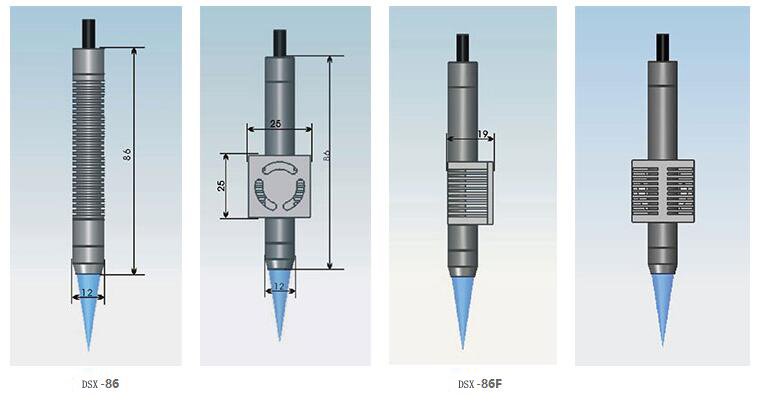

The Size of UV LED Spot Light Source Irradiation Machine

UV Curing Irradiation Head


Type

Wavelength

Cable Length (m)

Cable Diameter (mm)

Irradiation Material

DSX-86

365/385/395/405

2/3/4/5

6

Red Copper

DSX-86F

365/385/395/405

2/3/4/5

6

Aluminium Alloy


Specification Classification of UV LED Spot Light Source Focus Lens

UV LED Common Round Light Spot


Normal Lens Type

Light Spot (mm)

Usage Distance (mm)

Light Spot Character

DSX-003

3

10

Common Round Light Spot

DSX-004

4

14

DSX-005

5

16

DSX-006

6

17

DSX-007

7

21

DSX-008

8

27

DSX-010

10

25

DSX-012

12

25

DSX-015

15

38

DSX-020

20

70

DSX-030

30

95


UV LED 90°Side View Lens


Special Lens Type

Light Spot (mm)

Usage Distance (mm)

Light Spot Character

DSX-004S

4

5

90°Side View Lens

DSX-005S

5

5

DSX-006S

6

5

DSX-007S

7

8

DSX-008S

8

14

DSX-010S

10

12

DSX-012S

12

12

DSX-015S

15

25


UV LED Annular Light Spot Lens


Special Lens Type

Light Spot (mm)

Usage Distance (mm)

Light Spot Character

DSX-C16

inside: 8 outside: 16

27

Annular Light Spot Lens


UV LED Linear Light Spot Lens


Special Lens Type

Light Spot (mm)

Usage Distance (mm)

Light Spot Character

DSX-L15

3*15

11

Linear Light Spot Lens

DSC-L20

5*20

17

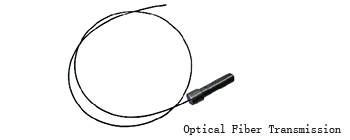

UV LED Optical Fiber Transmission

Special Lens Type

Light Spot (mm)

Usage Distance (mm)

Light Spot Character

DSX-D90L04

4

90

Long Lens

DSX-02F

3

5

Optical Fiber Transmission


UV LED Spot Light Source Lens

A variety of sizes of lens, can make UV LED point light source flexible application in various ways to achieve the ideal and satisfactory effect.

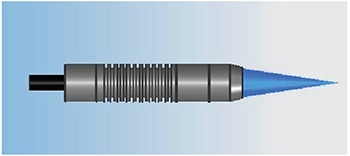

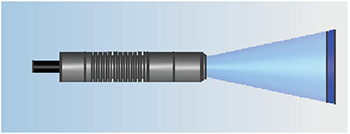

1. UV LED Spot Light Source Normal Lens (round irradiation)

DSX-003 φ3    DSX-010 φ10

DSX-004 φ4    DSX-012 φ12

DSX-005 φ5    DSX-015 φ15

DSX-006 φ6    DSX-020 φ20

DSX-007 φ7    DSX-030 φ30

DSX-008 φ8

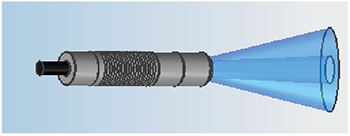

 UV LED Round Irradiation

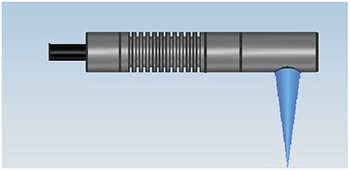

2. UV LED Spot Light Source Side View Lens (round irradiation, 90° )

DSX-004S φ4    DSX-010S φ10

DSX-005S φ5    DSX-012S φ12

DSX-006S φ6    DSX-015S φ15

DSX-007S φ7    DSX-008S φ8

UV LED round irradiation, 90°


3. UV LED Spot Light Source Linear Lens (ellipse irradiation)

DSX-L15 3*15

DSX-L20 5*20

UV LED ellipse irradiation


Advantages of UV LED Spot Light Source

1. Independent Control 4 LED Irradiation Head

Respectively control irradiation power and time.

Respectively control each LED irradiation head of irradiation power, irradiation time. In the case of the lamp tube, one is needed for each process. But under UPS81, a control device can set 4 LED irradiation head independently. Therefore, a machine is most satisfied with four progress. Otherwise, according to the accumulated lighting time of the LED light, the time of change is reminded, or the warning of temperature anomaly occurs.

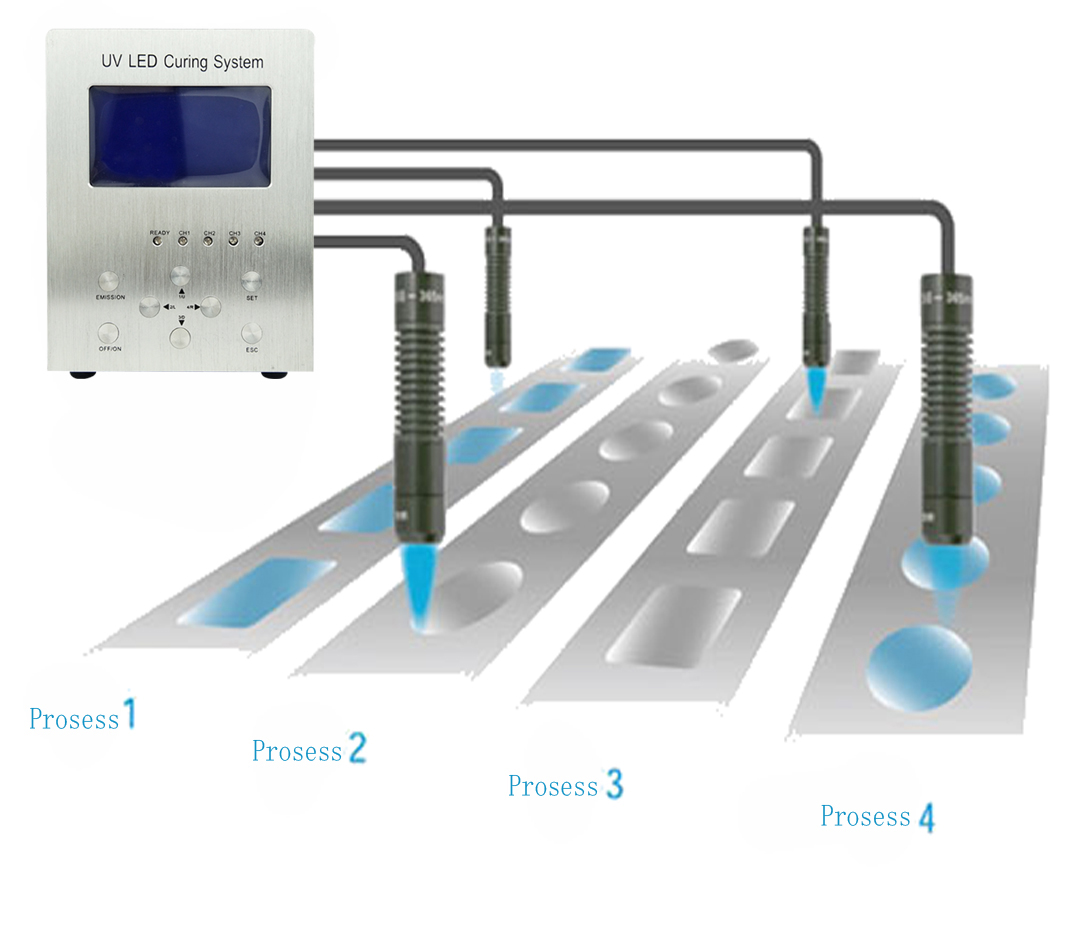

Independent Control 4 LED Irradiation Head

2.  External Communication Control

UV irradiation is controlled by external input signals.

Can realize automatic control on production line.

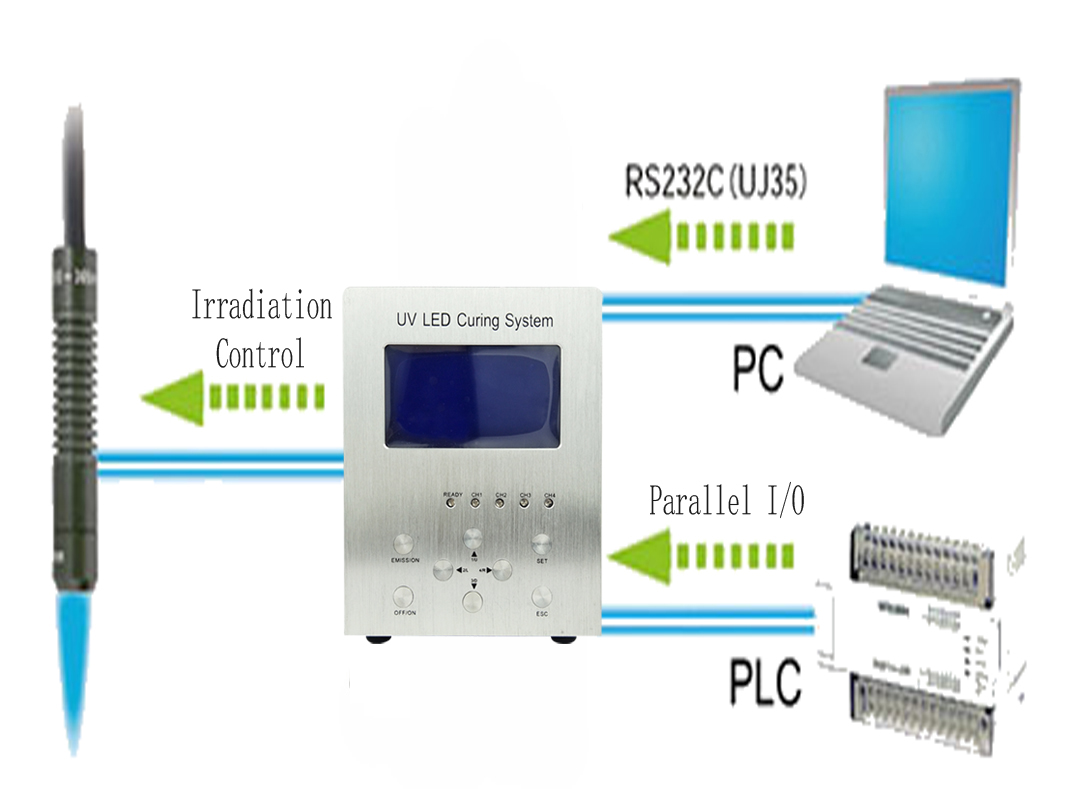

A parallel signal can be sent using an external device such as a programmable controller to control the UV irradiation time of the LED.

By operating the main body, with 0.1 seconds to set various LED irradiation head of UV irradiation time, according to the signal from the outside and began to illuminate the light, or just within the duration of the signal to UV irradiation, etc., which can realize a variety of control. Under the condition of using UPS81, it still can use RS232C to control the light.

UV LED External Communication Control



UV irradiation only during setting time.

The UV irradiation is performed according to the external signal pulse input.

UV LED


The time required for UV irradiation.

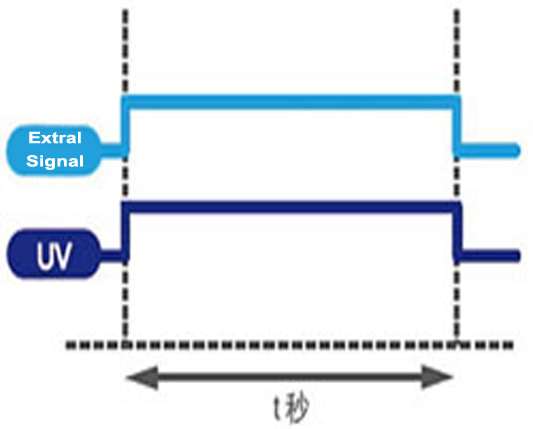

External signal ON (1 second), continuous UV irradiation, stop UV irradiation during OFF.

UV Irradiation


3. Program Irradiation Function

Restrain hardening deformation, achieve high quality and high precision bonding.

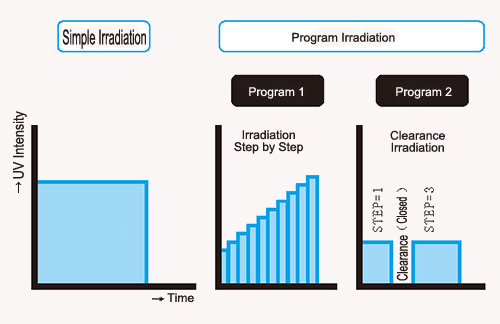

Equipped with program irradiation function, it can control the radiation power and time according to the resin and scleroscope. Significantly reduce the hardening shrinkage, achieve high - quality, high - precision bond. In addition to the simple irradiation of continuous irradiation with a certain power, it can also be set for gradual irradiation and intermittent irradiation. Gradual irradiation refers to the use of a program to change power and irradiate at the same time. Interstitial irradiation refers to irradiation according to certain clearance. Seven 10-step programs can be set in 4 LED lights.

UV LED Program Irradiation Function


4. Ultra long life of irradiation head, economical and affordable LED mode

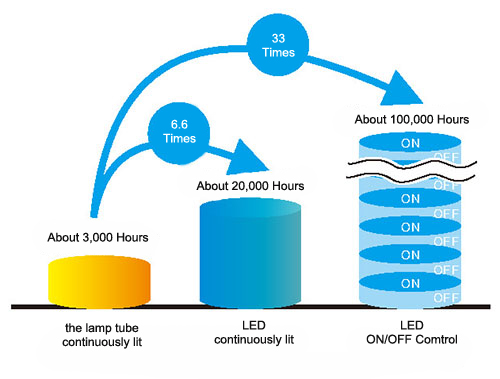

Compared with the lamp tube, LED mode has the characteristics of long life. The lamp has a life expectancy of about 3,000 hours, and LED has a life expectancy of about 20,000 hours. And, unlike the normally lighted lamp tube, the LED can be used for UV irradiation only when needed. In the case that the ON/OFF time ratio is 1:4 (process preparation time =5, irradiation time =1), it is equivalent to about 100,000 hours of lamp tube mode, which can significantly reduce the operation cost and maintenance time.

Ultra long life of irradiation head, economical and affordable LED mode

5. Standard Bending Light Head Cable

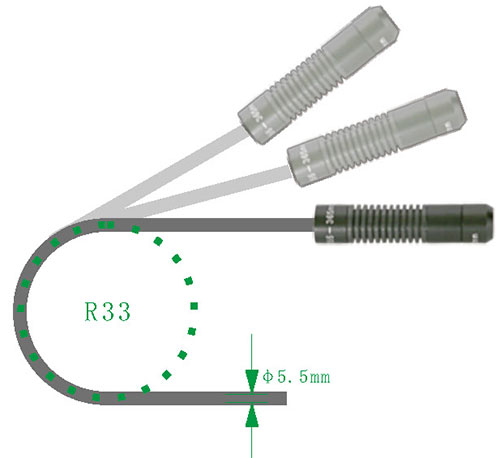

Considering that the LED light head needs to be installed in a removable position, the UV irradiation is carried out repeatedly, and the standard bending cable is used to connect the cable with LED light head. Even move frequently LED light head, you do not worry will appear like quartz optical fiber fracture, can rotate freely (radius of 33 mm, bending resistance more than 10 million times: according to the criteria for the assessment of the company).

UV LED Standard Bending Light Head Cable


Industry Application of UV LED Spot Lihght Source

Standard Bending Light Head Cable


Product Tags uv spot light source          uv spot light source system          spot type uv light source          uv led spot light source          spot uv led source          u365nm uv led spot light source          uv led spot light source machine          365nm uv spot light source for printing          nichia uv spot light source for coating
