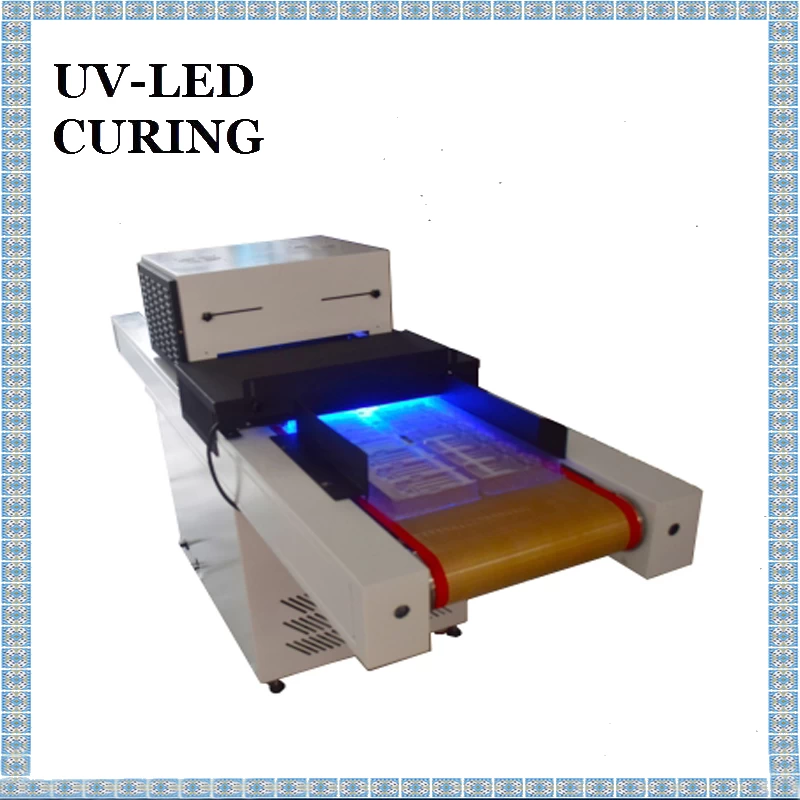

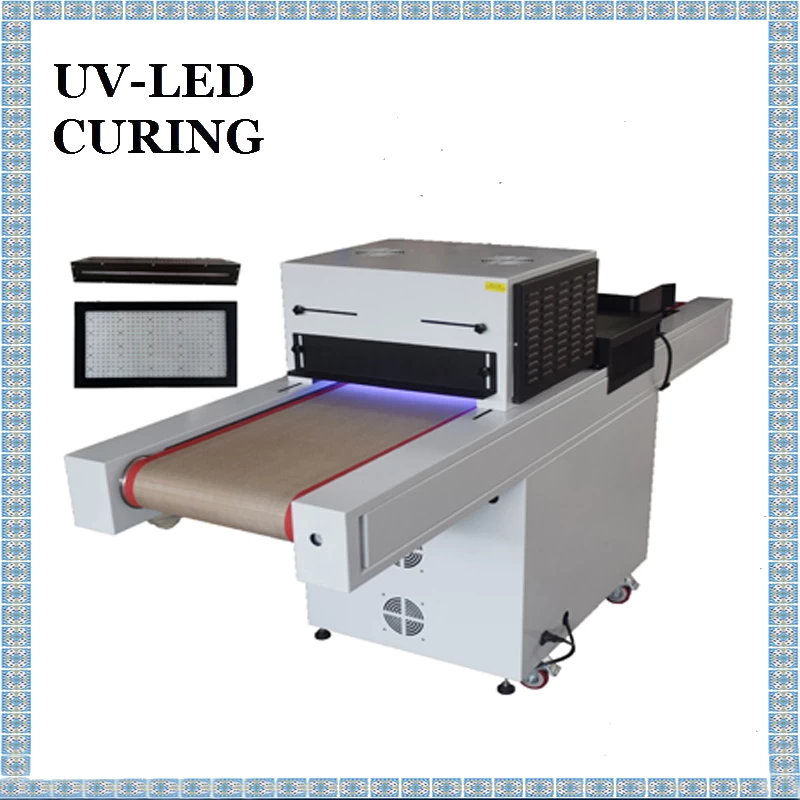

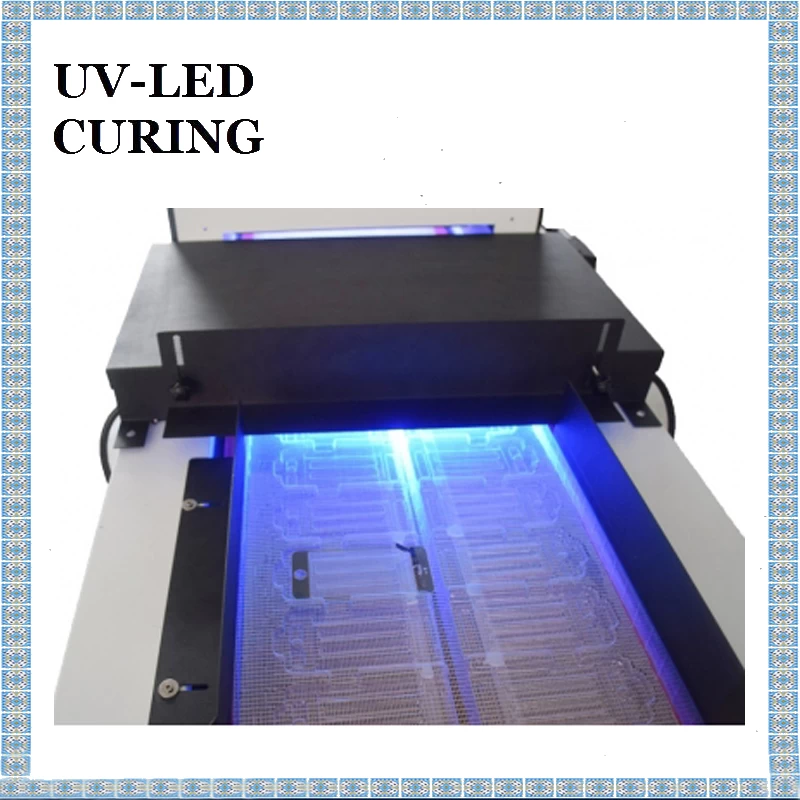

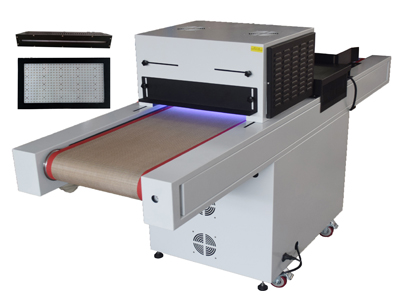

The UV-LED TP side solid machine UV LED TP Side Curing UV Curing Machine is mainly used in the curing of the TP industry to solve the side and overall curing of the touch screen in one time, which is more efficient and convenient.
Product Overview
Equipment Name: UVLED TP side curing, this curing machine
1.illuminant (effective illumination width): (customizable) side curing: 8mm ; this curing: 200mm
2.The distance between the UV LED lamp and the conveyor belt is adjustable: 10-50mm;
3.UV LED lamp power density: side curing: 2000mw / cm2; the curing: 850mw / cm2;
4.UV light intensity adjustable: 1%-100%;
5.Reflector: The aluminum reflector has imported reflective aluminum, which has high reflection efficiency and long service life;
6.conveyor belt width: 400mm;
7.Conveyor belt material: Teflon mesh belt or stainless steel mesh belt for self-selection;
8.conveying speed: 1-10 meters infinitely adjustable;
9.The LED lamp bead is on and off, no preheating is required, and the curing work starts immediately;
10.roller: surface knurling to ensure smooth delivery;
11.the whole machine cooling method: air cooling;
12.the whole machine material: sheet metal;
13.the machine appearance: spray computer white

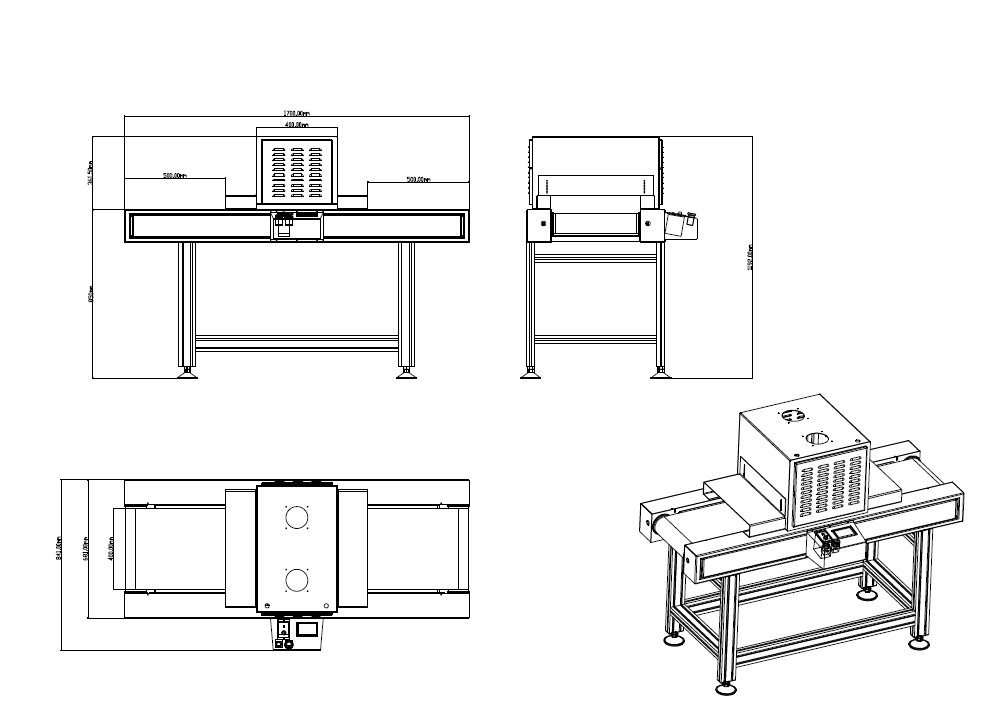

14.the machine specifications: 2100L * 620W * 1050Hmm;
15.power wiring: 220VAC 50HZ;
Parameters :
1. Controller:
|
Type
|
XYUV-2
|
|
Outside Dimension
|
L390mm*W355MM*H100mm
|
|
Number of Contacts Available
|
Two
|
|
Power Consumption
|
20W
|
|
Termianl I/O
|
Input
|
Foot switch and serial RE-232 communication signal
|
|
Output
|
Serial RE-232 communication signal
|
|
Supply Voltage
|
AC100~240V±10% (50/60 HZ)
|
|
Ambient Temperature and Humidity
|
Ambient temperature : -10℃~50℃
Relative humidity : 20%~85% RH
|
|
Dimming / Irradiation Control
|
Digital dimming, manual irradiation control or timing control (0.1~9999.9s)
|
|
Set the Operation
|
Use operating switch setting, key switch, RS-232, power switch
|
|
External Control
|
External Input
|
Individual irradiation input, irradiation stop input, interlock, all irradiation input
|
|
External Output
|
READY signal, the error signal, warning output, +5V output (light is used)
|
2. Illumination head:
|
Type of UV LED Light Source
|
Curing
|
Wavelength
nm
|
Power
W
|
Optical Power Intensity
mW/cm2
|
Spot Size
mm*mm
|
Irradiation Height
mm
|
Cooling Method
|
Controller
|
|
DSX-S60-300XB-365
|
Side curing
|
365
|
180
|
2000
|
300*8
|
5-20
|
Air cooling
|
XYUV-2
|
|
DSX-S420-350X200-365
|
curing
|
365
|
1260
|
850
|
350*200
|
5-20
|
Air cooling
|
XYUV-2
|
