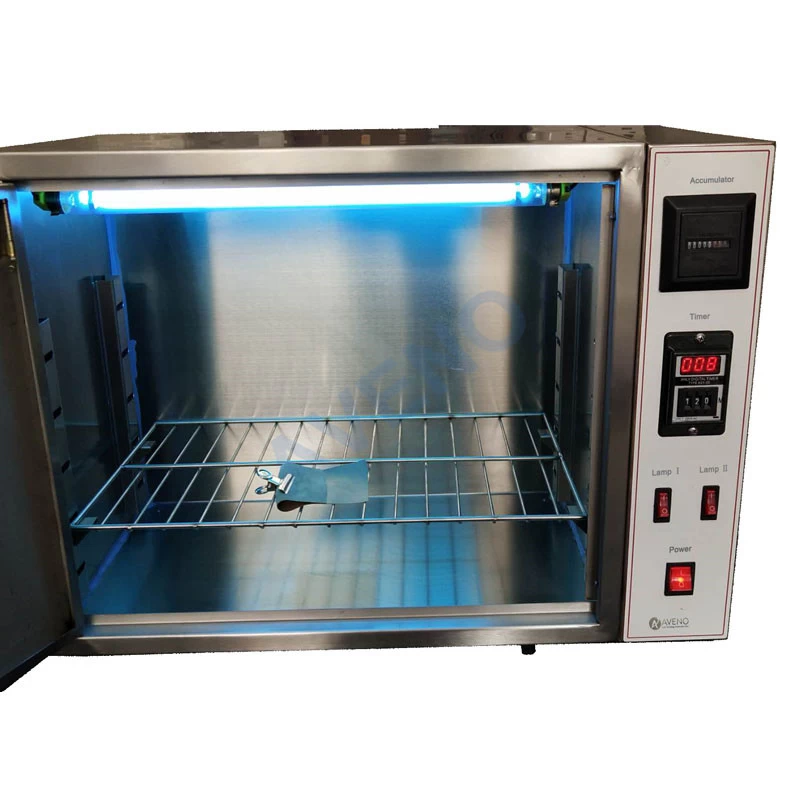

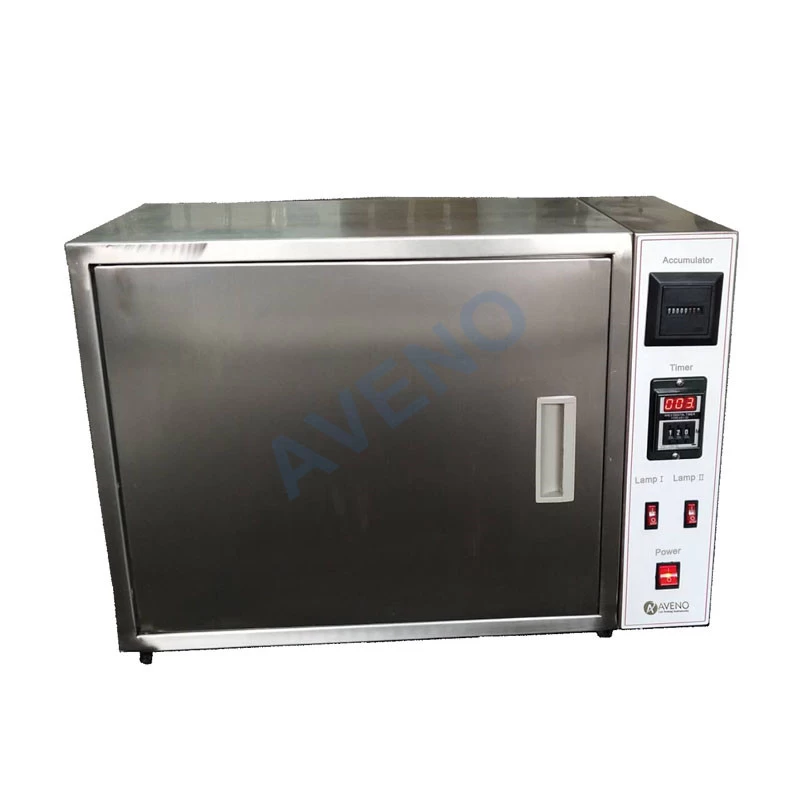

AF68-UV Light Aging Test Chamber(Phenolic Yellowing Chamber)
Application Of UV Light Aging Test Chamber(Phenolic Yellowing Chamber)
UV Light Aging Test Chamber is mainly used to test UV aging resistance under ultraviolet radiation of leather, plastics, rubber, cloth and etc..
Test principle Of UV Light Aging Test Chamber(Phenolic Yellowing Chamber)
According to the phenomenon that light or white products are prone to yellowing under the long exposure of natural sunlight, the changes of surface color of samples are observed in a specified time by simulating the natural environment with solar light bulbs or lamp tubes and heating and temperature control devices. Determine the degree of discoloration of the sample.
Standards Of UV Light Aging Test Chamber(Phenolic Yellowing Chamber)
HG/T 3689,ASTM D1148
Key Specification Of UV Light Aging Test Chamber(Phenolic Yellowing Chamber)
|
Model
|
AF68 UV
Light Aging Test Chamber
|
|
Light
source
|
2pcs of UV
lamps
|
|
Lamp
power
|
15W*2
|
|
Timmer
|
LED, 0~999
HR
|
|
Machine
surface
|
SUS304 stainless
steel or paint optional
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
62*37*42cm
|
|
Weight
|
20kg
|
