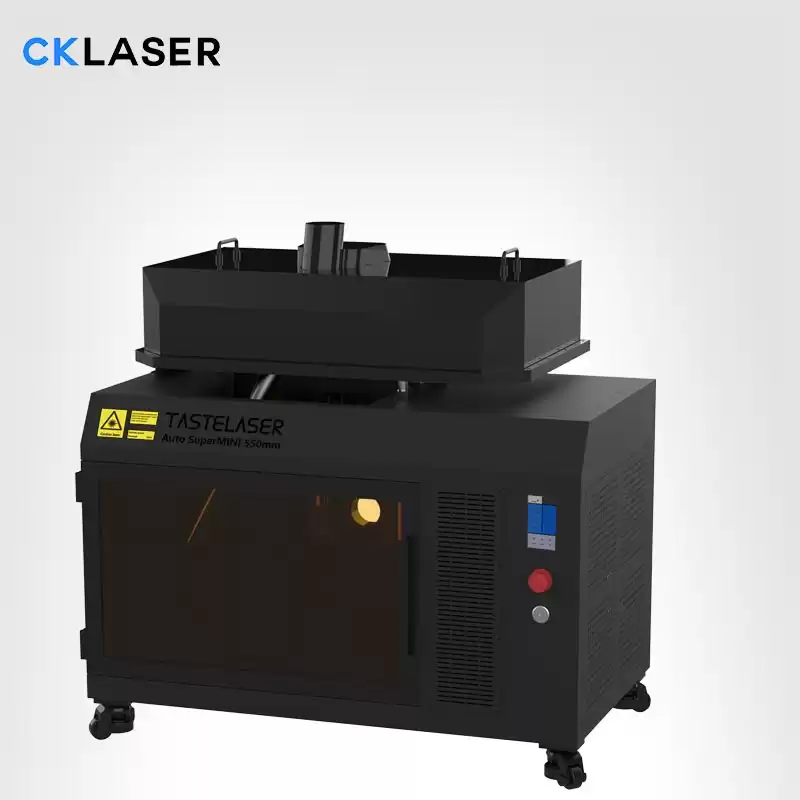

UV Precision Large Scale Laser Marking Machine

UV large scale laser marking machine use of 50mm scanning head, with a smaller focus spot, can get a more delicate carving effect, and stronger cutting. Compared with the 10mm CK SuperMini spot size of 15um, more fine can be obtained in glass products.

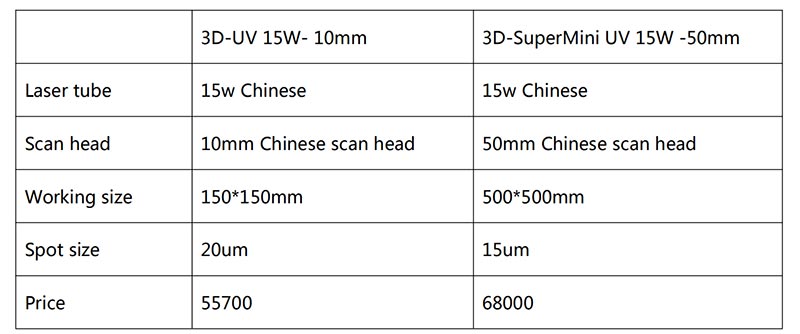

Why don't customers buy a 10-spot UV machine instead of a 50-spot UV machine? And 10-spot machine. What's better than UV Precision Large Scale Laser Marking Machine?

• Is also a 15W laser, the effect of SuperMini marking is more precise.

• Larger marking range (500,500 mm)

  Marking effect, avoid cutting leather yellowing, with stronger ability to cut plastic. 2 larger marking range (500,500 mm). It can be carved and cut in the range of 500 to 500 mm, solving the problem that there is no large format ultraviolet equipment on the market. Products can not be processed, such as toilet covers, can not be processed more than one problem, improve work efficiency.

• The focal depth of SuperMini is larger than that of 10 spot galvanometer.

  3D UV 10mm galvanometer focal depth 0.1mm.
  SuperMini focal depth 0.3mm solves the problem that customers need flat focus because of product inconsistency.

Unique folding cavity design

The unique folding cavity design can help achieve better beam quality, smaller spot diameter, finer product effect, good uniformity and high consistency.

Efficient transmission motorized up and down and focusing

SUPER MINI series of marking machines use high-efficiency motion modules and dual red focus for focus adjustment. Upgradeable motorized up and down and electric three-axis focusing.

Double detachable door design

The front and left sides are designed for removable removal, and the larger side feed and processing space can be achieved by removing the side doors.

Easy to expand functions by inserting interfaces

The Supermini series marking machine reserves a number of interfaces for external devices, which can quickly connect to control and expand equipment.
