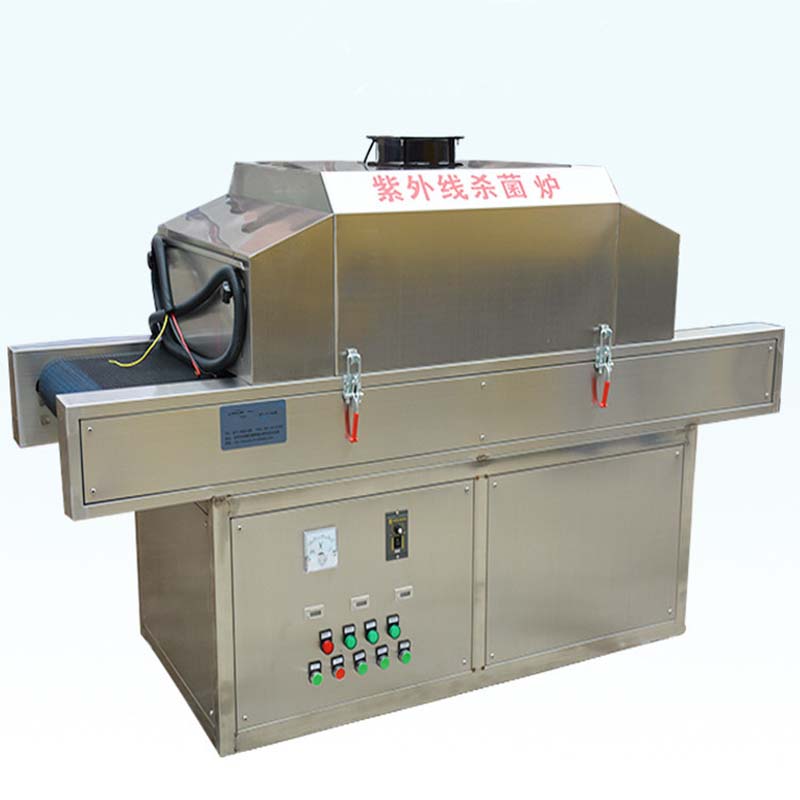

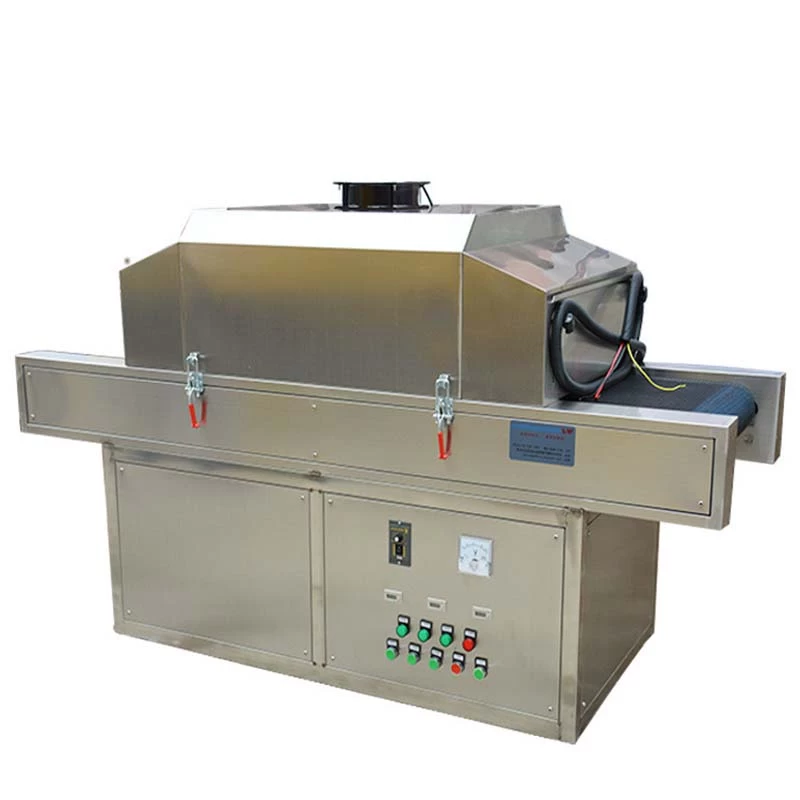

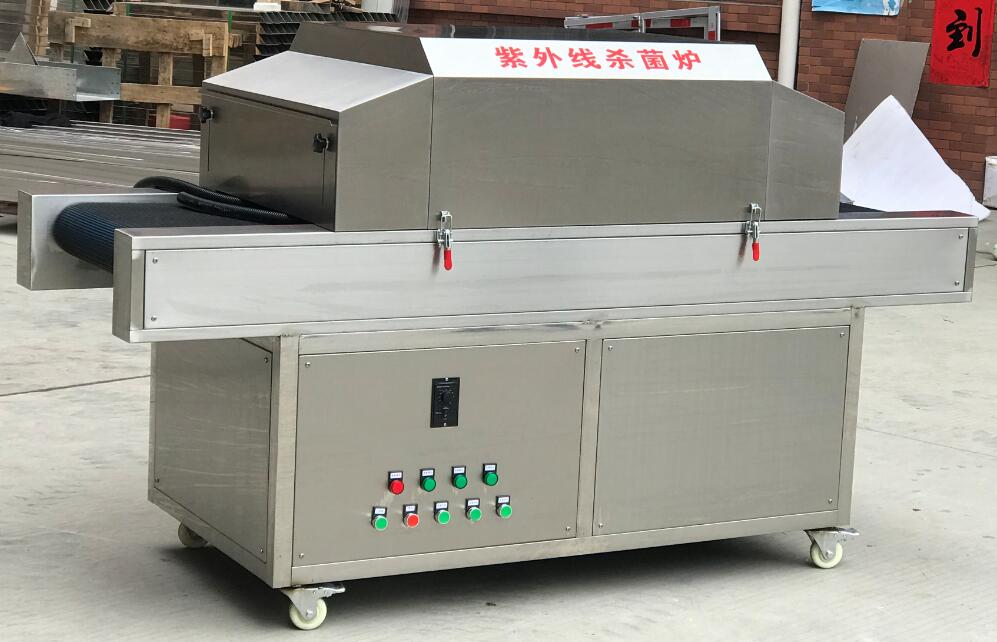

Ultraviolet Sterilization Furnace 2000MM
I. Overview of the machine:
Can be used to sterilize air and objects. Widely used in
hospitals, food, tea food and beverage processing and packaging equipment, food
factories, cosmetics factories, dairy factories, breweries, beverage factories,
bakeries and cold rooms. And can extend the product shelf life and other standards.
Sterilization
parameters Ultraviolet irradiation sterilization sterilizes food, which can
effectively kill microwave organisms (such as E. coli, mold) or cause the total
number of bacteria to decline to increase food sterilization. The key to using
these two physical methods to sterilize food is to choose the most suitable
conditions and minimize the damage to the original ingredients of the powdered
food to achieve the purpose of sterilization. According to the results obtained
through comparison tests, the use of microwave sterilization technology can
minimize the original ingredients of food, and can effectively control the
total number of bacteria and the number of deadly bacteria, so the food
sterilization machine is more suitable for ultraviolet sterilization than
ultraviolet irradiation sterilization.
II. Features
This
product complies with GB 4789.2, GB 4789.3, GB 4789.4, GB 4789.5, GB 4789.10 etc.
of the standard.
Sterilization Parameters
|
Sort
|
Name
|
Time
required for 100% sterilization (seconds)
|
Sort
|
Name
|
Time
required for 100% sterilization (seconds)
|
|
|
Bacteria
|
Bacillus
anthracis
|
90
|
Viruses
|
Flu
virus
|
70
|
|
|
Tetanus
|
83
|
Bacteriophage
virus
|
53
|
|
|
Coliform
|
62
|
Rotavirus
|
86
|
|
|
Staphylococcus
aureus
|
94
|
Hepatitis
B virus
|
210
|
|
|
Salmonella
|
98
|
Eco virus
|
173
|
|
|
Shigella
|
75
|
Algae
|
Blue-green
algae
|
213
|
|
|
Mold
spores
|
Aspergillus
|
105
|
Nematode
eggs
|
101
|
|
|
Fecal
fungus
|
99
|
Paramecium
|
131
|
|
|
Mucor
fungi
|
89
|
Protozoa
|
126
|
|
|
Mucor
fungi
|
78
|
Fish
disease
|
White
spot
|
205
|
|
|
|
|
Viral
hemorrhage
|
179
|
III. Main body size
1. Overall length of equipment: 2000mm
2. UV working area: 1000mm
3. Feeding operation area: 400mm
4. Discharging area: 400mm
5. Height of entrance: 200mm (adjustable)
6. Width of entrance: 500mm
7. Conveyor belt distance from the ground: 750 ± 50mm

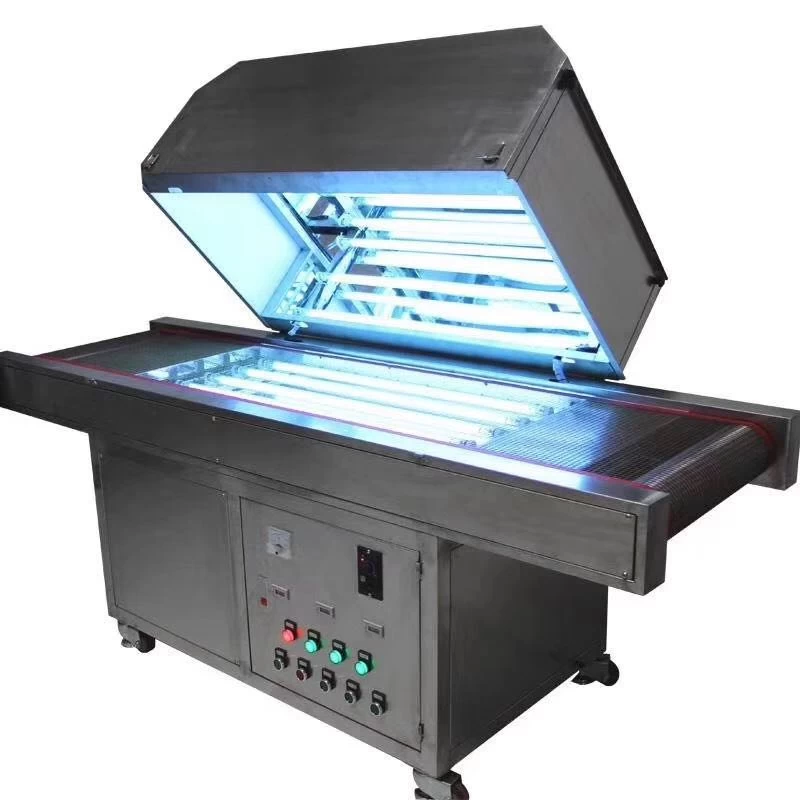

IV. The main structure of the
equipment
1. The outer body of the working area tunnel: a set of 1.2mm high-quality
stainless steel
2. The inner cavity of the working area tunnel: a set of 1.0mm mirror
stainless steel plates
3. Body support frame: a set of Fang tong steel
4. Transportation system: one set of forced ventilation combined exhaust
fan
5. Insulation material: vacuum aluminum silicate + silk cotton double
layer

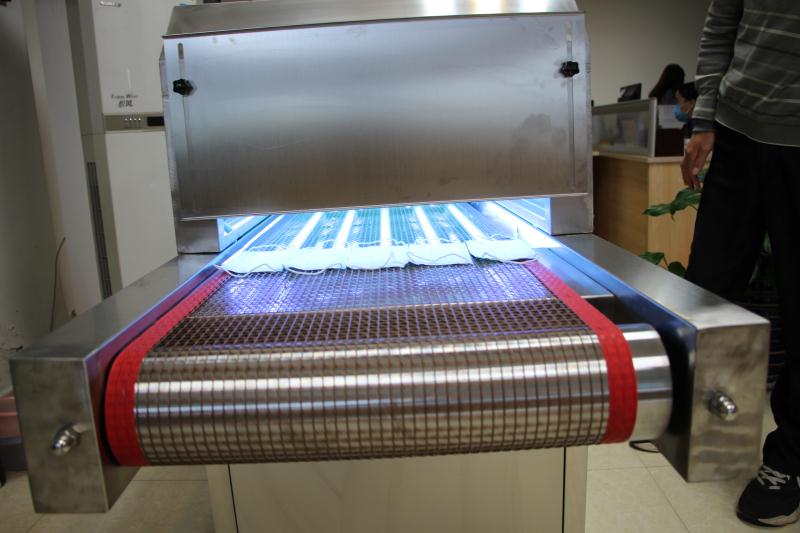

6. Conveyor belt: Teflon mesh belt
7. Balance device: flat water cup
V. Equipment and electrical parts
1. Main
switch: 15A
2. Total
power: 1.5KW
3.
Inorganic speed regulation range of mesh belt: 0-5m / min
4.
Transportation motor: 200W
5.
Governor: 200W
6. Exhaust
fan: CY-125
7. Ammeter:
a set of 50A
8. Working voltage: 220V ± 5% three-wire
system 50Hz

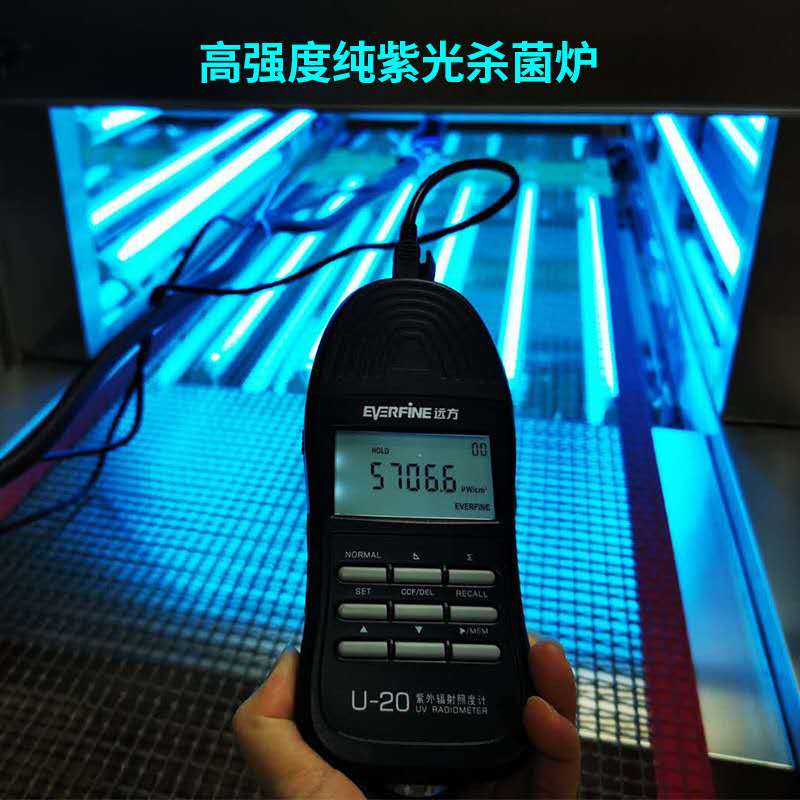

VI. Sterilization device
1. Effective
radiation of ultraviolet light source, lamp length 600mm
2. 16 UV
ultraviolet sterilization lamps * 20W ultraviolet lamps are installed inside,
up, down, left and right, 360 ° sterilization.
VII. Protection device
1. Overvoltage and
overcurrent protection
2. Fault alarm
prompt
3. Equipment
overload protection
