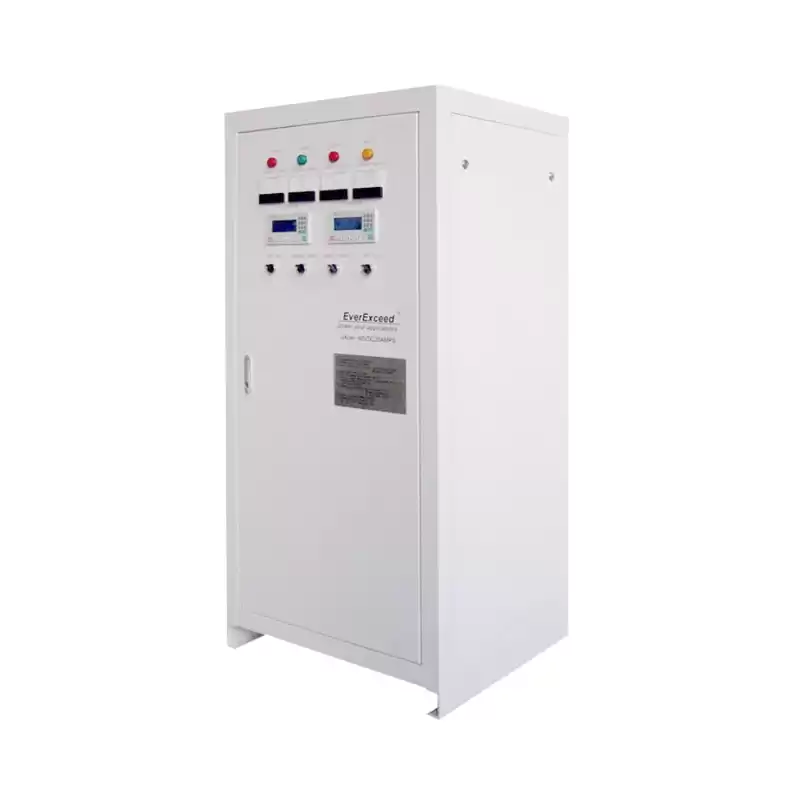

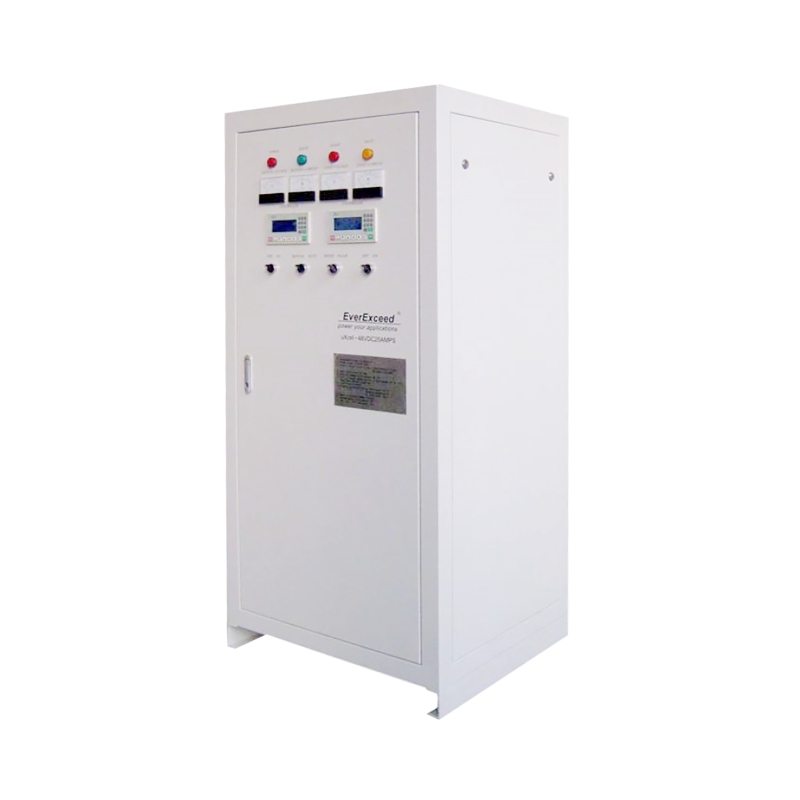

uXcelUltra Series Redundancy Charger

The EverExceed uXcelUltra redundancy charger (DC UPS) is a new type charger for battery. This charging system is made by two independent charging loop in parallel which can carry out the redundancy charge function.

This system is controlled by digital intelligence with multi charging mode, simple operation and reliability.  There is no phase sequence requirement. The transformer is made by high strength paint copper and it can achieve H grade high temperature resistance and isolation. The power units are made by aluminum profile and high-power disc type thyristor units with high performance and reliability.

Available in single and three phase up to 220kW and using ultra rugged phase controlled technologies, this series is ideal for all industrial applications including substation battery systems and DC UPS.


Facebook Twitter Pinterest LinkedIn 分享





Large LCD display


User friendly operation with large LCD display, optional touch screen with the choices of 8 languages ensure easy maintenance and operation.Smart communication and Remote Monitoring





Leading Technology- 6 or 12 pulse controlled Thyristor technology


The embedded micro-computer controller processes signals 10 times faster than standard analog methods.











Isolation transformer


Filter more than 3 harmonics in the power grid interference to the system equipment, while strengthening the operation security of the system.





High Reliability and High MTBF


Precise adjustable temperature compensation, robust and unique design allows the charger to continuously operate at 40°C ambient temperature on full load. Natural ventilation and cooling are available on most of the cases.









>Flexible maintenance and Reduced MTTR-The design make it easy for front-access to all vital modules modules of the charger


>Versatile constant voltage and constant current charging modes


>Smart communication and Remote Monitoring through isolated RS232, RS485, Ethernet. Full data logging


>Long design life up to 20+years-system design life up to 20+ years in continuous operation under the condition of appropriate maintenance


>Enhanced Robustness - Mechanical design to withstand vertical and horizontal acceleration stress up to 0.5g as standard













Flexibly customized
Ruggedized solutions
Complete power protection solutions
power solutions to perfectly meet the
specific requirements of customer’s industrial applications.


to withstand harsh environments,
extreme temperatures, humidity, dust and vibrations etc. Up to
IP55 protection.

including switchgear,
DC distribution, monitoring suite.



Applications for DC Power Solution:

The EverExceed uXcel Rectifier-Charger range suits all DC applications requiring a large battery back-up:

  • Power transmission and distribution;
  • Continuous process industries;
  • Oil and Gas and petrochemical industries;
  • Transportation (Rail, metro,tramway).
