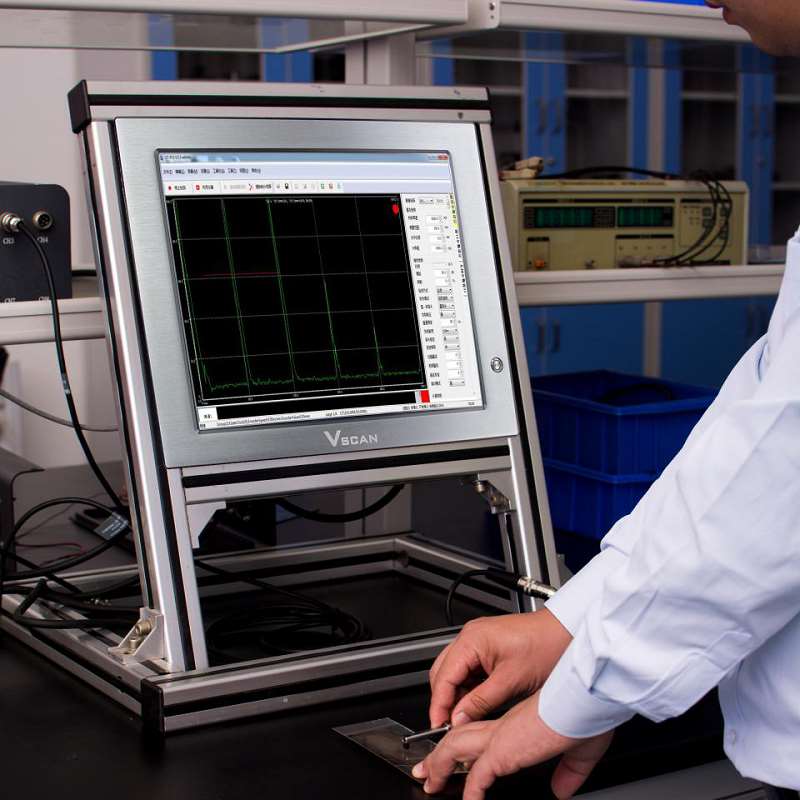

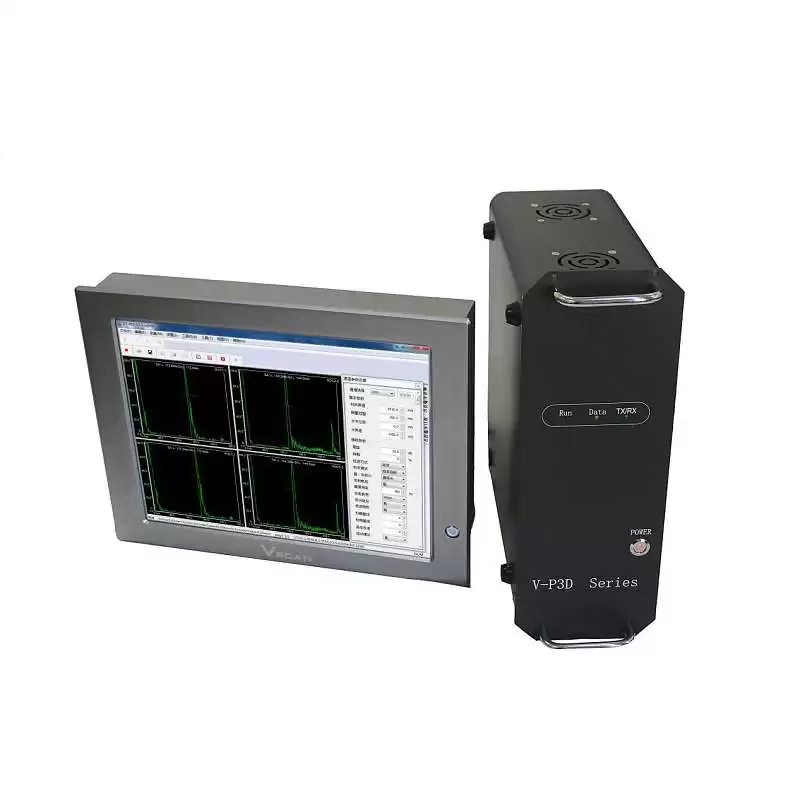

V-P3D-UT Intelligent Ultrasonic Multifunctional Detector is mainly used for the detection of metal materials such as pipe, bar, wire, steel plate etc. It can detect, locate, evaluate and diagnose various defects (cracks, inclusions, pores, etc.) inside the workpiece quickly and conveniently without damage. It is a general instrument for on-line / off-line or pre-service / in-service inspection of metal components in automotive, petrochemical, metallurgical, mechanical, aerospace and other industries.
Technical Parameters
|
Alarm output
|
12
|
|
Start input
|
12
|
|
Coder input
|
2
|
|
Work Temp.
|
–10°C～50°C
|
|
Relative Humidity
|
Under 80%
|
|
Size
|
W 360 mm* H 315 mm* T 140 mm
|
|
Weight
|
9kg
|
|
Power supply
|
AC：110VAC~220 VAC，50 Hz ～ 60 Hz
|
|
Detection Channel
|
1~8
|
|
Repeat rate
|
increment 10 Hz ～ 2000 Hz
|
|
Pulse width
|
25 ns ～ 5000 ns（0.1 MHz） Adjustable
|
|
Damping
|
50、200Ω
|
|
Gain
|
0 dB ～ 110 dB
|
|
Receiver bandwidth
|
0.2 MHz ～ 26.5 MHz，–3 dB
|
|
Detection
|
Full wave, positive half wave, negative half wave, radio frequency wave
|
|
System linear
|
Level：±0.5 % FSW
|
|
Resolution
|
0.25 % FSH，Amplifier precision ±1 dB
|
|
Restrain
|
0 % ~ 80 % screen with visual alarm
|
|
Amplitude measure
|
0.25 % 0 % ~ 110 % screen , 0.25 % resolution
|
|
Automatic calibration
|
Sound speed, zero offset, vertical beam (1st bottom echo, or echo to echo), angular beam (range or depth)
|
|
Sound speed
|
635 m/s to 15240 m/s
|
|
Zero offset
|
0 µs ～ 750 µs
|
|
Display delay
|
-59 mm to 13401 mm，Longitudinal wave velocity in steel
|
|
Refract angle
|
Increment0.1°/ 0° ～ 90°
|
|
Detect Gate
|
A/B Gate plus bottom wave following gate I
|
|
Gate starting point
|
Variable over the entire display range
|
|
Gate width
|
Variable in the area between the start of the gate and the end of the display range
|
|
Gate height
|
Variable in 2%~95% screen
|
|
Alarm
|
Positive and negative thresholds, small depths (gate 1 and gate 2)
|
