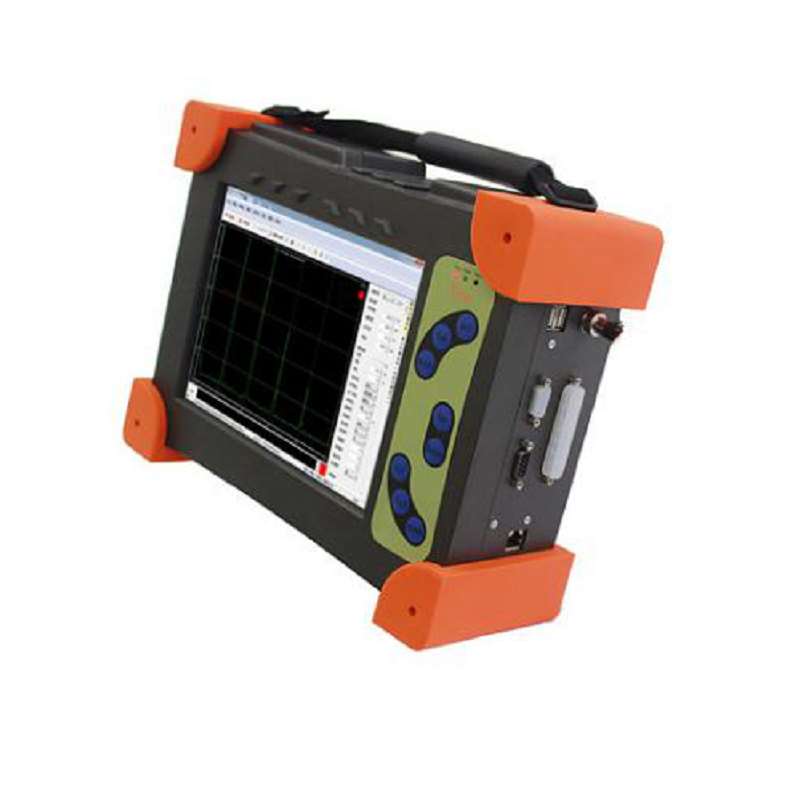

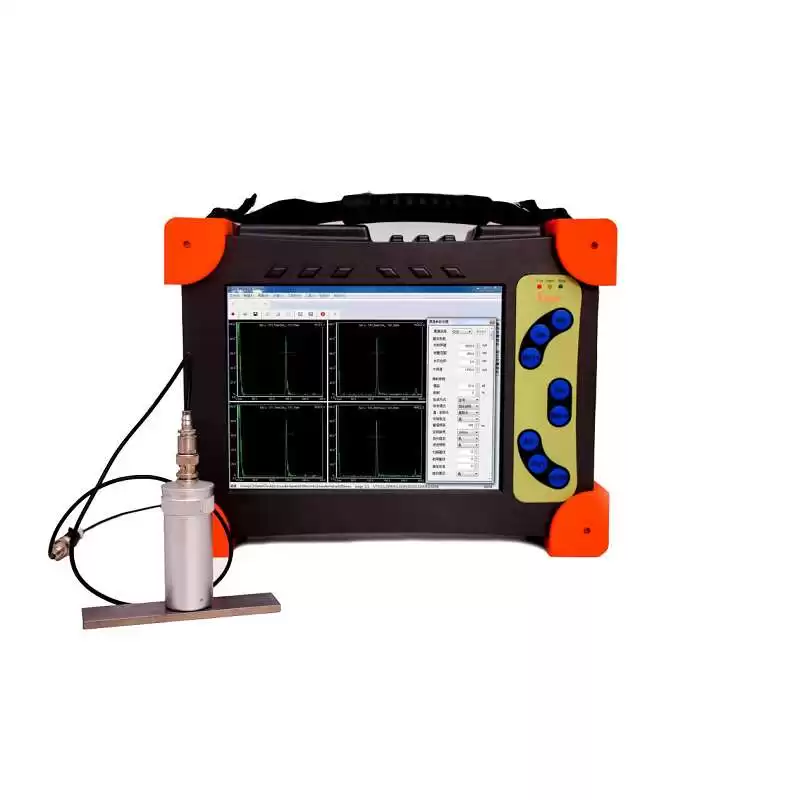

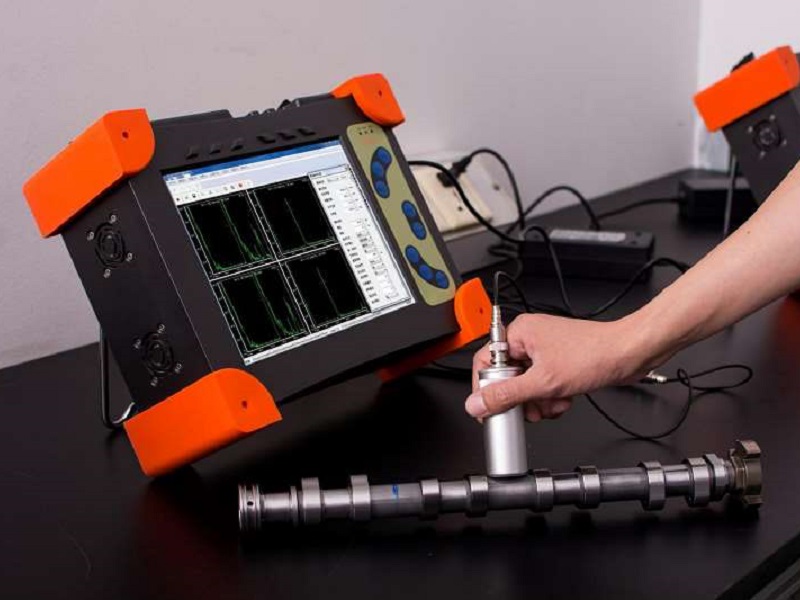

V-P5D-UT Intelligent Ultrasonic Detector is simple and intuitive, convenient and practical, the ergonomically design of the product enable all personnel, no matter an experienced or completely new of ultrasonic examination, can use this flaw detector freely. V-P5D-UT Intelligent Ultrasonic Detector meets the EN12668-1 standards, with complete range of standards and optional flaw detection functions, it also has multiple on-board report making tools. The comprehensive data filling system of the detector enable users to collect and report high quality inspection data easily. The instrument is sturdy and durable so it can be utilized almost in any testing environments.
Technical Parameters
|
USB port
|
2
|
|
RS232 port
|
1
|
|
Video output
|
Standard VGA out put
|
|
Alarm output
|
8
|
|
Start input
|
8
|
|
Coder input
|
1
|
|
Work Temp.
|
–10°C～50°C
|
|
Relative Humidity
|
Under 80%
|
|
Size
|
W 320 mm * H 235 mm * T 103 mm
|
|
Weight
|
3kg, Li-battery included
|
|
Language
|
English / Chinese
|
|
Data Storage
|
30GB
|
|
Battery ON time
|
8hours
|
|
Power supply
|
200 VAC ～ 240 VAC，50 Hz ～ 60 Hz
|
|
Adapter:
|
DC15.6V，6A
|
|
Monitor
|
10.4” Screen
|
|
Detection Channel
|
1~4
|
|
Repeat rate
|
10 Hz ～ 2000 Hz， increment 10 Hz。
|
|
Pulse width
|
25 ns ～ 5000 ns（0.1 MHz） Adjustable
|
|
Damping
|
50、200Ω
|
|
Gain
|
0 dB ～ 110 dB
|
|
Receiver bandwidth
|
0.2 MHz ～ 26.5 MHz，–3 dB
|
|
Detection wave
|
Full wave, positive half wave, negative half wave, radio frequency wave
|
|
System Linear
|
Level：±0.5 % FSW
|
|
Resolution
|
0.25 % FSH，Amplifier precision ±1 dB
|
|
Restrain
|
0 % ~ 80 % screen with visual alarm
|
|
Amplitude measure
|
0 % ~ 110 % screen , 0.25 % resolution
|
|
Automatic calibration
|
Sound speed, zero offset, vertical beam (1st bottom echo, or echo to echo), angular beam (range or depth)
|
|
Sound speed
|
635 m/s to 15240 m/s
|
|
Zero offset
|
0 µs ～ 750 µs
|
|
Display delay
|
-59 mm to 13401 mm，Longitudinal wave velocity in steel
|
|
Refract angle
|
0° ～ 90°, Increment 0.1°
|
|
Detect Gate
|
A/B Gate plus bottom wave following gate I
|
|
Gate starting point
|
Variable over the entire display range
|
|
Gate width
|
Variable in the area between the start of the gate and the end of the display range
|
|
Gate height
|
Variable in 2%~95% screen
|
|
Alarm
|
Positive and negative thresholds, small depths (gate 1 and gate 2)
|
Application Areas
· Automotive Industry: Hub Bearings, Engine Cylinder Liners, Piston Rings, etc
· Aviation Military Industry: Seamless Steel Pipe, Seamless Welded Pipe, Helicopter Spindle, etc
· Mechanical Hardware Industry: Rail, Bar, Wind Power Bolt, Billet, Steel Plate, etc
