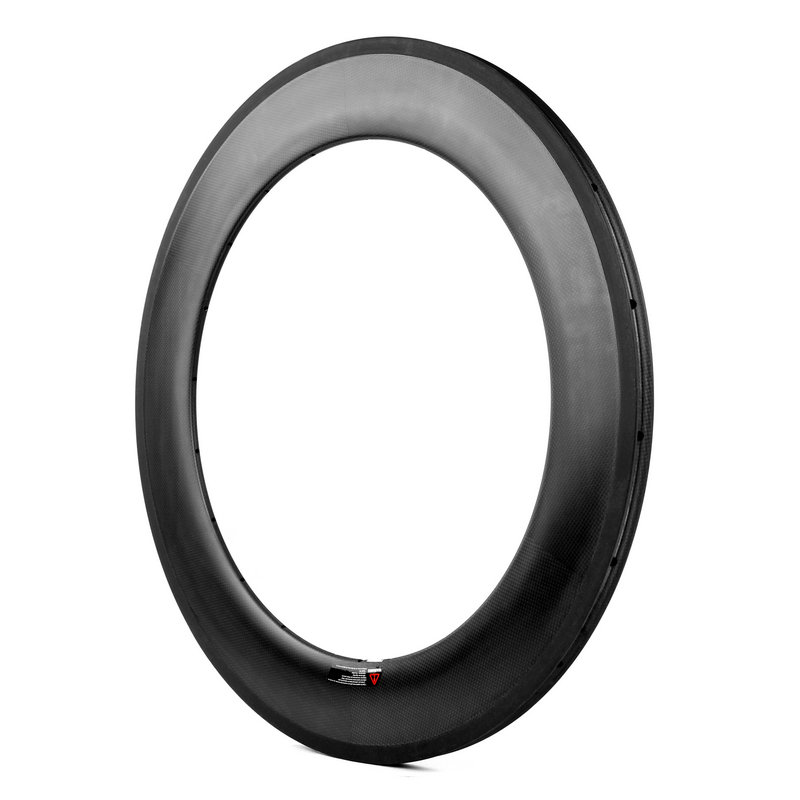

V shape 88mm deep 23mm wide tubular lightweight 700C carbon rim

Item RT88W, weight 500g, ERD 470mm. This V shape 88mm depth 23mm wide tubular 700c road carbon rim is aerodynamic and quite lightweight, it's a good choice for your road bicycle wheels, for daily training, racing.


  • Max weight limit135kg
  • Max spoke tension140kgf
  • Depth88mm
  • Width23mm
  • ERD470mm
  • Weight500g±20
  • Brakerim brake
  • Typetubular
  • Materialfull carbon Toray T700
  • Size700C

Product Item: V shape 88mm deep 23mm wide tubular lightweight 700C carbon rim

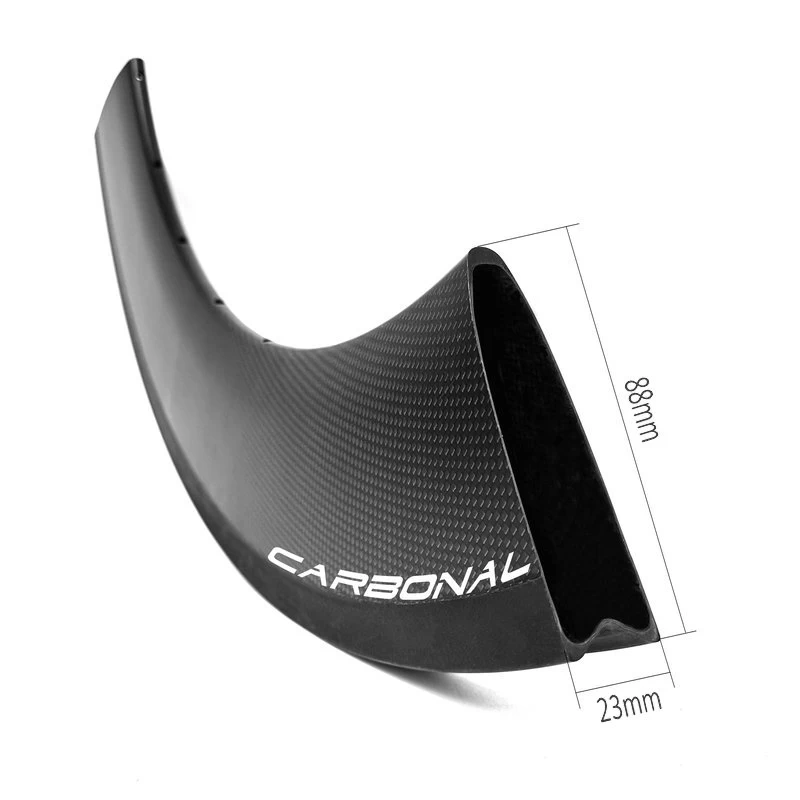

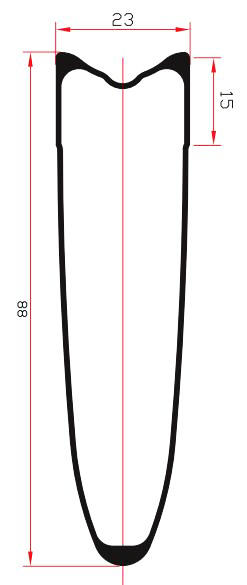

88mm carbon rim tubular profile

This V shape 88mm depth 23mm wide tubular 700c road carbon rim is aerodynamic and quite lightweight, it's a good choice for your road bicycle wheels, for training, racing.


Specification:

 Item:
 RT88W
 Use:
 road bike, triathlon
 Rim type:
 700C tubular - rim brake or disc brake*
 Material:
 Toray T700 carbon fiber
 Width:
 23mm
 Weight:
 500g±20
 Depth:
 88mm
 ERD:
 469mm
 Weave:
 UD, 3k, 6k, twill, marble
 Finish:
 Matte, gloss
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max / Min tire pressure:
 N/A / 80psi (5.5 bar)
 Decal:
 Customized
 Weight limit:
 135kgs
 TG resin temperature:
 210°C
 Standard:
 EN standard


*Disc brake, we will manufacture this rim without braking surface accordingly.


*Rim brake track available in 3k twill (recommended why 3k twill brake track is better?) or basalt surface.

carbon rim with basalt & 3k twill brake track



Features:

  • This 23mm wide V shape 88mm depth tubular rim is lightweight and aerodynamic.
  • High TG 210°C resin temperature brake track, less than 0.1% braking failure on these rim brake bicycle tubular wheels.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
