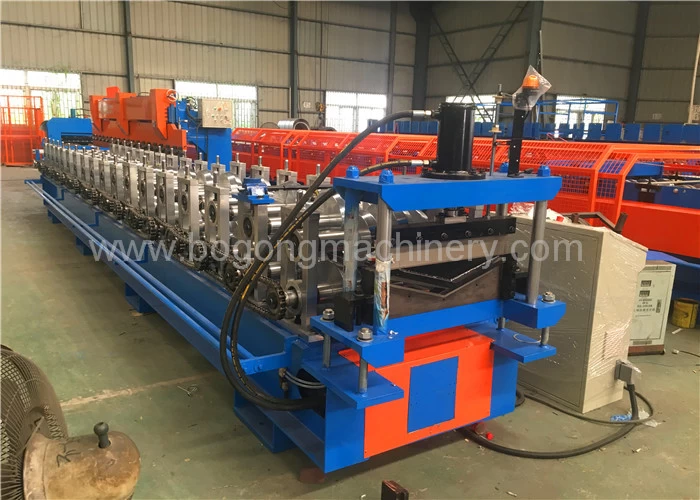

V Shape Steel Metal Rooftop Ridge Cap Roll Forming Machine

Custom design and manufacture kinds of steel sheet roll forming machines are available

Product Name: V Shape Steel Metal Rooftop Ridge Cap Roll Forming Machine

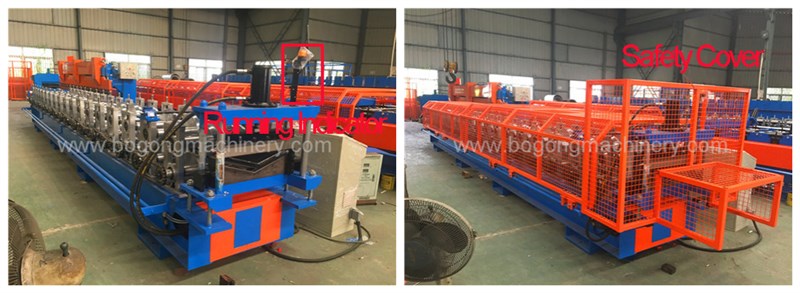

n the steel construction market, there are different roof ridge cap roll forming machines based on different technical design on the Normally, a Roof ridge caps without STEPS sometimes can be used both as roof ridge caps and as roof valley flashings often. On our steel metal rooftop ridge cap roll forming machines, we have installed an indicator for showing producing line running state, if this indicator is light, mean whole producing line has been gotten through power supplier already, be care the electric power risk.

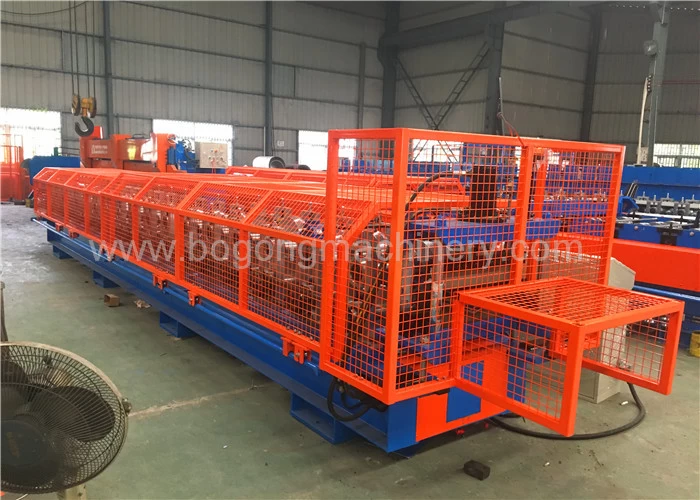

Another safety work is roll forming line operator is there is safety cover unpon the roll forming machines, when the V Shape Steel Metal Rooftop Ridge Cap Roll Forming Machine is working, all the power parts are inside this safety cover, we only open this safety cover when we need any adjust or maintenance.

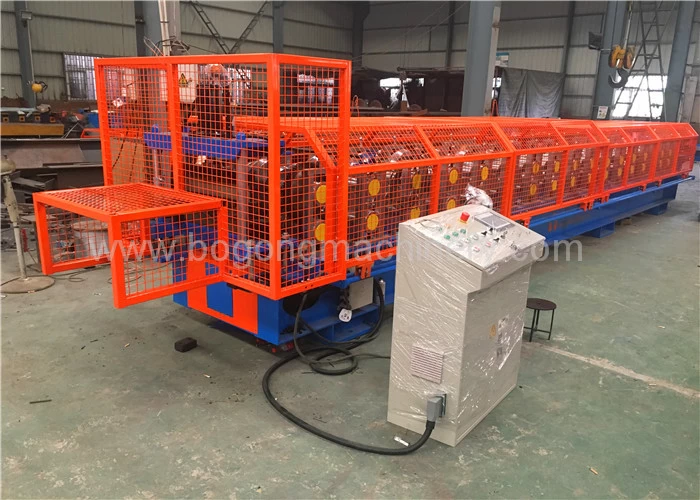

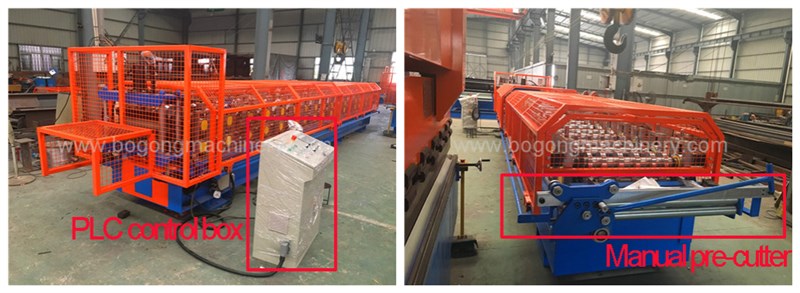

Whole steel metal rooftop ridge cap roll forming machine is controlled by PLC control system, such as cutting off action, line speed, cutting quantity. it also can be combined with hydraulic uncoiler, hole punching section and even product pneumatic stacker. Custom design and manufacture are available.

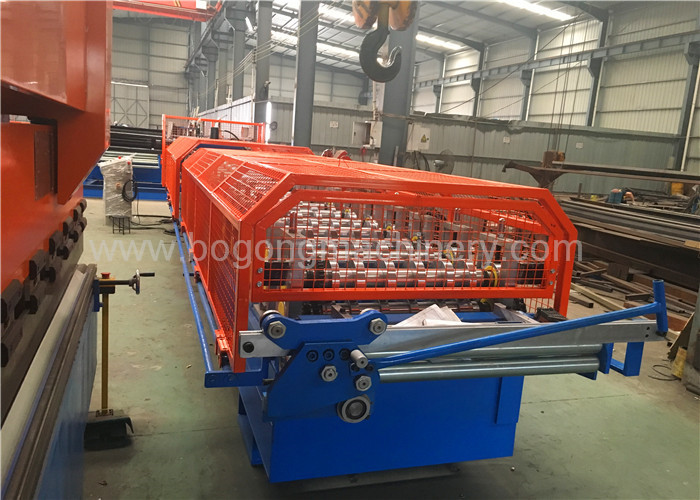

At the beginning end of steel metal rooftop ridge cap roll forming machine, there is one set manual pre-cutter, this is used for cutting no used material head and tail, the operator pull the pre-cutter's hand rod, then finish, it is very easy to operate and good usage.

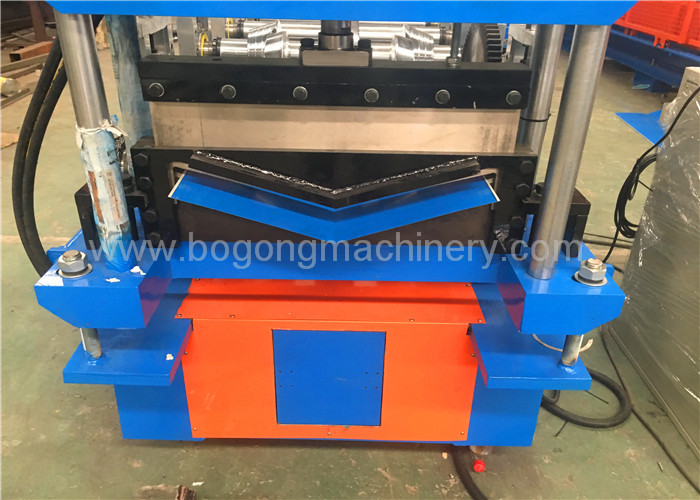

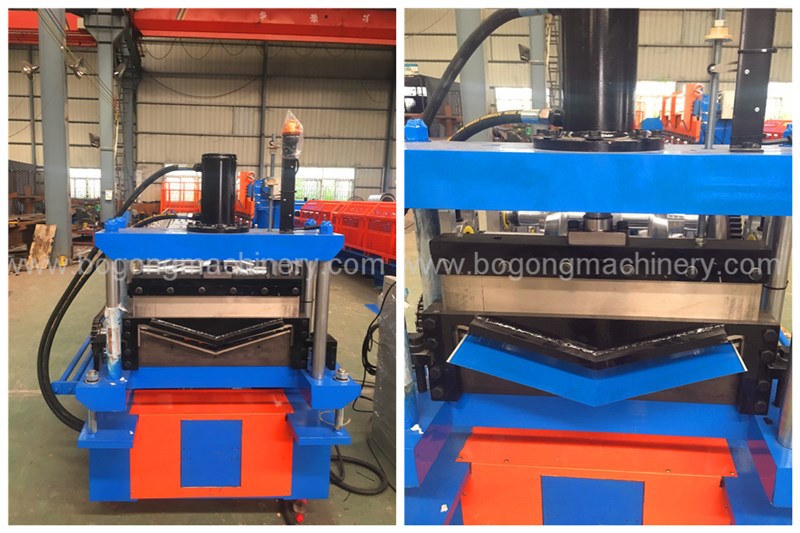

This is the v shape rooftop ridge cap roll forming machine, and cutting off by no wasting cutting material type, hydraulic cutting, choose Cr12 material cutting blades.

Technical Parameters

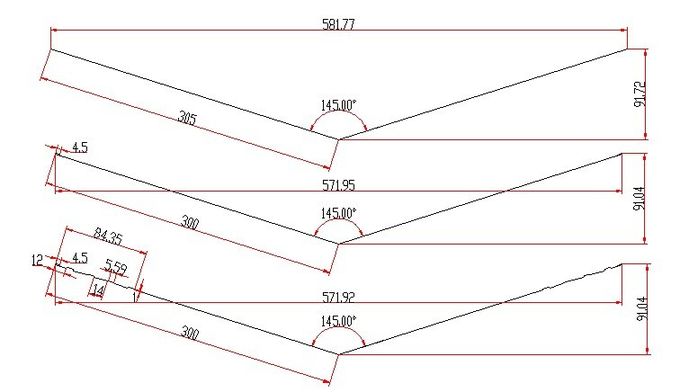

Steel Ridge Cap Drawing

The raw material width 610mm and material thickness is 0.35-0.55mm, can be rollformed from PPGI, pre-painted steel sheet, aluminum-zinc steel and galvanized sheet.
