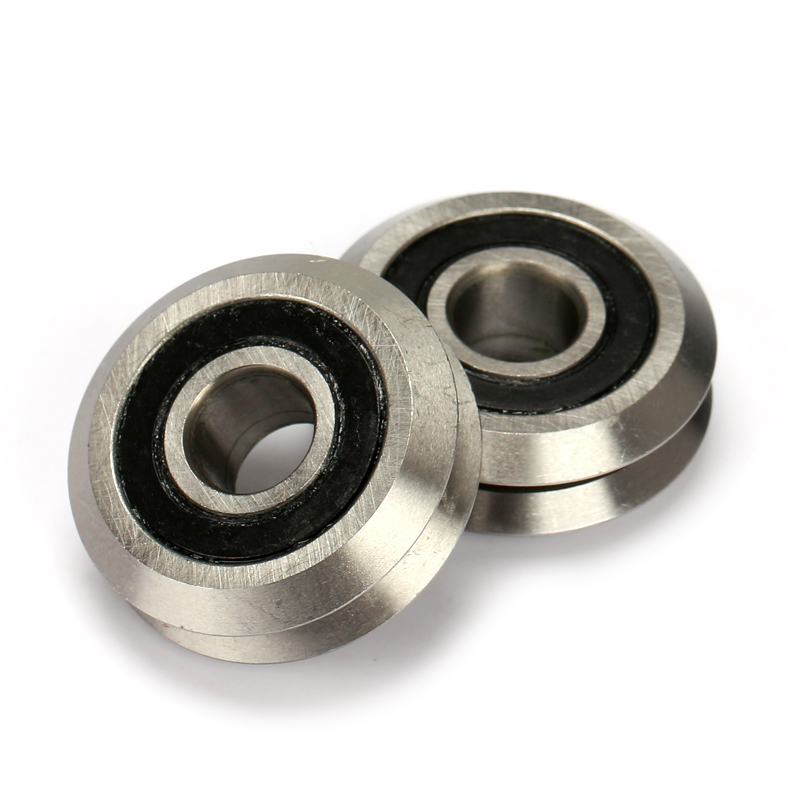

V Track Rollers Bearing W0 W1 W2 For Textile Machinery

● The outer ring of the roller is a W-shaped outer surface composed of two 90-degree V-shaped shapes. The inner or outer side can be used separately to fit the 90-degree inner V- or outer V-rail, or the inner side can be fitted to the cylindrical guide.

●The roller adopts the internal structure design of the double row angular contact ball bearing and the thickened outer ring, so  the roller has higher bearing capacity.

V Groove Guide Bearing Specification :

Bearing No.with metal shiels :  W1 W2 W3 W4 bearing

Bearing No. with rubber seals :W0X W1X  W2X  W3X W4X

Bearing with stainless steel material :W1SSX,W2SSX,W3SSX,W4SSX
Type: V Groove Guide Bearing
Material :Chrome steel Gcr15 ,Stainless steel

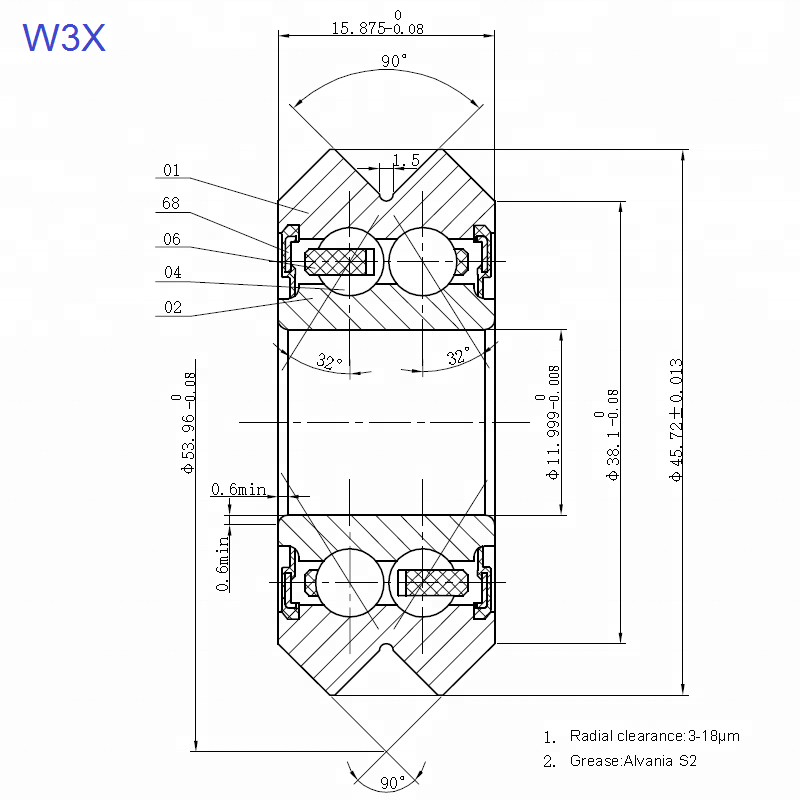

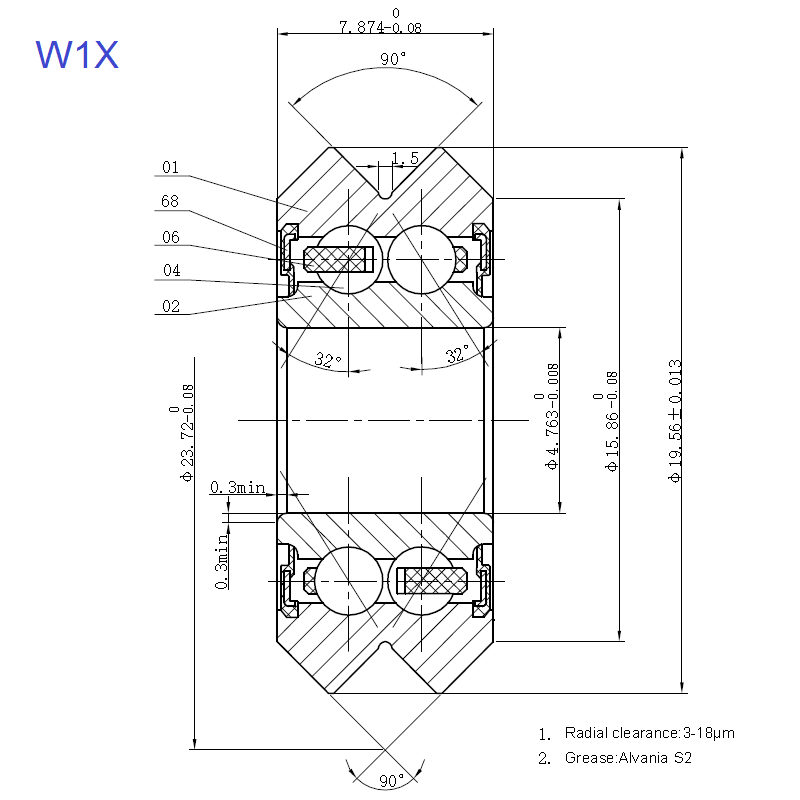

Bearing No.:W1	W2 Bearing	W3 Bearing	W4 Bearing
Size : inner size 4.763 = 3/16"* outer size 19.56* height 7.87 mm	Size : inner size9.525 = 3/8"* outer size 30.73* height 11.1 mm	Size : inner size12* outer size 45.72* height 15.88 mm	Size : inner size15* outer size 59.94* height 19.05 mm

V Groove Bearing Track Packing :

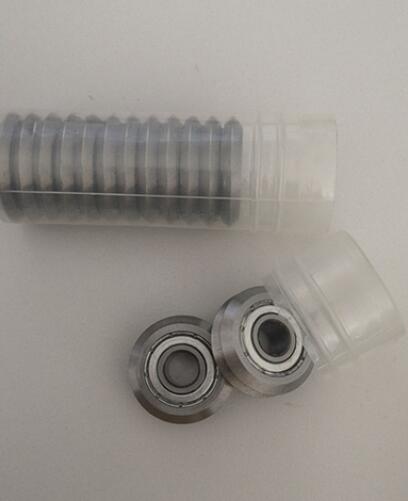

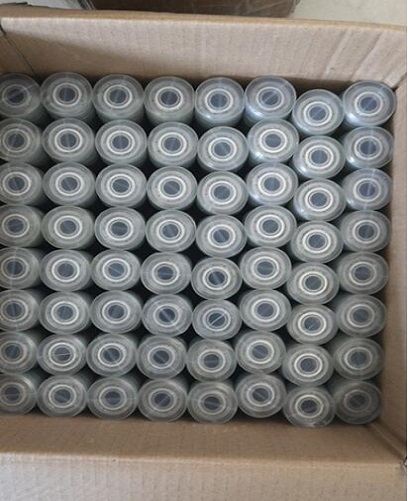

Normal Packing : 10 PCS /plastic tube +standard export carton

Or as your requirements

Feature of V Groove Bearing Track Bearing :

1.Low resistance, long life and wide application

The working surface of the W (RM) series of guide rollers is finely ground and has a good roughness and an angle of 90 degrees. The W-shaped groove of the roller is parallel to the mounting plane of the inner ring. When working, the force between the roller and the guide rail is stable, and the friction resistance is small.

2. Easy to install

After the eccentric sleeve and the concentric sleeve are arranged on the guide roller, the installation is convenient, and the eccentricity of the eccentric roller can be adjusted to obtain a suitable preload.
