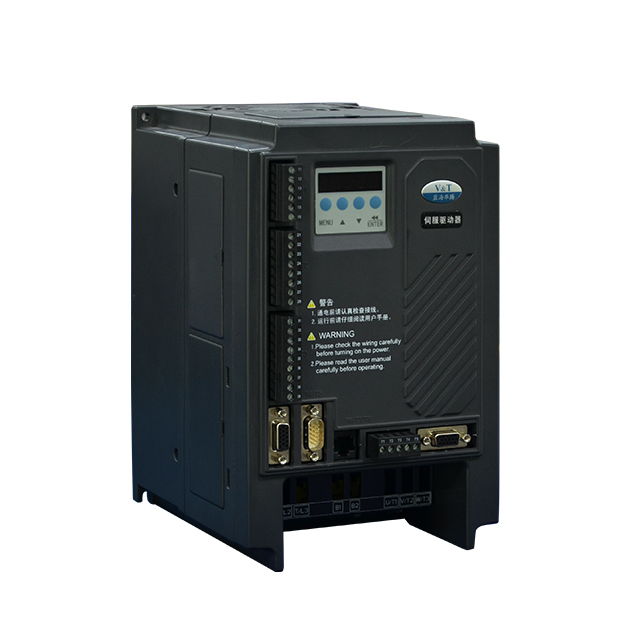

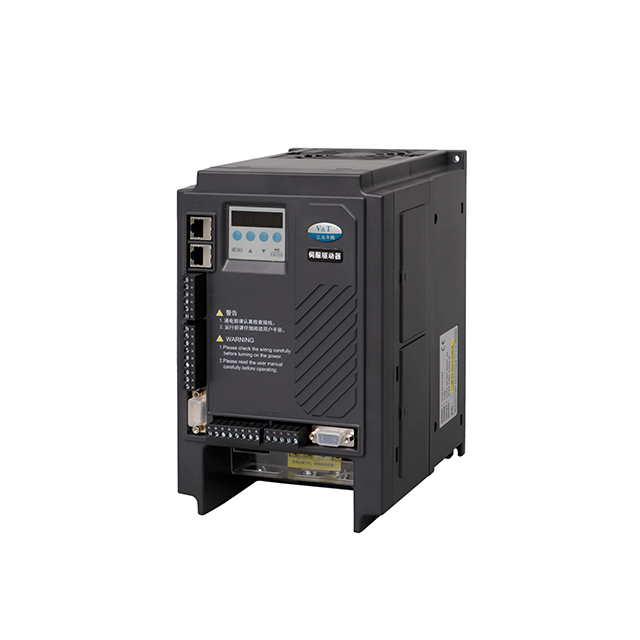

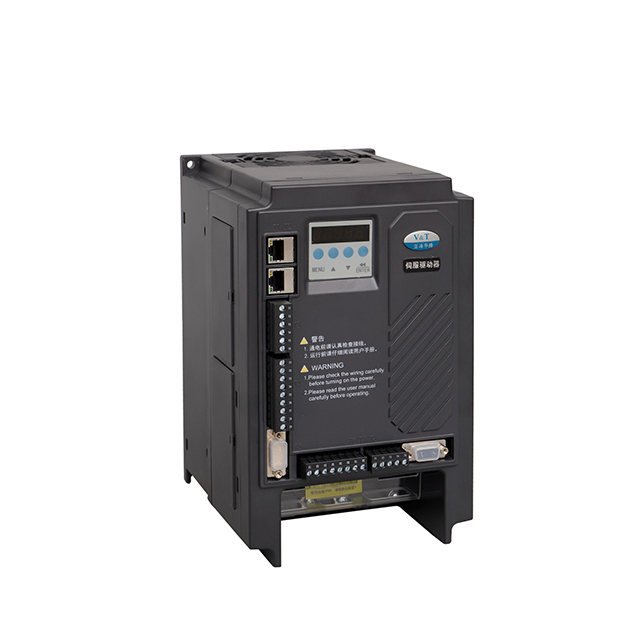

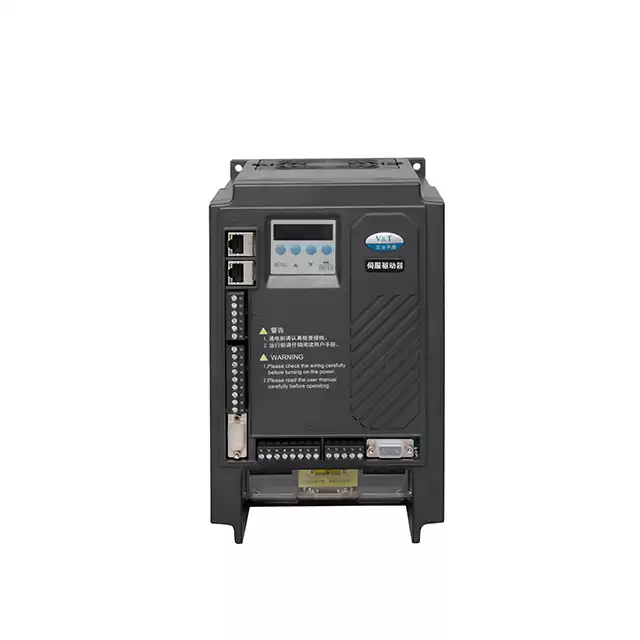

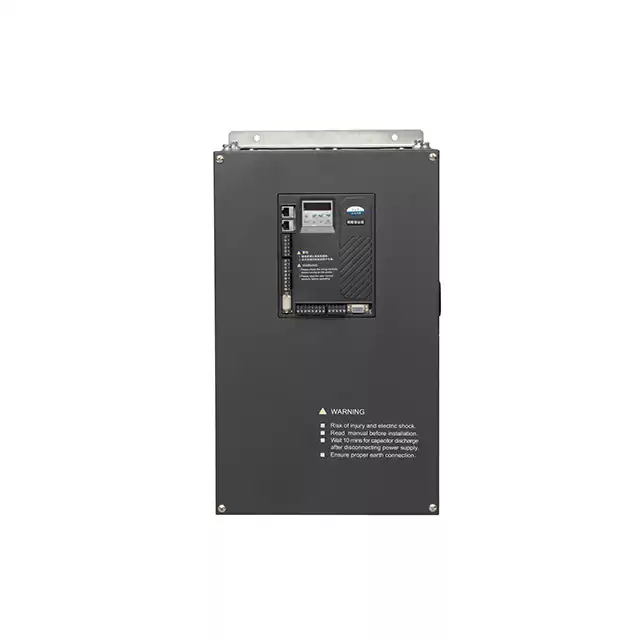

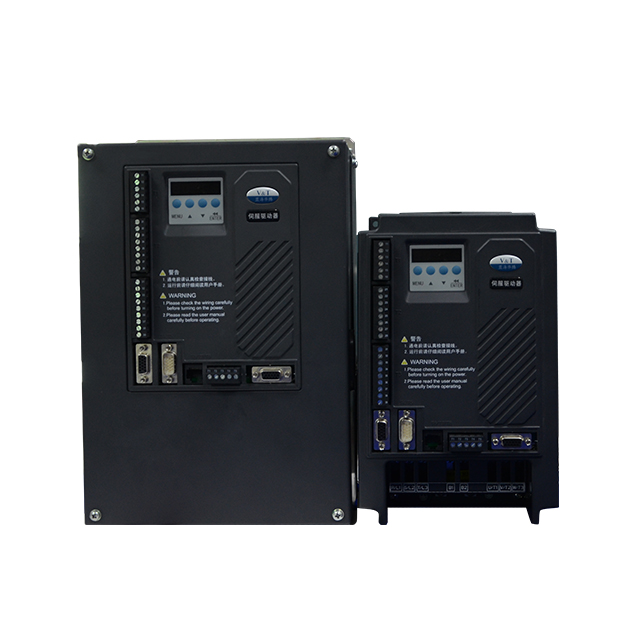

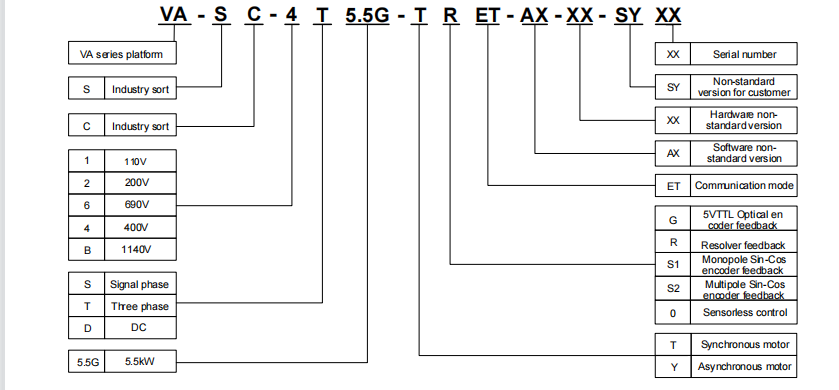

Control Characteristics
|
Control mode
|
synchronous motor control without encoder ;/asynchronous motor control without encoder
|
synchronous motor control with an encoder/asynchronous motor control with an encoder
|
|
Startup torque
|
0.2% ;rated speed on motor，180% ;rated torque
|
0 speed,180% rated torque
|
|
Range of speed regulation
|
1:200
|
1:1000
|
|
Precision of steady speed
|
± 0.5%
|
± 0.02%
|
|
Product Functions
|
Key functions
|
undervoltage regulation, speed tracking, torque limitation, multi-stage speed, motor self-learning, weak magnetic control, current limitation.
|
|
Designated speed mode
|
RS485, keyboard, terminal, analog quantity, multi-stage speed, simple PLC, PID, pulse frequency.
|
|
Braking capacity on Power Consumption
|
400V Drive：brake unit voltage：650～750V。
|
|

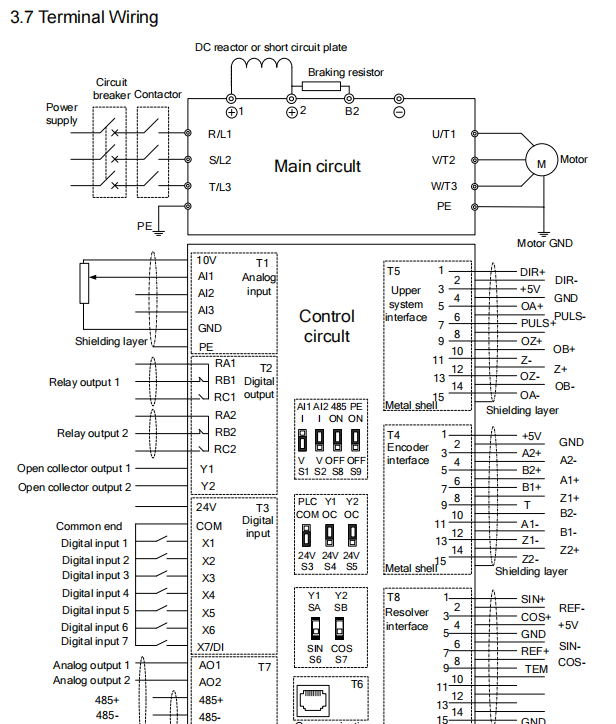

Dual 485 communication ports
|
Dual 485 communication interface supports Modbus protocol（RTU）;standard operation panel meet remote control , up to 500 meters.
|
|
Common DC bus
|
The whole series meet common DC bus power supply for multiple drives.
|
|
Independent air duct
|
The whole series uses independent air duct design,and support radiator cabinet with installed outdoors
|
|
Protection Function
|
undervoltage, overcurrent protection, over-voltage protection, abnormal comparison level, self-learning to identify fault, protection of the module, radiator overheating protection, overload protection on Drive, overload protection on motor, peripheral protection, current detection, the output of a short circuit, abnormal operation of the power,abnormal input power, EEPROM anomaly, relay and abnormal disconnection, analog input, temperature sampling disconnection, encoder, an abnormal motor overheating (PTC), communications, hardware, overload protection.
|
|
Efficiency
|
Rated power: 7.5kW and lower power grade≥93%；11kW to 15kW≥95%。
|
|
Environment
|

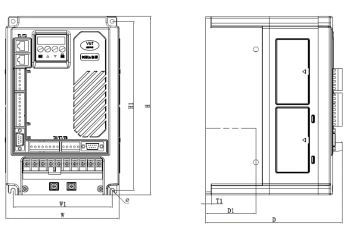

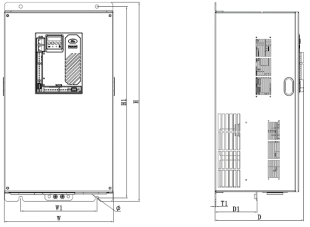

Operating site
|
The product should be mounted vertically in the electric control cabinet with good ventilation.Horizontal or other installation modes are not allowed.it is air cooling
|
|
Ambient temperature
|
-10 to +40℃, the product must be de-rated output current for the ambient temperature between 40℃ ;to 50℃, the rated output current must be de-rated for 1% per 1℃ ;temperature rise
|
|
Humidity
|
5～95%，no condensing
|
|
Altitude
|
0～2000m, the product must be de-rated rated output current for the altitude above 1000 meters, the rated output current must be de-rated for 1% per 100 meters rise
|
|
Vibration
|
3.5 m/s2，2～9Hz；10 m/s2，9～200Hz；15 m/s2，200～500Hz。
|
|
Storage temperature
|
−40～+70℃。
|
