Specification of Vacon NXL00055C2H1SSS0000

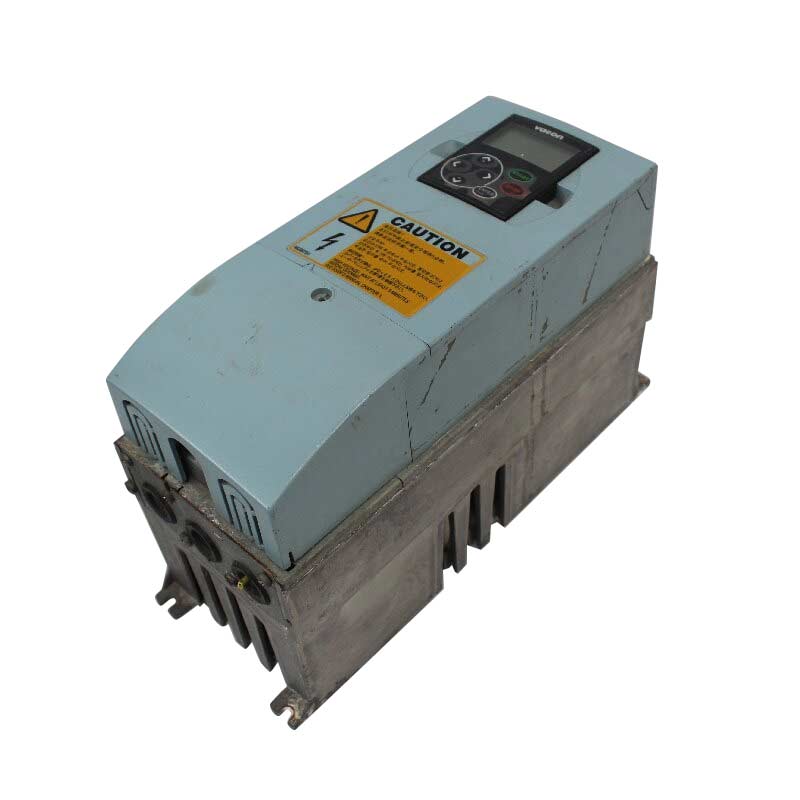

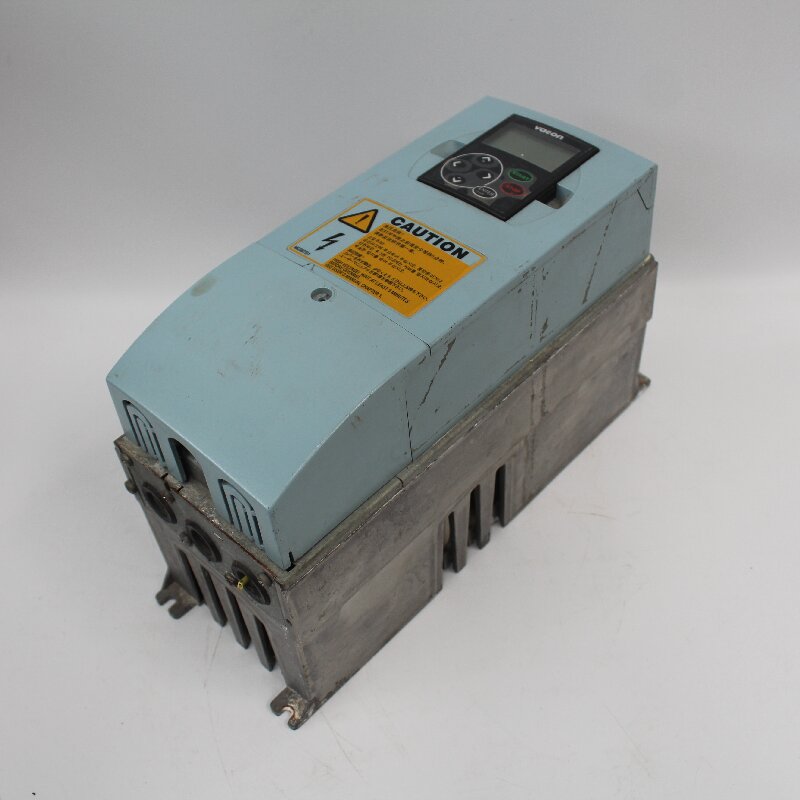

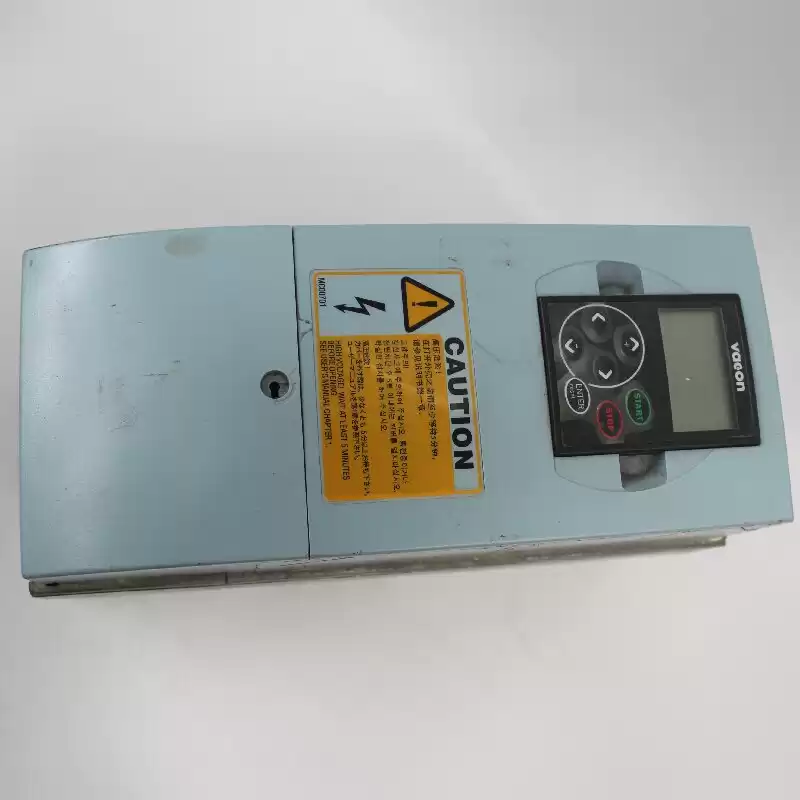

Vacon NXL00055C2H1SSS0000 Inverter for 1.5kW (2HP) 400V 3 Ph motor in VxF or Sensorless Vector control to 4.3A at high overload, or 2.2kW (3HP) to 5.6A when Fan/Pump rated. Simple to set up for a standard AC Induction motor.
Frame MF4 - 128mm Wide x 190mm Deep x 292mm High, IP21.
Overload: 200% Output Current x 2 seconds every 20 seconds and 150% x 60 seconds every 10 minutes at High Overload
Overload: 110% Output Current x 60 seconds when Fan/Pump rated.
Speed Control Range - 0-320 Hz (standard)
Braking - To 63 Ohm minimum external resistor
